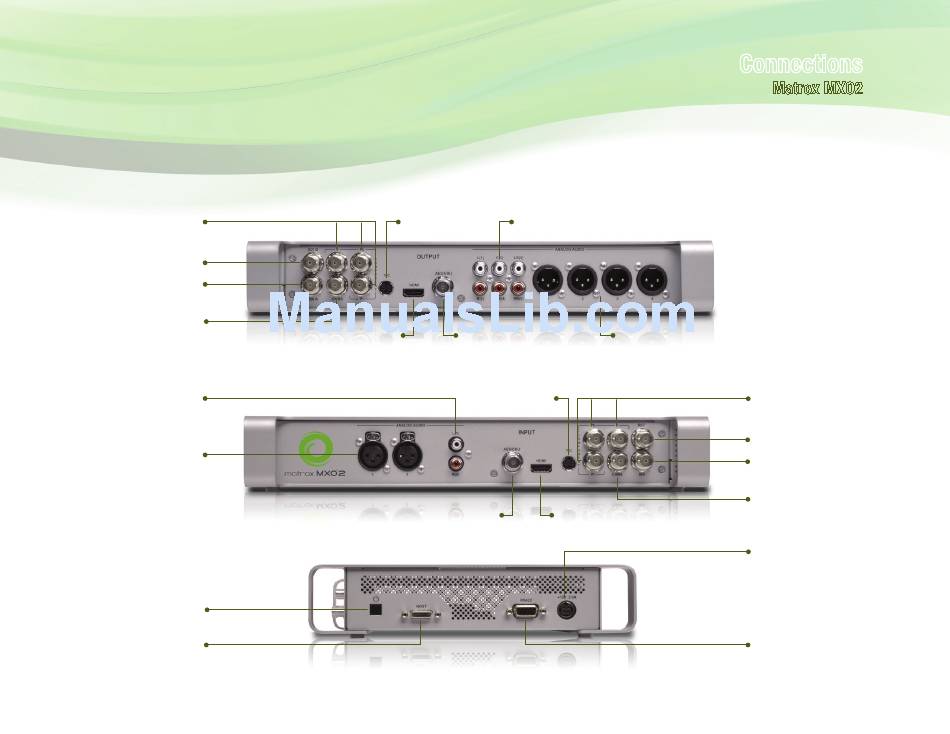

Matrox MXO2 Connections - Outputs
Analog component
HD/SD
Two SDI – HD/SD with up to 8
channels of embedded audio
per output
Composite
Matrox MXO2 Connections - Inputs
RCA - 2 channels of
unbalanced audio
XLR - 2 channels of
balanced audio
Power switch
Host interface
Y/C – S-Video
HDMI – HD/SD with up to 8
AES/EBU – 2 channels via a single
channels of embedded audio
BNC connector
AES/EBU – 2 channels via a single
BNC connector
RCA – 6 channels of unbalanced audio
(for surround sound monitoring)
XLR – 4 channels of balanced
audio
Y/C – S-Video
HDMI – HD with up to 8
channels of embedded audio
connections
Matrox Mxo2
Analog component – HD/SD
Genlock – bi-level and
tri-level genlock via a single
BNC connector
SDI – HD/SD with up to 8
channels of embedded audio
Composite
Power connector
(Matrox MXO2 battery power
cable sold seperately)
RS422
Matrox MXO2 Family for PC Product Guide
