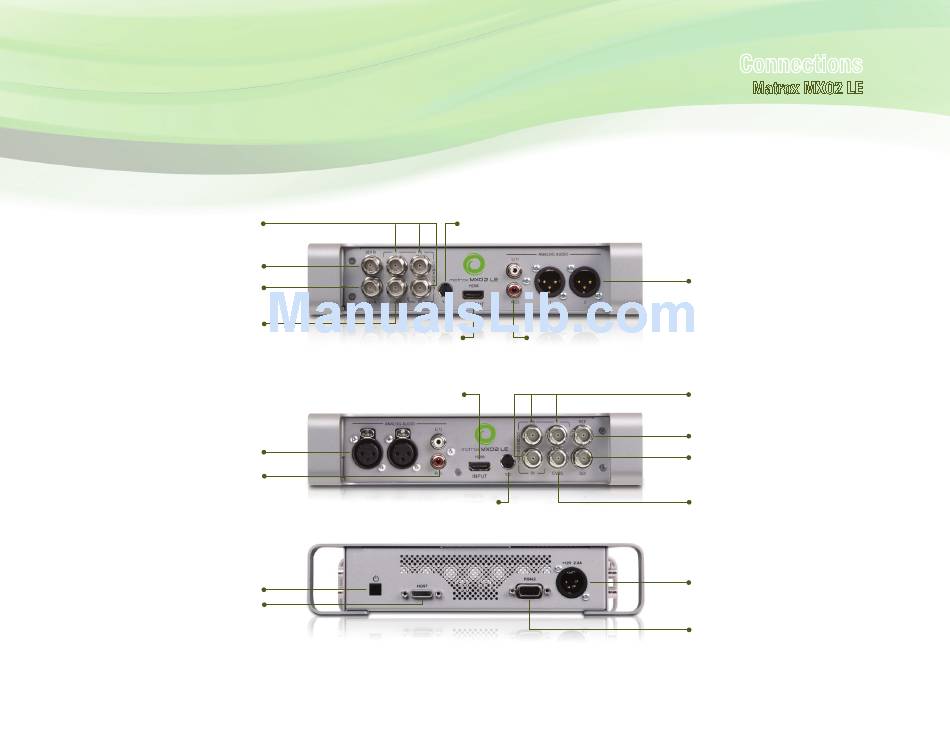

Matrox MXO2 LE Connections - Outputs
Analog component
HD/SD
Two SDI – HD/SD with up to 8
channels of embedded audio
per output
Composite
Matrox MXO2 LE Connections - Inputs
XLR - 2 channels of balanced audio
RCA - 2 channels of
unbalanced audio
Power switch
Host interface
Y/C – S-Video
HDMI – HD/SD with up to 8 RCA - 2 channels of
channels of embedded audio unbalanced audio
HDMI – HD with up to 8
channels of embedded audio
Y/C – S-Video
connections
Matrox Mxo2 lE
XLR - 2 channels of
balanced audio
Analog component
HD/SD
Genlock – bi-level and
tri-level genlock via a single BNC connector
SDI – HD/SD with up to 8
channels of embedded audio
Composite
Power connector
(connects directly to standard field batteries
or the included AC power adapter)
RS422
