維護 疑難解答 使用下表檢查問題,並嘗試針對每個問題解決。 問題 可能的原因 可能的補救措施 a. 沒有插緊電源。 a. 重新插入插座。 烤箱無法啟動 b. 爐門未關。 b. 關閉爐門重試。 c. 錯誤操作。 c. 檢查說明 a. 僅使用適用於蒸氣焗爐的用具。 a. 使用了不適用於蒸氣焗爐的用具。 b. 不要空著運作蒸氣焗爐。 電弧或火花 b. 蒸氣焗爐空著運作。 c. 用濕毛巾清潔爐腔。 c. 濺出的食物殘留爐腔。 a. 僅使用適用於蒸氣焗爐的用具。 a. 使用了不適用於蒸氣焗爐的用具。 b. 徹底解凍食物。 b. 食物沒有完全解凍。 煮得不均勻的食物...
Page 37
維護 規格 容量 蒸氣烤焗 2100-2250W 外形尺寸 220-230V~50Hz 額定電壓 / 頻率 472x510x375 mm (闊 x 深 x 高) 爐腔尺寸 1500-1600W 熱風對流功率 410x325x230 mm (闊 x 深 x 高) 1800-1950W 原味純蒸功率 淨重 16.8 kg 1500-1600W 上管燒烤 功率 產品尺寸為闊 × 深 × 高,總深度包括把手長度和背板拉展長度,高度數 值包括爐腳。...
Page 39

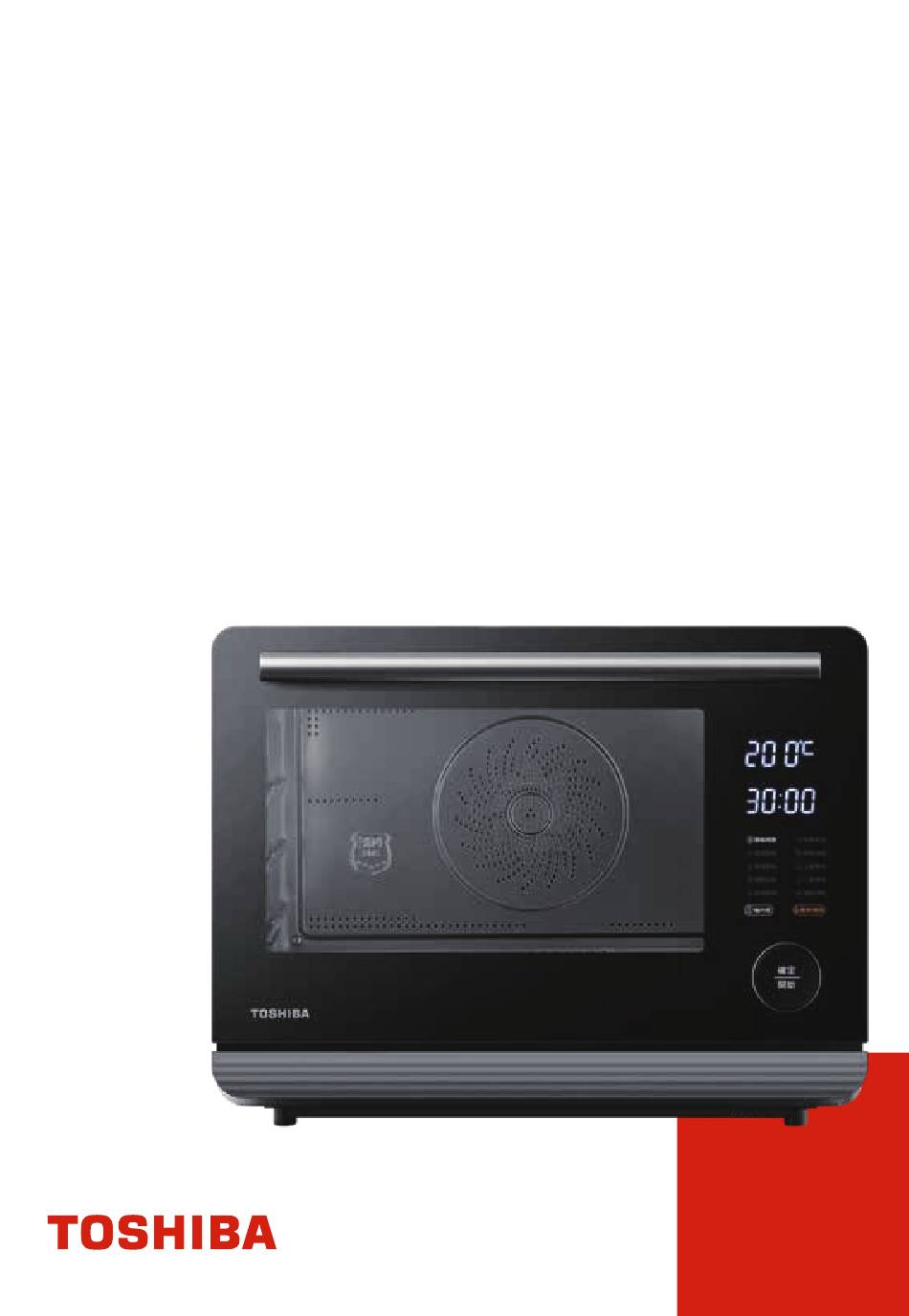

USER MANUAL STEAM OVEN MS5-TR30SC (BK) Please review this instruction manual before operating.
Page 40
CONTENTS PRODUCT SAFETY ............................EN-4 PRECAUTIONS ................EN-5 IMPORTANT SAFETY INSTRUCTIONS WARNING ......................EN-8 GROUNDING INSTALLATION PRODUCT INTRODUCTION ........................EN-10 SETTING UP YOUR OVEN ............... EN-11 IMPORTANT INFORMATION ABOUT INSTALLING ......................EN-12 ATTENTION IN PLACEMENT ............................EN-14 INITIAL USE CLEANING AND CARE ..........................EN-16 WATER BOX USE ................EN-17 CLEANING AND MAINTENANCE PRECAUTIONS INSTRUCTION FOR USE...
Page 41
............EN-32 10. AUTO MENU (02-03,05-07,09-17,24,33-36) – PREHEAT .............EN-33 10. AUTO MENU (01,04,08,18-23,25-32) – NO PREHEAT .....................EN-34 10. AUTO MENU (37-40) -CLEANING ........................EN-35 10. AUTO MENU SETTING ............................EN-37 OVEN LIGHT ......................EN-37 CHILDREN LOCK FUNCTION .........................EN-38 SIGNAL INDICATION ........................EN-39 OTHER IMPORTANT TIPS MAINTENANCE ........................EN-40 TROUBLE SHOOTING...
PRODUCT SAFETY PRECAUTIONS (a) Do not attempt to operate this oven with the door open. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
PRODUCT SAFETY IMPORTANT SAFETY INSTRUCTIONS WARNING your appliance, follow basic precautions, including the following: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision orinstruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 44
PRODUCT SAFETY IMPORTANT SAFETY INSTRUCTIONS WARNING This appliance is intended to be used in household and similar applications such as: -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments. The appliance shall not be cleaned with a steam cleaner. WARNING: Accessible parts may become hot during use.
Page 45
PRODUCT SAFETY IMPORTANT SAFETY INSTRUCTIONS WARNING Do not use paper cups and plastic containers with a temperature resistance of less than 120 degrees.And use a container suitable for cooking temperature.Can use glass, ceramics, stainless steel utensils. Steam is the main heating function for this product. a normal phenomenon as part of the factory test.
PRODUCT SAFETY TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION Electric Shock Hazard DANGER Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. Electric Shock Hazard WARNING Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
Page 47
PRODUCT SAFETY TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION 1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. 2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
PRODUCT INTRODUCTION SETTING UP YOUR OVEN NAMES OF OVEN PARTS AND ACCESSORIES Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Heat insulation Steaming tray Baking tray Instruction Gloves Manual (Can only be used in (Can be used in convection pure steam function)
PRODUCT INTRODUCTION IMPORTANT INFORMATION ABOUT INSTALLING This appliance is NOT intended for use in a commercial environment. Please observe the installation instructions provided and note that properly installed earthed socket. In case a new socket is needed, installation and cable connection accessible following installation, a pole disconnecting device must be present on the installation site with a contact gap of at least 3 mm.
PRODUCT INTRODUCTION ATTENTION IN PLACEMENT In order to avoid the oil and smoke discharged from the exhaust the cooking process, the steam oven should be kept at a certain distance from walls and cabinets. Please place it at a safe distance as indicated in ≥...
Page 51
PRODUCT INTRODUCTION ATTENTION IN PLACEMENT Notes product. This product is a desktop product, and it is forbidden to be used as a built-in product. EN-13...
PRODUCT INTRODUCTION INITIAL USE Please read the User’ s Guide carefully before use and keep it properly for future reference. into the suction vent, exhaust port, and louver in the rear side of the steam oven. Otherwise, it may cause electric shock or injury. If any foreign object is inserted into the product by accident, please unplug the power cord and contact our customer service center.
Page 53
PRODUCT INTRODUCTION INITIAL USE 1. Open the door of the steam oven, take out everything, and then close the door. *Note: If water stains are found in the furnace, it is still normal, because the product has been tested for 2.
CLEANING AND CARE WATER BOX USE Take out/reload Clean water box Waste water box Uncover the water lid Uncover the rubber ring, add to clean, or drain the a proper amount of room- temperature boiled water, remaining water. cover the rubberring and 1.
CLEANING AND CARE CLEANING AND MAINTENANCE PRECAUTIONS Oven door and enclosure mild soap and then wipe with a slightly damp cloth; -WARNING Do not clean with much water, or water may rust the appliance and cause damage; Vapor vent -Wipe with a slightly damp cloth. After steam cooking, there will be white marks (dissolvable substances in the water) near the vapor vent.
Page 56
CLEANING AND CARE CLEANING AND MAINTENANCE PRECAUTIONS Wipe the enclosure with a cloth dampened with a soft detergent (such as detergent), then wipe it. with a damp cloth, and. Finally wipe it with a dry cloth. Do not wipe the product with a hard object such as a wire brush.
Page 57
CLEANING AND CARE CLEANING AND MAINTENANCE PRECAUTIONS Do not use coarse scrubbing agent or sharp metal scraper to clean the glass of the oven door, which may cause the glass to shatter. Do not put the power cord and plug directly on the outer cover, so as to prevent the residual heat of the outer cover from damaging the power cord.
INSTRUCTION FOR USE MENU SUMMARY CHART Default Default Temperature Time Menu Temperature Description Time(min) Range Range (°C) power Steam 1~120mins 80~100°C Suitable for home cooking food such as meat, steamed eggs and buns Steaming the food in a short time with high heat power to keep the High Temp.
INSTRUCTION FOR USE 1.COOKING FUNCTION-STEAM In waiting state, turn the knob right to select the cooking mode. 8 modes are available. Turn the knob to set the temperature which should be within "80-100°C " , the default temperature is 100°C. Turn the knob to set the time which should be within "1-120minutes "...
INSTRUCTION FOR USE 2.COOKING FUNCTION-HIGH TEMP. STEAM In waiting state, turn the knob right to select the cooking mode. 8 modes are available. Choose the "High Temp. Steam" menu, "High Temp. Steam" will Turn the knob to set the temperature which should be within "100-140°C "...
INSTRUCTION FOR USE 3.COOKING FUNCTION-STEW In waiting state, turn the knob right to select the cooking mode. 8 modes are available. 燉 Turn the knob to set the temperature which should be within "35-100°C " , the default temperature is 100°C. Turn the knob to set the time which should be within "1min-5hrs "...
INSTRUCTION FOR USE 4.COOKING FUNCTION-CONVECTION In waiting state, turn the knob right to select the cooking mode. 8 modes are available. Turn the knob to set the temperature which should be within "100-230°C " , the default temperature is 180°C. Turn the knob to set the time which should be within "1-120minutes "...
INSTRUCTION FOR USE 5.COOKING FUNCTION-COMBI. In waiting state, turn the knob right to select the cooking mode. 8 modes are available. Turn the knob to set the temperature which should be within "100-230°C " , the default temperature is 190°C. Turn the knob to set the time which should be within "1-120minutes "...
INSTRUCTION FOR USE 6.COOKING FUNCTION-CONVECTION GRILL In waiting state, turn the knob right to select the cooking mode. 8 modes are available. Turn the knob to set the temperature which should be within "100-230°C " , the default temperature is 1 0°C. Turn the knob to set the time which should be within "1-120minutes "...
INSTRUCTION FOR USE 7.COOKING FUNCTION-GRILL In waiting state, turn the knob right to select the cooking mode. 8 modes are available. Turn the knob to set the temperature which should be within "100-200°C " , the default temperature is 180°C. Turn the knob to set the time which should be within "1-120minutes "...
INSTRUCTION FOR USE 8.COOKING FUNCTION-FERMENTATION In waiting state, turn the knob right to select the cooking mode. 8 modes are available. Turn the knob to set the temperature which should be within "30-45°C " , the default temperature is 35°C. Turn the knob to set the time which should be within "1min-12hrs "...
INSTRUCTION FOR USE 9.PREHEAT FUNCTION In waiting state, turn the knob right to select the preheating function. Turn the knob to set the temperature which should be range "100-230°C " , the default temperature is 180°C. The buzzer will sound three times to remain that the preheating meanwhile.
Page 69
INSTRUCTION FOR USE 9.PREHEAT FUNCTION Turn the knob to set the temperature. Turn the knob to set the time. • When the preheating temperature has not been reached within 30 minutes, the buzzer will sound three times to force the preheating to complete and enter the heat preservation stage NOTE •...
INSTRUCTION FOR USE 10.AUTO MENU – PREHEAT (02-03,05-07,09-17,24,33-36) In waiting state, turn the knob right to select the "Auto Menu" mode. Turn the knob to select the desired menu.(e.g Auto Menu 02) Turn the knob to set the cook time of the homologous menu. (Can skip this step) indicate that the preheating is complete, put the food in the oven, and then press "Start/Confirm"...
INSTRUCTION FOR USE 10.AUTO MENU – NO PREHEAT (01,04,08,18-23,25-32) In waiting state, turn the knob right to select the "Auto Menu" mode. Turn the knob to select the desired menu. (e.g Auto Menu 01) Turn the knob to set the time. NOTES EN-33...
INSTRUCTION FOR USE 10.AUTO MENU -CLEANING (37-40) In waiting state, turn the knob right to select the "Auto Menu" mode. Turn the knob to select the desired menu. (e.g Auto Menu 37) (e.g Auto Menu 37) Tableware disinfection(Auto Menu 37) Cleaning time This function is suitable for cleaning all kinds of tableware (heat resistance higher than 100°C).
INSTRUCTION FOR USE 10.AUTO MENU SETTING Optional Default Quantity Function Function Name Place Default time Power Preheat time /weight temperature 33-49 lower Convection Roast Chicken 1100g 220°C 41 mins mins layer +Combi. French Lamb 28-41 middle Combi. 200°C 820g 35 mins Rack mins layer...
Page 74
INSTRUCTION FOR USE 10.AUTO MENU SETTING Default Optional Quantity Default time Preheat Function Function Name Place Power temperature /weight time Steamed 7-11 middle 230°C 9 mins 300g Combi. mins layer Asparagus Stewed Lamb 72-108 lower 100°C 90 mins Chops with 2000g Steam mins...
INSTRUCTION FOR USE OVEN LIGHT oven lamp, so that you can observe the food in the oven at any time. CHILDREN LOCK FUNCTION You can use this function to prevent children from accidentally turning the oven on. To activate the lock: In waiting state, press and hold "...
INSTRUCTION FOR USE SIGNAL INDICATION Oven If “F01”appears, it indicates that the oven chamber temperature is higher than the functional temperature range, and the product can overheat be used only after it is cooled down. Water If “F02” appears,and 5 beep sounds, it indicates that the clean water box is short of water or not installed in place.Please add shortage water to clean water box until reach "MAX"...
INSTRUCTION FOR USE OTHER IMPORTANT TIPS When baking food in the oven, please spread tin foil on the baking tray, and then put the food on it. Please do not directly stain the baking tray with acidic substances, such as vinegar, lemon and juice. After using of the steaming function, it is recommended to open the oven door, which is helpful to remove the accumulated water.
MAINTENANCE TROUBLESHOOTING Check your problem by using the chart below and try the solutions for each problem. Trouble Possible Cause Possible Remedy a.Electrical cord for oven is not plugged in. a.Plug into the outlet. Oven will not start b.Door is open. b.Close the door and try again.
MAINTENANCE PRODUCT PARAMETERS Volume Combination power 2100-2250W Rated voltage/ Overall dimensions 220-230V~50Hz 472x510x375 mm frequency (width x depth x height) Convection Oven cavity dimensions 1500-1600W 410x325x230 mm power (width x depth x height) Steam power 1800-1950W Net weight of product 16.8 kg Grill power 1 00-1 0W...
