Xylem JABSCO A53D Installation

ACCESSORY CABLES
43990-0013 = 10 FT.
43990-0014 = 15 FT.
43990-0015 = 25 FT.
43990-0016 = 35 FT.
43990-0028 = 50 FT. BULK
1. Install searchlight and primary control per product data sheet.
2. Install station selector panel (43683-0000) near (1 foot radius) primary control (flybidge or lower station).
3. Route secondary control cable from station selector panel to secondary control (cable must be
acquired separately).
4. Install secondary control (43670-0003) by cutting a 2-5/8" diameter hole in flat surface where control is to be
mounted. Use bedding compound or sealant to waterproof control mounting.

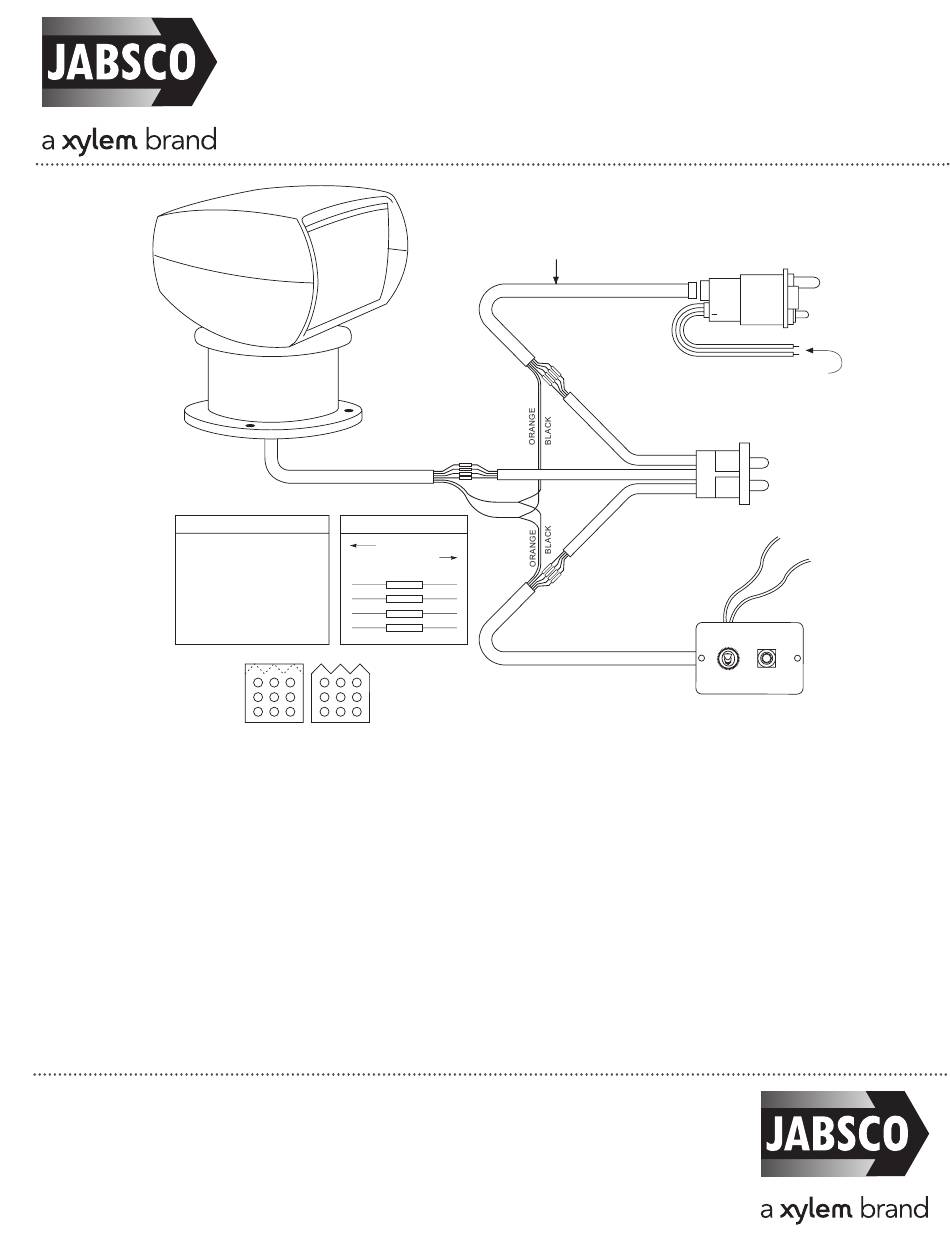

5. Wiring Connections:
• Cut off female plug (see diagram) on secondary control cable, strip wires back.
• Connect positive (+) power lead to red (+) wire and negative (–) power lead to the black (–) wire on the
primary control. Repeat with separate power leads to secondary control using the terminals provided.
• Connect the orange and black wires from the light cable to the orange and black wires from both the
primary and secondary controls.
• Connect the remaining wires per the wiring code and diagram above.
6. Secure controls with self-tapping screws provided.
www.jabsco.com
© 2014 Xylem Inc. All right reserved.
Jabsco is a trademark of Xylem Inc. or one of its subsidiaries.
43000-0547 Rev. C 10/2014
WIRING CODE
TO CABLE
TO CONTROL
YEL
BLU
GRN
BRN
CONNECTORS
FEMALE MALE
Jabsco, 100 Cummings Center, Ste. 535-N, Beverly, MA 01915
Tel: +1 978 281 0440
Jabsco, Bingley Road, Hoddesdon, Hertfordshire, EN11 0BU
Tel: +44 (0) 1992 450 145
NHK Jabsco Co Ltd, 3-21-10, Shin - Yokohama Kohoku-ku, Yokohama 222
Tel: +81 (0) 45 475 8906
Jabsco GmbH, Oststraße 28, 22844 Norderstedt
Tel: +49 (0) 40 53 53 73 0
Jabsco Italia, s.r.l., Via Tommaseo, 6, 20059 Vimercate, Milano
Tel: +39 039 685 2323
DUAL STATION INSTALLATION KIT
SECONDARY CONTROL CABLE
MUST BE AQUIRED SEPARATELY
(SEE CABLE LISTING).
BLACK
ORANGE
Cut off connectors
YEL
BLU
GRN
PUR
Fax: +1 978 283 2619
Fax: +44 (0) 1992 467 132
Fax: +81 (0) 45 475 8908
Fax: +49 (0) 49 53 53 73 11
Fax: +39 039 666 307
43670-0005
FLYBRIDGE CONTROL
43670-0003
+
INPUT LEADS SUPPLIED
BY CUSTOMER (16 GA.)
STATION SELECTOR
PANEL
43683-0000
BLACK (–)
RED (+)
PRIMARY STATION
60030-0000
USA
UK
JAPAN
GERMANY
ITALY
