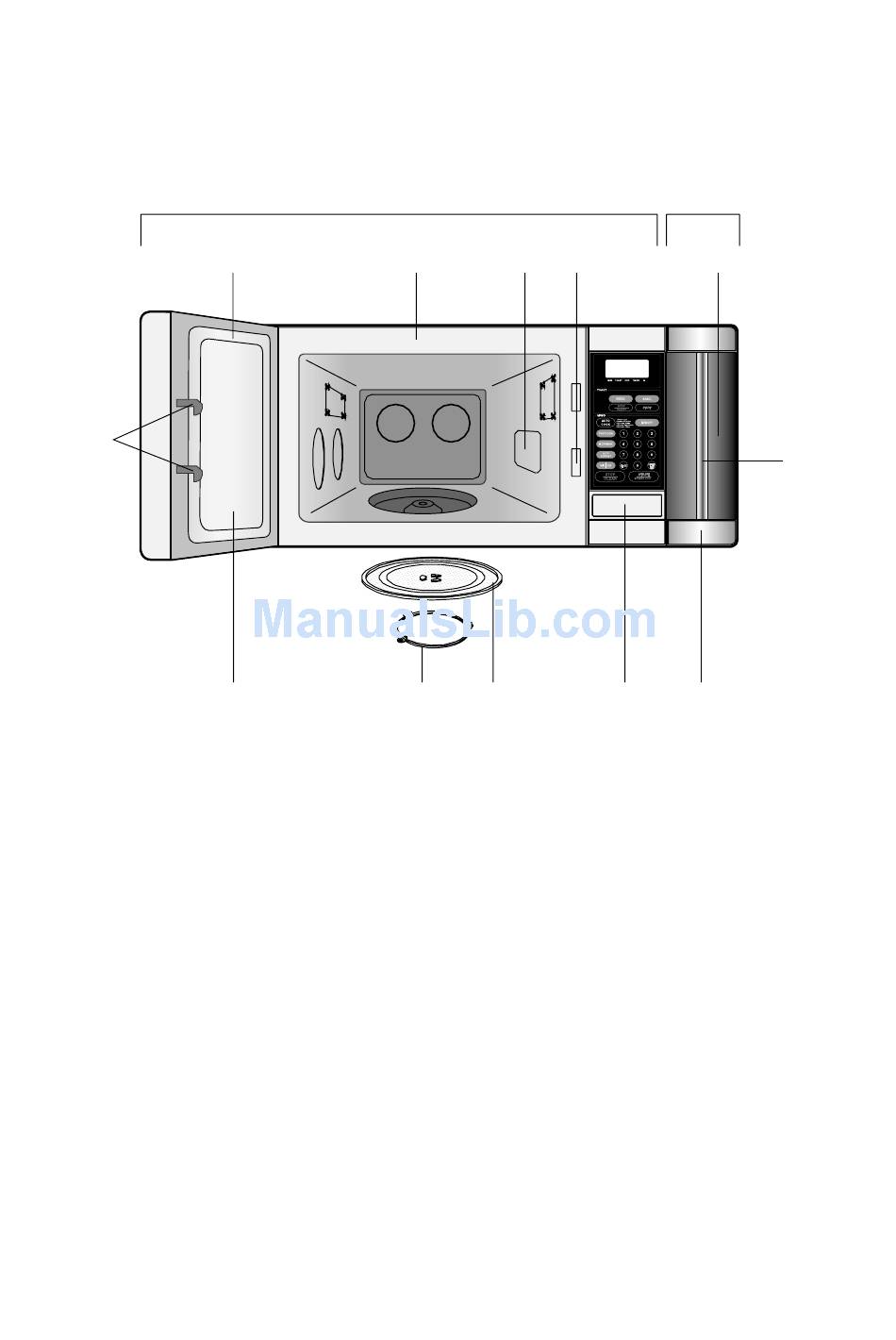

FEATURES DIAGRAM

1
1 1 Door latch - When the door is closed it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will automatically shut off.
2 2 Door seal - The door seal maintains the
microwave within the oven cavity and
prevents microwave leakage.
3 Oven cavity 3
4 Spatter shield - Protects the microwave 4
outlet from splashes of cooking foods.
5 5 Safety interlock system - Prevents the oven
from operating while the door is opened.
MICROWAVE OVEN
2
9
3 4 5
8 7
6 6 Door release button - Pushing this button
stops oven operation and opens the door.
7 Glass cooking tray - Made of special heat 7
resistant glass. The tray must always be in
proper position before operating.
Do not cook food directly on the tray.
8 Roller guide - Supports the glass cooking tray. 8
9 Door screen - Allows viewing of food. 9
The screen is designed so that light can pass
through, but not the microwaves.
0 0 Toaster drawer
q Toaster opening handle q
w w Crumb Tray(refer. page10)
7
TOASTER
0
6 w
q
