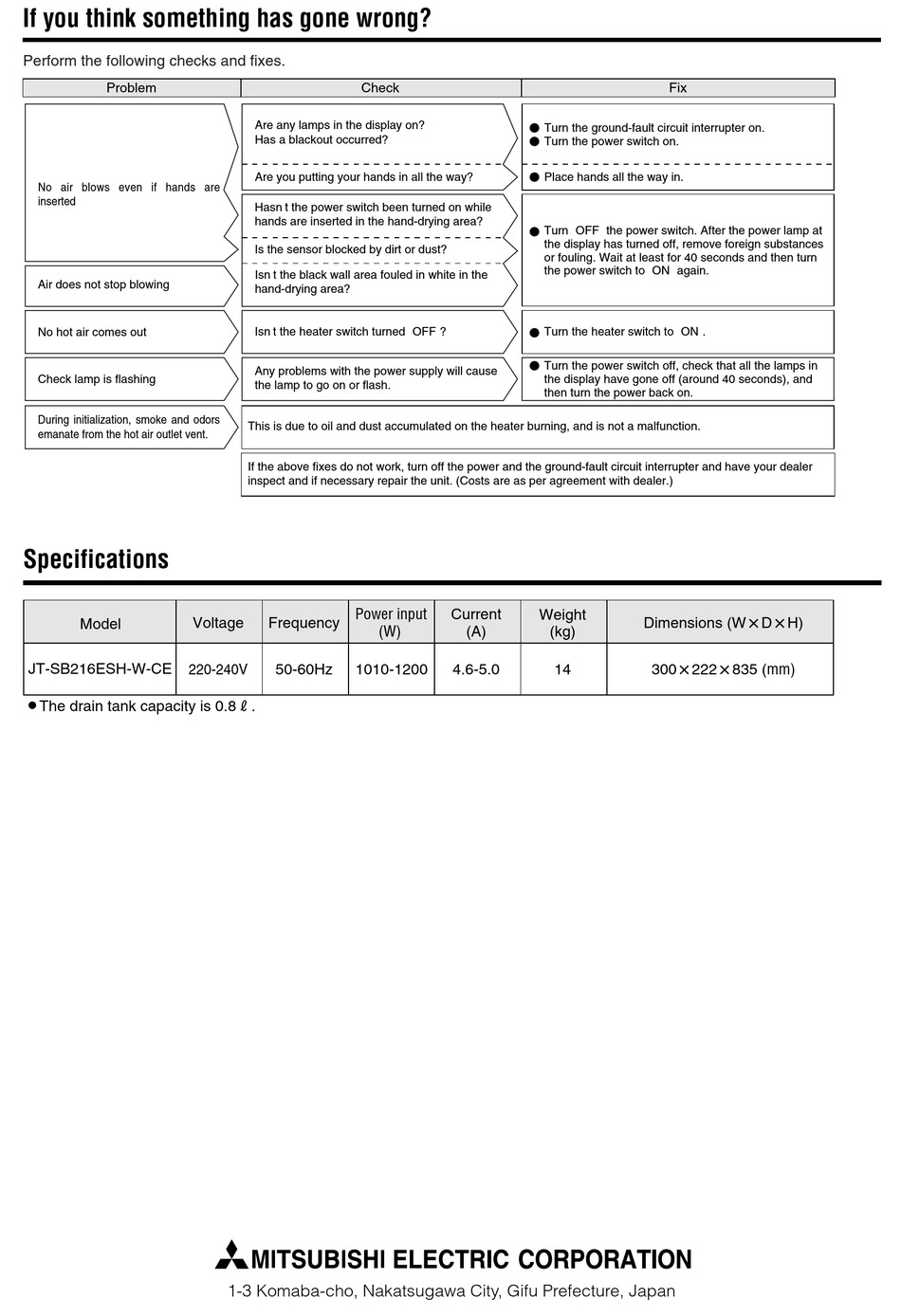

If you think something has gone wrong?
Perform the following checks and fixes.
Problem
No air blows even if hands are
inserted
Air does not stop blowing
No hot air comes out
Check lamp is flashing
During initialization, smoke and odors
emanate from the hot air outlet vent.
Specifications
Voltage
Model
JT-SB216ESH-W-CE
220-240V
● The drain tank capacity is 0.8R.
Check
Are any lamps in the display on?
Has a blackout occurred?
Are you putting your hands in all the way?
Hasn t the power switch been turned on while
hands are inserted in the hand-drying area?
Is the sensor blocked by dirt or dust?
Isn t the black wall area fouled in white in the
hand-drying area?
Isn t the heater switch turned OFF ?
Any problems with the power supply will cause
the lamp to go on or flash.
This is due to oil and dust accumulated on the heater burning, and is not a malfunction.
If the above fixes do not work, turn off the power and the ground-fault circuit interrupter and have your dealer
inspect and if necessary repair the unit. (Costs are as per agreement with dealer.)
Power input
Frequency
(W)
50-60Hz
1010-1200
1-3 Komaba-cho, Nakatsugawa City, Gifu Prefecture, Japan
Turn the ground-fault circuit interrupter on.
Turn the power switch on.
Place hands all the way in.
Turn OFF the power switch. After the power lamp at
the display has turned off, remove foreign substances
or fouling. Wait at least for 40 seconds and then turn
the power switch to ON again.
Turn the heater switch to ON .
Turn the power switch off, check that all the lamps in
the display have gone off (around 40 seconds), and
then turn the power back on.
Current
Weight
(A)
(kg)
4.6-5.0
14
Fix
Dimensions (W D H)
300 222 835 (mm)
