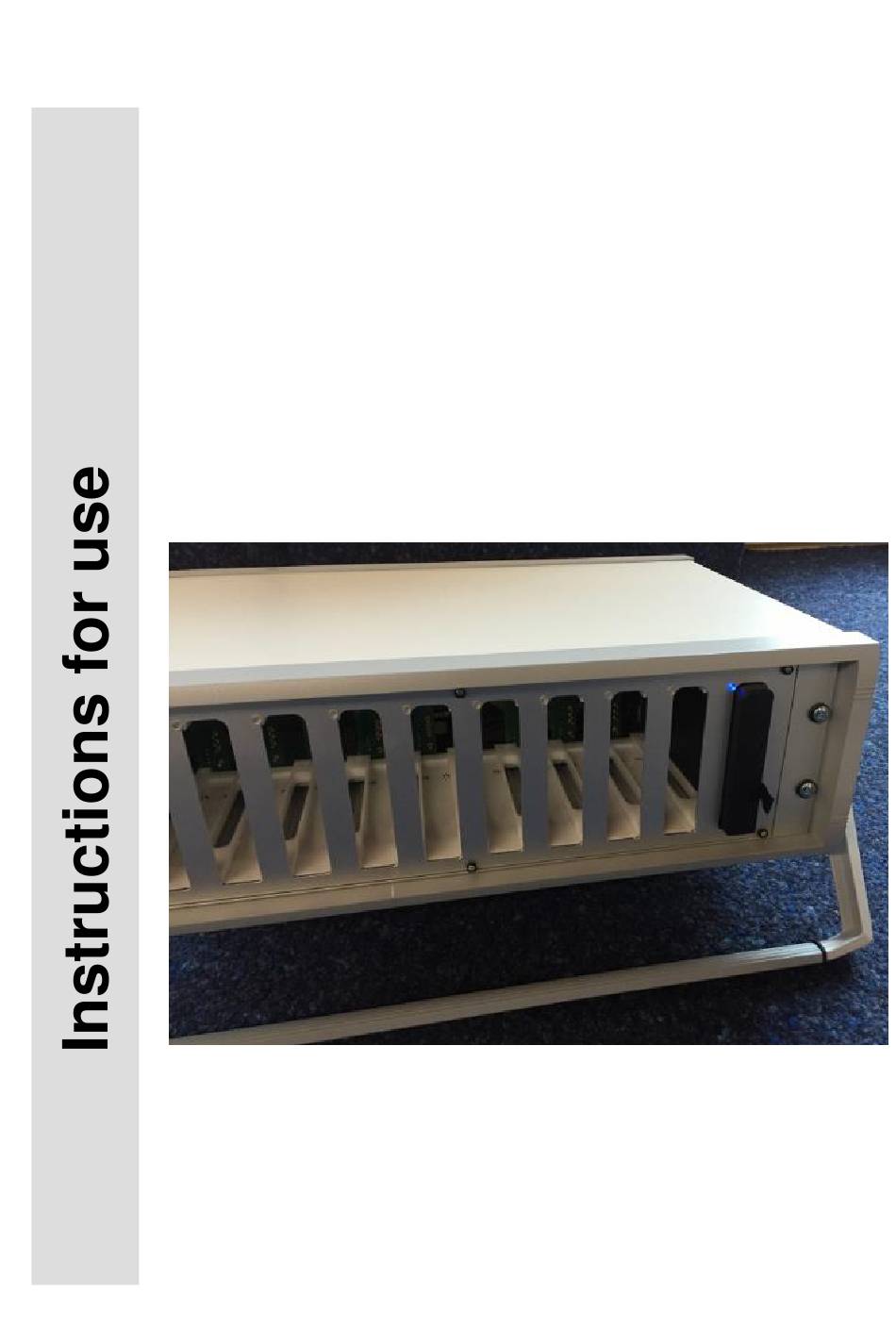

- Page 1 ® Docon Multicharger 10-bay quick charger...
- Page 2 IMPORTANT READ CAREFULLY BEFORE USE KEEP THESE INSTRUCTIONS FOR FUTURE CONSULTATION © Möller Medical GmbH All rights reserved. No part of this document may be reproduced or translated in any form or by any means without the prior written permission of Möller Medical GmbH. The latest version of the information, specifications and illustra- tions provided in these instructions for use is indicated by the version number on the last page.
-
Page 3: Table Of Contents
Proper use - intended use ................9 Combination with other products ..............9 Product description ..................10 Docon7 Multicharger charging bay ..............10 ON/OFF switch and connection options ............10 Device feet and grip ..................11 Status display ....................11 Cooling ...................... - Page 4 Charging the battery ..................14 Storage conditions ..................14 Troubleshooting ..................15 Service ......................16 Care ......................18 Cleaning and disinfection of the Docon7 Multicharger ........18 Service ......................18 Service documents ................ 18 Transport....................... 18 Disposal ......................19 Annex ......................20 Technical data ....................
-
Page 5: General Safety Instructions
Docon7 Multicharger General safety instructions 1 General safety instructions Explanation of the safety symbols used In these operating instructions visual symbols are used to highlight important instructions. Ob- serving these instructions is the prerequisite for preventing hazards to patients and operating personnel, as well as for avoiding damage to or malfunctioning of the device. -
Page 6: Explanation Of The Conventions Applied
Docon7 Multicharger General safety instructions Keep dry Limitation Temperature limitation Manufacturer Fragile, handle with care Further information on the symbols used can be found on our homepage: www.moeller- medical.com/glossary-symbols The performance, safety and electromagnetic compatibility of the device may be affected by the use of non-original parts. -
Page 7: Manufacturer's Liability
Owner's duty of care The owner of the device must accept responsibility for the proper operation of the device. Whenever the Docon7 Multicharger is handled and used, detailed acquaintance and com- pliance with these instructions for use is essential. Performance and safety may be impaired if OEM device parts are not used. - Page 8 If excessive heat, fumes or smoke are noticed, immediately disconnect the Do- con7 Multicharger from the power supply. Do not extinguish the Docon7 Multicharger with water in the event of fire. Do not block the rear of the device around the fans either directly or indirectly, sufficient air circulation and heat dissipation must be ensured.
-
Page 9: Purpose
The Docon7 Multicharger is used to recharge the Docon7 lithium ion batteries (93005614). The Docon7 Multicharger can accommodate up to 10 batteries at a time. The charge status is displayed visually. Defective batteries are detected and this is also indicated visually. Once charging is complete, the charger automatically switches to trickle charging. -
Page 10: Product Description
The bays are equipping an anti-twist guard for increased safety when inserting the batteries. ON/OFF switch and connection options The Docon7 Multicharger is switched on and off using the switch at the back of the device. There is also a AC connection socket at the back (IEC socket). The mains cable is plugged into this to supply the Docon7 Multicharger with the required operating voltage. -
Page 11: Device Feet And Grip
Alternatively, the grip can be used as a stand. If the device is at a low operating height, the charging bays can be easily accessed and the status LEDs are easier to see. The Docon7 Multicharger can be transported using the carrying grip when there are no bat- teries in the charging bays. -
Page 12: Installation And Start-Up
620 mm x 450 mm x 300 mm Unpacking the device and inspecting scope of delivery On delivery, the Docon7 Multicharger consists of the device itself, a connecting cable, the instructions for use and a cardboard packaging. When unpacking ensure that no parts are left in the packaging. -
Page 13: Connecting
Switching on 1. To switch the Docon7 Multicharger on, press the ON switch at the back of the device. 2. All 10 LEDs on the front of the device will then light up red and the Docon7 Mul- ticharger is ready for use. -
Page 14: Application And Operation
The charge time for empty batteries is approx. 4.5h. If the respective LED on the Docon7 Multicharger is red and not green after charging, either the charging device or the battery itself could be defective. (See Troubleshooting, page 15). -
Page 15: Troubleshooting
Several remedies may be possible for each fault. The suggested solutions should be per- formed in the stated order until the fault is remedied. The Docon7 Multicharger must always be switched off when connecting and disconnecting plug connections. If the solutions listed below do not remedy the fault, contact the Möller Medical Service Centre. -
Page 16: Service
Docon7 Multicharger Service 7 Service The Docon7 Multicharger may not be opened by user. Service measures may only be performed by service teams that have received appropriate training from the manufacturer. Only send cleaned and disinfected devices to the service team. - Page 17 Docon7 Multicharger Service Manufacturer Möller Medical GmbH Wasserkuppenstr. 29-31 36043 Fulda, Germany Tel: +49 (0) 661 / 9 41 95-0 Fax: +49 (0) 661 / 9 41 95-850 http://www.moeller-medical.com Email: info@moeller-medical.com Service Tel.: +49 (0) 661 / 9 41 95-108 Fax: +49 (0) 661 / 9 41 95-850 E-mail: service@moeller-medical.com...
-
Page 18: Care
The Docon7 Multicharger may only be transported as per the conditions of transport (see Technical data on page 20). If the Docon7 Multicharger is sent to the service team, it must be packed in its original pack- aging as this provides the device with the best possible protection from external damage. -
Page 19: Disposal
It may not be thrown. If condensation forms after the device is transported in the cold and set up in a warm room, the Docon7 Multicharger should not be switched on until the condensation has evaporated. Please keep a special lookout for any condensation on the connection sockets. -
Page 20: Annex
With carrying grip 575 mm x 450 mm x 171 mm Weight [kg]: 7000 g Energy value: 1 J with load from impact Electrical connection input of the Docon7 Multicharger Voltage: 230 V AC Frequency: 50 Hz Power: 300 VA Output 25.2 V DC, 1 A... -
Page 21: Electromagnetic Emissions
Electromagnetic emissions The Docon7 Multicharger is intended for use in the electromagnetic environment specified below. The customer or the operator of the Docon7 Multicharger should ensure that it is being operated in an environment of this kind. Measurement of emitted... -
Page 22: Electromagnetic Resistance
Annex Electromagnetic resistance The Docon7 Multicharger is intended for use in the electromagnetic environment specified below. The customer or the operator of the Docon7 Multicharger should ensure that the equipment is used in a compliant environment. Interference re- IEC 60601 - testing... - Page 23 Docon7 Multicharger Annex Interference re- IEC 60601 - testing Electromagnetic environment / Conformity level sistance test level Guidelines Conducted HF interfer- 10 V ence in accordance 150 kHz to 80 MHz with IEC 61000-4-6 Portable and mobile RF communi- cations equipment should not be...
-
Page 24: Recommended Safety Distances
The Docon7 Multicharger is intended for use in an electromagnetic environment in which radiated RF interference is controlled. The customer or the user of the Docon7 Multicharger can help prevent electro- magnetic interference by maintaining a minimum distance between portable and mobile RF communica- tions equipment (transmitters) and the Docon7 Multicharger as recommended below, according to the maximum output power of the communications equipment. -
Page 25: Accessories
Docon7 Multicharger Annex Accessories Ordering accessories: From Möller Medical GmbH or your direct distributor Article numbers and accessories for the Docon7 Multicharger Docon7 Multicharger 00003841 Docon7 Multicharger connecting cable 93001047 Docon7 Multicharger packaging 93006509 Docon7 Multicharger instructions for use 93006517... - Page 26 Current revision 2020-02 C Order number for instruc- tions for use REF 93006517 Möller Medical GmbH Wasserkuppenstraße 29-31 36043 Fulda, Germany Tel. +49 (0) 661 / 94 19 5 – 0 Fax +49 (0) 661 / 94 19 5 – 850 http://www.moeller-medical.com info@moeller-medical.com...
