TECSYSTEM VRT600 Instruction Manual
Hide thumbs Also See for VRT600:

Advertisement

Quick Links

INSTRUCTION MANUAL
VRT600
1MN0050 REV. 3
operates with ISO9001 certified quality system
TECSYSTEM S.r.l.
20094 Corsico (MI)
Tel.: +39-024581861
Fax: +39-0248600783
http://www.tecsystem.it
R. 1.9 26/11/20
ENGLISH
"Translations of the original instructions"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VRT600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TECSYSTEM VRT600

  • Page 1 INSTRUCTION MANUAL VRT600 1MN0050 REV. 3 operates with ISO9001 certified quality system TECSYSTEM S.r.l. 20094 Corsico (MI) Tel.: +39-024581861 Fax: +39-0248600783 http://www.tecsystem.it R. 1.9 26/11/20 ENGLISH “Translations of the original instructions”...
  • Page 2: Table Of Contents

    INTRODUCTION First of all we wish to thank you for choosing to use a TECSYSTEM product and recommend you read this instruction manual carefully: You will understand the use of the equipment and therefore be able to take advantage of all its functions.
  • Page 3: Safety Requirements

    Failure to comply with these instructions can cause damages, fires or electric shock, and possible serious injuries! POWER SUPPLY The VRT600 can be supplied by 85-250Vac 50/60Hz. Before using it, make sure the power cable is not damaged, kinked or pinched. Do not tamper with the power cable. Never disconnect the unit by pulling the cable, avoid touching the pins.
  • Page 4: Accessories

    2 Motor line terminals 6 poles pitch 5 Code: 2PL0372 Screws tightening torque 0.5Nm 1MN0030 REV. 2 ATTENTION: always install the device using the terminals included in the pack. The use of terminals other than those included with the control unit might cause malfunctions. VRT600...
  • Page 5: Technical Specifications

    VRT600 TECHNICAL SPECIFICATIONS POWER SUPPLY Supply rated values 85-250 Vac 50/60 Hz INPUTS ● 1 contact enabling remote control (ENABLE) 2 motor line supply inputs 15 A max 85-250Vac 50/60Hz. ● Connections on removable terminal strips OUTPUTS ● 1 fault sensor or operating failure (FAULT) relay SPDT ●...
  • Page 6 VRT600 TECHNICAL SPECIFICATIONS TEST AND PERFORMANCE ● Dielectric strength 1500 Vac for 1 minute: supply - relay fault, supply - remote. Ambient operating temperature from –20°C to +60°C ● ● Humidity 90% non-condensing ● Housing NORYL 94 _V0 ● Absorption 7.5VA (max)
  • Page 7: Front Panel

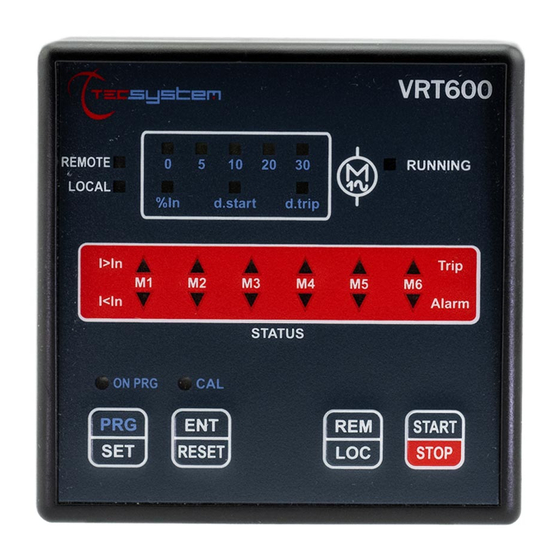

    In, d.start, d.trip) Fans' control mode REM/LOC button 16) Monitoring delay LED (yellow) at start up (REMOTE or LOCAL) d.start ENT/RESET button: alarm reset and 17) Release delay LED (yellow) d.trip programming data selection Motors' auto-tuning phase LED (yellow) VRT600...
  • Page 8: Mounting

    Drill a 92 x 92 mm hole in the panel sheet. 1MN0063 REV. 2 Panel hole dimensions (+0.8mm tolerance) Control unit Identification label Fix the unit securely with the blocks supplied. 1MN0008 REV. 0 Control unit Fixing screw Fixing block Crosshead screwdriver #1X100mm VRT600...
  • Page 9: Electrical Connections

    ELECTRICAL CONNECTIONS VRT600 ED18 1MN0050 REV.3 M4-M5-M6 motor line connection M1-M2-M3 motor line connection (5A max) OUTPUT POWERED (5A max) OUTPUT POWERED M4-M5-M6 fan line supply 85-250Vac Remote enabling contact ENABLE 15 Amp.max 50-60Hz. Control unit supply FAULT relay (fault signal) 85-250 Vac 50-60 Hz 7.5 VA...
  • Page 10: Power Supply

    POWER SUPPLY The VRT600 control unit must be supplied with 85-250Vac 50/60Hz. A variation in the network voltage of over 10% might cause alarms because of the current variation in the load. If the electrical system is affected by harmonic frequencies, alarm warnings might be triggered because of the consequent variation in the current absorbed by the motors.
  • Page 11: Programming

    ATTENTION: We recommend you check the control unit before starting the device. The default parameters set by TECSYSTEM might not suit your requirements. Programming the device is the end user’s responsibility: the set alarm thresholds and the enabled functions described in this manual must be checked (by a specialized technician) referring them to the application and system characteristics on which the control unit is installed.
  • Page 12: Warranty Conditions

    Returning used electrical devices: contact TECSYSTEM or the TECSYSTEM agent for information on the correct disposal of the devices. TECSYSTEM is aware of the impact its products have on the environment and asks its customers active support in the correct and environmentally-friendly disposal of its devices.
  • Page 13: Useful Contacts

    USEFUL CONTACTS TECHNICAL INFORMATION: ufficiotecnico@tecsystem.it SALES INFORMATION: info@tecsystem.it VRT600...
