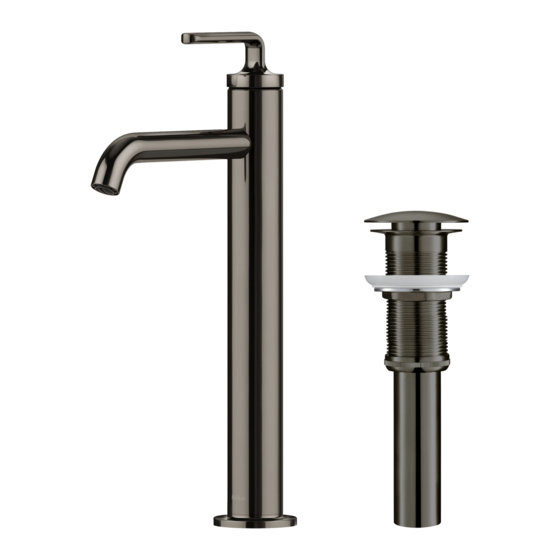

Kraus Ramus KVF-1220 Installation Manual
Single handle vessel faucet
Hide thumbs
Also See for Ramus KVF-1220:
- Installation manual (14 pages) ,
- Installation manual (14 pages) ,
- Installation manual (14 pages)
Related Manuals for Kraus Ramus KVF-1220
Summary of Contents for Kraus Ramus KVF-1220
- Page 1 INSTALLATION GUIDE Ramus™ Single Handle Vessel Faucet KVF-1220 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. NOV 17, 2021...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 Diagram and Parts List F. Mounting Nut A. Faucet Body B. Aerator G. Screws C. Flange H. Hex Wrench D. Plastic Washer I. Drain E. Metal Washer...
- Page 5 Faucet Dimension 7 3/4" [196.4mm] 6 1/4" [159.4mm] Ø2 1/4" [57.0mm] 3/8” compression Installer Tip:...
- Page 6 Drain Dimension 2 3/4" [69.0mm] Ø2 3/8" [61.1mm] G1 1/4-11 Ø1 1/4" [31.7mm] Installer Tip:...
- Page 7 Step 1: Remove washers and mounting nut Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove the mounting nut & screws (F&G), metal washer (E) and plastic washer (D) from the faucet (A). F&G Step 2: Installing the faucet Place faucet (A) through the hole in countertop.
- Page 8 Step 3: Connect waterlines to main valve Attach waterlines to angle stops and tighten until snug. Turn on angles stops and check for leaks (DO NOT TURN FAUCET ON) NOTE are installed before connecting to the main valve. Step 4: Install Press pop-up assembly Unscrew the nut (6) from the pop-up body (2), move over the tail pipe (7) and washer (5), then unscrew the...
- Page 9 Step 4: Install Press pop-up assembly Place the washer (1) underneath the flange of the pop-up body (2). Slide the pop-up body (2) down through the drain hole on the vessel or basin. From underside, slide the washer (3) against the bottom of the vessel or basin, thread on the coupling nut (4) and tighten.
-
Page 10: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # GR, BL* 1. Cover Button KP27159 2. Set Screw KP27158 SFS, MB, 3. Handle KP27157 GM, BG* SFS, MB, 4. Cap & O-ring KP27160 GM, BG* 5. Bonnet Nut KP27161 6. -
Page 11: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (5) has Remove the cover button (1). - Page 12 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 13 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 14 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
