Summary of Contents for Linn Klimax Kontrol Preamplifier
- Page 1 K l i m a x K o n t r o l O w n e r ’s M a n u a l E n g l i s h...
- Page 2 The information in this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Linn Products Limited. Linn Products Limited assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
-
Page 3: Table Of Contents
Contents Introduction Unpacking Voltage selection Cleaning Back Panel Front Panel Handset Source Setup Operation Product Lock User Options Technical Specification Guarantee and Service Important Safety Information General safety instructions UK users... CE Declaration of Conformity & FCC Notice... - Page 4 KLIMAX KONTROL...
-
Page 5: Introduction

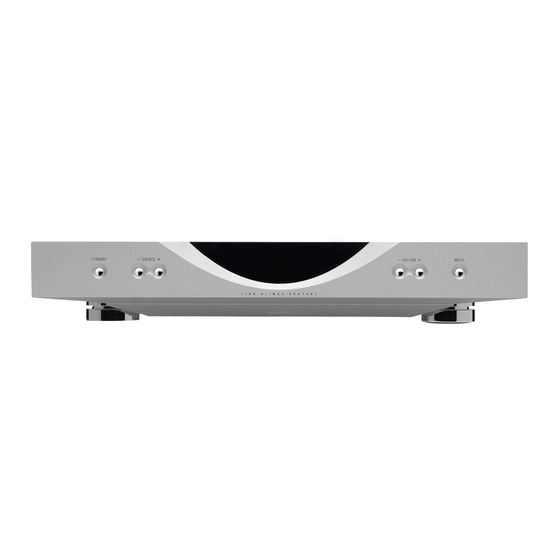

Each KLIMAX KONTROL preamplifier is unique in its manufacture. The casing of the product is precision machined from two solid sections of aluminium alloy. Due to the highest quality of machined finishes, it is often possible to see the grain of the casing. -
Page 6: Unpacking
This unit must be earthed. Use the earthed moulded mains lead supplied. Never use an unearthed plug or adaptor. Cleaning Disconnect the KLIMAX KONTROL preamplifier from the power supply before cleaning. Remove dust and fingerprints with a soft, dry cloth. Avoid using domestic cleaning products on the unit. -
Page 7: Back Panel
Back Panel RIGHT IN 4 RIGHT IN 3 RIGHT IN 2 BALANCED RIGHT IN 1 WARNING THIS APPARATUS MUST BE EARTHED PUSH SEE UNDERSIDE FOR SAFETY DETAILS RIGHT IN 4 – unbalanced input RIGHT IN 3 – unbalanced input RIGHT IN 2 – unbalanced input RIGHT IN 1 –... -
Page 8: Front Panel
Front Panel STANDBY SOURCE Front panel display STANDBY SOURCE -/+ VOLUME -/+ MUTE VOLUME MUTE... -
Page 9: Handset
Handset STANDBY CD, PH 1, PH 2, TUN, TAPE 1, TAPE 2, AUX 1 Source selection keys BAL L / BAL R Balance adjustment VOLUME - / VOLUME + RECORD See Product Lock, page 13. MONO MUTE... -
Page 11: Source Setup
Source Setup 4 Change the source type Select the source type to match the name of the key on the handset you wish to use. You can select a source type more than once if you have more than one device of the same type (e.g. two CD players) connected to the KLIMAX KONTROL. - Page 12 Source Setup 6 Change the volume offset for the source Volume offset is for adjusting the volume of a source in comparison to other sources. You may want to adjust the volume offset for a source if, for example, your tuner sounds quieter than your CD player when played at the same volume setting.
- Page 13 Source Setup 8 Change the unity gain for the source The unity gain setting lets you use the KLIMAX KONTROL in a multi-channel AV system. If you are setting up an AV processor as one of your sources and the front speakers are going to be channelled through the KLIMAX KONTROL, set unity gain to Yes.
-
Page 14: Operation
Operation This section provides general operating instructions for the KLIMAX KONTROL. Standby mode To exit or enter standby mode: Press STANDBY. Source selection Handset To switch source: Press the key for the appropriate source (e.g. CD). Note: If you have used a source type more than once (see Source Setup, page 9), repeatedly press the appropriate source key to cycle through the available sources. -
Page 15: Product Lock
Product Lock The product lock prevents any changes being made to the KLIMAX KONTROL (entering standby, changing the volume or source etc) while it is powered up (i.e. when it is not in standby mode). Note: To turn the product lock on, the unit must be powered up. To turn the product lock on: Hold MUTE on the front panel or handset until the display shows LOCK ? While LOCK ? is displayed, press RECORD on the handset. -
Page 16: User Options
User Options This section explains how you can configure certain features of the KLIMAX KONTROL to suit your requirements. Note: The unit must be in standby mode. To enter user options mode: Hold STANDBY until the front panel display shows SLEEP DISPLAY. To cycle through the user options: Repeatedly press or hold SOURCE +/SOURCE - on the front panel or BAL R / BAL L on the handset. - Page 17 Possible settings 100/(+10dB), 0/(- 100/(+10dB) GLOBAL, PER SOURCE ENABLED, DISABLED RCU, NOTHING, MOGEYE NUMERICAL, dB Linn logo, musical notes 21, range 1 (slowest) to 40 (fastest) 3, range 1 (slowest) to 10 (fastest) 15, range 0 (dimmest) to 15 (brightest)
-
Page 19: Technical Specification
Technical Specification General Dimensions Weight Power consumption Mains supply fuse Mains supply range Audio inputs Impedance (unbalanced) Signal (unbalanced) Impedance (balanced) Signal (balanced) Common mode rejection ratio Gain range Minimum to maximum Audio outputs Impedance (unbalanced) Signal (unbalanced) Impedance (balanced) Signal (balanced) Frequency response Distortion (harmonic) -
Page 20: Guarantee And Service
This product is guaranteed under the conditions which apply in the country of purchase and your statutory rights are not limited. In addition to any statutory rights you may have, Linn undertake to replace any parts which have failed due to faulty manufacture. To help us, please ask your Linn retailer about the Linn warranty scheme in operation in your country. - Page 21 Guarantee and Service Linn Products Limited Floors Road Waterfoot Glasgow G76 0EP Scotland, UK Phone: +44 (0)141 307 7777 Fax: +44 (0)141 644 4262 Helpline: 0500 888909 Email: helpline@linn.co.uk Website: http://www.linn.co.uk Linn Incorporated 8787 Perimeter Park Boulevard Jacksonville FL 32216...
-
Page 22: Important Safety Information
MAINS PLUGS This appliance is supplied with a non-rewireable mains plug for the intended country. Replacement mains leads can be obtained from your Linn retailer. Should you need to change the plug please dispose of it carefully. A plug with bared conductors is dangerous if engaged in a live socket. -
Page 23: General Safety Instructions
Important Safety Information General Safety Instructions 1. Read instructions. Read the safety and operating instructions before operating the appliance. 2. Retain instructions. Retain the safety and operating instructions for future reference. 3. Heed warnings. Observe all warnings on the appliance and in the operating instructions. 4. -
Page 24: Uk Users
Fit a new 5 Amp BS1362 approved fuse into the carrier and push the carrier back into the plug. Always ensure the fuse cover is fitted. If the fuse cover is missing do not use the plug. Contact your Linn retailer to obtain a replacement fuse cover. -
Page 25: Ce Declaration Of Conformity & Fcc Notice
CE Declaration of Conformity Linn Products Ltd declare that this product is in conformance with the Low Voltage Directive 73/23/EEC and Electromagnetic Compatibility 89/336/EEC as amended by 92/31/EEC and 93/68/EEC. The conformity of the designated product with the provisions of...
