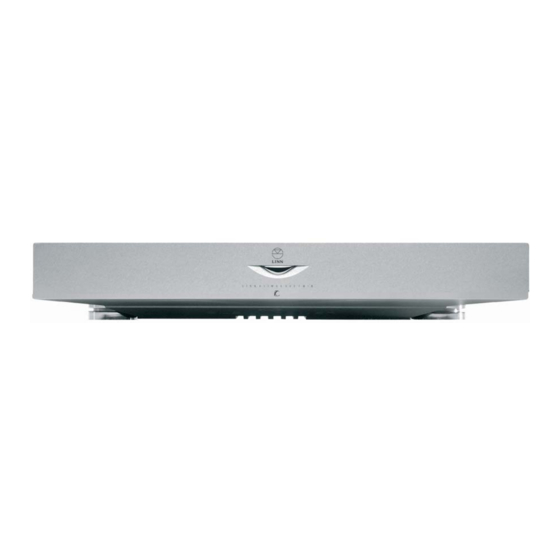

- Page 1 K L I M A X C H A K R A 5 0 0 T w i n D u a l S p e a k e r P o w e r A m p l i f i e r O w n e r ’s M a n u a l E n g l i s h...
- Page 2 Each KLIMAX CHAKRA 500 Twin power amplifier is unique in its manufacture.With its machined and hard- anodised solid casing, the KLIMAX CHAKRA 500 Twin is a referenced component which is as individual in its finish as it is in its phenomenal pitch-accurate performance.
- Page 3 MAINS PLUGS This appliance is supplied with a non-rewireable mains plug for the intended country. Replacement mains leads can be obtained from your Linn retailer. Should you need to change the plug please dispose of it carefully. A plug with bared conductors is dangerous if engaged in a live socket.
- Page 4 Important Safety Information General Safety Instructions 1. Read instructions. Read the safety and operating instructions before operating the appliance. 2. Retain instructions. Retain the safety and operating instructions for future reference. 3. Heed warnings. Observe all warnings on the appliance and in the operating instructions. 4.
- Page 5 Fit a new 5 Amp BS1362 approved fuse into the carrier and push the carrier back into the plug. Always ensure the fuse cover is fitted. If the fuse cover is missing do not use the plug. Contact your Linn retailer to obtain a replacement fuse cover.
- Page 6 CE Declaration of Conformity Linn Products Ltd declare that this product is in conformance with the Low Voltage Directive 73/23/EEC and Electromagnetic Compatibility 89/336/EEC as amended by 92/31/EEC and 93/68/EEC. The conformity of the designated product with the provisions of...
- Page 7 Printed in the United Kingdom. KLIMAX, Linn and the Linn logo are registered trade marks of Linn Products Limited. CHAKRA is a trade mark of Linn Products Limited. NEUTRIK is a registered trade mark of NEUTRIK AG.
-
Page 9: Table Of Contents
Contents Introduction Features Inside the KLIMAX CHAKRA 500 Twin Casing Power supply Audio circuitry CHAKRA explained Output current and protection Installation Heat Mains supply Operation Mains supply and performance Mains supply and output power Inputs and outputs Operation General Signal sensing... -
Page 10: Introduction
Put simply, this is the finest 2-channel power amplifier Linn has ever made and we are confident that the KLIMAX CHAKRA 500 Twin will give you many years of listening pleasure which will grow over the passage of time. -
Page 11: Features
The compact form of the KLIMAX CHAKRA 500 Twin case reflects our intention to keep the audio signal path as short and simple as possible. Applying this rule rigorously results in high density circuitry which... -
Page 12: Power Supply
Features Power supply In most power amplifiers, the power supply comprises a large transformer, a rectifier and reservoir capacitors, which are often as large as the transformer itself. The highest performance amplifiers also have voltage regulators which maintain the power supplied to the amplifier circuitry at a constant level, regardless of the input voltage or the output load. - Page 13 CHAKRA 500 Twin it can deliver 1000 watts (at 50/60 Hz it could deliver only about 5 watts). The reservoir capacitors in the KLIMAX CHAKRA 500 Twin are about the size of a thimble but give better filtering than ones the size of a beer can that are used in other very powerful amplifiers.
-
Page 14: Audio Circuitry
For a number of years, Linn has worked closely with a trusted microchip manufacturer and as a result of developing this relationship, exceptional capability has been designed into a high-volume chip, enabling us to realise the potential of this technology without incurring unfeasibly high production outlay. -
Page 15: Chakra Explained
The CHAKRA topology uses an array of large bi-polar transistors as ‘boosters’ around a single monolithic. While this in itself is not a new idea, Linn’s execution of the monolithic to bi-polar transition is unique, and a patent application for the design has been submitted. When output current is less than a few amps, all the power output comes from the monolithic, maximising the speed and linear properties of this design. - Page 16 This nagging doubt, though often ill-founded, has resulted in some concern (and boasts) about amplifier output current. The KLIMAX CHAKRA 500 Twin, like all Linn amplifiers, is specified into a 4 Ohm load. We don't do this to claim a bigger output power, but to show that our amplifiers are intended and fully specified for operation into 4 Ohm loudspeakers (and most Linn loudspeakers have a nominal 4 Ohms input impedance).
-
Page 17: Installation
Installation The compactness of the KLIMAX CHAKRA 500 Twin makes it very easy to install and makes possible high power multi-amplifier systems which would be impractical with conventionally designed amplifiers of similar power, because of their size and weight. The unique wall-mount system can be used to minimise the intrusion of the audio system in the living space, while providing good ventilation, concealing the cabling and showing off the subtle beauty of the KLIMAX CHAKRA 500 Twin. -
Page 18: Mains Supply
Mains supply and output power For all normal music or AV system operation the actual 'average' output power of the KLIMAX CHAKRA 500 Twin is much less than its maximum rating of 200 watts per channel, thus providing an abundance of headroom. For example, a reasonable listening level requires an average output of about 1 watt per channel and a very enthusiastic listening level would average about 40 watts per channel. -
Page 19: Inputs And Outputs
Inputs and outputs The KLIMAX CHAKRA 500 Twin has both unbalanced and balanced inputs, selected by a switch on the back panel. Use the appropriate one to suit your choice of pre-amplifier and cabling. The LED will light to indicate when the unbalanced inputs are selected. -
Page 20: Operation
Signal sensing In the absence of a music input signal, the KLIMAX CHAKRA 500 Twin reverts to a low power standby mode after around 20 minutes. The signal detector is very sensitive and waits about one second before powering up the amplifier to be certain the signal is real, not just noise. -
Page 21: Technical Specifications
Technical Specifications General Dimensions W 350 mm, D 355 mm, H 60 mm W 13.8", D 13.9", H 2.3" Weight 9 Kg / 19.84 lbs Protection Fuse rating 250 V, T6.3 A Mains input range 90 Vac - 126 VAc 200 VAc - 253 VAc Mains frequency range 50 - 60 Hz... - Page 22 Technical Specifications Input level for clipping: Unbalanced 1.05 V rms Balanced 2.1 V rms Signal sensing threshold >100 uV Output connectors: Standard NEUTRIK® Optional Binding posts 200 W rms into 4 Ω Output power Per channel 100 W rms into 8 Ω Per channel Load tolerance Unconditionally stable into all...
-
Page 23: Guarantee And Service
This product is guaranteed under the conditions which apply in the country of purchase and your statutory rights are not limited. In addition to any statutory rights you may have, Linn undertake to replace any parts which have failed due to faulty manufacture. To help us, please ask your Linn retailer about the Linn warranty scheme in operation in your country. - Page 24 Guarantee and Service Linn Products Limited Glasgow Road Waterfoot Eaglesham Glasgow G76 0EQ Scotland, UK Phone: +44 (0)141 307 7777 Fax: +44 (0)141 644 4262 Helpline: 0500 888909 Email: helpline@linn.co.uk Website: www.linn.co.uk Linn Incorporated 8787 Perimeter Park Boulevard Jacksonville FL 32216...
- Page 25 Pack 974/EF...
