Summary of Contents for Magnadyne RV5055

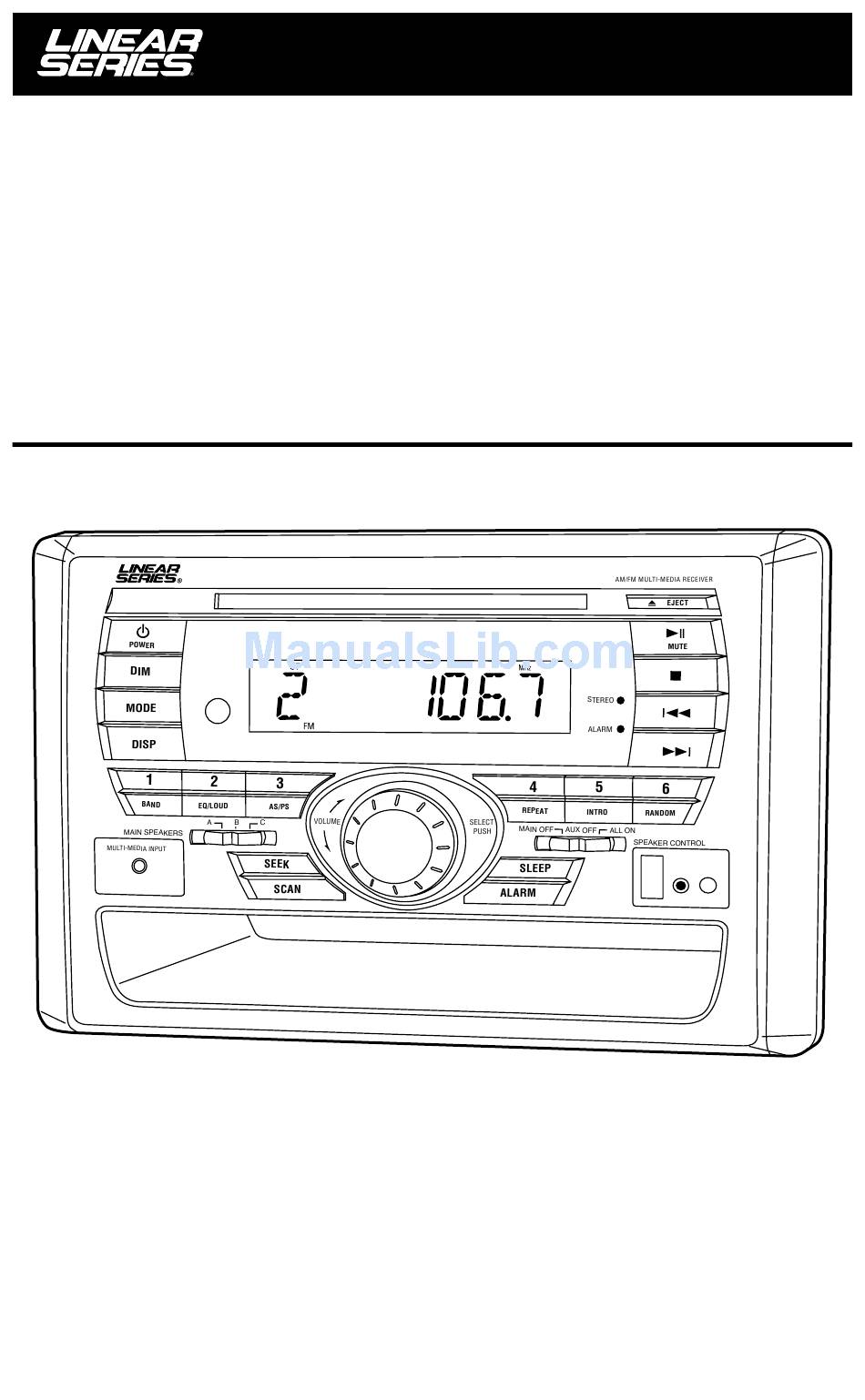

- Page 1 Operation and Installation Manual ENTER - IPOD - MENU HEADP HONE OUTPU T RESET RV5055 AM / FM Stereo Multi-Media Receiver U.S. PATENT NO.: D561754...
-
Page 2: Table Of Contents
Introduction Please take the time to read all of the information in this manual. Familiarity with operation and installation procedures will help you obtain the best possible performance from your new AM/FM Stereo Multi-Media Receiver. WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture, or remove cover or bottom screws. -
Page 3: Button Locations And Functions
Button Locations and Functions 1. Power On/Off: Press to turn the unit on or off. 2. Infrared Eye: Receives the signals from the remote control. 3. Disc Slot: To play a disc, insert the disc into slot with label facing up. 4. - Page 4 28. Audio/Video Input Jack: Press the MODE button until “AV IN F” appears in the display then plug in a device via the 3.5mm audio/video input plug. Note: The RV5055 does not control the device, it just allows the audio/video to be played through the system.
-
Page 5: Remote Control Button Locations And Functions
Remote Control Button Locations and Functions POWER MODE MENU MUTE RANDOM REPEAT ZOOM SETUP ENTER AS/PS SLOW ELAPSE AUDIO BAND DISP 10/0 1. Power On/Off Button: Press to turn the unit on or off. 2. Mode Button: Press to choose between Audio/ Video In, Front (AV IN F), Audio/Video In, Rear (AV IN R), AM/FM Radio (RADIO), Music/Movie Disc or USB Input (DISC) and IPOD Input (IPOD) -
Page 6: General Operation
General Operations Power On/Off: Press the POWER button to turn the unit On/Off. Selecting a Play Source: To select a play source, press the MODE button until the desired source appears in the display: AV IN F (Audio/Video Input Front), AV IN R (Audio/Video Input Rear), RADIO (AM or FM Band) DISC (Music, Movie or USB Input), and... -
Page 7: Sound Controls
Sound Controls Volume: Increase the volume by rotating the Volume knob clockwise. Decrease the volume by rotating the Volume knob counterclockwise. Bass, Treble and Balance Control Select the desired sound mode by pressing the VOLUME/SELECT knob. The modes will be displayed in the following order: Bass, Treble, Balance and Volume. -
Page 8: Speaker Selection Switches
Sound Controls (Continued) Equalizer (EQ): Press the EQ button to choose between the preset equalizer settings: Flat, Classic, Rock, Popular and Jazz as indicated in the display area. Loud: To boost high and low tones at low volume levels, press and hold the EQ button until “LOUD ON”... -
Page 9: Setting The Clock
Speaker Selection Switches Auxiliary Speakers: Slide the Speaker Control Switch to turn: • Main speaker off and auxiliary speakers on (MAIN OFF), • Main speakers on and auxiliary speakers off (AUX OFF) or • Main speakers on and auxiliary speakers on (ALL ON). -
Page 10: Alarm Operation
Alarm Operation Setting the Alarm Timer: 1. Press the ALARM button and the clock will appear in the display with the Hour number flashing. 2. Rotate the VOLUME knob until the correct Hour appears in the display. The alarm LED will glow indicating the alarm is activated. -
Page 11: Radio Operations
Radio Operations Power On/Off: Press the POWER button to turn the unit 0n. Selecting the Play Source: Press the MODE button until “RADIO” appears in the display. After a brief moment either AM or FM will appear in the display. Selecting the AM or FM: Press the BAND button repeatedly and select from 1 FM, 2 FM, 3 FM, 1 AM or 2 AM. -
Page 12: Radio Operations
Radio Operation (Continued) Memorizing Radio Stations: 1. Press the BAND button to select either the 1 FM, 2 FM, 3 FM, 1 AM or 2 AM radio band. 2. Tune-in the desired radio station. 3. To memorize the station press and hold any- one of the six radio station recall buttons until the the preset number appears. -
Page 13: Disc Warnings
Disc Warnings Handling and Cleaning: • Dirt, dust, scratches and warping disc will cause non operation. • Do not place stickers on disc or scratch disc. • Do not warp discs. • A disc should always be kept in its case when not in use to prevent damage. -
Page 14: Music Disc Operation
Music Disc Operation General Operations: 1. Press the POWER button to turn the unit 2. Gently insert the disc into the slot with the label side up. The unit will automati- cally load the disc. Note: If a disc does not auto-load DO NOT FORCE into the slot, as you may already have a disc loaded. -
Page 15: Music Disc Operation
Music Disc Operation Ejecting the Disc: Press the EJECT button to eject a disc. Repeating a Music Track or Entire Disc: Select the desired track to repeat, then press the REPEAT button once and “REPEAT” appears in the display. This track will play repeatedly. Press the REPEAT button one more time and “REPEAT”... -
Page 16: Mp3 Disc Operation
MP3 Disc Operation General Operations: 1. Press the POWER button to turn the unit on. 2. Gently insert the disc into the slot with the label side up. The unit will automatically load the disc. Note: If a disc does not auto-load DO NOT FORCE into the slot, as you may already have a disc loaded. -
Page 17: Movie Disc Operation
Movie Disc Operation General Operations: 1. Press the POWER button to turn the unit On. 2. Gently insert the disc into the slot with the label side up. The unit will automatically load the disc. Note: If a disc does not auto-load DO NOT FORCE into the slot, as you may already have a disc loaded. -
Page 18: Slow Motion
Movie Disc Operation Fast Forward / Fast Reverse Disc Play: Press the l (fast forward) or l �� reverse) button during play. Each time the button is pressed, the speed of fast forward/fast reverse changes in the following order: 2X, 4X, 8X, 16X, 32X To resume normal play, press the ton 2 times. -
Page 19: Setup Menu
Movie Disc Operation Subtitle Language Menu: Press the SUB.TT button during playback. Each time the button is pressed, the subtitle language changes in sequential order. • Some discs may only contain one subtitle language. • Depending on the disc, the number of subtitle languages may be different. -
Page 20: Audio Input
Setup Menu (Continued) Audio Setup: Use the navigation buttons to scroll between the menu items. Make a selection by pressing the ENTER button. • Audio: SPDIF/Off, SPDIF/Raw or SPDIF/PCM Video Setup: Use the navigation buttons to scroll between the menu items. Make a selection by pressing the ENTER button. -
Page 21: Ipod Operations
3. The unit will automatically switch to the IPOD mode and start playing. Note: The IPOD controls will become inoperable, and the RV5055 now controls the IPOD. IPOD Mode Button Location and Functions: 1. Preset #6 Button: Same operation as the MENU button on an IPOD. - Page 22 IPOD Operation (Continued) 3. Press the 5 button to select the SONGS menu. 4. Press the l l button to select the �� �� desired song from the menu. The selected song will automatically start playing. Pausing a Track: Press the ll button to pause the track.
-
Page 23: Usb Input
To select a USB play source, press the MODE button until “DISC” appears in the display. When the player is properly connected it will play automatically. Use the controls on the RV5055 to select the desired file to play. ENTER... -
Page 24: Reset Button
USB Input (continued) Disc File Selection: Press the l button to select a lower file. �� Press the l button to select a higher file. The �� file number will appear in the display. File selection can also be selected by using the remote control. -
Page 25: Installation
Installation ” Wall Panel ” Chassis Opening Structural Stud Caution: Do not install radio without rear cover installed: No user-serviceable parts inside. Rear cover provides protection against potential fire hazard. End Caps ” ”... -
Page 26: Speaker Connections
Speaker Connections Auxiliary Speaker Left White Wire Speaker A Left Brown/Black Wire Brown Wire Connector Connector Speaker C Left Green/Black Wire Green Wire Purple/Black Wire (Common -) Purple Wire 9-Pin 4-Pin Auxiliary Speaker Right Gray/Black Wire Gray Wire Speaker C Right Blue/Black Wire Blue Wire... -
Page 27: Auxiliary Connections
Auxiliary Connections This unit for use only with a 12 Volt DC power source with a negative ground. 9-Pin Connector 2-Channel Audio Output Video Output Red Wire (+) to 12 Volt DC Power Black Wire Ground White RCA Red RCA Yellow RCA Amplifier (Optional) -
Page 28: Input Connections
Input Connections Model: DP36AXT In-Wall Antenna (Optional) Plug Either Type of Antenna into the Female Antenna Receptacle External Automotive IPOD Type Antenna (Optional) (Optional) iPod Cable (Optional) Game Console (Optional) RCA Connectors Audio/Video Input (Rear) -
Page 29: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product. -
Page 30: Extended 5 Year Warranty
Warranty EXTENDED FIVE YEAR WARRANTY OPTION Magnadyne Corporation hereby grants you under the terms stated herein the opportunity to extend the terms and conditions of your regular Magnadyne Limited Warranty that you received with your purchase of your Magnadyne product. You may extend the time of coverage of your Limited Warranty only if (1) you are the original purchaser of the product and (2) the product remains originally installed in the same vehicle in which it was and you remain the owner of that vehicle. -
Page 31: Warranty Cards
ONE YEAR LIMITED WARRANTY REGISTRATION CARD Complete and mail now. Keep a copy for your records. Please print clearly. LAST NAME ADDRESS CITY DEALER DATE OF PURCHASE MAKE OF CAR EXTENDED FIVE YEAR WARRANTY REGISTRATION CARD Complete and mail now. Enclose $20.00 and a copy of your receipt. Keep a copy for your records. - Page 32 MAGNADYNE CORPORATION P.O. Box 5365 Carson, CA 90749-5365 MAGNADYNE CORPORATION P.O. Box 5365 Carson, CA 90749-5365 RV5055-UM © Copyright 2011Magnadyne Corporation Rev. A 5-13-11...
