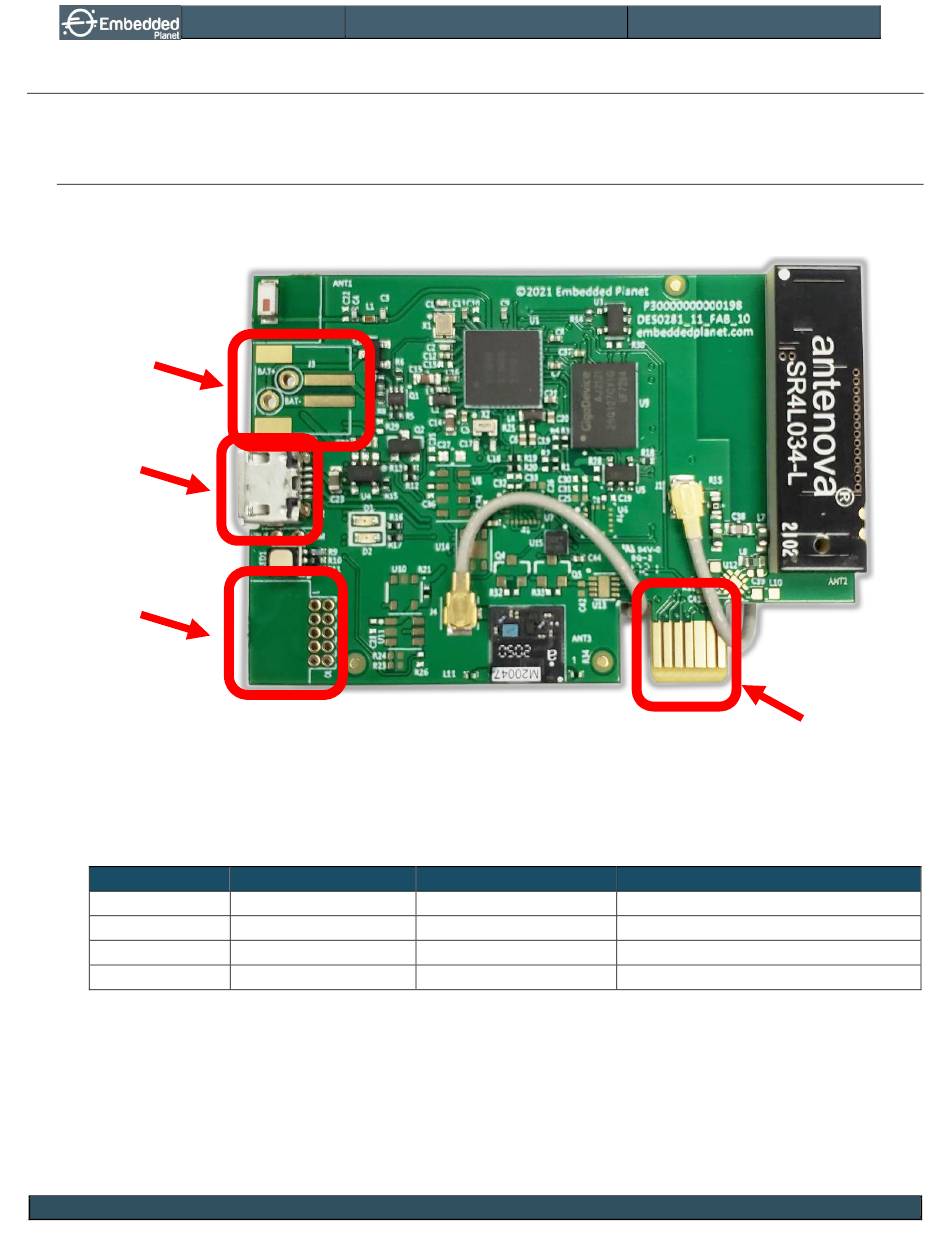

Feature Callouts
4.1.
Feature Callouts | Connectors / Interfaces
J3: Battery
J2: USB
J5: Expansion
Header
TABLE 2 - BOARD CONNECTORS
Category
Connector
Connector
Connector
Connector
Embedded Planet, Inc. | 31225 Bainbridge Rd Suite N, Solon, OH 44139 | 216-245-4180 | www.embeddedplanet.com | Page 6 of 37
epConnected Asset | Product User Manual
Reference Designator
J3
J2
J5
Mini-Tectonic Edge™
Component Type
JST / Battery
Micro-USB
Expansion Header
Board Edge / Finger
Document Version: 1.0.0 | 26 Jan 22
J3: Mini-
Tectonic
Edge
Description / Purpose
For use with external LiPo battery
Battery charging and data transfer
SPI, GPIO, 3.0V I/O ref, battery voltage
Mini-Tectonic Edge™ for programming
