Antennae

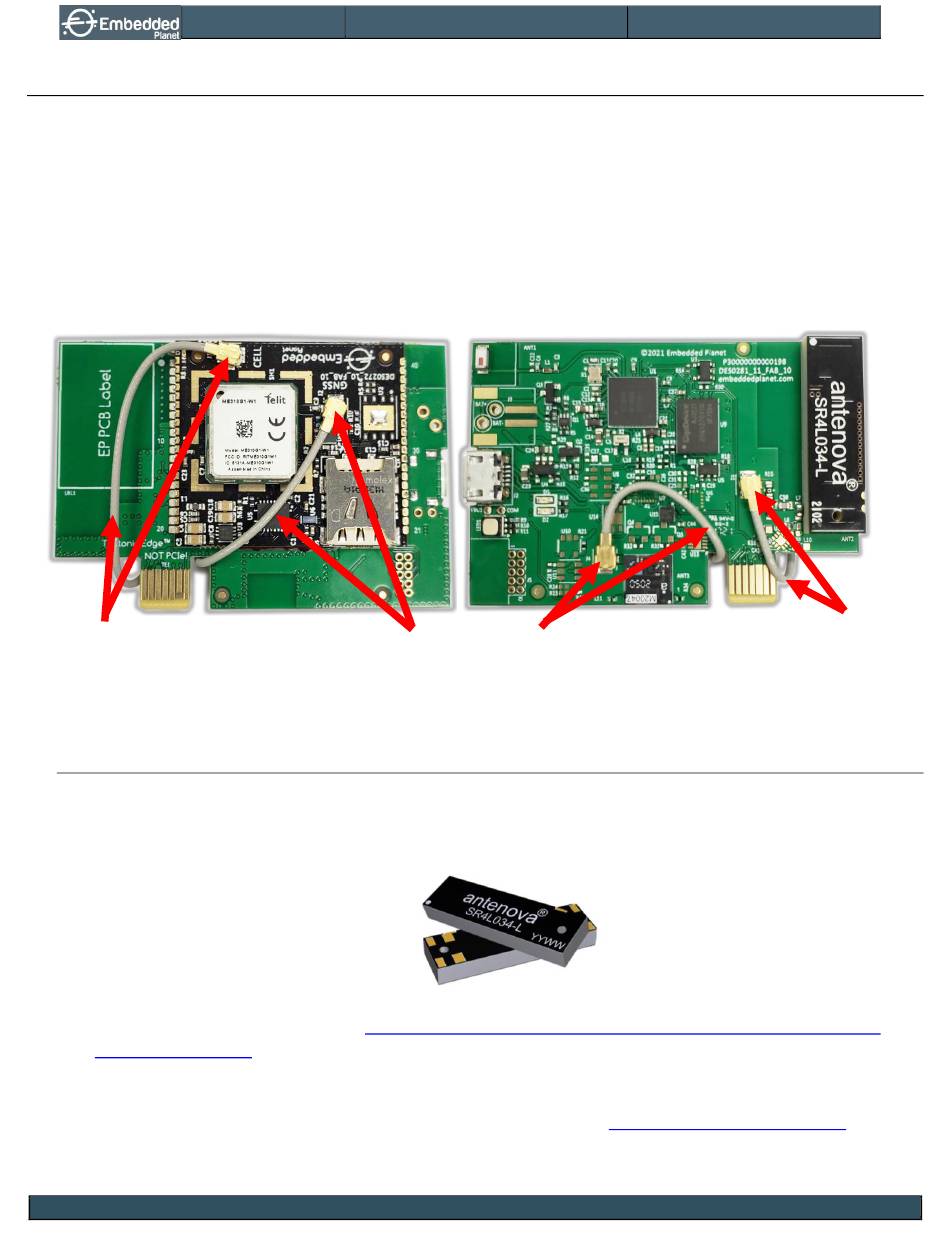

The epConnected Asset uses two antenna types: a cellular antenna and a GNSS antenna. Both antennae are
provided on board. The operator should not attach any external antennae to the board, including via the U.FL
connectors. The U.FL connectors are only to be used for attaching the cell and GNSS antenna connections between
Chronos and the epConnect Asset main board. The correct connection configuration is depicted in the figure below.
Note: The U.FL connection wires MUST be attached between Chronos and the epConnected Asset board for the
cellular & GNSS functionalities to work.
Cellular
antenna
15.1.
Antennae | Cellular Antenna
The onboard PCB-mounted 4G cellular antenna (ANT2) used on the epConnected Asset is the Antenova
SR4L034-L.
More on this device can be found at
performing-antenna/
The epConnected Asset is designed to use this onboard antenna. External antennae may be used with the
epConnect Asset device; please contact Embedded Planet for details:
