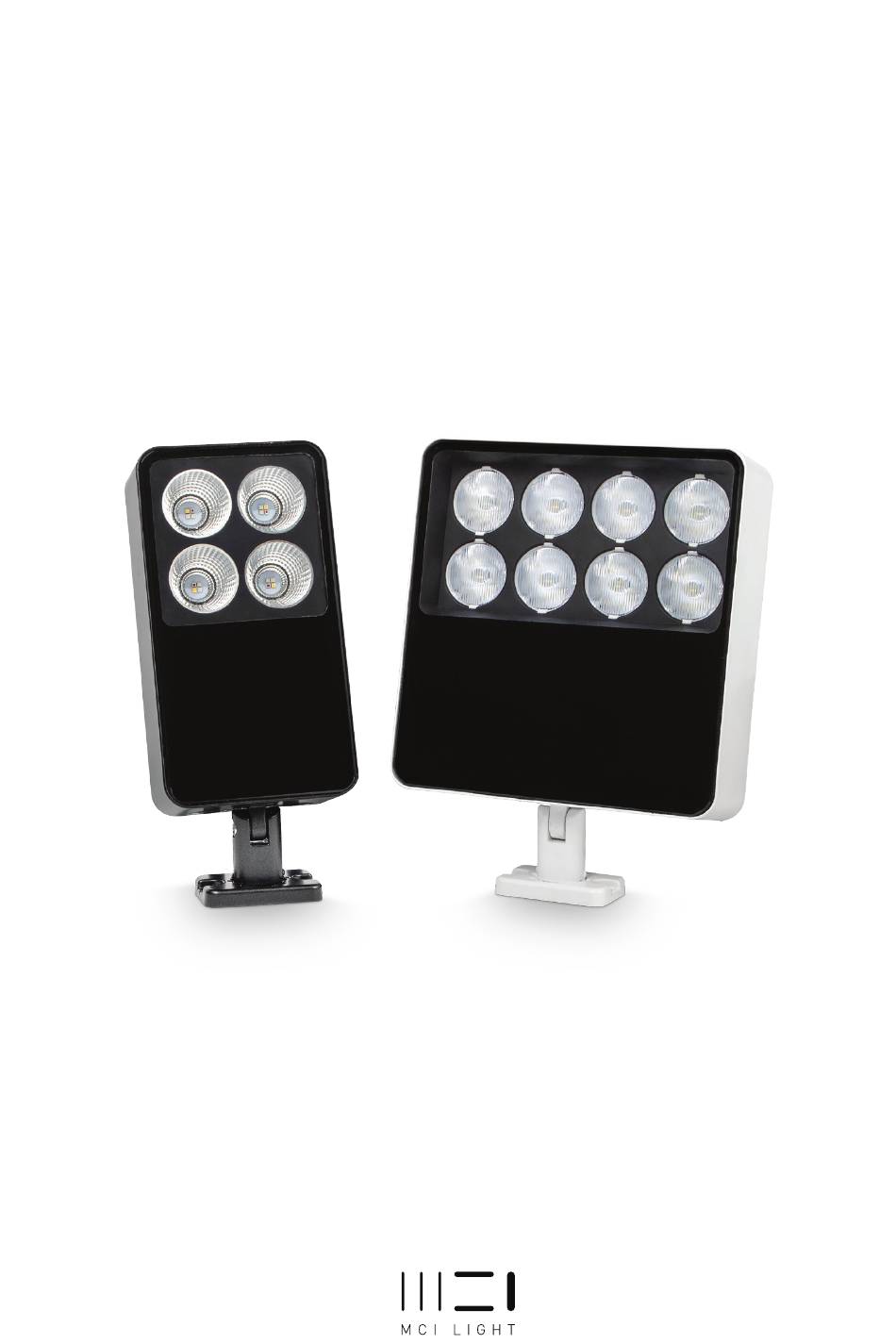

SQUARE S&M
Installation Instructions
Manual Instalación
v.02

Advertisement

loading
Need help?

Need help?

Do you have a question about the SQUARE S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MCI Light SQUARE S

Summary of Contents for MCI Light SQUARE S

  • Page 1 SQUARE S&M Installation Instructions Manual Instalación v.02...
  • Page 2 Versión estándar: con lente de 9° o reflector de 75°. TYPE MODELO Square S In The standard version: On/Off control (Monocolor) and DMX Square S In & Out control (Smart White & RGBW). Square M In Versión estándar: con control On/Off (Monocolor) y control Square M In & Out DMX (Smart White y RGBW).

  • Page 3: Installation Base

    Tight the axis screw (B) to ensure a good fixation of the luminary. Apretar el tornillo eje (B) al máximo para asegurar un buena fijación. Change the orientation and tight the screw M3. Girar para orientación y fijar el perno M3. SQUARE S&M.IMT-226. v2.
  • Page 4 Insertar el conjunto en la pata. Screw up the grub screw (M3 allen) to fix the spike. (E) Apretar de nuevo el perno (M3 allen) para fijar el pincho. (E) Place the luminaire. Insertar el pincho bajo tierra. SQUARE S&M.IMT-226. v2.
  • Page 5 Screw up the assembly to the desired surface. Fijar brazo en superfície deseada (distancia entre colisos en plano) Adjust the projector in the desired angle. Orientar el proyector en el ángulo deseado. Tight the axis screw. Apretar el tornillo eje. (B) SQUARE S&M.IMT-226. v2.
  • Page 6 Ref. Ref. M030154 M030154 230 V AC POWER Ref. M030233 Square S (In) Square M (In & Out) Square S (In & Out) Square M (In & Out) Ref. M030154 Ref. M030243 Ref. M030154 230 V AC POWER ON-OFF CONNECTIONS...
  • Page 7 MORE THAN 15 SQUARE S&M WITH DMX 512. UP TO 15 SQUARE S&M WITH DMX 512. PARA MÁS DE 15 SQUARE S&M CON DMX 512. HASTA DE 15 SQUARE S&M CON DMX 512. Maximum 15 SQUARE S&M per DMX output.

  • Page 8: Safety Precautions

    SQUARE S&M SAFETY PRECAUTIONS / PRECAUCIONES Use as directed Empleo según normativas This product serves exclusively lighting purposes and may: Este producto sirve únicamente para iluminación y no debe: • Expose to strong mechanical loads or strong contamination. • Exponerse a exigencias mecánicas excesivas o fuertes suciedades.
