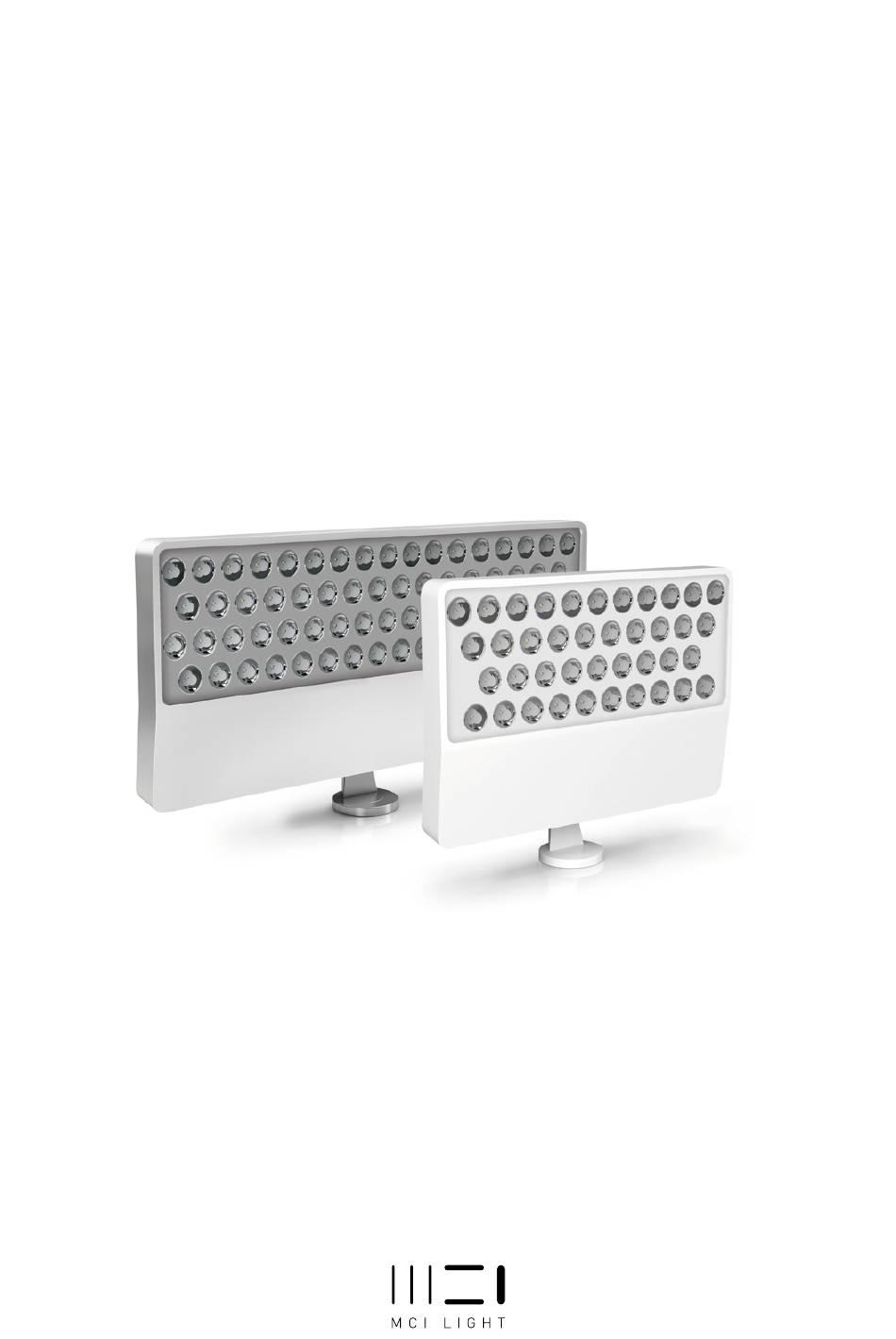

- Page 1 SQUARE GRAZER ® 40/66 LEDs Installation Instructions Manual Instalación v.03...
- Page 3 INDEX ÍNDICE 1. PRODUCT CODES / CÓDIGOS DE PRODUCTO 2. TECHNICAL DATA / DATOS TECNICOS 3. DIMENSIONS / MEDIDAS 4. INSTALLATION / INSTALACIÓN 5. CONNECTION / CONEXIONADO 6. SAFETY PRECAUTIONS / PRECAUCIONES...
-
Page 4: Product Codes

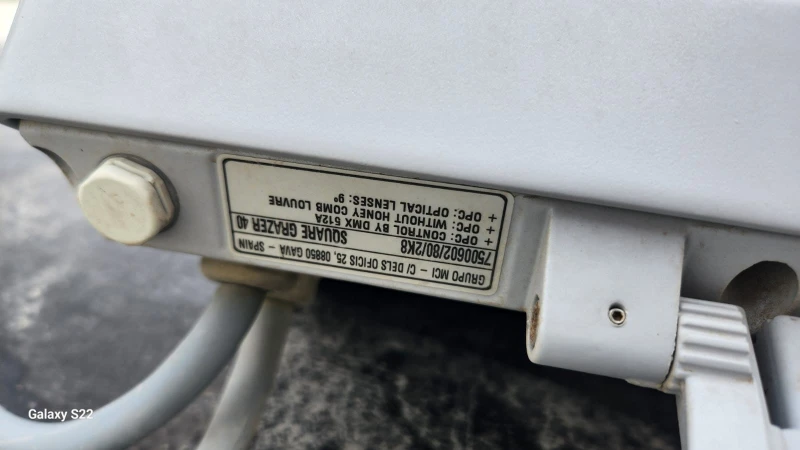

SQUARE GRAZER® 40/66 LEDs 1. PRODUCT CODES / CÓDIGOS DE PRODUCTO 75006 0 2 /80/2K8 COLOUR COLOR /80/2K8 Warm white Blanco cálido /80/4K Neutral white Blanco neutro /80/6K Cool white Blanco frío /2K8-6K Smart white (2800K + 4000K + 6000K) Blue Azul /11-4K... -
Page 5: Technical Data
LED quantity 48 W 79 W Potencia Power consumption SQUARE GRAZER® 40/66 LEDs 3. DIMENSIONS / MEDIDAS Square Grazer 40 LEDs Square Grazer 66 LEDs 296 mm. 100 mm. (11,65 in) (3,93 in) 480 mm. 100 mm. (18,89 in) (3,93 in) 260 mm. -
Page 6: Instalación
Arandela dentada M5 DIN125 Toothed washer M5 DIN125 Fijación de la luminaria a la base Luminaire xation to the plate Square Grazer 66 LEDs Square Grazer 40 LEDs LLAVE ALLEN 5 Tornillo DIN912 INOX M5x8 Tornillo DIN912 INOX M5x10 ALLEN... - Page 7 Toothed washer DIN 6798M6 A2 Tornillo DIN912 M6 Screw DIN912 M6 LLAVE ALLEN 4 ALLEN KEY 4 Square Grazer 40 LEDs Arandela dentada DIN 789 M5 Toothed washer DIN 789 M5 Tornillo DIN912 M5x25 Screw DIN912 M5x25 LLAVE ALLEN 2,5...
- Page 8 SQUARE GRAZER® 40/66 LEDs 5. CONNECTION / CONEXIONADO Medida del cable Cable length 25 cm Square Grazer 40 LEDs Square Grazer 66 LEDs SG.IMT-149.v3.
- Page 9 SQUARE GRAZER® 40/66 LEDs 5. CONNECTION / CONEXIONADO Tapón nal End cap M083174 M030325 DMX Controller M030245 M030154 DMX 512-A con más de 15 luminarias GRUPO DMX 512-A more than 15 luminaires DMX CONTROLLER 230V AC DMX Ampli er DATA M030224 Output Output 1...
-
Page 10: Safety Precautions
SQUARE GRAZER® 40/66 LEDs 6. SAFETY PRECAUTIONS / PRECAUCIONES Use as directed This product serves exclusively lighting purposes and may: • Expose to strong mechanical loads or strong contamination. • Only be installed and operated after a condition inspection if the product is dirty or has been moistened through storage. •... - Page 11 SQUARE GRAZER® 40/66 LEDs 6. SAFETY PRECAUTIONS / PRECAUCIONES Empleo según normativas Este producto sirve únicamente para iluminación y no debe: • Exponerse a exigencias mecánicas excesivas o fuertes suciedades. derivar en problemas de funcionamiento del producto. • No permita que los niños jueguen sin vigilancia con los productos eléctricos. completa.
- Page 12 SQUARE GRAZER ® 40/66 LEDs IMT-149 v.03 C/ dels Oficis, n° 25 Pol. Ind. el Regàs 08850 · Gavà Barcelona · SPAIN (+34) 93 630 28 00 (+34) 93 630 29 66 M. info@mcilight.com mcilight.com...
