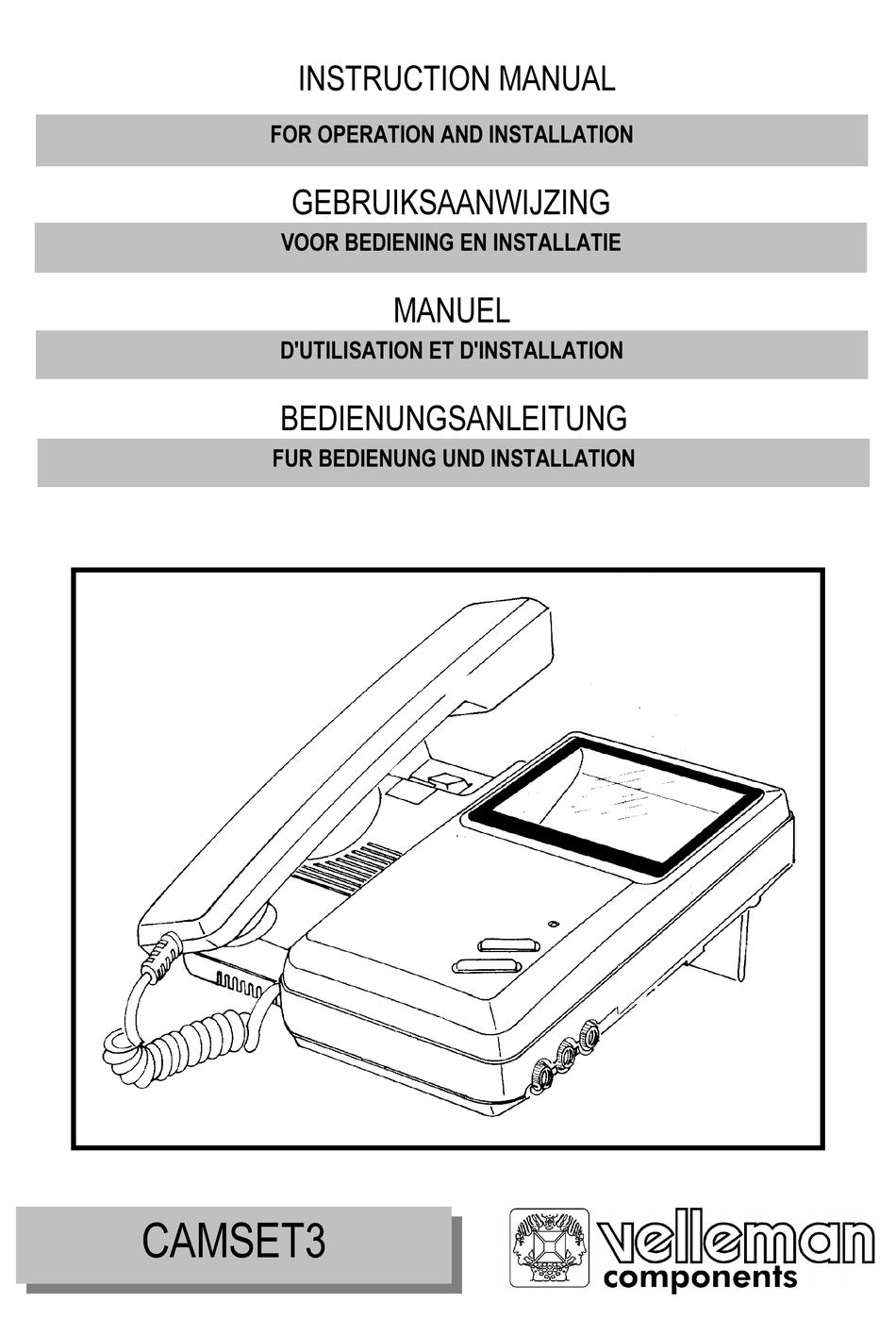

- Page 1 ,16758&7,21 0$18$/ )25 23(5$7,21 $1' ,167$//$7,21 *(%58,.6$$1:,-=,1* 9225 %(',(1,1* (1 ,167$//$7,( 0$18(/ ' 87,/,6$7,21 (7 ' ,167$//$7,21 %(',(181*6$1/(,781* )85 %(',(181* 81' ,167$//$7,21 &$06(7...
-
Page 2: Table Of Contents
INTRODUCTIONS This video doorphone CAMSET3 system consists of one indoor monitor unit and one outdoor camera unit, with which you can see a visitor and converse with them from inside your home, without opening your entrance door. For proper usage and application of the system, please read the instruction manual. - Page 3 1. CONFIGURATION OF BOXED UNITS AND PARTS PHONE HANDSET MONITOR OPTIONAL CAMERA CAM6 CAM5 AC/DC ADAPTER TAPPING SCREWS (Ø 4 x 20mm) MACHINE SCREWS (Ø 3 x 30mm) WALL-BRACKET FOR MONITOR CAMSET3...
-
Page 4: Functional Nomenclature
Press the monitor- on button to see who is outside without lifting handset. (9) Door release button Press the button to release door (Where a door lock release system is installed) (10) Speaker For chime call, burglar alarm and voice. CAMSET3... -
Page 5: B) Outdoor Monitor
Sound through speaker from indoor unit. (4) Call button As soon as the visitor presses the call button, the picture will appear on the indoor monitor and the indoor chime will be activated. (5) Microphone Use to talk with indoor monitor. CAMSET3... -
Page 6: How To Install
(2) Mount the wall- bracket with two screws provided. (3) Fix the indoor monitor unit into the wall- bracket. (4) If deskstanding is preferred instead of wall mounting, use the fold- out stand attached to the rear of indoor monitor unit. CAMSET3... - Page 7 (5) Connect the power transformer in line with fig (A). Stand Adapter CAMSET3...
- Page 8 (1) Take the base panel (2) out of the camera and fix it firmly on the wall (3) by using tapping screws. (2) Connect lead wires to the terminals as shown in the wiring diagram. (3) Re-attach the camera (1) to the base panel and fasten it with one machine screw. CAMSET3...
-
Page 9: How To Connect Wires
(2) Two wires are required to connect outdoor camera unit and indoor monitor unit. * NOTE : Door lock is not supplied by manufacturer. CONNECTION SYSTEM FOR VIDEO DOORPHONE (# 1) OUTDOOR INDOOR POWER TRANSFORMER FOR VIDEO DOORPHONE DC 17V 1.0A DOOR LOCK DC 12V 0.5 Amp. MAX. CAMSET3... -
Page 10: How To Operate
Damage could result from a site that exposes the outside unit to direct rainfall, strong vibrations or excessive dust. For optimum video display, unit should also be protected from direct sunlight. Inferior picture quality can also occur, should the lens cover become scratched. CAMSET3... -
Page 11: Optional Outdoor Camera
Sound through speaker from indoor unit. (4) Name plate (5) Call button As soon as the visitor presses the call button, the picture will appear on the indoor monitor and the indoor chime will be activated. (6) Microphone Use to talk with indoor monitor. CAMSET3... - Page 12 (3) Fix the camera (2) into the wall- bracket by using machine screws (∅ 3 x 22mm) (4) Cover the front cabinet (1) on the camera and fix it by using tapping screws (∅ 4 x 10mm) NOTE : The recessed mounting bracket (4) is not supplied by manufacturer. CAMSET3...
- Page 13 Viewing angle control (1) Open the camera box. (2) When vertical adjustment is required, use the control lever up and down. (3) For horizontal adjustment, use the central screw left and right. SCREW CONTROL LEVER DETAIL “A” CENTRAL SCREW CROSS SCREWDRIVER CAMSET3...
- Page 14 (3) Where the door lock is installed, the additional two wires are required for connecting the door lock to the monitor. * NOTE: Manufacturer does not supply door lock. CONNECTION SYSTEM FOR VIDEO DOORPHONE (#2) OUTDOOR INDOOR DOOR LOCK AC/DC ADAPTER DC 12V DC 17V 1.0A 0.5 Amp. MAX. CAMSET3...
-
Page 15: Trouble Shooting
Adjust the contrast and/ or brightness No picture on monitor Increase the brightness Interphone not work Is the modular jack from handset firmly inserted to indoor monitor? Note : Use the system with AC/DC adapter supplied by the original manufacturer. CAMSET3... -
Page 16: Care And Maintenance
The electronics may be contaminated. Any moving parts will wear prematurely. Do not use harsh chemicals, cleaning solvents or strong detergents to keep your unit looking new. You need only wipe it with a dampened cloth from time to time. CAMSET3...
