Amart Furniture 53038 Assembly Instruction

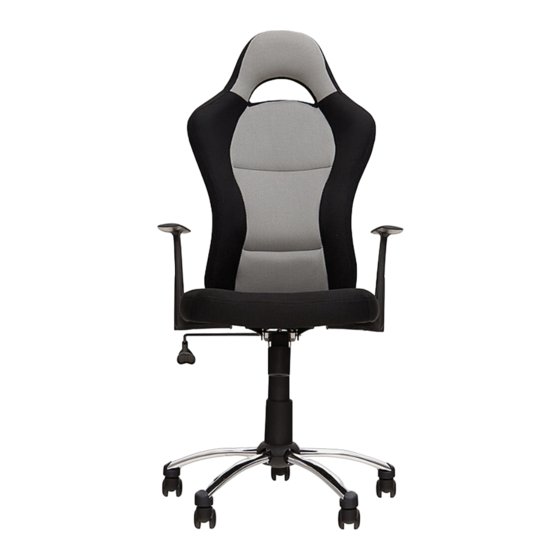

Bathurst gaming chair

Table of Contents

Download this manual

Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.

For any assistance with assembly or for missing parts please

phone Amart Furniture , Customer Service Free call 1800 351 084

ASSEMBLY INSTRUCTION

Bathurst Gaming Chair

ITEM CODE:53038

Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.

For any assistance with assembly or for missing parts please phone

Amart Furniture, Customer Service Free call 1800 351 084

63cm

1-5

53038

Table of Contents

Need help?

Do you have a question about the 53038 and is the answer not in the manual?

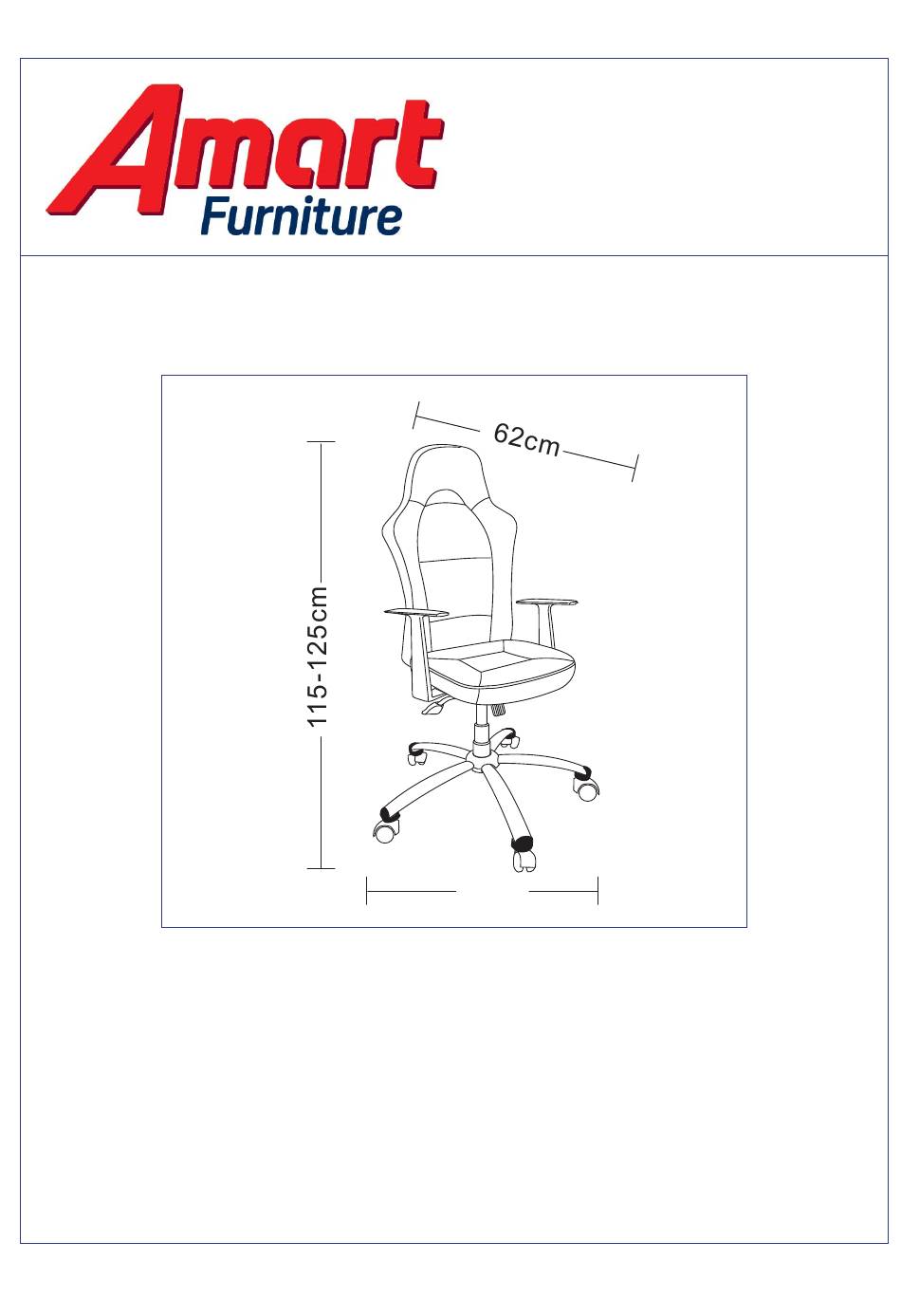

Page 1 Amart Furniture, Customer Service Free call 1800 351 084 63cm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 53038...
Page 2 Always read the assembly instructions carefully before beginning assembly. Keep all hardware parts and packaging out of reach of small children. Do not over tighten the screws and bolts as this may damage the threads ALLOW 20 MINUTES 1 PEOPLE REQUITED ADDITIONAL TOOLS REQUIRED 53038...
Page 3 PARTS LIST BACK ARMREST (L)&(R) SEAT MECHANISM GAS LIFT GAS LIFT COVER BASE CASTOR bolt bolt Washer 1/4"x16mm 1/4"x25mm 10xPCS 14x8.5mm 4xPCS 6xPCS Washer 16x6.5mm 4xPCS 53038...
Page 4 (6) on gas lift (5). STEP 3: STEP 4: Mount mechanism (4) to seat (3) Connect back (1) with mechanism using bolt A. (4) using bolt B and Washer Then connect armrest (2) with seat (3) using bolt B and Washer 53038...
Page 5 AT LEAST EVERY 4 MONTHS, CHECK ALL BOLTS, SCREWS AND KNOBS TO BE SURE THEY ARE TIGHT. IF PARTS ARE MISSING, BROKEN, DAMAGED OR WORN, STOP USE THE PRODUCT UNTIL REPAIRS ARE MADE. USING FACTORY AUTHORIZED PARTS. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY. 53038...
