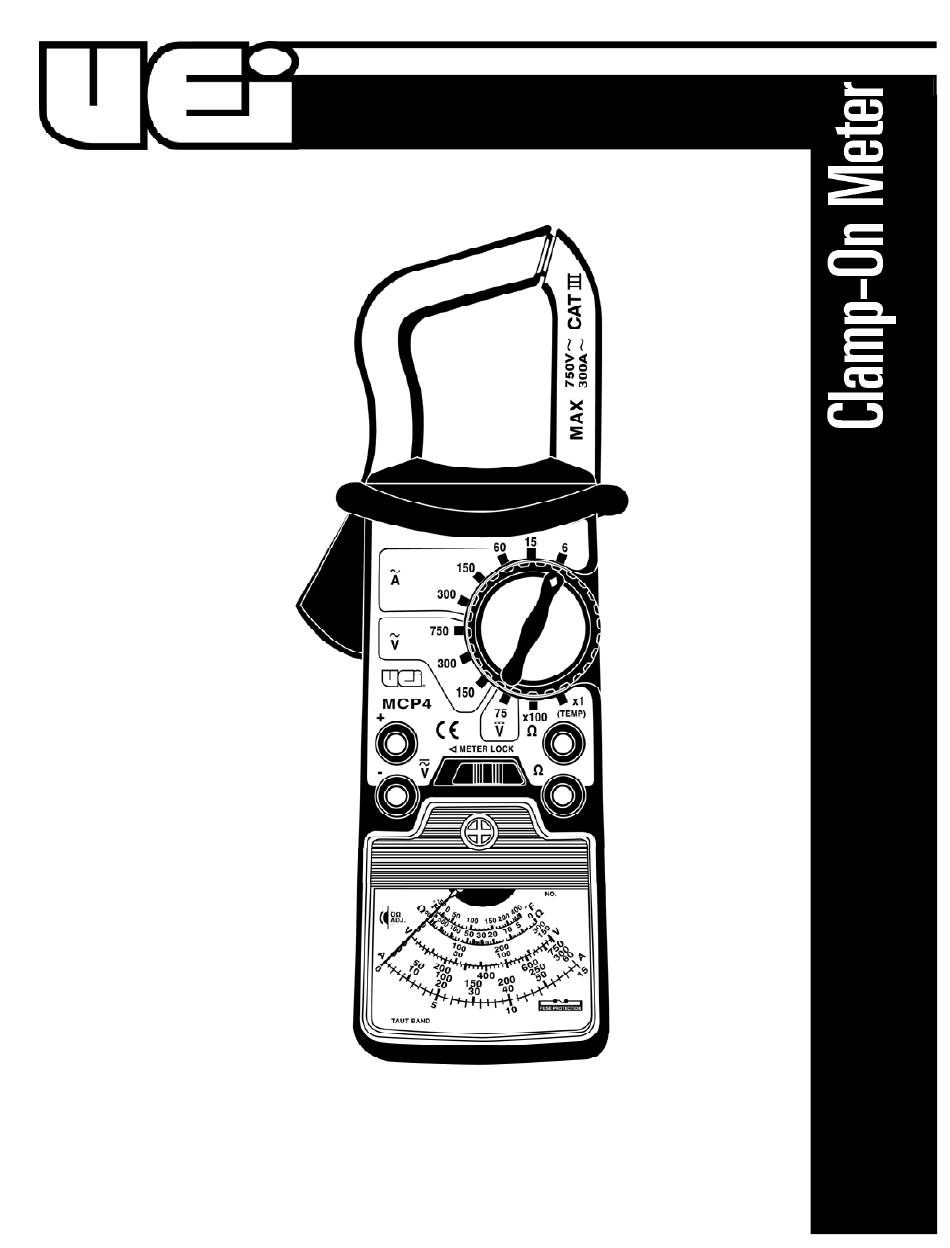

- Page 1 INSTRUCTION MANUAL MCP4 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • email: info@ueitest.com...
- Page 2 AC Voltage measurements. WARNING! 6. Volts: The jacks located on the left side of the MCP4 are used for Exceeding the specified limits of this meter is dangerous and can expose the user to serious or possibly fatal injury.
- Page 3 Operating Instructions Measuring Temperature Set the MCP4 to the “R x 10 0 / TEMP” range. Insert both of the black plugs Measuring AC Current on the temperature probe into the “OHM” input jacks on the MCP4. When measuring current, always be sure the “SEL ECTOR” switch is set Adjust the green “OHM ADJ”...
- Page 4 The pointer is set to register 0 at the left edge of the scale when there is no input to the MCP4 and it is laying face up on a flat surface. If the pointer does not register 0, it may be reset to that position by carefully adjusting the black screw in the meter face, just below the “LOCK”...
- Page 5 Clamp-On Meter Limited Warranty The MCP4 is warranted to be free from defects in materials and workmanship for a period of three years from the date of purchase. If within the warra n ty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
