Summary of Contents for UEi MCP9A

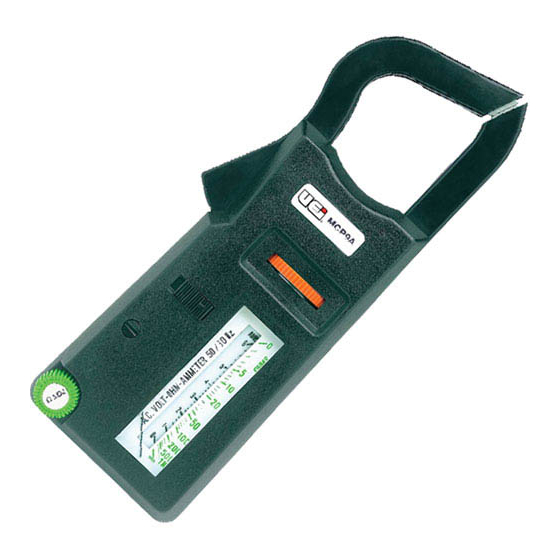

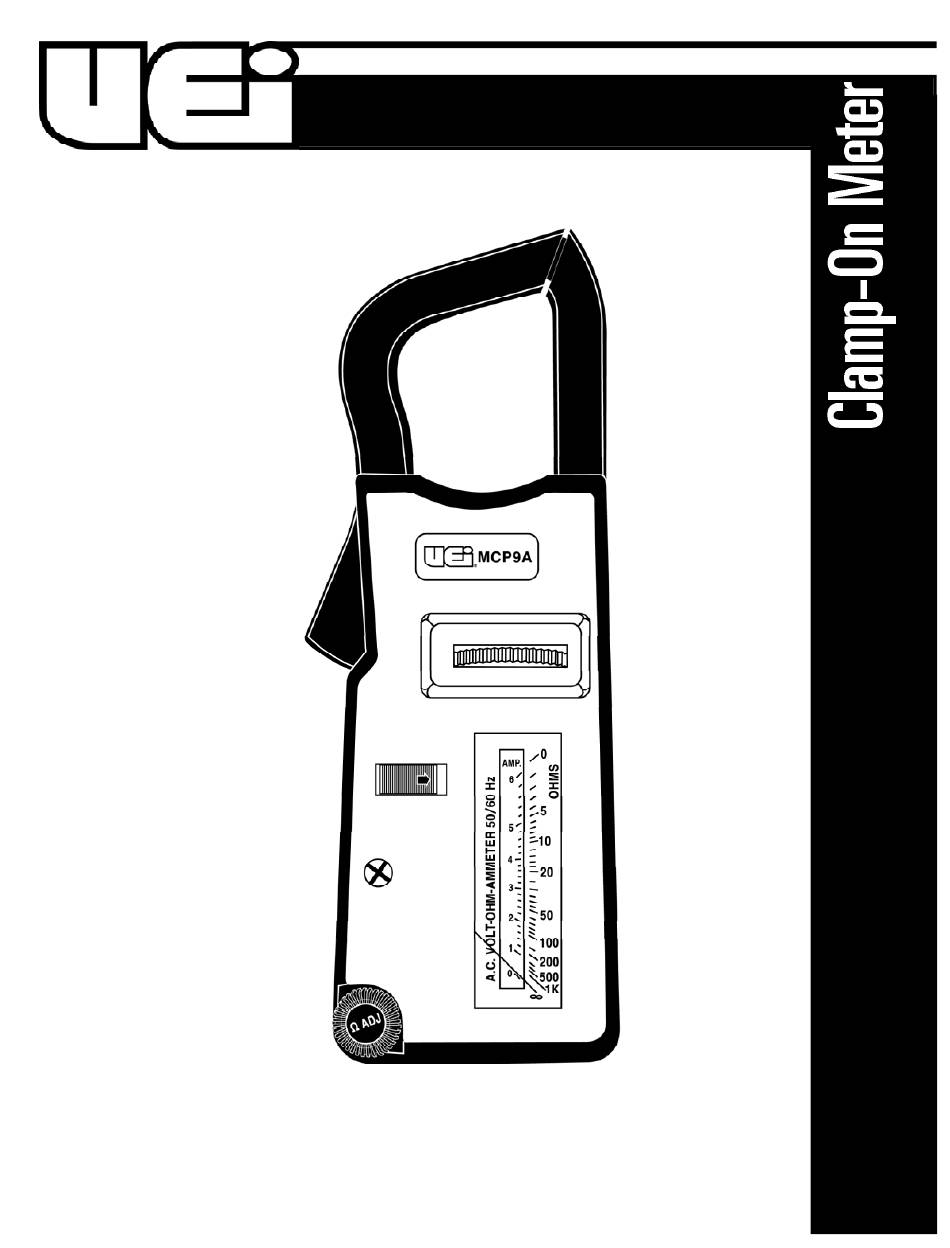

- Page 1 INSTRUCTION MANUAL MCP9A...
- Page 2 • Use a current clamp adapter when measuring current that may exceed 10 amps. See the accessories in UEi’s full-line ca t a l o g 5. Input Jacks: Are a special twist lock banana type. The twist lock •...
- Page 3 NOTE: If this adjustment cannot be made refer to the “MAINTENANCE” section. Re-zero the MCP9A each time that the tester is used for making Observe the proper battery polarity when replacing the battery. It is recommended that the battery be removed if the MCP9A is not to be resistance measurements.
- Page 4 The pointer is set to register 0 at the left edge of the scale when there is no input to the MCP9A and it is laying face up on a flat surface. If the pointer does not register 0, it may be reset to that position by carefully adjusting the black screw in the meter face, just below the “LOCK”...
- Page 5 Clamp-On Meter Limited Warranty The MCP9A is warranted to be free from defects in materials and workmanship for a period of three years from the date of purchase. If within the warra n ty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
