2 Installation and Configuration
DIP switches are used to adjust settings on the SeaHawk 10K.
2

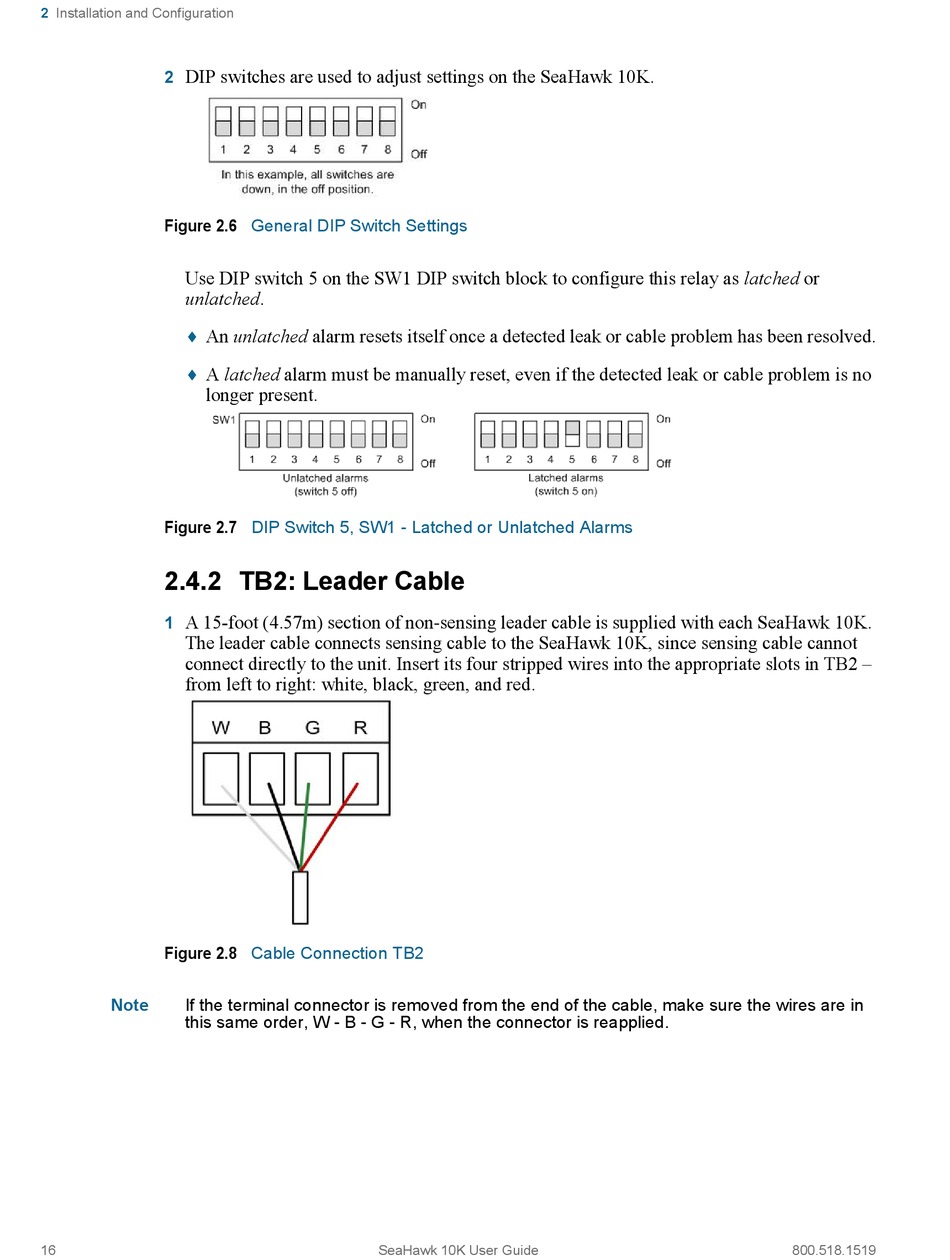

Figure 2.6
Use DIP switch 5 on the SW1 DIP switch block to configure this relay as latched or
unlatched.
An unlatched alarm resets itself once a detected leak or cable problem has been resolved.

A latched alarm must be manually reset, even if the detected leak or cable problem is no

longer present.
Figure 2.7

2.4.2 TB2: Leader Cable

A 15-foot (4.57m) section of non-sensing leader cable is supplied with each SeaHawk 10K.
1
The leader cable connects sensing cable to the SeaHawk 10K, since sensing cable cannot
connect directly to the unit. Insert its four stripped wires into the appropriate slots in TB2 –
from left to right: white, black, green, and red.
Figure 2.8
Note If the terminal connector is removed from the end of the cable, make sure the wires are in
this same order, W - B - G - R, when the connector is reapplied.
16
General DIP Switch Settings
DIP Switch 5, SW1 - Latched or Unlatched Alarms
Cable Connection TB2
