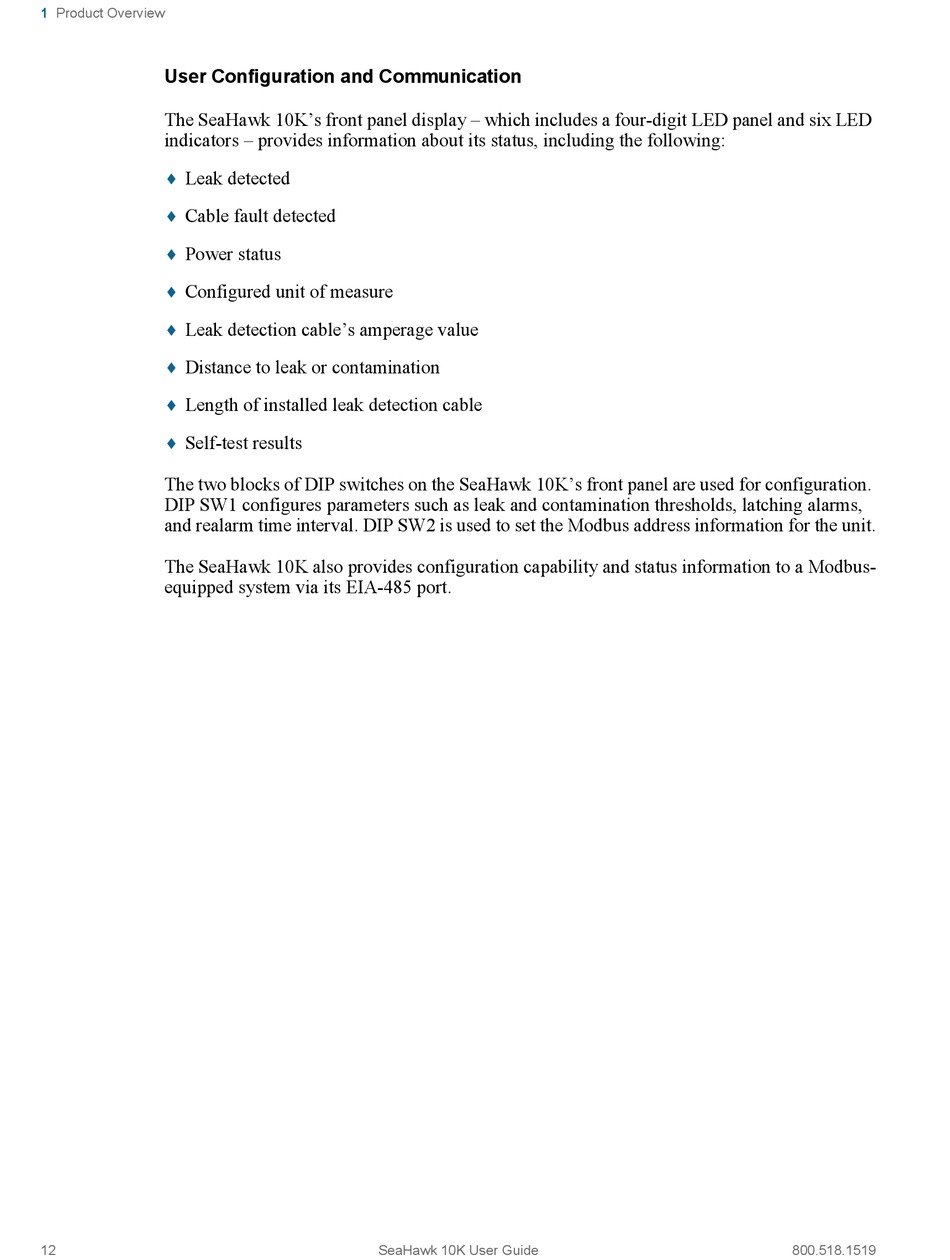

RLE Technologies SeaHawk 10K User Manual page 12

1 Product Overview
User Configuration and Communication
The SeaHawk 10K's front panel display – which includes a four-digit LED panel and six LED
indicators – provides information about its status, including the following:
Leak detected
Cable fault detected
Power status
Configured unit of measure
Leak detection cable's amperage value
Distance to leak or contamination
Length of installed leak detection cable
Self-test results
The two blocks of DIP switches on the SeaHawk 10K's front panel are used for configuration.
DIP SW1 configures parameters such as leak and contamination thresholds, latching alarms,
and realarm time interval. DIP SW2 is used to set the Modbus address information for the unit.
The SeaHawk 10K also provides configuration capability and status information to a Modbus-
equipped system via its EIA-485 port.
