Pack Leader ELF-50 Operation Manual
  1. Manuals
  2. Brands
  3. Pack Leader Manuals
  4. Industrial Equipment
  5. ELF-50
  6. Operation manual

Pack Leader ELF-50 Operation Manual

Tabletop wrap around labeling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELF-50
Tabletop Wrap Around
Labeling Machine
OPERATION
MANUAL

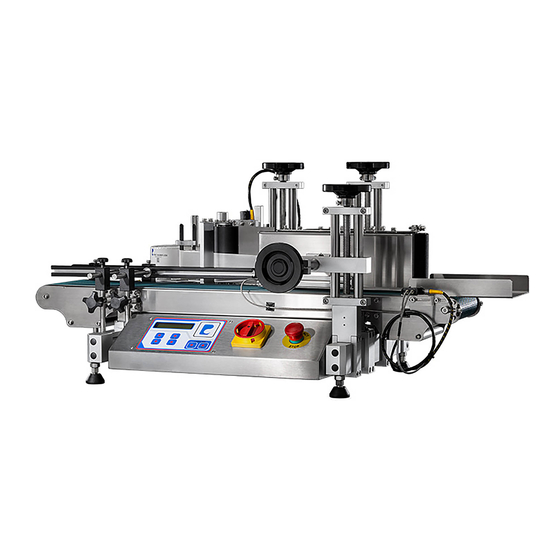

A portable wrap around labeler
With the efficiency and mobility desired in small production runs
Serial Number:049194ELF500011008
Electricity: 220V 50Hz 1Φ

Advertisement

Table of Contents
loading

Related Manuals for Pack Leader ELF-50

Summary of Contents for Pack Leader ELF-50

  • Page 1 ELF-50 Tabletop Wrap Around Labeling Machine OPERATION MANUAL A portable wrap around labeler With the efficiency and mobility desired in small production runs Serial Number:049194ELF500011008 Electricity: 220V 50Hz 1Φ...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Label Supply Assembly MACHINE SPECIFICATIONS Label Supply Plate Assembly Tension Bar Assembly Machine Sub-Assemblies Label Roller Assembly Machine Dimensions Label Sensor Base Assembly Specification of Label Reel Label Load Assembly (without printer) Label Press Assembly GENERAL INFORMATION Label Press Roller Assembly Safety Regulations Applicator Adjustment Assembly...

  • Page 3: Machine Specifications

    MACHINE SPECIFICATIONS...

  • Page 4: Machine Sub-Assemblies

    MACHINE SUB-ASSEMBLIES LABEL APPLICATOR GUIDE RAIL CONVEYOR WRAP STATION CONTROL PANEL PRESSURE PLATE...

  • Page 5: Machine Dimensions

    MACHINE DIMENSIONS 1101 mm...
  • Page 6 60 cont/minute the product, each and every time. components run at the same speed. • It’s easy to upgrade the ELF-50 to Maximum Conveyor Speed: activate hot-foil printer controls. 26.2’/minute, (8m/minute), Practicality...

  • Page 7: Specification Of Label Reel

    SPECIFICATION OF LABEL REEL Base Paper: Left side Opaque or Translucent of copy Reel Inner Diameter: 3" (76 mm) dispenses Reel Outer Diameter: first. #4 WIND 9.8" (250) mm Interval of Label: NOTE: Label gap must not exceed 5mm or the machine will not function Min.

  • Page 8: General Information

    GENERAL INFORMATION...

  • Page 9: Safety Regulations

    SAFETY REGULATIONS INSPECT BEFORE OPERATING Make sure the power • is connected to the correct power source Adjust the object • sensor to the correct position Adjust label sensor to • the proper setting DANGEROUS SAFE Be sure hands are completely dry before inserting the plug into the outlet. Especially, in the food industries or in wet environments.

  • Page 10: Label Applicator

    LABEL APPLICATOR Follow these instructions to insert the labels into the label applicator. WITH PRINTER WITHOUT PRINTER Place the label roll on the supply plate and pass the labels around the tension roller to control over rotation of the roll. Secure the labels by adding tension to the label press pad.
  • Page 11 LABEL APPLICATOR The dispensing plates peel the label from the base paper and apply it to the products. The PU drive roller pulls the base paper to apply the labels. The aluminum knurled roller must be closed and locked in place with the PU roller in order to squeeze the base paper and pull effectively.

  • Page 12: Sensitivity Adjusting Of Label Sensor

    SENSITIVITY ADJUSTING OF LABEL SENSOR Remove a label from the backing substrate before the sensor. On the control panel, hold down “LENGTH SET” (Figure 1) until the backing substrate only is positioned in the sensor (Figure 2). FIGURE 1 LENGTH SET On the label sensor, hold down the “NORMAL”...
  • Page 13 OBJECT SENSOR The object sensor is a fiber optic infra-red sensor use to detect the presence of bottle on the labeling zone. If the sensor is not able to detect a bottle, adjust the intensity of the amplifier until the sensor is able to trigger the applicator to apply a label.

  • Page 14: Parts Adjustments

    PARTS ADJUSTMENTS To adjust the tightness of the conveyor belt, turn the two screws. Turn Conveyor adjustment: counter clockwise to loosen and clockwise to tighten. Make sure the conveyor is centered. If not, it can cause the belt to wear prematurely. If the label is skewing up or down all the time, loosen the four Dispensing adjustment screw: screws and adjust the dispensing plate upward if the label is skewing upward or vice versa and then...

  • Page 15: Control Panel

    CONTROL PANEL CONTROL PANEL LIST DESCRIPTION FUNCTION Main Power Switch Cut off or connect to main power supply Emergency Switch Emergency cutoff of power supply Liquid Crystal Display Displays the data Length Sett To set up the label length required Value To select the numeric value to be entered/on for printer Menu...

  • Page 16: Machine Operation

    MACHINE OPERATION...

  • Page 17: Machine Operation

    MACHINE OPERATION PLEASE FOLLOW STEPS AND INSTRUCTION BEFORE MACHINE OPERATION. Connect machine to the appropriate power source and make sure the Emergency Stop is not engaged. Machine adjusted to product specification range. The height of label applicator adjusted in appropriate position. Object sensor adjusted in right position.

  • Page 18: Control Panel Setup

    CONTROL PANEL SETUP LABEL LENGTH PRE COUNT COUNTER PRECOUNT SETUP Press menu to select "PRECOUNT" and press "DIGIT" to select the digit then press "VALUE" to set the numbers. Press "MENU" to exit. LABEL DELAY SETUP Use "MENU" to select "LABEL POSITION" to change the value of the delay.
  • Page 19 CONTROL PANEL SETUP LABEL HEAD SETUP Press "VALUE" to turn the label head ON and press "DIGIT" to turn the label head OFF. SPEED SETUP Press "VALUE" to select speed 1-4. PRINTER SETUP Use "MENU" to select "PRINTER." Press "DIGIT" to turn "OFF"...

  • Page 20: Control Panel Warnings

    CONTROL PANEL DANGER Do not bump or press heavily on control panel. • Lightly press on any point inside the control panel to input data. • Lightly press buttons with a finger to select appropriate button (do not use a tool or sharp object). •...

  • Page 21: Trouble Shooting

    1. Inspect that the wires are properly connected. If the wires are not connected, please connect them and reset the labeling applicator. 2. If the problem is not in the wiring, please contact Pack Leader . PROBLEM 2: MORE THAN ONE LABEL IS DISPENSED AT A TIME A.
  • Page 22 TROUBLE SHOOTING PROBLEM 4: LABEL IS SLANTING A. BOTTLE IS NOT EVEN B. LABEL IS DIAGONALLY PLACED ON THE BASE PAPER WHEN THE LABELS ARE MADE C. THE SLANTING OCCURRED WHEN LABELING. THIS IS CAUSED WHEN THE PEEL PLATE IS NOT SQUARE TO THE PRODUCT.
  • Page 23 PROBLEM 8: CONVEYOR DOES NOT WORK A. WILL NOT RESPOND ON THE TOUCH SCREEN 1. Please re-start the machine. 2. After restarting the machine, if the conveyor still does not work contact Pack Leader USA. B. CONVEYOR MOTOR 1. Gearwheel belt is damaged or loose.

  • Page 24: Electronic Panel

    ELECTRONIC PANEL...

  • Page 25: Electronic Diagram

    ELECTRONIC DIAGRAM | 25...

  • Page 26: Control Box Frame

    CONTROL BOX FRAME | 26...

  • Page 27: Control Box Parts List

    CONTROL BOX FRAME PARTS LIST DESCRIPTION PARTS NO. QTY. Emergency Cutoff Switch C-1403 Main Switch C-1400 Panel Sticker 2Y1F-ELFCS0010 Front Panel CS1-ELF-002 Push Button Assembly CS1-ELF-004 Push Button 2YPCB-SS30326A LCD Display C-1040 PC Board 2YPCB-SS30105B IC Chip A 2YIC-89S5124AT IC Chip B 2YIC-89C51 Top Cover CS1-ELF-003...

  • Page 28: Applicator

    APPLICATOR...

  • Page 29: Applicator Exploded View

    APPLICATOR EXPLODED VIEW APPLICATOR EXPLODED VIEW PART LIST DESCRIPTION PARTS NO. QTY. Timing Belt 200XL050 T2Q2-200XL050 Cable Connector QVQR-MG16A-10B Applicator Motor Assembly See page 30 Base Paper Collect Assembly See page 32 Label Peel Plate Assembly ELF1050501 Applicator Driving Assembly See page 34 Label Supply Plate Assembly See page 39...

  • Page 30: Applicator Motor Assembly

    APPLICATOR MOTOR ASSEMBLY | 30...
  • Page 31 APPLICATOR MOTOR ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Applicator Base Plate ELF1050501-001 PU Roller Bearing Seat LA1-ELF-021 Bearing 6002NR 5TGH-6002NR Pad Of Stepper Motor LA1-ELF-023 Motor Gear LA1-ELF-040 Spacing Rod LA1-ELF-022 Bearing 6901NR 5TGH-6901NR Stepper Motor A21R-DA29902H8 Double Head Round Keys RGM-4420 Socket Set Screw XN5Z-M45...

  • Page 32: Base Paper Collect Assembly

    BASE PAPER COLLECT ASSEMBLY BASE PAPER COLLECT ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Paper Collect Plate LA1-ELF-018 Paper Collect Base LA1-ELF-017 Collector Rods LA1-ELF-019 Philips Head Screws XNMW-M415 Paper Collect Shaft LA1-ELF-020 Washer XNQC-M8 Spring Washer 2FWO-M8 Screw Nut XAXR-M8S Collector Cap LA1-ELF-039...

  • Page 33: Label Peel Plate Assembly

    LABEL PEEL PLATE ASSEMBLY LABEL PEEL PLATE ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Dispenser Base ELF1050501-004B Dispenser Fixing Shaft LA1-ELF-011 Label Roller LA1-ELF-013 Label Roller Sleeve LA1-ELF-038B Dispenser Plate ELF1050501-005 Washer XNQC-M5 Spring Washer 2FWO-M5 Socket Head Cap Screws XNJW-M512 Spring LA1-PL150-052...

  • Page 34: Applicator Driving Assembly

    APPLICATOR DRIVING ASSEMBLY APPLICATOR DRIVING ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Bearing Seat Fixing Plate Assembly See page 35 PU Roller Assembly See page 36 Aluminum Knurled Roller Assembly See page 38 Aluminum Knurled Roller Lever LA1-ELF-009 Aluminum Block Mount LA1-ELF-006C Ball Plunger 51WR-9.5...

  • Page 35: Bearing Seat Fixing Plate Assembly

    BEARING SEAT FIXING PLATE ASSEMBLY BEARING SEAT FIXING PLATE ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Bearing Seat Fixing Plate ELF1050501-009 Bearing 5TGH-6901NR Bearing 5TGH-6901NR | 35...

  • Page 36: Pu Roller Assembly

    PU ROLLER ASSEMBLY PU ROLLER ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. PU Roller LA1-ELF-005 Roller Shaft ELF1050501-007B Bearing 6002NR RGM-5515 S-Ring S15 DCSV-S15 Double Head Round Keys RGM-4425 Pulley of PU Roller T2Q2X-22XL050154 Socket Assembly Screw XN5Z-M45 | 36...

  • Page 37: Aluminum Knurled Roller Assembly

    ALUMINUM KNURLED ROLLER ASSEMBLY ALUMINUM KNURLED ROLLER ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Aluminum Knurled Roller LA1-ELF-007 Bearing 6804ZZ 5TGH-6804ZZ Aluminum Knurled Roller Shaft ELF1050501-008 S-Ring DCSV-S20 Spring of Tension Bar LA1-ELF-024 Spring Seat LA1-ELF-025 | 37...

  • Page 38: Label Supply Assembly

    LABEL SUPPLY ASSEMBLY LABEL SUPPLY ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Feeding Tray Base ELF1050501-010 Bearing 5TGH-6002NR Feeding Shaft Pad ELF1050501-012 Feeding Tray Shaft ELF1050501-011 Label Supply Plate Assembly See page 39 Tension Bar Assembly ELF1050501 Pillar 51WR-SWIPOZ0625 Brake Belt ELF1050501-027 Spring 51WC-WUT8-30...

  • Page 39: Label Supply Plate Assembly

    LABEL SUPPLY PLATE ASSEMBLY LABEL SUPPLY PLATE ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Lock Block ELF1050501-013B Label Feed Tray LA1-ELF-033 Socket Button Head Cap Screws XN1M-M516 | 39...

  • Page 40: Tension Bar Assembly

    TENSION BAR ASSEMBLY TENSION BAR ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Tension Bar ELF1050501-014 Spring Rod 51WR-SWIPOZ0625 Tension Bar Rotating Shaft ELF1050501-016 Spring Rod 51WR-SWIPOZ0420 Tension Bar Pad ELF1050501-015 Roller Shaft of Tension Bar LA1-PL150-065 E-Ring E4 DCEV-E4 Interior Roller Of Tension Bar LA1-PL150-066 Exterior Roller Of Tension Bar LA1-PL150-067...

  • Page 41: Label Roller Assembly

    LABEL ROLLER ASSEMBLY LABEL ROLLER ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Label Roller LA1-ELF-013 Roller Shaft of Label Orientation LA1-ELF-016B Washer-M6 XNQC-M6 Spring Washer-M6 2FWO-M6 Socket Head Cap Screws XNJW-M6100 Label Roller Sleeve (Large) LA1-PL150-019 Plug QVDG-HP16 Label Roller Sleeve LA1-ELF-038B Spring LA1-PL150-052...

  • Page 42: Label Sensor Base Assembly

    LABEL SENSOR BASE ASSEMBLY LABEL SENSOR BASE ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Sensor Adjusted Bar LA1-PL150-077D Sensor Adjusted Pad ELF1050501-020 Sensor Locking Pad ELF1050501-021B LERRC Label Sensor 2YE2-LERRCM8171 Square Nut XAZV-NSM4 Stainless Steel Knob 51WR-802020M410 Socket Head Cap Screws XNJW-M520 Spring Washer-M5 2FWO-M5...

  • Page 43: Label Load Assembly (Without Printer)

    LABEL LOAD ASSEMBLY (WITHOUT PRINTER) LABEL LOAD ASSEMBLY (WITHOUT PRINTER) PART LIST DESCRIPTION PARTS NO. QTY. Roller Pad ELF1050501-019 Press Roller Assembly See page 45 Paper Press Assembly See page 44 Socket Head Cap Screws XNJW-M616 Socket Head Cap Screws XNJW-M625 | 43...

  • Page 44: Label Press Assembly

    LABEL PRESS ASSEMBLY LABEL PRESS ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Label Press Plate Bracket LA1-ELF-044 Label Press Plate Base LA1-PL150-046 Label Press Plate LA1-PL150-037 Philips Head Screws XNMW-M35 Spring Washer 2FWO-M3 Label Press Pad LA1-PL150-089 Knob 802020M410 51WR-802020M410 E-Ring E8 DCEV-E8 Spring...

  • Page 45: Label Press Roller Assembly

    LABEL PRESS ROLLER ASSEMBLY LABEL PRESS ROLLER ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Label Roller LA1-ELF-013 Roller Shaft of Label Orientation LA1-ELF-048B Washer-M6 XNQC-M6 Spring Washer-M6 2FWO-M6 Socket Head Cap Screws XNJW-M6100 Label Roller Sleeve (Large) LA1-PL150-019 Plug QVDG-HP16 Label Roller Sleeve LA1-ELF-038B Spring...

  • Page 46: Applicator Adjustment Assembly

    APPLICATOR ADJUSTMENT ASSEMBLY APPLICATOR ADJUSTMENT ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Hand Wheel QRGX-KRA100CB65 Socket Head Cap Screws XNJW-M512 Socket Head Cap Screws XNJW-M625 Mounting Base of Hand Wheel AA1-ELF-014 Nylon Washer 2FN2-101610 Applicator Adjustment Base ELF1050501-024 Screw Rod AA1-ELF-007 Self Run Bearing 5TDU-LBF2015...

  • Page 47: Wrap Station

    WRAP STATION...

  • Page 48: Wrap Station Assembly

    WRAP STATION ASSEMBLY WRAP STATION ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Upper Base Plate WB1-ELF-001B Wrap Station Motor Assembly See page 49 Lower Base Plate WB1-ELF-002C Wrap Around Belt 120W*800L T2EW-120W800L Driven Pulley Adjustment Plate CV1-ELF-008 Space Roller Assembly 1 See page 52 Space Roller Assembly 2 See page 53...

  • Page 49: Wrap Station Motor Assembly

    WRAP STATION MOTOR ASSEMBLY WRAP STATION MOTOR ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. 3 Phase Motor 51K40GNS A2EU-5IK40GNS Gear Box 5GN9K A2RG-5GN9K-1 Double Head Round Keys RGM-4415 Spacing Rod WB1-ELF-016B Spring Washer 2FWO-M6 Socket Head Cap Screws XNJW-M665 Socket Assembly Screw XN5Z-M45 Pulley 19T CV1-ELF-017...

  • Page 50: Wrap Station Driving Pulley Assembly

    WRAP STATION DRIVING PULLING ASSEMBLY WRAP STATION DRIVING PULLING ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Driving Pulley WB1-ELF-003B Bearing 6202ZZ 5TGH-6202ZZ Bolt XNAW-M320 Driving Pulley Shaft WB1-ELF-004C S-Ring S15 DCSV-S15 Driving Pulley Cover CV1-ELF-003B Driving Pulley Gear CV1-ELF-004 | 50...
  • Page 51 WRAP STATION DRIVEN PULLEY ASSEMBLY WRAP STATION DRIVEN PULLEY ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Driven Pulley WB1-ELF-005B Driven Pulley Shaft WB1-ELF-006B Bearing 6002ZZ 5TGH-6002ZZ Bearing 6002ZZ 5TGH-6002ZZ S-Ring S15 DCSV-S15 | 51...

  • Page 52: Space Roller Assembly 1

    SPACE ROLLER ASSEMBLY 1 SPACE ROLLER ASSEMBLY 1 PART LIST DESCRIPTION PARTS NO. QTY. Spacing Rods WB1-ELF-008 Spacing Roller WB1-ELF-007 | 52...
  • Page 53 SPACE ROLLER ASSEMBLY 2 SPACE ROLLER ASSEMBLY 2 PART LIST DESCRIPTION PARTS NO. QTY. Spacing Rods WB1-ELF-008 Spacing Roller WB1-ELF-007 Spacing Roller (Short) WB1-ELF-009 Friction Roller WB1-ELF-010 | 53...

  • Page 54: Wrap Station Up/Down Adjustment Assembly

    WRAP STATION UP/DOWN ADJUSTMENT ASSEMBLY WRAP STATION UP/DOWN ADJUSTMENT ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Self Run Bearing 5TDU-LBF2015 Adjustment Base AA1-ELF-001B Screw Rod M16300 AA1-ELF-007 Sliding Shaft D20400 AA1-ELF-004 Hand Wheel Base AA1-ELF-014 Nylon Washer 2FN2-101610 Hand Wheel QRGX-KRA100CB65 | 54...

  • Page 55: Pressure Plate

    PRESSURE PLATE...

  • Page 56: Pressure Plate Assembly

    PRESSURE PLATE ASSEMBLY PRESSURE PLATE ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Pressure Plate WB1-ELF-017B Socket Head Cap Screws XNJW-M625 Socket Head Cap Screws XNJW-M616 Adjustment Seat Of Sensor WB1-ELF-015B Fixed Seat Of Sensor WB1-PL160-016 Socket Head Cap Screws XMNW-M312 Product Sensor FS260 2YE2-FS260 Knob...

  • Page 57: Pressure Plate Adjustment Assembly

    PRESSURE PLATE ADJUSTMENT ASSEMBLY PRESSURE PLATE ADJUSTMENT ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Hand Wheel QRGX-KRA100CB65 Nylon Washer 2FN2-101610 Screw Rod M16210 AA1-ELF-015 Sliding Shaft 512C-20D250L Mounting Base of Hand Wheel AA1-ELF-014 Self Run Bearing 5TDU-LBF2015 Pressure Plate Sliding Block AA1-ELF-011B Screw Rod M16160 AA1-ELF-008...

  • Page 58: Conveyor

    CONVEYOR...

  • Page 59: Conveyor Assembly

    CONVEYOR ASSEMBLY | 59...
  • Page 60 CONVEYOR ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Conveyor Plate CV1-ELF-001C Conveyor Driven Pulley Assembly See page 63 Conveyor Driving Pulley Assembly See page 62 Conveyor Motor Assembly See page 61 Timing Belt 120XL-050 T2Q2-120XL050 Tension Adjustment Block CV1-ELF-008 Guide Rail -1 GR1-ELF-001B Spacing Pillar CV1-ELF-010...

  • Page 61: Conveyor Motor Assembly

    CONVEYOR MOTOR ASSEMBLY CONVEYOR MOTOR ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. 3 Phase Stepper Motor A2EU-51K40GNST Gear Reducer 5GN15K A2RG-5GN15K-1 Double Head Round Keys RGM-4425 Pulley CV1-ELF-017 Socket Set Screw XN5Z-M45 Spring Washer 2FWO-M6 Socket Head Cap Screws XNJW-M675 Socket Head Cap Screws XNJW-M685 | 61...

  • Page 62: Conveyor Driving Pulley Assembly

    CONVEYOR DRIVING PULLEY ASSEMBLY CONVEYOR DRIVING PULLEY ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Conveyor Driving Pulley CV1-ELF-002B Bearing 6202 ZZ 5TGH-6202ZZ Conveyor Driving Pulley Cover CV1-ELF-003B Gear CV1-ELF-004 Bolt XNAW-M320 Conveyor Driving Pulley Shaft CV1-ELF-005B S-Ring S15 DCSV-S15 Bolt XNAW-M315 | 62...

  • Page 63: Conveyor Driven Pulley Assembly

    CONVEYOR DRIVEN PULLEY ASSEMBLY CONVEYOR DRIVEN PULLEY ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Conveyor Driven Pulley CV1-ELF-007B Bearing 6202ZZ 5TGH-6202ZZ Conveyor Driven Pulley Shaft CV1-ELF-006B S-Ring DCSV-S15 Pulley Adjustment Block CV1-ELF-009 | 63...

  • Page 64: Foot Stand

    FOOT STAND...
  • Page 65 FOOT STAND ASSEMBLY | 65...
  • Page 66 FOOT STAND ASSEMBLY PART LIST DESCRIPTION PARTS NO. QTY. Stand Connector FT1-ELF-014C Supporter Connecting Base FT1-ELF-025C Supporter Connecting Base (Inner) FT1-ELF-026C Back Stand Connector FT1-ELF-034C 51WR-NS401285 Conveyor Supporter-Right FT1-ELF-023E Stand Connector-Front Right FT1-ELF-033 Conveyor Fixed Supporter(Inner) FT1-ELF-018D Conveyor Fixed Supporter (Outer) FT1-ELF-017C Plug QVDG-HP13...
  • Page 67 FOOT STAND ASSEMBLY PART LIST IN-FEED TURNTABLE | 67...
  • Page 68 IN-FEED TURNTABLE ASSEMBLY DESCRIPTION PARTS NO. QTY. In-Feed Turntable Assembly In-Feed Cabinet Assembly In-Feed Transmission Assembly ELF1051227-003 Guide Rail Fixed Rod 1 512C-12D100 Shaft 512C-12.7D100 Guide Rail Adjustment Rod PL1051032-009 Guide Rail Adjustment Element TT-0170 Guide Rail Fixed Element Guide Rail Fixed Rod 2 ELF1051227-004 510T0200 Guide Rail...

  • Page 69: Foot Stand

    IN-FEED CABINET ASSEMBLY DESCRIPTION PARTS NO. QTY. 51WR-NS401285 Foot Stand ELF1051227-014B Back Cover ELF1051227-008C Front Cover 2Y1Q-VFD001L21A Inverter ELF1051227-007E Cabinet Frame Excess Weld Metal ELF1051227-022 2YSW-TEXB5AD21 On/Off Power Switch | 69...

  • Page 70: In-Feed Turntable

    IN-FEED GUIDE RAIL ASSEMBLY DESCRIPTION PARTS NO. QTY. In-Feed Turntable Assembly In-Feed Holder Assembly In-Feed Bridge ELF1051227-010B | 70...
  • Page 71 TURNTABLE BASE ASSEMBLY DESCRIPTION PARTS NO. QTY. Induction motor A2EU-5IK60GDSTF Reducer A2RG-NMRV030-I50 Parallel Keys 1 RGM-5545 Turntable base ELF1051227-001E Drive shaft ELF1051227-005C Flange A2RG-FLANGFA030 Bearing 5TGH-6905zz Parallel Keys 2 RGM-8720 | 71...
  • Page 72 TURNTABLE DRIVE ASSEMBLY DESCRIPTION PARTS NO. QTY. ELF1051227-002 Base round plate 2FWO-M6 Spring washer XNJW-M612 Hexagon socket screw ELF1051227-006 600mm Turntable Base holder ELF1051227-013B | 72...
  • Page 73 IN-FEED HOLDER ASSEMBLY | 73...
  • Page 74 IN-FEED HOLDER ASSEMBLY DESCRIPTION PARTS NO. QTY. WS1-PL501 Bottle separator ELF1051227-023 4040 seal cover End cover 51WR-EC3030 Adjustment holder CV1-PL221-014C 51WR-Q339 Screwing head PL1021003-010 Adjustment rod (12D400L) ELF1051227-026 Aluminum holder 3 (BP3030500L) ELF1051227-024 Aluminum holder 1 (BP4040400L) End cover EC-4040 51WR-EC4040 Connected element 51XR-BL14040...
  • Page 75 OUT-FEED TURNTABLE ASSEMBLY OUT-FEED TURNTABLE | 75...
  • Page 76 OUT-FEED TURNTABLE ASSEMBLY DESCRIPTION PARTS NO. QTY. Out-feed turntable assembly Out-feed Cabinet assembly Out-feed Transmission assembly ELF1051227-003 Guide rail fixed rod 1 512C-12.7D100 Shaft 512C-12D100 Guide rail adjustment rod ELF1051227-004 Guide rail fixed rod 2 PL1051032-009 Guide rail adjustment element Guide rail fixed element TT-0170 510T0200...
  • Page 77 OUT-FEED CABINET ASSEMBLY DESCRIPTION PARTS NO. QTY. ELF1051227-008C Front cover Cabinet ELF1051227-007E Back cover ELF1051227-014B 2YSW-TEXB5AD21 ON/OFF Power Switch 2Y1Q-VFD001L21A Inverter 51WR-NS401285 Foot stand | 77...
  • Page 78 OUT-FEED GUIDE RAIL ASSEMBLY DESCRIPTION PARTS NO. QTY. Out-feed turntable assembly Out-feed holder assembly ELF1051227-011B Out-feed Bridge CV1-ELF-012 Conveyor bridge | 78...
  • Page 79 OUT-FEED HOLDER ASSEMBLY DESCRIPTION PARTS NO. QTY. ELF1051227-018C Aluminum holder (BP4080625L) 51WR-EC4080 End cover ELF1051227-019 Aluminum holder (BP408070L) XNXW-M6M1014 Threaded bushing | 79...
  • Page 80 OUT-FEED HOLDER ASSEMBLY www.packleader.com.tw sales@packleader.com.tw No.60, 32nd Rd. Taichung Ind. Tel：+886 4 23592366 Park, Taichung 407, Taiwan Fax：+886 4 23592368 | 80...
