Model 342
Intercom Station
User Guide
Issue Preliminary 1, April 2022
This User Guide is applicable for serial numbers
M342-00151 and later with main firmware version 1.00 and later
and STcontroller application version 3.08.00 and later.
Copyright © 2022 by Studio Technologies, Inc., all rights reserved
studio-tech.com
50295-0422, Issue Preliminary 1
Advertisement
Table of Contents
Related Manuals for Studio Technologies 342
Summary of Contents for Studio Technologies 342
- Page 1 This User Guide is applicable for serial numbers M342-00151 and later with main firmware version 1.00 and later and STcontroller application version 3.08.00 and later. Copyright © 2022 by Studio Technologies, Inc., all rights reserved studio-tech.com 50295-0422, Issue Preliminary 1...
- Page 2 This page intentionally left blank.
-
Page 3: Table Of Contents
Table of Contents Revision History ......................4 Introduction ........................ 5 Getting Started ......................7 Dante Configuration ....................8 Model 342 Configuration ................... 10 Operation ........................13 Technical Notes ......................15 Specifications ......................18 Appendix A: STcontroller Default Configuration Values ..........19... -
Page 4: Revision History
Model 342 INTERCOM STATION Revision History Issue Preliminary 1, April 2022: • Initial preliminary release. Issue Preliminary 1, April 2022 Model 342 User Guide Page 4 Studio Technologies, Inc. -
Page 5: Introduction

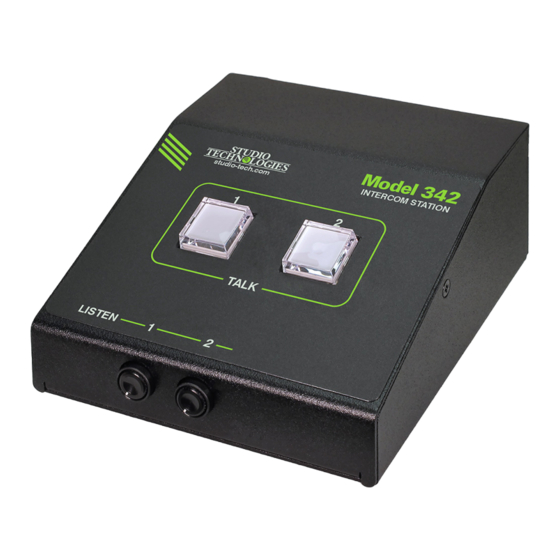

Figure 1. Model 342 Intercom Station front and Setting up and configuring a Model 342 is simple. An ether- back views RJ45 receptacle is used to interconnect with a stan- ®... - Page 6 Configuration Flexibility firmware in this integrated circuit can be updated via the A highlight of the Model 342 is its ability to be easily config- Ethernet connection, helping to ensure that its capabilities ured to meet the needs of specific users and applications.
-
Page 7: Getting Started
RJ45 patch cable or an etherCON correctly if its signal – (low) is connected to Model 342’s protected RJ45 plug. A dual-channel or single-channel mic in –/shield connection. No support is provided for microphones that require P12 or P48 phantom power. -
Page 8: Dante Configuration
It’s possible that some beyerdynamic headset interconnect- ing cable assemblies terminate the earpiece’s left and right For audio to pass to and from the Model 342 requires that connections opposite from what the Model 342 and other several Dante-related parameters be configured. These broadcast equipment require. - Page 9 Model 342 INTERCOM STATION Device Configuration The Model 342 only supports an audio sample rate of 48 kHz with no pull-up/pull-down values available. The audio encoding is fixed for PCM 24. Device Latency and Clocking can be adjusted if required but the default value is typically correct.
-
Page 10: Model 342 Configuration
STcontroller the application will locate all the Studio Technologies’ devices that it can control. The one or more Model 342 units to be configured will appear in the device list. Use the Identify command to allow easy recognition of a specific Model 342 unit. - Page 11 The could be useful if a “listen-only” channel is desired. 48 dB gain setting may also be useful when the Model 342 is going to be deployed at events where users are not able Button Operation –...
- Page 12 Dante Controller application. How these two audio provided message to automatically disable either or both signals, called 1 and 2, are routed to the Model 342’s left of the talk channels if they are “latched” on. Specifically, and right headphone output channels can be independently it’s possible to remotely change an active (on) talk channel...
-
Page 13: Operation
The SYS LED will light button will light orange when a call signal is detected; it will red upon Model 342 power up to indicate that the Dante light orange whether or not the talk function associated with interface is not ready. - Page 14 Call Detection Display will either be red or not lit when the function is not active. A Model 342 function allows a call signal that’s present on Push to Talk/Tap to Latch: If a button has been config- either Dante receiver (input) channel to cause it’s associ- ured for the Push to Talk/Tap to Latch mode operation it is ated pushbutton switch’s LED to light.
-
Page 15: Technical Notes
Model 342. When the Identify command is select- cases, correctly acquire IP addresses and be able to com- ed it will send a message to a single Model 342 unit. On municate with each other. that specific unit the LEDs in the two pushbutton switches will rapidly flash orange. - Page 16 Model 342’s MCU updates its application firmware using Power-over-Ethernet (PoE) Ethernet source. a file named M342vXrXX.stm where the Xs are decimal 5. After a few seconds, the Model 342 will run a “boot digits that represent the version number. loader” program that will automatically load the new application firmware file (M342vXrXX.stm).
- Page 17 From STcontroller select the Model 342 for which you want to restore its defaults. Select the Device 6. At this time, the Model 342 is functioning with the newly tab and then select the Factory Defaults feature. Then loaded application firmware and the USB flash drive can click on the OK box.
-
Page 18: Specifications
Compatibility – Headset A: single- or dual-ear broad- cast-style with dynamic or electret (low-voltage DC- USB: type A receptacle (located in side Model 342’s powered) microphone: pin 1 mic common; pin 2 mic; enclosure and used only for application firmware pin 3 phones common;... -
Page 19: Appendix A: Stcontroller Default Configuration Values
Headphone Output – Channel 1 Input Routes to: Left Headphone Output – Channel 2 Input Routes to: Right Sidetone – Level: Medium System – Mic Kill: Global Kill Command System – Call Indication: Flash Model 342 User Guide Issue Preliminary 1, April 2022 Studio Technologies, Inc. Page 19...
