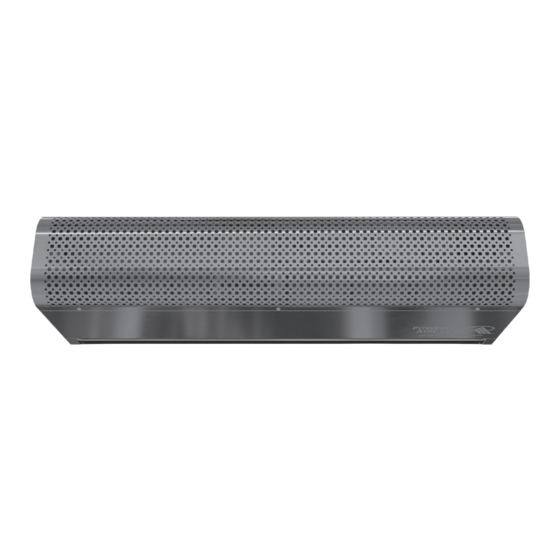

Powered Aire EVE Owner's Manual

Air Curtain
Owner's Manual
Models:
EVE & EVE-E
IMPORTANT!
1. CHECK FOR DAMAGE: When you receive your air cur-
tain, immediately check for visible or concealed dam-
age. Claims should be made immediately to the trans-
portation company. Powered Aire will not be liable for
damage claims submitted late.
2. LOCATE AND RETAIN THE SERIAL NUMBER: The
unit's serial number is necessary to request technical
support, order replacement parts or to acquire a wir-
ing diagram. The serial number is located on a silver
sticker located on the right side end cap when facing
the front of the air curtain.
For PARTS, TECHNICAL SUPPORT or INFORMATION
call: 1-888-321-2473
or visit the SUPPORT tab at www.poweredaire.com
Trained and experienced mechanic/electrician required
for installation.
Powered Aire will not be responsible for misplaced
switches.
Please review the following instructions for unpacking your air curtain and
preparing it for installation.
1.
Remove shrink-wrap and remove wood
slats from top and sides of crate.
2.
Using a Phillips head screwdriver, unscrew the
truss head screws that hold air intake (screen)
in place. Set aside air intake and screws for later
use. Remove filter (if supplied).
3.
The air curtain is lagged to the bottom of the
crate frame. Use a 3/8" socket with extension
and remove the 4 lag screws (one in each cor-
ner) that attach the air curtain to the skid. Unit
is now ready for installation. Lag screw holes can
be used to bolt the air curtain to the wall.
4.
Replace the air intake and filter (if provided)
when installation is complete.
Location of Remote Switches
If remote switches are supplied with the EVE air curtain they are
shipped in one of the following locations:
Inside the
junction
box.
Inside the
Control Panel
enclosure (if
supplied).
2
