POWERED
AIRE
Inc.
AIRE CURTAINS

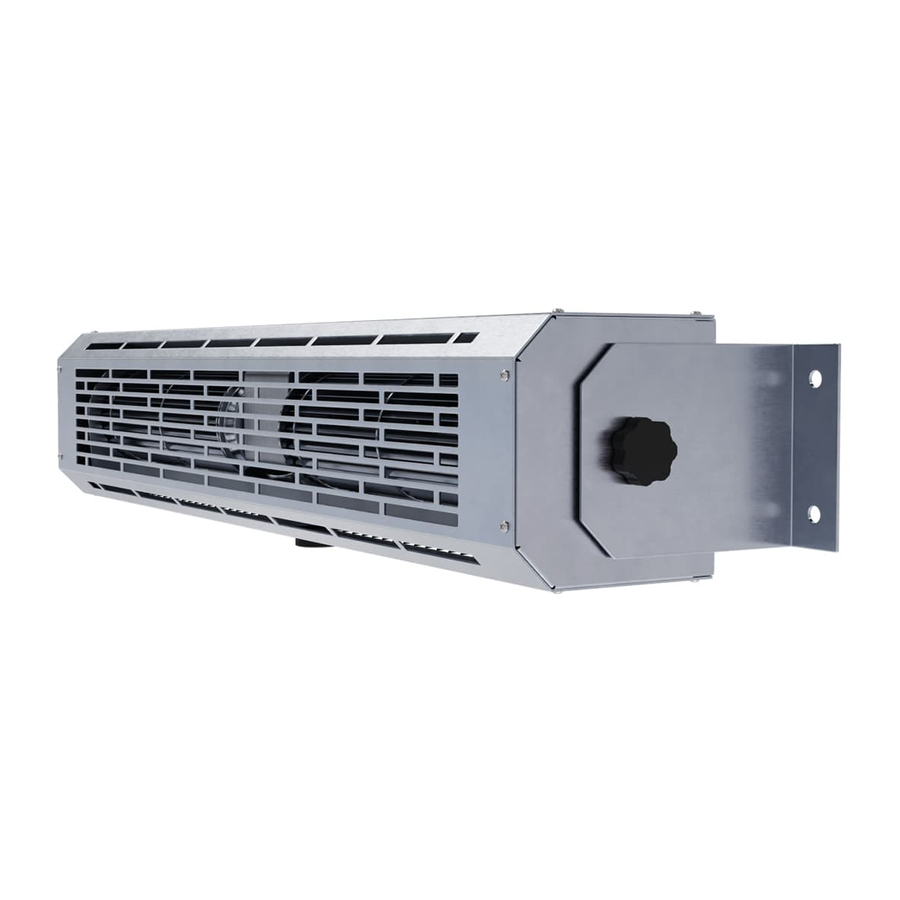

Air Curtain
Owner's Manual
PTW & PTW-E
IMPORTANT!
1.
CHECK FOR DAMAGE: When you receive your air cur-
tain, immediately check for visible or concealed dam-
age. Claims should be made immediately to the trans-
portation company. Powered Aire will not be liable for
damage claims submitted late.
2.
LOCATE AND RETAIN THE SERIAL NUMBER: The
unit's serial number is necessary to request technical
support, order replacement parts or to acquire a wir-
ing diagram. The serial number is located on a silver
sticker located on the right side end cap when facing
the front of the air curtain.
For PARTS call: 724-985-4183
For TECHNICAL SUPPORT call: 724-985-4186
For GENERAL INFORMATION call: 1-888-321-2473
1
®
Models:
Trained and experienced mechanic required for installation.
Electrician required for installing optional door switch.
Indoor installation at drive and pass thru windows with a maximum window
height of 42" and maximum window width of 24".
20 gauge 304 stainless steel outer case with a number three finish.
UL and CSA approved Class H shaded pole 107 Watt motor with auto-reset
thermal protection.
Unit mounted variable speed dial.*
8' 120 volt power cord plugs into standard 15 amp receptacle.
Swivel mounting brackets allow for rear or top mounting and also
allow for adjustment of the discharge angle.
Easy installation.
*
Unit mounted variable speed dial with FAN ON/OFF.
Model
UNHEATED
Avg. velocity at nozzle on highest speed (FPM)
Air flow rate at nozzle on highest speed (CFM)
Motor power (Watts)
Amp draw
Weight (lbs.)
Sound level
(Measured 10' away from unit in a free field on highest speed)
*
Unit mounted variable speed dial with FAN/OFF/HEAT rocker switch.
Model
ELECTRICALLY HEATED
Avg. velocity at nozzle on highest speed (FPM)
Air flow rate at nozzle on highest speed (CFM)
Motor power (Watts)
Electric heating capacity
Temperature rise on highest speed
Amp draw
Weight (lbs.)
Sound level
(Measured 10' away from unit in a free field on highest speed)
PTW-24
1653
363
107
1.7
13
50 dba
PTW-24E
1653
363
107
1.2 kW
10.6
F
o
11.2
21
50 dba
2
