Powered Aire CHS Series Owner's Manual

Air Curtain
Owner's Manual
Models:
CHS & THS Hot Water
Heated
IMPORTANT!
1. CHECK FOR DAMAGE: When you receive your air cur-
tain, immediately check for visible or concealed dam-
age. Claims should be made immediately to the trans-
portation company. Powered Aire will not be liable for
damage claims submitted late.
2. LOCATE AND RETAIN THE SERIAL NUMBER: The
unit's serial number is necessary to request technical
support, order replacement parts or to acquire a wir-
ing diagram. The serial number is located on a silver
sticker located on the right side end cap when facing
the front of the air curtain.
For PARTS call: 724-985-4183
For TECHNICAL SUPPORT call: 724-985-4186
For GENERAL INFORMATION call: 1-888-321-2473

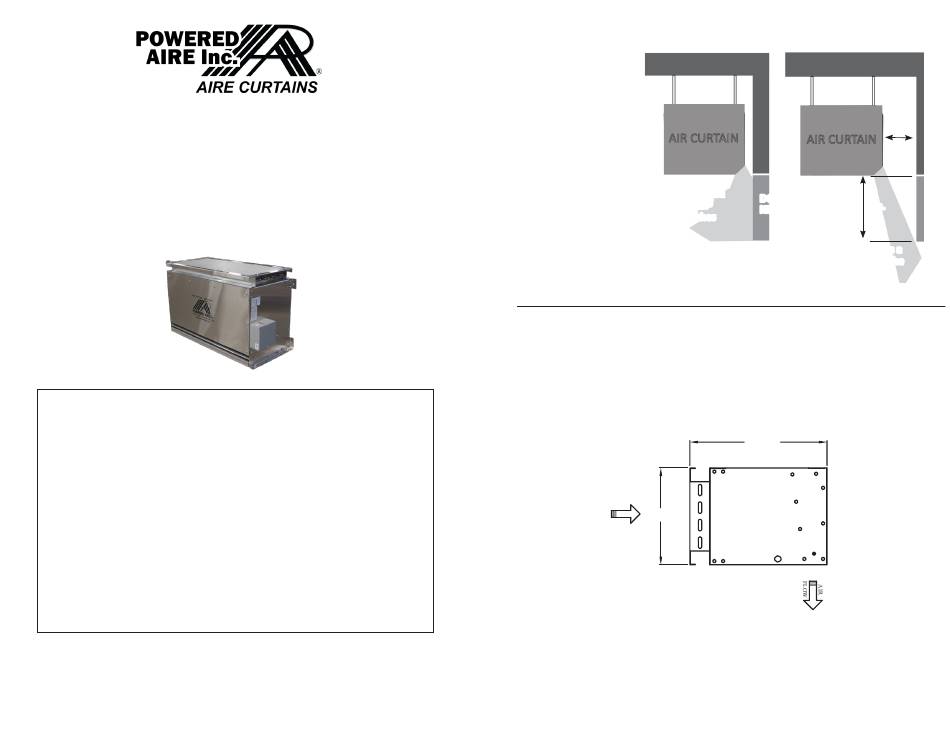

INCORRECT Installation
INSTALLATION
CEILING
NOTE
The bottom of the air
curtain should be flush
with the top of the
opening if possible. If
AIR CURTAIN
not and the air curtain
has to be raised, the
following applies: For
every one inch the bot-
tom of the air curtain
Air stream blocked
is mounted above the
by door header
door header, the back
before it reaches
side of the air curtain
open door.
should be moved away
from the wall 1/2 inch.
CLEARANCES
2" Top clearance required if maintenance access
is from the front or bottom. If maintenance is
from the top, 30" clearance is required.
FRONT
12" Front clear-
ance required
if maintenance
access is from the
AIR
16.75"
top or bottom. If
FLOW
maintenance is
from the front,
30" clearance is
required.
2" Bottom clearance required if maintenance
access is from the front or top. If maintenance
is from the bottom, 30" clearance is required.
(DISCHARGE CANNOT BE BLOCKED)
CORRECT Installation
CEILING
4 in.
AIR CURTAIN
DOOR
8 in.
HEADER
Air stream has a
clear path to the
open doorway.
TOP
23.75" BACK
Unit can be lagged
directly to wall. If
Minimum 3" clearance
not lagged to wall,
required on side with-
out electrical junction 2" clearance is
box. Side with J-box
required.
requires 20".
BOTTOM
2
