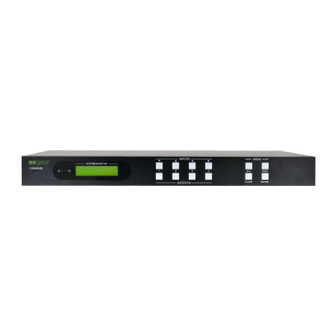

AVG-UHMS44
The AVG-UHMS44 is a professional 4x4
HDBaseT Matrix Switcher that accommodates
4 HDMI IN (4k signal max) and 4 IR IN.
Features
Supports HDMI 1.4, 4Kx2K, 1080p
& 3D
HDCP1.4 compatible, supports
manual HDCP management and
auto-detection
Transmits 4Kx2K signal for 8m via
the HDMI port, 35m via the HDBT
port
4 x HDBaseT outputs, for
transmission up to 70m at 1080p
and 35m at 4Kx2K on a single
CAT5e/6 cable
Supports PoC
LCD indicator shows real-time I/O
connection status, switching status,
HDCP status, and output resolution.
Controllable via front panel, RS232,
IR and TCP/IP
Supports bi-directional IR & RS232
control
Built-in GUI for TCP/IP control
Powerful EDID management
Supports memory off function for
reliable operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-UHMS44 and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-UHMS44

Summary of Contents for AVGear AVG-UHMS44

  • Page 1 4 x HDBaseT outputs, for transmission up to 70m at 1080p and 35m at 4Kx2K on a single The AVG-UHMS44 is a professional 4x4 CAT5e/6 cable HDBaseT Matrix Switcher that accommodates Supports PoC 4 HDMI IN (4k signal max) and 4 IR IN.
  • Page 2 AVG-UHMS44 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and not to be used in a maintenance capacity. The functions described in this version are current as at March 2015. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-UHMS44 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Introduction ......................1 Introduction to the AVG-UHMS44 ..............1.1 Features ....................... 1.2 Package List ....……………………………………………………………………2 Product Appearance of the AVG-UHMS44 ............. 3 Front Panel ....................3.1 Rear Panel....................3.2 System Connection ....................4 System Applications ..................4.1 Usage Precautions ..................

  • Page 5: Introduction

    1. Introduction 1.1. Introduction to the AVG-UHMS44 The AVG-UHMS44 is a professional 4x4 HDBaseT Matrix Switcher that accommodates 4 HDMI IN (4k signal at max) and 4 IR IN. Selectable HDMI inputs by front panel buttons, IR, RS232, or GUI. The selected source is delivered to HDMI Output 1~2 (for HDMI input 1~2) &...

  • Page 6: Package List

    AVG-UHMS44 2. Package List 1 x AVG-UHMS44 2 x Mounting ears (6 x Screws) 1 x RS232 cable 1 x IR Receiver 4 x Plastic cushions (4 x Screws) 1 x IR remote 1 x Power Adapter (DC 24V 2.5A)

  • Page 7: Product Appearance Of The Avg-Uhms44

    AVG-UHMS44 3. Product Appearance of the AVG-UHMS44 3.1. Front Panel Name Description ① Firmware Micro USB port for updating firmware Power ② Illuminates red when power on. Indicator ③ In-built IR sensor, receive IR signals sent from IR remote. ④...

  • Page 8: Rear Panel

    HDBaseT receiver. When controlled by HDBaseT receiver, the ④ OUTPUTS communication protocol must be the same with AVG-UHMS44. HDMI: HDMI output port, connect with HDMI displayers, deliver same input signals with HDBaseT ports, split HDMI output for local monitoring. HDBaseT: Works with HDBaseT receivers, such as HD300. It can extend AV, IR and RS232 signal to 70m distance.

  • Page 9: System Connection

    AVG-UHMS44 4. System Connection 4.1. System Applications Reliable performance for control and transmission makes the AVG-UHMS44 ideal in the IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc. 4.2. Usage Precautions 1.

  • Page 10: Connection Procedure

    Connect the HDBT output ports of AVG-UHMS44 to HDBaseT Receivers supporting PoC (like HD300R) via twisted pair. Plug a power supply to the power port of AVG-UHMS44, the HDBaseT Receivers will be also power on via the POC solution.

  • Page 11: System Operations

    AVG-UHMS44 5. System Operations 5.1. Front Panel Button Control AVG-UHMS44 has convenient front panel button controls. Below is an introduction to the system operations. 5.1.1. Switching I/O Connection 1. To select one input to an output: Operation: “input”+“output”+“ENTER” Example: input 1 to output 2 Note: In default status, 4 IR OUT sockets correspond with 4 HDMI INPUTS.
  • Page 12 AVG-UHMS44 All input ports learn EDID data from one output port Operation: Press “EDID”, “ALL”+“OUTPUTS”+“ENTER” Example: All input ports learn EDID data from output 4 Note: Indicators of the pressed buttons will blink green for three times if the process is successful, then it will turn off. If the process fails, they will be off immediately.

  • Page 13: Inquiry

    AVG-UHMS44 Invoke embedded EDID data for all inputs Operation: Press “EDID” (hold for 3 seconds to enter in EDID setting status), “ALL”+“OUTPUTS”+“ENTER”. Example: Set the EDID data of all input ports to the second type of EDID data: Press (hold for three seconds)

  • Page 14: Clear Operation

    In EDID programming mode: press button 1/2 to switch among the 5 embedded EDID data Note: With this IR remote, AVG-UHMS44 can be controlled by the built-in IR, the extended IR receiver connected to the “IR EYE”/”IR ALL IN” and the IR receiver on...

  • Page 15: Ir Operations

    AVG-UHMS44 itself. x2: Corresponding to the zone (receive IR signal from HDBaseT receiver with IR IN port connects with IR receiver) number of AVG-UHMS44. Example: Send command “3R2.” to transfer IR signal received from zone 2 to IR OUT port 3.
  • Page 16 3. IR control setting Controlling a far-end output device from local point Connect an IR receiver with IR carrier to the IR IN port of AVG-UHMS44, users can control far-end output displayer via its IR remote from local. In that case, the IR signal is transferred via twisted pair. Only the corresponding IR OUT port can emit control signals to the remote display.
  • Page 17 It is also possible to control local source devices with their IR remote from remote too. When using, the IR signal received by the HDBaseT receiver will be transmitted to the corresponding IR OUT port of the AVG-UHMS44. See below:...

  • Page 18: Rs232 Control

    5.3. RS232 Control 5.3.1. Connection with RS232 Communication Port As well as the front control panel, the AVG-UHMS44 can be controlled by a far-end control system through the RS232 communication port. This RS232 communication port is a female 9-pin D connector. The definition of its pins is listed in the table below.
  • Page 19 AVG-UHMS44 The interface of the control software is shown below: Parameter Configuration area Monitoring area, indicates whether the command sent works. Command Sending area Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in the Command...

  • Page 20: Rs232 Communication Commands

    AVG-UHMS44 5.3.4. RS232 Communication Commands Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Feedback Example System Commands /*Type; Query the models information. MHD44TP-N Lock the front panel buttons on the /%Lock; System Locked! Matrix.
  • Page 21 AVG-UHMS44 Command Function Feedback Example Save the present operation to the preset Save To FY (Y=0- Save[Y]. command [Y], ranges from 0 to 9. Recall From FY Recall[Y]. Recall the preset command [Y]. (Y=0-9) Clear FY (Y=0- Clear[Y]. Clear the preset command [Y].
  • Page 22 AVG-UHMS44 Command Function Feedback Example Set communication between PC and HDBaseT receiver. Y is for RS232 port (connect with RS232 port of HDBaseT receiver) Y= 1~5 or A~H, The value of Y is defined into the following meanings (in a given baud rate depended by the value of X): a.
  • Page 23 AVG-UHMS44 Command Function Feedback Example Hexadecimal EDID Get EDID data from output [x] and EDIDG[x]. data and carriage display the output port number. return character Restore the factory default EDID data of EDIDMInit. EDIDMInit. every input. Manually EDID switching. Enable input[Y] to learn the EDID data of EDIDM[X]B[Y].
  • Page 24 AVG-UHMS44 Command Function Feedback Example Check the command sent by port 2 Port 2:data when %9952. when PWON. PWON Check the command sent by port 3 Port 3:data when %9953. when PWON. PWON Check the command sent by port 4 Port 4:data when %9954.

  • Page 25: Rs232 Control Modes

    4. Type the command carefully, it is case-sensitive. 5.3.5. RS232 Control Modes To control the AVG-UHMS44, you need to connect its 9 pin female RS232 port to a PC’s RS232 port, or you can just connect any one of the HDBaseT receiver’s RS232 port with PC (RS232 command can be transmitted to the AVG-UHMS44 via the twisted pair).

  • Page 26: Control Via A 3Rd-Party Device Locally

    AVG-UHMS44 5.3.6. Control via a 3rd-Party Device Locally Connect the 9 pin female RS232 port of the AVG-UHMS44 with PC, by using the RS232 command “/+[Y]/[X]:******.”, you are able to control the 3rd-party device connected with the HDBaseT receiver. Please refer to the detailed command description in 4.3.1 RS232 Commands.

  • Page 27: Tcp/Ip Control

    Port is 8080. IP & Gateway can be changed as you need, Serial Port cannot be changed. Controlled by Single PC Connect a computer to the HDBT port of the AVG-UHMS44, and set its IP address and gateway to the same IP and gateway as the AVG-UHMS44’s (Default: 192.168.0.178).

  • Page 28: Gui For Tcp/Ip Control

    AVG-UHMS44 Controlled by PC(s) in LAN Connect AVG-UHMS44, a router and several PCs to setup a LAN (as shown in the following figure). Set the IP Subnet and gateway of the AVG-UHMS44 to the same as the routers to allow PC’s system control over the LAN.
  • Page 29 AVG-UHMS44 There are 2 selectable usernames – admin (default password: admin) and user (default password: user). Log in as admin allows access to more configuration options than user. Enter the username and password. Here is a brief introduction to the interfaces.
  • Page 30 AVG-UHMS44 If there is any modification, press Save to restore the settings, or press Cancel to withdraw. Interface: Set title bar label, LCD readout, and button labels, press Save to save the settings...

  • Page 31: Gui Update

    Note: Log in as user access main interface only. 5.4.3. GUI Update GUI for AVG-UHMS44 supports online updating at http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface.

  • Page 32: Firmware Update Via Usb

    To meet the needs of different users or further addition functions, the firmware of the AVG-UHMS44 can be upgraded via USB. When you need to upgrade it, please download the latest upgrade file and then you are able to upgrade it through the update .exe file.

  • Page 33: Specification

    AVG-UHMS44 6. Specification Video Input Video Output 2 HDMI Input 4 HDMI Output 4 HDBaseT Female HDMI Input Output Female HDMI Female RJ45(with LED Connector Connector indicators) Input Level T.M.D.S. 2.9V~3.3V Output Level T.M.D.S. 2.9V~3.3V Input Output 100Ω (Differential) 100Ω (Differential)

  • Page 34: Panel Drawing

    AVG-UHMS44 7. Panel Drawing...

  • Page 35: Troubleshooting & Maintenance

    AVG-UHMS44 8. Troubleshooting & Maintenance Problems Causes Solutions The Connection of the Check whether the cables cabling may be incorrect are connected correctly Color loss or no video or faulty and in working condition. signal output Make sure the connection...
  • Page 36 AVG-UHMS44 Problems Causes Solutions Check to ensure the Wrong connection connection between the control device and the unit Type in correct RS232 Cannot control the device Wrong RS232 communication by control device (e.g. a communication parameters: Baud PC) through RS232 port parameters rate:600;...
