AVG-UHMS66

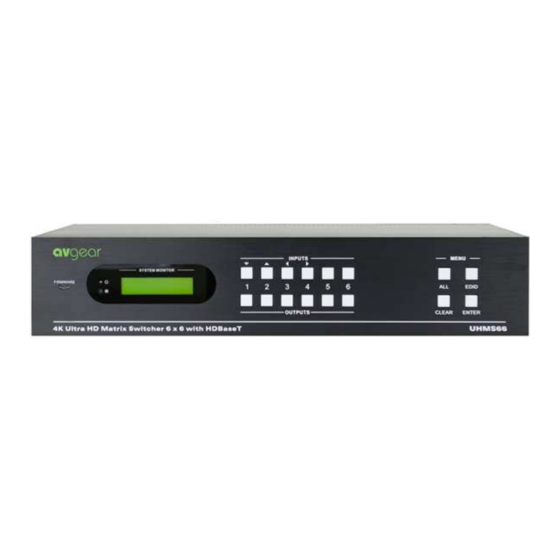

The AVG-UHMS66 is a professional 6x6
HDBaseT Matrix Switcher that accommodates
6 HDMI IN (4k signal at max), 6 auxiliary audio
IN, 6 IR IN.
Features
Supports HDMI 1.4, 4Kx2K &
1080p 3D
HDCP1.4 compatible, supports
manual HDCP management and
auto-detection
Transmits 4Kx2K signal for 8m
via the HDMI port, 40m via HDBT
port
Audio source selectable via
RS232 command
6 HDBaseT outputs, for
transmission up to 70m at 1080p
and 40m at 4Kx2K on a single
CAT5e/6 cable
Supports PoC
LCD indicator shows real-time
I/O connection status, switching
status, HDCP status, and output
resolution.
Controllable via front panel,
RS232, IR and TCP/IP
Supports bi-directional IR&
RS232 control
Built-in GUI for TCP/IP control
Powerful EDID

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-UHMS66 and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-UHMS66

Summary of Contents for AVGear AVG-UHMS66

  • Page 1 6 HDBaseT outputs, for transmission up to 70m at 1080p and 40m at 4Kx2K on a single CAT5e/6 cable The AVG-UHMS66 is a professional 6x6 Supports PoC HDBaseT Matrix Switcher that accommodates LCD indicator shows real-time 6 HDMI IN (4k signal at max), 6 auxiliary audio I/O connection status, switching IN, 6 IR IN.
  • Page 2 AVG-UHMS66 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and not to be used in a maintenance capacity. The functions described in this version are current as at March 2015. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-UHMS66 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    AVG-UHMS66 TABLE OF CONTENTS Introduction………………………………………………..………………………1 Introduction to the AVG-UHMS66…………………………...….…...1.1 Features ................. …………1.2 Whats in the Box.…………………………………………………………....2 Product Appearance of the AVG-UHMS66……………………………………3 Front Panel ................... 3.1 Rear Panel ................... 3.2 System Connection ..................4 Syatem Applications ..............4.1 Usage Precautions ............... 4.2 Connection Diagram ..............

  • Page 5: Introduction

    CAT5e/6 connection with HDBaseT receivers, with PoC) simultaneously. The unit also supports EDID management and HDCP. As well as embedded HDMI audio, the AVG-UHMS66 provides 6 auxiliary audio inputs. Audio source is selectable via RS232 command. Selected audio is output via HDMI outputs &...

  • Page 6: Product Appearance Of The Avg-Uhms66

    AVG-UHMS66 3. Product Appearance of the AVG-UHMS66 3.1 Front Panel Name Description ① Firmware Micro USB port for updating firmware Illuminates red when power on ② Power Indicator Illuminates yellow in standby mode ③ In-built IR sensor, receives IR signals sent from IR remote.

  • Page 7: Rear Panel

    TCP/IP TCP/IP port for unit control ⑥ IR EYE Connect with extended IR receiver, use the IR remote to control the AVG-UHMS66. ⑦ Power Trigger Press the button to turn on/off the matrix. The indicator turns red when power on.

  • Page 8: System Connection

    HDMI cables Step5. Connect speakers/headphones to AUDIO output ports Step6. Connect the RS232 port of the control device (e.g. a PC) to the RS232 port of either AVG-UHMS66 or far-end receivers. RS232 signal can be transmitted bi-directionally between AVG-UHMS66 and far-end receivers.

  • Page 9: Connection With Hd300R

    AVG-UHMS66 boasts 6 HDBaseT output ports which support PoC solution. Connect the HDBT output ports of AVG-UHMS66 to HDBaseT Receivers supporting PoC (like HD300R) via twisted pair. Plug a power supply to the power port of AVG-UHMS66, the HDBaseT Receivers will be powered using the PoC solution.

  • Page 10: Edid Management

    AVG-UHMS66 5.1.2 EDID Management AVG-UHMS66 features EDID management to maintain compatibility between all devices. It can be controlled via EDID learning and EDID invoking. EDID Learning (from output): One input port learns the EDID data of one output port Operation: Press “EDID”, “INPUTS”+“OUTPUTS”+“ENTER”.

  • Page 11: Query

    AVG-UHMS66 5.1.3 Query Press and hold the button “ENTER” for 3 seconds, it will enter into system query menu. Use Left and Right direction button to navigate checking the previous/next items. Function Items Example Description Check the connection Y means the corresponding port is status of inputs connected with input device, N means not.

  • Page 12: Ir Control

    RS232, and 1 AUDIO outputs, and channel 1~4 have HDMI outputs. Note: With this IR remote, AVG-UHMS66 can be controlled by the built-in IR, the extended IR receiver connected to the “IR EYE”/”IR ALL IN” and the IR receiver on the far-end receiver.

  • Page 13: Ir Operations

    Corresponding to the 6 IR OUT ports of the matrix, the IR transmitter connected to this port can be placed at the IR receiving area of output device or AVG-UHMS66 itself. x2: Corresponding to the zone (receive IR signal from HDBaseT receiver with IR IN port connects with IR receiver) number of AVG-UHMS66.
  • Page 14 AVG-UHMS66 Controlling a far-end output device from local IR Port Connect an IR receiver with IR carrier to the IR IN port of AVG-UHMS66, users can control far-end output displayer via its IR remote from local. In that case, the IR signal is transferred via twisted pair. Only the corresponding IR OUT port can emit control signals to the remote display.
  • Page 15 User can control local source devices with their IR remote from remote too. When using, the IR signal received by the HDBaseT receiver will be transmitted to the corresponding IR OUT port of the AVG-UHMS66. See below: Control local device from remote...

  • Page 16: Rs232 Control

    Uninstall Delete all the control software files in corresponding file path. 5.3.3 Basic Settings Firstly, connect AVG-UHMS66 with an input device and an output device. Then, connect it with a computer which has installed RS232 control software. Double-click the software icon to run this software.

  • Page 17: Rs232 Communication Commands

    AVG-UHMS66 Parameter Parameter Configuration area Configuration area Monitoring area, Monitoring area, indicates whether indicates whether the command sent the command sent Command Sending Command Sending area area Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in Command Sending Area.
  • Page 18 AVG-UHMS66 Command Function Feedback Example Transfer the AV signal from the input channel [x1] to the AV: X1-> X2 [x1]V[x2]. output channel [x2]. (X1/X2=1~6) Transfer the AV and IR signal from the input channel AV: X1-> X2 [x1]B[x2]. [x1] to the output channel [x2].
  • Page 19 AVG-UHMS66 Command Function Feedback Example Set communication between PC and HDBaseT receiver. Y is for RS232 port (connect with RS232 port of HDBaseT receiver) Y= 1~6, 9 or A~L, The value of Y is defined into the following meanings (in a given baud rate depended by the value of X): a.
  • Page 20 AVG-UHMS66 Command Function Feedback Example Upgrade one of the 6 embedded EDID data, x is the serial number for EDID data 1. 1080P 3D 2CH 2. 1080P 3D Multichannel 3. 1080P 2D 2CH UpgradeIntEDID[x]. 4. 1080P 2D Multichannel Please send the EDID file 5.
  • Page 21 AVG-UHMS66 Command Function Feedback Example 1 2 3 4 HDCP N N Y Y %9973. Check the HDCP status of the inputs. HDCP 1 2 3 4 HDCP N N Y Y %9974. Check the HDCP status of the outputs.

  • Page 22: Rs232 Control Modes

    5.3.5 RS232 Control Modes To control the AVG-UHMS66, you need to connect its 9 pin female RS232 port to a PC’s RS232 port, or you can just connect any one of the HDBaseT receiver’s RS232 port with PC (RS232 command can be transmitted to the AVG-UHMS66 via the twisted pair).

  • Page 23: Control 3Rd-Party Device From Local

    AVG-UHMS66 5.3.6 Control 3rd-Party Device from Local Connect the 9 pin female RS232 port of the AVG-UHMS66 with PC, by using the RS232 command “/+[Y]/[X]:******.”, you are able to control the 3rd-party device connected with the HDBaseT receiver. Please refer to the detailed command description in 4.3.1 RS232 Commands.

  • Page 24: Tcp/Ip Control

    Serial Port cannot be changed. Controlled by Single PC Connect a computer to the HDBT port of the AVG-UHMS66, and set its IP address and gateway to the same IP and gateway as the AVG-UHMS66’s (Default: 192.168.0.178).

  • Page 25: Gui For Tcp/Ip Control

    AVG-UHMS66 5.4.2 GUI for TCP/IP control AVG-UHMS66 provides with built-in GUI for convenient TCP/IP control. GUI allows users to interact with AVG- UHMS66 through graphical icons and visual indicators. Type 192.168.0.178 in your browser, it will enter the log-in interface shown as below: There are 2 selectable usernames –...

  • Page 26: Gui Update

    Note: Log in as user access main interface only. 5.4.3 GUI Update GUI for AVG-UHMS66 supports online update in http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface.

  • Page 27: Firmware Update Via Usb

    5.5 Firmware Update via USB To meet the needs of different users or further addition function, the firmware of the AVG-UHMS66 can be upgraded via USB. When you need to upgrade it, please download the latest upgrade file and then you are able to upgrade it through the update .exe file.

  • Page 28: Specification

    AVG-UHMS66 6. Specification Video Input Video Output 3 HDMI Input 6 HDMI Output 6 HDBaseT Female HDMI Input Connector Female HDMI Output Connector Female RJ45(with LED indicators) Input Level T.M.D.S. 2.9V~3.3V Output Level T.M.D.S. 2.9V~3.3V Output Impedance Differential) 100Ω ( Input Impedance 100Ω...

  • Page 29: Panel Drawing

    AVG-UHMS66 7. Panel Drawing...

  • Page 30: Troubleshooting & Maintenance

    AVG-UHMS66 8. Troubleshooting & Maintenance Problems Causes Solutions Check whether cables The connecting cables may not be connected correctly and in working connected correctly or faulty condition. Color loss or no video signal output Failed or loose connection Make sure the connection is good...
