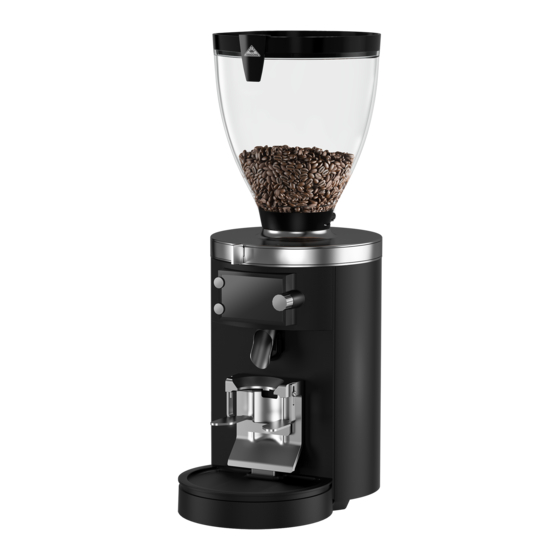

  • Page 1 E80S INSTRUCTION MANUAL www.mahlkoenig.com...

  • Page 2: Overview

    ESPRESSO GRINDER Overview...
  • Page 3 E80S | EN...
  • Page 4 ESPRESSO GRINDER...
  • Page 5 E80S | EN...
  • Page 6 ESPRESSO GRINDER...
  • Page 7 E80S | EN...
  • Page 8 ESPRESSO GRINDER Material Weight Description...
  • Page 9 E80S | EN...

  • Page 10: Scope Of Delivery

    ESPRESSO GRINDER Scope of delivery Designation Designation Bean hopper (with lid) Grinder lid Bean hopper intake Screws to the fixed burr Controller Screws to the rotary burr Grinding degree lock Rotary burr On/Off switch Locking screws for the fix burr flange Release button (Thermal overcurrent circuit-breaker) Burr carrier...

  • Page 11: Table Of Contents

    E80S | EN Contents Overview ......2 Using the main menu ..26 Display/navigation symbols ..26 Scope of delivery ....10 Accessing and leaving General ......12 the main menu......27 Reading and retaining the operating Cleaning ......28 manual ........

  • Page 12: General

    Before you start using the E80S espresso grinder, carefully read through this operating manual and the safety information. Only then will you be able to use the E80S espresso grinder safely and without danger. The operating manual is based on the standards and regulations in force in the European Union.
  • Page 13 E80S | EN This symbol provides you with important information concerning operation or handling. Declaration of Conformity: Products marked with this symbol fulfil all applicable community provisions of the European Economic Area. ETL Listed seal of approval: Products marked with this symbol meet the requirements of electrical product safety in the United States of America.

  • Page 14: Safety

    ESPRESSO GRINDER Safety Intended use The grinder is only suitable for grinding whole roast espresso beans. Do not use the grinder to grind other products or objects. The grinder is intended for commercial use but not for continuous mass production. The grinder may only be serviced by trained personnel. It may, however, be operated by other persons in a place where use is supervised.
  • Page 15 E80S | EN – Install the grinder only in locations where handling of the grind- er can be supervised by trained personnel. – Do not operate the grinder above an altitude of 2000 metres. – Do not immerse the grinder or the power cable/mains plug in water or any other liquids.
  • Page 16 ESPRESSO GRINDER WARNING! Danger for children and persons with reduced physical, sensory or mental capacities (e.g. some disabled persons, older persons with limited physical and mental abilities) or a lack of experience and knowledge (e.g. older children). – The grinder is not intended for use by children or people with limited physical, sensory or mental abilities or a lack of experi- ence and knowledge.

  • Page 17: Before Using For The First Time

    E80S | EN Before using for the first time Functioning and basic settings This grinder has a Disc Distance Detection (DDD) function, which enables the grinding degree to be set based on the distance between the burrs. The quantity of ground coffee dispensed per shot, i.e. the dosage quantity, is determined by the grinder based on the grinding time.

  • Page 18: Setting Up The Grinder And Inserting The Bean Hopper

    ESPRESSO GRINDER Please note that the grinder is subject to an extensive functional test before delivery and may therefore still contain coffee pow- der residue. Setting up the grinder and inserting the bean hopper You will need a flat-head screwdriver (not supplied) for fixing the bean hopper.

  • Page 19: Setting Up The Portafilter Support And Spout

    E80S | EN Setting up the portafilter support and spout You will need a flat-head screwdriver to adjust the portafilter support (not included in the scope of delivery). Adjust the portafilter support (10) to the size of your espresso machine’s portafilter (see Fig.

  • Page 20: Operation

    ESPRESSO GRINDER Operation NOTE! Danger of overheating! Exceeding the maximum permissible operating cycle can cause the grinder to overheat. – Do not exceed the maximum operating cycle (see the section “Technical data”). – Observe the recommended pause when the maximum permissi- ble operating cycle is reached (see the section Technical data “...

  • Page 21: Adding Espresso Beans

    E80S | EN Adding espresso beans 1. Remove the lid from the bean hopper (1). 2. Pour whole roasted espresso beans into the bean hopper from above. • The maximum filling quantity should be approx. 1 cm below the edge of the bean hopper.

  • Page 22: Selecting Recipes

    ESPRESSO GRINDER • Reduce the grinding degree only while the grinder is in operation. • In order to prevent/eliminate any imbalances in the grinding degree setting, it is advisable first to set a coarser grinding degree (about one step/unit above the grinding degree re- quired) and then move the grinding degree slider from there down to the finer grinding degree required.

  • Page 23: Starting Grinding

    E80S | EN Starting grinding Grinding according to a recipe 1. Select the desired recipe by turning the controller (3) (see the “Selecting recipes” chapter). 2. Insert the portafilter between the portafilter intake (12) and the portafil- ter support (10) until it touches the start button (11).

  • Page 24: Interrupting Grinding

    ESPRESSO GRINDER Interrupting grinding Grinding stops automatically when you remove the portafilter from the por- tafilter intake(12) and continues with grinding when you insert the portafilter back into the portafilter support again and press the start button (11) . 1. Remove the portafilter from the portafilter intake during grinding to interrupt grinding and stop the grinding time.
  • Page 25 E80S | EN When placing the bean hopper on, make sure that you place the nose of the bean hopper into the corresponding recess in the bean hopper intake. 7. Push the bean hopper down into the bean hopper intake and turn the bean hopper clockwise to fix it to the grinder.

  • Page 26: Using The Main Menu

    ESPRESSO GRINDER Using the main menu You can use the main menu to call up device data and to change individual settings. You will find precise instructions on how to use the grinder soft- ware in the enclosed software instructions. Display/navigation symbols Symbol Meaning...

  • Page 27: Accessing And Leaving The Main Menu

    E80S | EN Accessing and leaving the main menu 1. Press the controller (3) 2 times to call up the main menu on the dis- play (14). 2. Turn the controller to select the desired menu item (see chapter on “Dis- play/navigation symbols”).

  • Page 28: Cleaning

    ESPRESSO GRINDER Cleaning CAUTION! Risk of injury! When being moved the grinder can fall and cause injury. – Place the grinder on a stable, flat surface so that it cannot wob- ble. – Ask another person for help if the grinder is too heavy. NOTE! Risk of short-circuit! Water entering the grinder can cause a short-circuit.

  • Page 29: Cleaning The Grinder Installation Surface

    E80S | EN Cleaning the grinder installation surface 1. Switch off the grinder (On/Off switch (5) to “0”) and remove the power plug from the socket. 2. Lift the grinder by the casing using both hands and place it onto a clean surface.

  • Page 30: Cleaning The Bean Hopper

    ESPRESSO GRINDER Cleaning the bean hopper The bean hopper must be cleaned daily to remove any coffee oil residue, as this can have a detrimental effect on the taste. 1. Lock the bean hopper (1) by pushing in the slider (18). 2.

  • Page 31: Cleaning The Grinding Mechanism With Grindz Tm

    E80S | EN Cleaning the grinding mechanism with GRINDZ • The manufacturer recommends using GRINDZ grinder cleaner. For more information about GRINDZ , visit www.mahlkoenig.de. • The grinding mechanism should be cleaned every 2–5 days. 1. Lock the bean hopper (1) by pushing in the slider (18).

  • Page 32: Cleaning The Grinding Mechanism Manually

    ESPRESSO GRINDER Cleaning the grinding mechanism manually • The grinding mechanism should be cleaned every 2–5 days. • Manual cleaning is an alternative to cleaning the grinding mechanism with GRINDZ • Wear gloves when cleaning the grinding mechanism manual- • When cleaning the burrs, the burrs do not have to be re- moved from the burr carriers.

  • Page 33: Cleaning The Flapper

    E80S | EN Cleaning the flapper The flapper should be cleaned every 2–5 days. 1. Remove the grinder lid (25), proceed as described in chapter “Cleaning the grinding mechanism manually” steps 1–4. 2. Remove the flapper (33) from the recess in the grinder.

  • Page 34: Adjusting The Burrs

    ESPRESSO GRINDER recess in the removal tool slightly off-centred beneath the burr. Guide the removal tool into the centre of the burr and remove the burr by lifting it upwards. 5. Remove the residual coffee grounds from the grinding chamber using a handheld vacuum cleaner.

  • Page 35: Changing The Flapper

    E80S | EN The marking on the intermediate plate (41, 42) and the deepest groove of the marking on the adjustment ring (37, 38) must lie levelly on top of one another (see Fig. M and N). Push the adjustment ring lock back- wards so that the adjustment ring snaps into the intermediate plate.

  • Page 36: Troubleshooting

    ESPRESSO GRINDER Troubleshooting Fault Cause Remedy • The power t Insert the power plug into a properly The grinder is plug is not installed socket. not grinding, plugged into a the display is socket. not lit up. • The bean hop- t Insert the bean hopper (see chapter per is not “Setting up the grinder and inserting...
  • Page 37 E80S | EN Fault Cause Remedy The grinder is • The grinding t Release the lock on the grind adjust- humming but mechanism is ment and set the grinding degree to not grinding. clogged. “10”. Start the grinding process. The grinder clears itself.
  • Page 38 ESPRESSO GRINDER Fault Cause Remedy The grinder • The start but- t Contact your service partner does not ton is faulty. (see the section “Maintenance and grind con- service”). tinuously or the grinding process stops intermittently. The grinder’s • The spout is t Remove the spout or clean the spout dispensing clogged.
  • Page 39 E80S | EN Fault Cause Remedy The grinder • The spout is t Align the spout correctly with the por- does not not correctly tafilter used. deposit the aligned with grounds into the portafilter. the centre of the inserted portafilter.

  • Page 40: Technical Data

    ESPRESSO GRINDER Technical data Model: E80S Voltage/frequency: 100 V; 50/60 Hz 110–127 V; 60 Hz 220–240 V; 50/60 Hz Protection type: IPX1 Protection class: Fuse: 16 A-slow/15 A Idle speed: 50 Hz: 1 400 rpm 60 Hz: 1 700 rpm...

  • Page 41: Disposal

    E80S | EN Disposal Disposing of the packaging Dispose of the packaging by correctly sorting the recyclable ma- terials. Dispose of card and cardboard as waste paper, and film as recyclable materials. Disposing of the grinder Old appliances may not be thrown into the commercial/domestic...
  • Page 42 ESPRESSO GRINDER...
  • Page 43 E80S | EN...
  • Page 44 Hemro International AG Länggenstrasse 34 | 8184 Bachenbülach, Switzerland T: +41 44 864 18 00 | F: +41 44 864 18 01 info@hemrogroup.com | www.hemrogroup.com...
