VISION SERIES
LED VIDEO PANEL
VS2 VS3 VS5
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ Vision Series

Summary of Contents for ADJ Vision Series

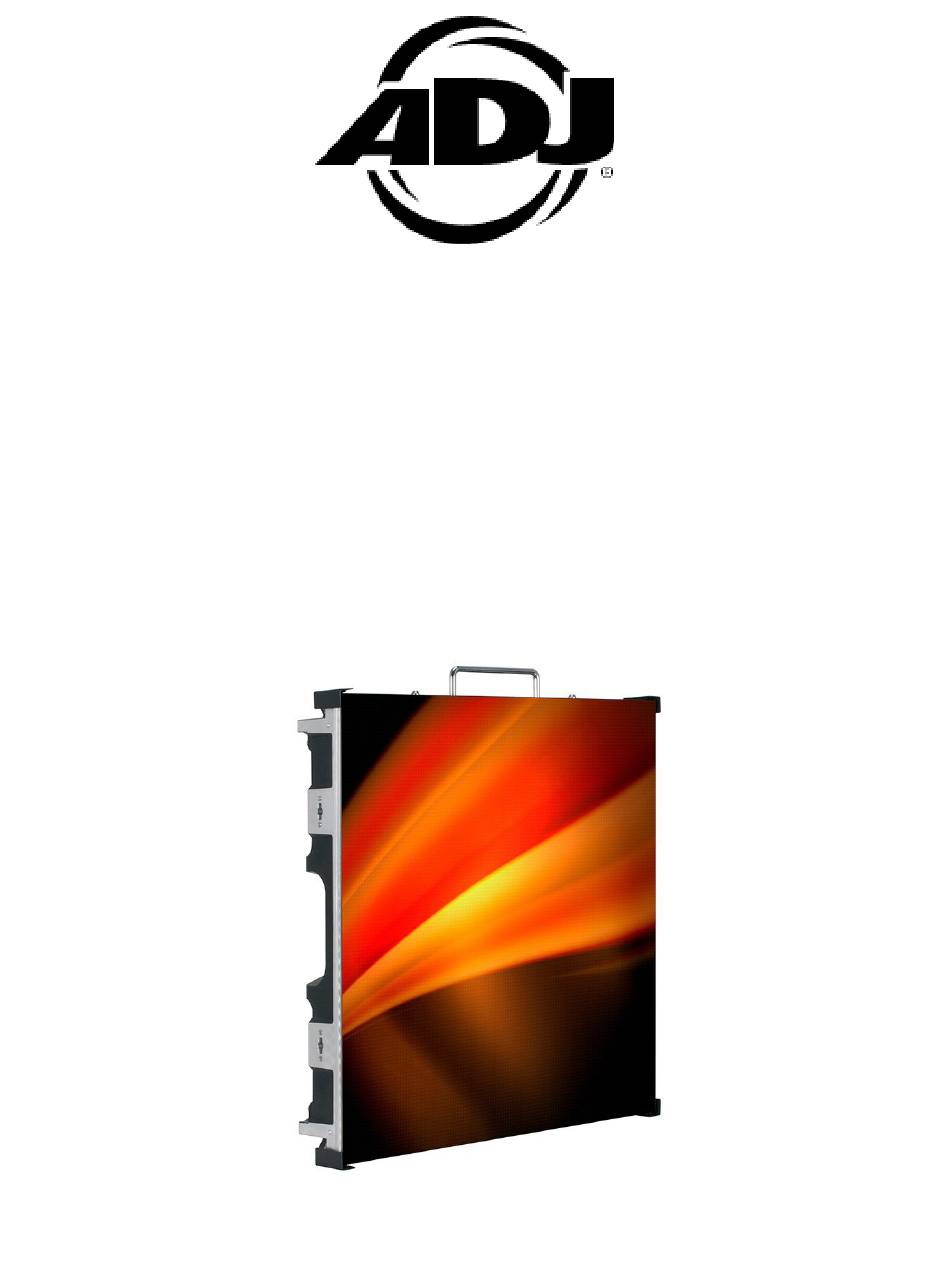

  • Page 1 VISION SERIES LED VIDEO PANEL VS2 VS3 VS5 User Manual...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Panel Overview LED Module Removal Tool LED Module Removal Handling and Transportation Installation Horizontal Panel Assembly Vertical Panel Assembly Rigging Bar Flat Panel Assembly Horizontal Truss Mount Ground Stack Technical Specifications Optional Components and Accessories...

  • Page 4: General Information

    These instructions contain important safety and use information. ADJ’s Vision Series LED Video Panels offer the highest quality LED binning using 3-in-1 RGB SMD2121 LEDs, with a brightness of 1000 NITS. The primary difference between models is the pixel pitch: the VS2 has a pixel pitch of 2.97mm, the VS3 has a pixel pitch of 3.91mm, and the VS5 has a pixel pitch...
  • Page 5 GENERAL INFORMATION Customer Support: Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. Parts: To purchase parts online visit: http://parts.adj.com (US) http://www.adjparts.eu (EU) ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST Voice: 800-322-6337 | Fax: 323-582-2941 | support@adj.com...

  • Page 6: Limited Warranty (Usa Only)

    LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 7: Safety Guidelines

    The Vision Series LED Video Panel is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/or damages resulting from the misuse of this panel due to the disregard of the information printed in this manual.
  • Page 8 SAFETY GUIDELINES • DO NOT touch panel housing during operation. Turn OFF power and allow approximately 15 min- utes for panel to cool down before servicing. • DO NOT operate devices with covers open and/or removed. • DO NOT shake panel, and avoid brute force when installing and/or operating. •...

  • Page 9: Maintenance Guidelines

    Check each Vision Series LED Video Panel for loose screws and other fasteners. • If the Vision Series LED Video Panel installation is fixed or displayed for a lengthy time, regularly inspect all rigging and installation equipment, and replace or repair as necessary.

  • Page 10: Panel Overview

    PANEL OVERVIEW DIMENSIONS: 19.75” x 19.75” x 3” (500mm x 500mm x 100mm)
  • Page 11 PANEL OVERVIEW Each Vision Series LED Video Panel includes a quick-release power supply with 4X LED Modules, allowing for easy serviceability and simple repairs whilst out on the road, and each is held safely in place with frame integrated magnets. The cover of the power supply box can be secured to pro- tect all internal accessories and components.

  • Page 12: Led Module Removal Tool

    A technician can use the optional VSM111 Magnetic Module Removal Tool (sold separately) to safely remove and reinstall any of the four LED Modules in the Vision Series LED Video Panel, and minimize potential damage from mishandling, ESD exposure, or other issues.

  • Page 13: Led Module Removal

    LED Module. The Magnetic Module Removal Tool magnet is stronger than the magnets that hold the LED Module to the Vision Series LED Video Panel frame, allowing the tool to pull the mod- ule from the frame. With the tool secured to the LED module, carefully pull the module free from the video panel frame.

  • Page 14: Handling And Transportation

    HANDLING AND TRANSPORTATION INTEGRATED CORNER PROTECTORS The corners of the Vision Series LED Video Panels are susceptible to damage during handling and transportation. When removing Vision Series LED Video Panels from their respective Flight Cases (VSFC8 sold separately), and before they are installed, take care to avoid damaging any of the 4 cor- ners.
  • Page 15 The optional VSFC8 Flight Case (sold separately) for the Vision Series LED Video Panels holds eight (8) individual Vision Series LED Video Panels. The flight case features a full foam lining with slots for each unit. The case is robust, offering complete protection for a set of panels on the road. Designed...

  • Page 16: Installation

    INSTALLATION DO NOT INSTALL THE PANEL IF YOU ARE NOT QUALIFIED TO DO SO! INSTALLATION BY QUALIFIED TECHNICIANS ONLY! INSTALLATIONS SHOULD BE CHECKED BY A QUALIFIED PERSON AT LEAST ONCE A YEAR! FLAMMABLE MATERIAL WARNING Keep panel(s) a minimum of 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.

  • Page 17: Horizontal Panel Assembly

    HORIZONTAL PANEL ASSEMBLY 1. The horizontal tab-keyed connector is 2. Press the horizontal tab-keyed connec- spring loaded. tor until the tab-key passes through the tab-keyed socket. 3. Rotate the handle to the right (clock- 4. Rotate handle downward (counter- wise) to hold the horizontal tab-keyed clockwise) to cinch the horizontal tab- connector in place.

  • Page 18: Vertical Panel Assembly

    VERTICAL PANEL ASSEMBLY 1. Align the vertical positional posts with 2. Press the spring-loaded locking latch their corresponding alignment holes. toward the left while pressing the verti- cal connector upwards into the locking latch. 3. Release the latch, then lock the panel in place by twisting the vertical connector lever to the left, towards the direction marked “LOCKED”.

  • Page 19: Rigging Bar

    RIGGING BAR The Vision Series LED Video Panel is compatible with ADJ’s VSRB1 Rigging Bar (sold separately), which easily and securely locks to the top of the first panel in a vertical column of up to 20 Vision Se- ries LED Video Panels, allowing them hang from a truss, hoist, or lintel beam. A qualified technician...
  • Page 20 RIGGING BAR Vertical “hang” and “stack” configurations are illustrated below with the rigging bar.
  • Page 21 RIGGING BAR VERTICAL HANG CONFIGURATION 1. Align the vertical positional posts with 2. Press spring-loaded locking latch to the their corresponding alignment holes. left while pressing vertical connector up into locking latch. 3. Release latch to hold the vertical connector, and twist vertical connector the left to lock. 4.
  • Page 22 RIGGING BAR VERTICAL HANG CONFIGURATION FOR SINGLE INSTALLER The Vision Series LED Video Panels feature built-in magnets to assist in vertical hanging for a single installation technician. THE MAGNETS ARE NOT STRONG ENOUGH TO HOLD A PANEL WITHOUT AS- SISTANCE. ALWAYS SUPPORT THE PANEL BY HOLDING AND MAINTAINING...
  • Page 23 RIGGING BAR VERTICAL HANG CONFIGURATION FOR SINGLE INSTALLER...
  • Page 24 RIGGING BAR VERTICAL STACK CONFIGURATION 1. Align the vertical positional posts with 2. Press spring-loaded locking latch to their corresponding alignment holes, the left while pressing vertical connec- then insert the posts into the holes. tor upwards into locking latch. 3.

  • Page 25: Flat Panel Assembly

    FLAT PANEL ASSEMBLY Rear Support Bracket: Use an VS1RSB Rear Support Bracket (sold separately) when connect- ing multiple panels for a larger display design, in order to strengthen the structural integrity of the screen, improve consistent flatness, and improve overall screen continuity.

  • Page 26: Horizontal Truss Mount

    HORIZONTAL TRUSS MOUNT The optional VSR210 Horizontal Truss Mounting Bracket (sold separately) allows for the horizontal (ceiling) installation of the VS LED Video Panels.

  • Page 27: Ground Stack

    GROUND STACK The optional VSSCSB single panel rigging / ground stack bar is a free-standing stack mounting op- tions for the Vision Series LED Video Panels.

  • Page 28: Technical Specifications

    TECHNICAL SPECIFICATIONS GENERAL CONTROL SYSTEMS Resolution Control Mode: Constant Current Driving • VS2: 168(H) x 168(V) Frame Update Frequency: 50~75Hz • VS3: 128(H) x 128(V) Scan Mode: • VS5: 84(H) x 84(V) • VS2: 1/21 duty Pixel Pitch: • VS3: 1/16 duty •...

  • Page 29: Optional Components And Accessories

    OPTIONAL COMPONENTS AND ACCESSORIES SKU NUMBER DESCRIPTION VSFC8 Flight Case - fits 8 Vision Series LED Video Panels VSRB1 Single Panel Rigging/Stack Bar VS1RSB Rear Support Bracket VSS225 (VSSCSB) Single Column Support Base VSGSB Ground Support Base VSGSCSB Clamp Support Bar...

This manual is also suitable for:

Vision vs2Vision vs3Vision vs5Vs2001Vs5029Vs3015
