- Page 1 AV6 User Guide...
- Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, unsufficient and negligent assembly, installation, rigging, and operation of this product.

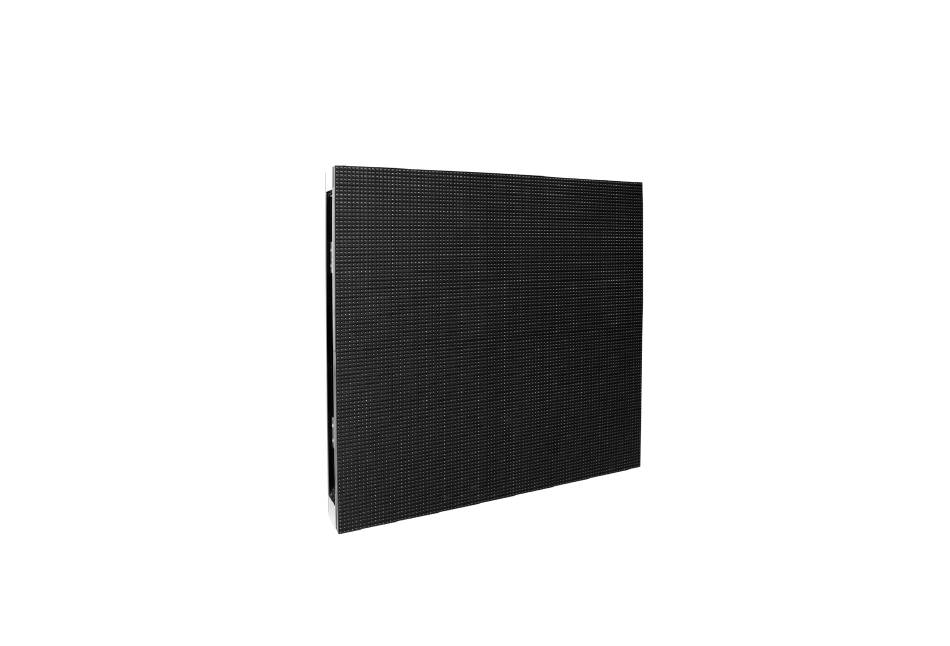

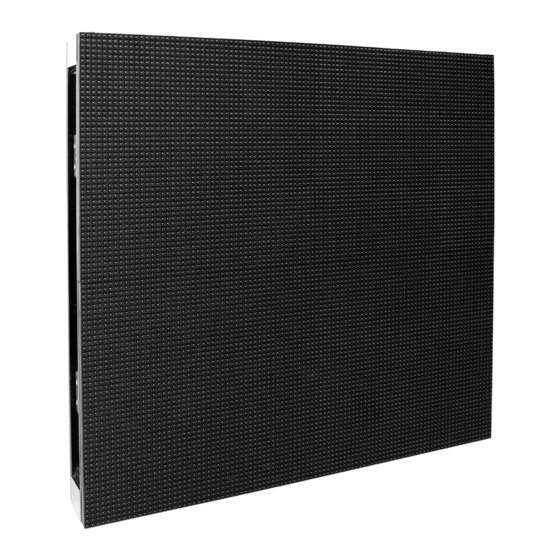

- Page 3 Introduction The ADJ AV6 is the highest resolution pixel display LED panel offering from ADJ Products, LLC. Designed for Indoor use on installations, broadcast or corporate productions this light weight, easy to handle and transport LED video panel features all the pro-grade requirements for a high resolution display while also delivering modular rigging and design options.
-
Page 4: Warranty Information
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied shall be such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. -
Page 5: Support Information
Support Information ADJ Products, LLC provides a toll free customer support line, to provide set up help and to answer any question should you encounter problems during your set up or initial operation. You may also visit us on the web at www.adj.com for any comments... - Page 6 AV6 Panel Rear AV6 Panel ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 7 OPTIONAL ACCESSORIES Order Code 1226300032 AV6 LED Panel 1226300033 AV6RB1 1226300034 MCTRL300 1226300049 AV6FC 8pcs Flight Case 1226300048 CAT6 CBL 0,9m 1226300047 CAT6 CBL 1,5m 1226300046 CAT6 CBL 1226300045 CAT6 CBL 4,5m 1226300044 CAT6 CBL 7,5m 1226300043 CAT6 CBL 1226300042...
- Page 8 100’ First Data Cable, Processor to First Cabinet (Standard Connection) 1239100268 25’ First Data Cable, Processor to First Cabinet (NEUTRIK ETHERCON) 1239100267 50’ First Data Cable, Processor to First Cabinet (NEUTRIK ETHERCON) ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 9 Output interface: (4) Ethernet Ports, (4) fiber Interfaces, (1) DVI, (1) • 100-240vac - 50/60hz Auto Switching Power Supply • HDMI monitoring interface Environment Temp: -20°C (-4°F) ~ 75°D (167°F) • Environment Humidity: 0% ~ 95% • ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
-
Page 10: Rigging & Installation
If you lack these qualifications, do not attempt the installation yourself. • These installation should be checked by a skilled person once a year. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands... - Page 11 Panel Header Specifications AV6 Single Header Piece. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
-
Page 12: Hanging Installation
Hanging Installation The AV6 header piece come in a single option only. The headers connect to the panels just like panels connect to other panels. The vertical locking pieces should lock twist to lock the panel in place, flush with the header piece. The header piece is then rigged to the truss or other rigging implement(s). - Page 13 Only tighten it up once the front of the panels are completely seamless. Note that fastening the locking pins too tight can warp the screen and prevent a seamless screen. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 14 Two locking pins are provided at the top of the panel locking pin hole lines up with the female locking pin and two locking pins are provided on the left side. plate located on the other panel. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 15 Push the male locking pin through the female locking pin plate located on the next panel. Turn the locking pin clockwise so that male locking pin settles into the locking pin plate home. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 16 Male Locking pin locked into the female locking plate ADJ Products, LLD • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 17 When the male locking pin is resting securely in the locking pin plate, continue to rotate the male locking pin knob clockwise. The knob will turn independently of the pin, continue to rotate the knob until it is tightened and will no longer turn. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
-
Page 18: Installing The Software
Installing the Software ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands... - Page 19 VSC unit and as an extension of that, the LED Panels connected. It is supplied on CD with your purchased product, and can also be downloaded from the support section of the ADJ website - http://www.adj.com/mctrl-300 Installation is simple, download the file and unzip it from the folder (if necessary).
-
Page 20: Configuring The Screen
Note that the amount of one port on the MCTRL300 unit can process imagery for 580,000 pixels. So, one ethernet port can connect up to 53 AV6 panels. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands... - Page 21 “Run as Administrator” Option and click “Yes” when the windows User Access Control (UAC) popup prompts you to do so. Note that at this point, the control hardware should be connected to the computer. Launching the NovaStar Application. Tap clip for full screen video option. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 22 Each time you launch the Application to configure or alter the screen setup, you will need to complete this login. Logging into the NovaStar Application. Tap clip for full screen video option. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 23 Note that the COM port that is currently detected and is being used by the NovaStar software is the one already displayed in the drop-down menu, there is no need to change this option. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 24 Hot backup is used for adding a redundant MCTRL unit to the This option erases the files on both the sending and receiving cards configuration. This is discussed in further detail later. which are specific to ADJ products. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 25 Once the box is checked and the correct video source is selected, press the “Send” button to the right. If there is no signal, press the “Refresh” button to refresh the video inputs. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 26 You will get different RCFG files for different LED modules. The RCFG file is very important. Lost RCFG files can be requested from ADJ Support and are specific to the LED panel you ordered. A panel without its RCFG file will not function the same as a panel with ADJs RCFG file installed.
- Page 27 Assigning the sending board resolution & configuration. Tap clip for full screen video option. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 28 Further down on the left hand side of the window, there is the Scan Board size configuration tool. In our example it is set to 96 x 96, this matches the pixel pitch of the AV6 panels. Blank panel canvas. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 29 Note that the Port Index is the physical Ethernet port that the panels are connected to on the Processor. Note that the Scan Board size is the physical pixel pitch of the panels, as defined in the specifications. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 30 Although, it is good practice to keep the computer close to the screen setup in case there is a need to change the configuration. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 31 If you make a mistake you can right click on a panel in the map, you can re-patch the panel order from that panel onwards, while retaining the order before that point. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 32 Save in the panels flash memory. Close The Close button will close the dialog box and not save any information, or send any of the information to the panels. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 33 (or external media) to save the file. Note that the file will be saved in the .scr format. Use the “Save File” button to open the save dialog. Saving a configuration file. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
-
Page 34: Troubleshooting
The panel has Power. The panel has no power. The panel has no On - slow blink Green Ethernet signal. The Panel has Ethernet On - steady blink Green signal. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands... - Page 35 Reconfigure cable routing in Nova software (See or not at all. Incorrect cable map. Chapter 4, Section 4). Or alternatively, match the real world cabling with the Nova configuration. ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
- Page 36 Send. If the panel does not Fault with the panel(s) respond, or the self test runs incorrectly, contact ADJ Service Dept. To resume usual operation, select the “Normal” option and press send. ADJ Products, LLC • Los Angeles, Ca US • Kerkade, Netherlands...
- Page 37 LED Module incorrectly installed. One LED module (within a panel) cuts internal connections. Reseat receiving card/module. out intermittently, displays incorrect colors or acts erratically. LED Module defective. Contact ADJ Service Dept. ADJ Products, LLC • Los Angeles, Ca US • Kerkade, Netherlands...
- Page 38 ADJ Products, LLC • Los Angeles, Ca USA • Kerkade, Netherlands...
