AV2X
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV2X and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ AV2X

Summary of Contents for ADJ AV2X

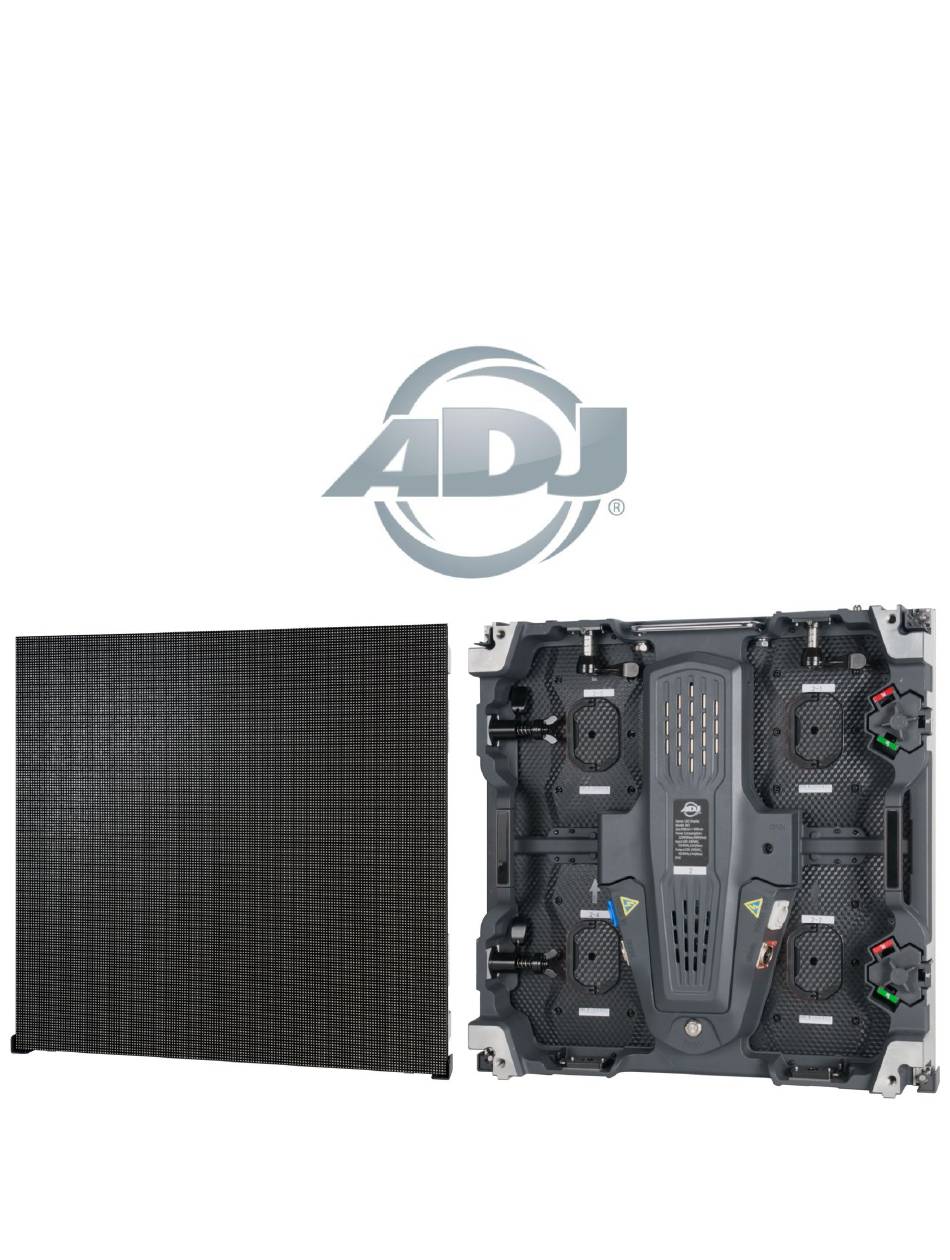

  • Page 1 AV2X User Guide...
  • Page 2 ©2020 ADJ PRODUCTS LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and in- formation now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Panel Overview Handling and Transportation Installation Technical Specifications Optional Components and Accessories ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...

  • Page 4: General Information

    GENERAL INFORMATION With a brightness of 1000 NITS and a 2.97mm pixel pitch, the AV2X is a cost effective, bright, high- resolution video panel designed for indoor use. Although the 3-in-1 RGB SMD2121 LEDs create an impressive brightness of 1000 NITS, with its 0-100% adjustable brightness, the intensity of the screen can be reduced for all indoor applications.

  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be prepaid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package and packaging material.

  • Page 6: Safety Guidelines

    This panel is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/or damages resulting from the misuse of this panel due to the disregard of the information printed in this manual.
  • Page 7 CAUTION: Test panel for 2-hours per week, if not used regularly or for an extended period of time. CAUTION: Cases used to transport panel must me properly waterproofed for transportation. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...

  • Page 8: Maintenance Guidelines

    4. Check each AV2X LED Video Panel for loose screws and other fasteners. 5. If the AV2X LED Video Panel installation is fixed or displayed for a lengthy time, regularly inspect all rigging and installation equipment, and replace or repair it as necessary, and during long periods of non-use, disconnect the main power to the unit.

  • Page 9: Panel Overview

    PANEL OVERVIEW Each AV2X LED Video Panel includes a quick-release power supply with 4X receiver card modules, allowing for easy serviceability and simple repairs whilst out on the road. The cover of the power supply box can be secured to protect all internal accessories and components.
  • Page 10 Power Input (+) Locking RJ45 Ethernet/RJ45 ESD Grounding Hole & Connection Plate Integrated Corner Protector AV2X Overview Power Input (+) Power Output (-) Locking RJ45 Locking RJ45 Ethernet/RJ45 Ethernet/RJ45 ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...

  • Page 11: Handling And Transportation

    HANDLING AND TRANSPORTATION The corners of the AV2X LED Video Panel are susceptible to damage during handling and transportation. When removing AV2X LED Video Panels from their respective Flight Cases (AV2FC sold separately), and before they are installed, take care to avoid damaging any of the 4 corners.
  • Page 12 The case is robust, so will completely protect a set of panels on the road. Designed specifically for use with AV2X LED video panels, it is constructed from 9mm plywood and fitted with steel ball corners, aluminum edging, large swivel castors, professional butterfly latches, four sprung handles, and a hinged lid.

  • Page 13: Installation

    If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury and property damage. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
  • Page 14 (clockwise) to lock the horizontal tab-keyed angle and re-insert it. connector assembly. The horizontal tab-keyed connector is spring Press the horizontal tab-keyed connector until its loaded. tab-key passes through tab-keyed socket. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
  • Page 15 Rotate handle down (counterclockwise) to cinch hold the horizontal tab-keyed connector in horizontal tab-keyed connector. place. To unlock, rotate handle (clockwise), releasing tension of horizontal tab-keyed connector cinching mechanism. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
  • Page 16 Flat, Concave, and Convex Panel Assembly Use the 85° setting for +5° Convex Screen Use the 90° setting for Flat Screen Use the 95° setting for -5° Concave Screen ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
  • Page 17 Press spring-loaded locking socket latch To unlock the vertical connector, rotate lever to towards the right. the right (counter-clockwise). Once latch is released, the vertical connector will snap open. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
  • Page 18 Use an AV2084 Rear Support Bracket (sold separately) when connecting multiple panels for a larger display design, to strengthen the structural integrity of the screen, improve consistent flatness, and improve overall screen continuity. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
  • Page 19 INSTALLATION - RIGGING The AV2X is compatible with ADJ’s AV2RB1 rigging bar (sold separately), which easily and securely locks to the top of the first panel in a vertical hang of up to 20 AV2Xs, allowing them hang from a truss, hoist, or lintel beam.
  • Page 20 To unlock the vertical connector, rotate lever to the right (counter-clockwise) Press spring-loaded locking socket latch towards the right; the vertical connector will snap open as soon as the latch is released ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...

  • Page 21: Technical Specifications

    Parameters Protection Level IP20 (Front and Back, INDOOR / DRY LOCATION ONLY) Out of Control Rate <0.02% Listings cETLus Specifications subject to change without any prior written notice. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...

  • Page 22: Optional Components And Accessories

    CAT6PRO50 (50ft.) CAT6PRO100 (100ft.) CAT6PRO150 (150ft.) CAT6PRO25FC (25ft.) Panel to Panel Data Link Cables (Locking RJ45 Ethernet Connect CAT6PRO50FC (50ft.) In/Out to Locking RJ45 Ethernet Connect In/Out) CAT6PRO100FC (100ft.) ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, The Netherlands...
