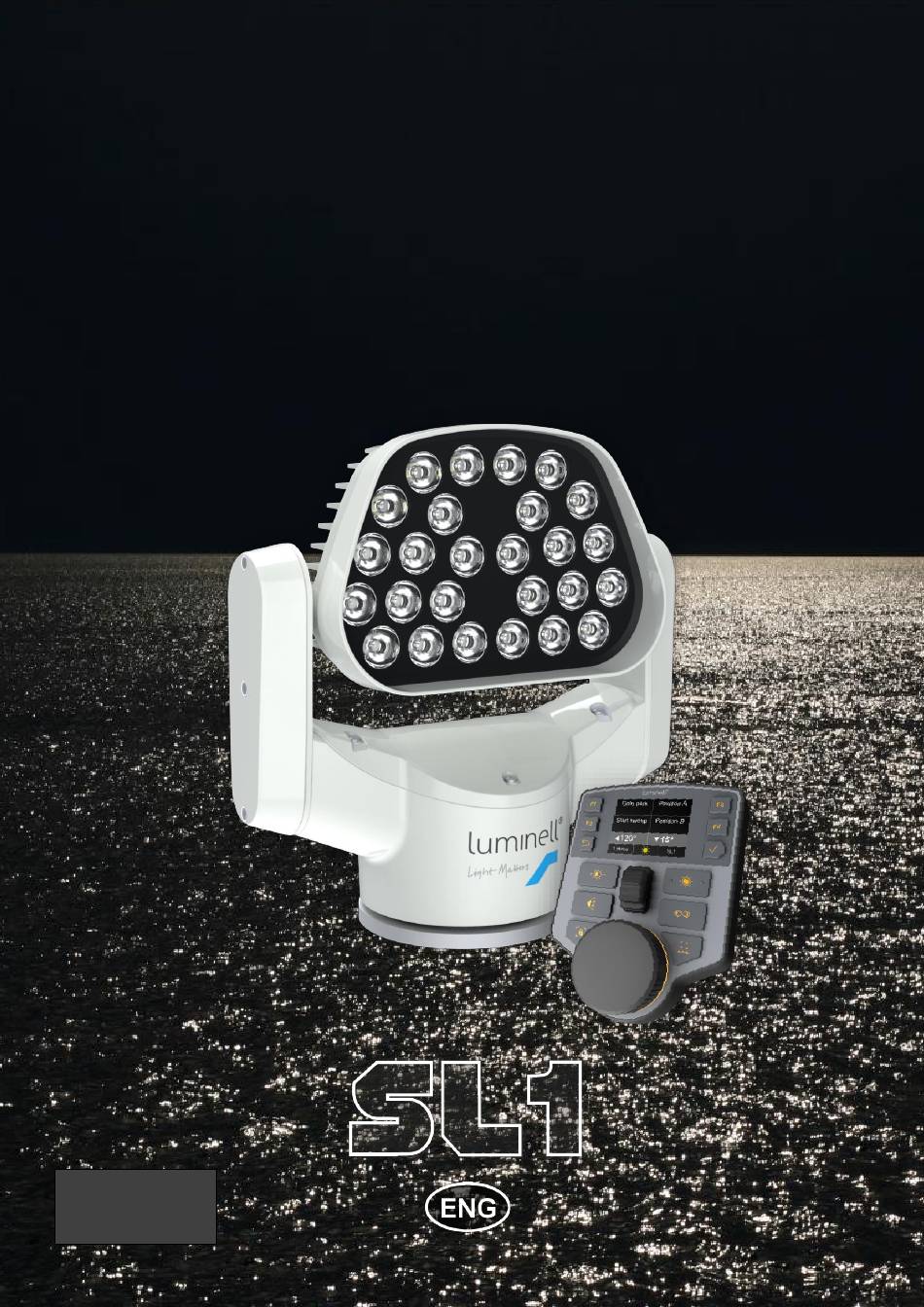

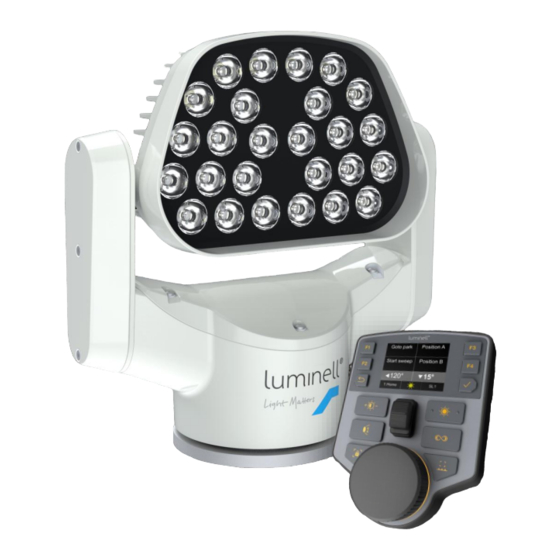

SEARCHLIGHT SYSTEM
BY LU
INSTALLATION & USER'S MANUAL
November 2021
V 1.3
LUMINELL SWEDEN AB
Doc no: CLN0862
BY LUMINELL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL1 and is the answer not in the manual?

Questions and answers

Robert Talle
March 25, 2025

Hvordan lagre knapp F3

0

Related Manuals for LUMINELL SL1

Summary of Contents for LUMINELL SL1

  • Page 1 SEARCHLIGHT SYSTEM BY LU BY LUMINELL INSTALLATION & USER'S MANUAL November 2021 V 1.3 LUMINELL SWEDEN AB Doc no: CLN0862...
  • Page 2 Luminell for more information. With new firmware updates come new features that are not currently described in this manual, for the latest firmware and manual update information contact Luminell Service & Technical Support or check Glamox homepage for info.
  • Page 3 Luminell shall not be responsible or liable for misuse of the information that is contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.
  • Page 4 1,18 contacts updated to Glamox Approvals This document requires following approvals: Name Title Anders Holst Technical manager - Luminell Sweden AB Markus Lundqvist Product Manager - Luminell Sweden AB Aprovals Title Written and approved by: Reviewed and approved by: Anders Holst...
  • Page 5 Table of Contents Connection example 1 (default) – 24Vdc Connection example 2 – 24Vdc LUMINELL SWEDEN AB...
  • Page 6 Light dim level Light beam angel How does it work? Change the function shortcuts on the homescreen Set fixed position Modify sweep Start surveillance Modify surveillance Surveillance settings Set surveillance positions Switch system Park all Start Sync LUMINELL SWEDEN AB...
  • Page 7 LUMINELL SWEDEN AB...

  • Page 8: Warranty Conditions

    - HMI-based lamps: warranty period: 24 months - Spare parts: warranty period: 12 months Warranty period starts from the date the goods is shipped from LUMINELL factory. Product specific conditions A correctly installed searchlight system from Luminell requires no planned regular maintenance or service other than regular cleaning and care during the first 10 years of operation.

  • Page 9: About This Manual

    Luminell sweden AB manufactures professional marine searchlights and has done so since the early 90's. The SL1 is a compact and extremely powerful LED searchlight with wave-compensated movement and digital controlled spot / flood light beam. Developed for and targeting Civil/Naval High Speed and Light Craft as well as Yachts. Built to last with same quality standards as the bigger sisters but in a more compact format.
  • Page 10 Please locate the model plates on the equipment and write down the serial numbers to the fields on the right for future use. You can locate the plate by the pictures below. Sn SL1: _______________ Date: _______________ HW ver: _______________ SL1 Operator panel Sn SL1-OP: _______________ Date: _______________ HW ver: _______________ LUMINELL SWEDEN AB...
  • Page 11 Searchlight will start rotating during calibration process. To avoid accident, cut power before any work on or nearby the searchlight. Warning: Optical Radiation. This fixture generates powerful visible light. Avoid looking directly at the light source as this may injure the eyes. LUMINELL SWEDEN AB...
  • Page 12 Keep all safety information and instructions for future reference and pass them on to subsequent users of the product. The manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions. In such cases, the warranty will be voided. LUMINELL SWEDEN AB...

  • Page 13: Technical Data

    4 Technical Data 4 TECHNICAL DATA 4.1 SL1 Technical Data SL1 Input Nominal voltage 24VDC (20...28VDC) Power consumption in operation Max 500W Power consumption in standby mode (light off) Current at 24V Max 20,8A Installation Standing (default factory setting) Mounting position Hanging (see manuals “Installation Menu Settings”)

  • Page 14: Operator Panel

    Custom home screen – set your 4 most used functions Up to 4 programmable fixed positions Sweep in horizontal direction Standard menu functions Surveillance in horizontal and vertical direction Switch – to another potential SL1 in the network Sync LUMINELL SWEDEN AB...

  • Page 15: Preparation Of The Product For Use

    5 PREPARATION OF THE PRODUCT FOR USE 5.1 UNPACKING THE PRODUCT AND CHECKING THE CONTENTS The system is delivered in a cardboard box containing 1 x SL1 searchlight with 3m powercable and 0,9m circular LAN cable mounted to the searchlight base.
  • Page 16 By mounting four M8 bolts in the base it can be placed upright without damaging protruding wiring or cable gland. Storing the product Storage temperature -25°C to +70°C (-13°F to +158°F). LUMINELL SWEDEN AB...
  • Page 17 6 Install the Product 6 INSTALL THE PRODUCT 6.1 MECHANICAL INSTALLATION OF SL1 The searchlight is mounted standing or hanging in a foundation using four hex socket threaded rods (M8x60) in its base, the threaded rods come with the delivery along with washers and lock nuts.
  • Page 18 4. Mount the supplied washers and lock nuts on the threaded rods and tighten, the recommended torque for rigid surfaces is?? LUMINELL SWEDEN AB...
  • Page 19 6 Install the Product Mechanical drawing SL1 LUMINELL SWEDEN AB...
  • Page 20 6 Install the Product Mechanical drawing SL1, base measurements LUMINELL SWEDEN AB...
  • Page 21 6 Install the Product 6.2 MECHANICAL INSTALLATION OF OPERATOR PANEL LUMINELL SWEDEN AB...
  • Page 22 6 Install the Product Mechanical drawing Operator panel LUMINELL SWEDEN AB...
  • Page 23 6 Install the Product Mechanical drawing Operator panel base LUMINELL SWEDEN AB...
  • Page 24 6 Install the Product 6.3 SL1 ELECTRICAL SL1 electrical system overview LUMINELL SWEDEN AB...
  • Page 25 6 Install the Product SL1 Electrical connection diagram Connection example 1 (default) – 24Vdc LUMINELL SWEDEN AB...
  • Page 26 6 Install the Product Connection example 2 – 24Vdc LUMINELL SWEDEN AB...
  • Page 27 6 Install the Product Connection example AC using an external PSU (optional) LUMINELL SWEDEN AB...
  • Page 28 6 Install the Product SL1 network overview 1xSL1 and 2xOperator panels 1xSL1 and 2xOperator panels connected in a network using internal Ethernet switch. LUMINELL SWEDEN AB...
  • Page 29 6 Install the Product 2xSL1 and 1xOperator panels 2xSL1 and 1xOperator panels connected in a network using internal Ethernet switch. LUMINELL SWEDEN AB...
  • Page 30 The below only applies if the searchlight system is powered directly by the vessels DC network. Luminell's LED searchlight module is built for optimal light performance along with an effective EMI-reducing circuit design. Large capacitors between searchlight 0V and ground is an effective way to reduce emissions but can also have a negative impact for some insulation monitors that use a measurement method in the form of a pulsed voltage applied between supply 0V and ground.
  • Page 31 Network check - Operate all searchlights from all Operator panels. Center, PS, SB, Aft. Name the searchlight Check and adjust Origin Set the park position If more than one searchlight installed: Activate Synchronized control and confirm that all searchlights are mowing. LUMINELL SWEDEN AB...

  • Page 32: Operation/Use

    Light dim control Wave compensation (tilt) ON/OFF Light beam angle control Tilt joystick (proportional) Hold light direction ON/OFF Control wheel horizontal (not active, reserved for future updates) OK + next screen RIGHT Control wheel light indicator RGB LUMINELL SWEDEN AB...

  • Page 33: Display And Indicators

    Vertical indicator Numerical position indicator. Screen number/name Status icons The field displays symbols that correspond to the status of a function Name (active searchlight) Displays the name of the searchlight that the panel points to / controls. LUMINELL SWEDEN AB...

  • Page 34: Main Functions

    Searchlight will start rotating during calibration process. To avoid accident, cut power before any work on or nearby the searchlight. Warning: Optical Radiation. This fixture generates powerful visible light. Avoid looking directly at the light source as this may injure the eyes. LUMINELL SWEDEN AB...
  • Page 35 7.5.2 Backlight level Functional status Color Note Normal operation Amber (orange), solid. Boot (Searching network) Blue, slowly pulsating Error Red, slowly pulsating Button Press "OK" White, Flashes two times. Green, solid. Auto function ON Sweep, surveillance, wave-compensation etc. activated. LUMINELL SWEDEN AB...
  • Page 36 7 OPERATION/USE Controlling the light SL1 LED light is made up of both a wide and narrow beam and latest beam selection + dim level is saved and activated at the re-ignition. To turn the light ON and OFF press , the sun indicator is shown in the display status field upon activated light.
  • Page 37 Choose between a wide and a narrow light by pressing and holding the light beam button and toggle the joystick up / down for the desired beam. Joystick up for Narrow beam Joystick down for wide beam 8.3.3.2 Illumination presentation LUMINELL SWEDEN AB...
  • Page 38 Internally, wave compensation uses an algorithm that solves a geometrical problem in 3D. The solution to this problem yields an automatically stabilizing light. To its help it uses several sensors mounted inside the LED housing. These sensors are read and processed up to 100 times per second. LUMINELL SWEDEN AB...
  • Page 39 For two-step functions such as sweep, the button also changes function mode after its activated. "Start sweep" is shown for deactivated function and "Stop sweep" for activated function. LUMINELL SWEDEN AB...
  • Page 40 Position D Go to preset position D with stored light settings (Position settings). Backlight Off Turns off the panel backlight, pressing any button turns the light back on Switch system Select and control other searchlights in the network LUMINELL SWEDEN AB...
  • Page 41 Confirm new position setting with "OK" or exit the menu with "Back". If the searchlight doesn’t move when commanding a position A-D, then either position is not stored, or the searchlight is already in this position. LUMINELL SWEDEN AB...
  • Page 42 To increase or decrease the value, use the wheel. The last set sector size and speed is stored by the system and used during sweep. If no change is made the default sector size is 45° and speed 50% (of max speed). LUMINELL SWEDEN AB...
  • Page 43 On “Sweep screen” select” Modify surveillance” and confirm with “OK”. If it is the first time you look into this function, we suggest you start with the “Surveillance settings” parameters, confirm with “OK”. LUMINELL SWEDEN AB...
  • Page 44 Speed: This sets the sweep speed between the positions; the speed parameter is selected in steps of 5 between 10-100%. The surveillance sweep can be interrupted by pressing “Stop surveillance” or by turning the control wheel in any direction, light status for recent position will still be active. LUMINELL SWEDEN AB...
  • Page 45 Now the pause menu opens, here you set the number of seconds that the searchlight should stop at, in this case, position 1. Adjust between 0 to 10 seconds with the control wheel, default setting is 5 seconds. “OK” confirms the new setting and "Modify surveillance" menu reappears. LUMINELL SWEDEN AB...
  • Page 46 "sweep", this is also displayed. (if sweep shortcut exists). The factory-set name is always "SL1", so for easy navigation in this menu, all the searchlights should have logical unique names. For example, STBD and PORT.
  • Page 47 This means that with a simple push of a button you can control several SL1s for maximum light output in a master/slave network. The searchlight you are controlling when the sync is activated is the master and other SL1 searchlights will be slaves and will imitate the positioning and the light control on the master.

  • Page 48: User Menu Settings

    Eight turns on the wheel makes one turn on the searchlight, only for finetuning. A setting where a slow rotation of the wheel means a slow rotation of the Speed searchlight and fast wheel control a fast-horizontal rotation (default). Confirm ratio with "OK" or exit the menu with "Back". LUMINELL SWEDEN AB...
  • Page 49 OP SW ver Operator panel software version. MB SW ver Searchlight mainboard software version. TB SW ver Searchlight tiltboard software version. Support info Luminell contact information: Phone number: +46 353 8270 Service mail for support: service.sweden@glamox.com LUMINELL SWEDEN AB...
  • Page 50 Real-time reading of temperature and relative humidity in the LED module and the support arm where the mainboard pcb is mounted. This data is primarily intended for support purposes where the user may be asked to report these values as part of the troubleshooting. 70,3° 33,0% 16,5° 20,0% LUMINELL SWEDEN AB...
  • Page 51 Hanging (default) If the SL1 will be mounted in hanging position, With the tilt joystick, step down in the list to mark “Hanging”, Confirm the selection with "OK". Wheel indicator flashes twice. If the if the searchlight is mounted hanging without a change being made in this menu, the movement of the lamp from the operator panel will be inverted.
  • Page 52 Previously stored position is always overwritten by the new. Store origin After installing the SL1 searchlight you need to calibrate the systems horizontal axis. From factory we use the searchlight internal sensor as zero reference but after the searchlight has been handled and bolted this reference need to be adjusted, we call this to “Set the origin”.
  • Page 53 Its recommended that the tilt position is pointing slightly down to drain off rain, snow etc. Name system The dedicated Luminell network can contain several searchlights and operator panels. To make the network easy to navigate the corresponding searchlight can be named to a well- known and logical identity for the operator.

  • Page 54: Preventive Maintenance Plan

    Replacing the tilt drive belt (see spare parts list) Every 7 years Deicing. Wintertime the system should be deiced with caution. First turn the When necessary lights on to let the heat melt the ice before operating the system horizontally and vertically. LUMINELL SWEDEN AB...

  • Page 55: Troubleshooting

    Cause Solution Panel is showing “starting This is the initial system Wait 20 second for the boot system” with Luminell logo boot-up sequence after the sequence to finish before and a blue flashing halo searchlight has been operating the panel.

  • Page 56: Firmware Update

    9 FIRMWARE UPDATE 9 FIRMWARE UPDATE Luminell have developed a user-friendly update tool that soon will be available from Glamox homepage, in the meantime contact service.sweden@glamox.com for update information. The installation file contains both the tool itself and the firmware files, all in one application.
  • Page 57 9 FIRMWARE UPDATE 9.3 FIRMWARE TOOL INSTALLATION. 1. Download, unzip to your desktop and execute the Luminell setup.msi file, click Next. 2. Install to preselected location (or select browse and select an alternative location), then click Next. Screen images from Windows 10 OS are used in this document as an example.
  • Page 58 9 FIRMWARE UPDATE 3. Click next to install 4. When UAC (User Account Control) opens, allow the tool to be installed. 5. Upon installation complete, close the window. LUMINELL SWEDEN AB...

  • Page 59: Update Procedure

    If using a laptop for the update make sure its battery is fully charged or connected to AC supply. Don’t power off the searchlight system or the computer during update process. Once the software is installed, preparation can be made for updating firmware in the SL1 system (operator panel and searchlight).
  • Page 60 9 FIRMWARE UPDATE 3. Run the Firmware tool from the computer, shortcuts will be available on the desktop and in windows start menu. 4. The Luminell firmware tool looks like below and contains the following information and functions: After scanning, available...
  • Page 61 Press scan button again. 8. A list is presented, devices that can be updated is marked with a blue box. The SL1 searchlight in the example below contains two updatable boards, their present version is older than the version in the firmware tool.
  • Page 62 Press and hold (or right-click) on the app, then select Uninstall. Uninstall from the Settings page • Select the Start button, then select Settings > Apps > Apps & features. • Select the app “Luminell SL Firmware Tool”, and then select Uninstall. LUMINELL SWEDEN AB...
  • Page 63 Update computers 1, Open Inbound Rules. Firewall blocking the 2, Right click on SL1Gui. connection. 3, In advanced tab make sure both private and public boxes are checked Do this for both TCP and UDP inbound rule. LUMINELL SWEDEN AB...
  • Page 64 Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. LUMINELL SWEDEN AB...

  • Page 65: Accessories And Spare Parts

    11 Accessories and Spare Parts 11 ACCESSORIES AND SPARE PARTS 11.1 SUPPLIED ACCESSORIES Description SL1 Part# SL1 Installation and User’s manual CLN0862 (Printed) LAN Keystone RJ45 coupler CLN0415 LAN Cable M12-RJ45 (2m) CLN0790 LAN Cable M12-RJ45 (2m) (Firmware CLN0790 update cable)

  • Page 66: Declaration Of Conformity (Ce)

    12 Declaration of conformity - CE 12 DECLARATION OF CONFORMITY - CE LUMINELL SWEDEN AB...
  • Page 67 13 type approval certificate - DNV 13 TYPE APPROVAL CERTIFICATE - DNV LUMINELL SWEDEN AB...
  • Page 68 13 type approval certificate - DNV LUMINELL SWEDEN AB...
  • Page 69 13 type approval certificate - DNV NOTES LUMINELL SWEDEN AB...
  • Page 70 13 type approval certificate - DNV NOTES LUMINELL SWEDEN AB...
  • Page 71 13 type approval certificate - DNV NOTES LUMINELL SWEDEN AB...
  • Page 72 Luminell Sweden AB, Seldonsvägen 8, SE-302 62 Halmstad, Sweden Phone: +46 35 38280 www.glamox.com...
