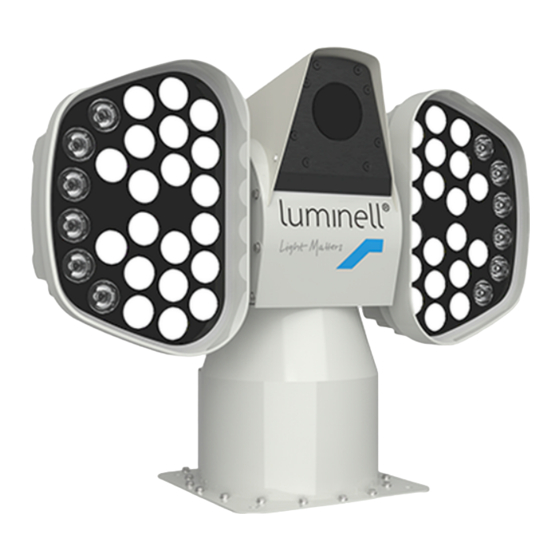

- Page 1 SEARCHLIGHT SYSTEM BY LUMINELL INSTALLATION & USER'S MANUAL AC&DC versions (3GS Revision nr: F1.1 Revision date: 2020-04-08 Revision nr: F1.1 Revision date: 2020-04-08...
- Page 2 If your system lacks any function presented in this manual, there is possibly a software update available to resolve this, please contact Luminell for more information. COPYRIGHT LUMINELL © 2020. All rights reserved Page 2 INSTALLATION &...
-
Page 3: Table Of Contents
ELECTRICAL SYSTEM ....................20 Electrical box mounting position ................. 20 Electrical box installation ..................21 Cabinet card ...................... 22 SL2 electrical-box overview (24VDC) ..............23 10.4.1 Selecting/adjusting the insulation monitoring device, 24VDC network ......24 10.4.2 SL2 electrical-box connection (24VDC) ................ 25 SL2 electrical-box overview (100-240VAC) ............ - Page 4 Maximum rotation speed ....................57 16.8.5 Installation ........................57 16.8.5.1 Store origin ......................57 16.8.5.2 Store park position ....................58 16.8.5.3 Name system ......................59 16.8.5.4 Start test sequence ....................60 16.8.5.5 Single lamp mode ....................60 Page 4 INSTALLATION & USER'S MANUAL SL2...
- Page 5 Electrical box SL2, 24VDC ................... 76 18.6.4 Searchlight SL2 (standard) ................... 77 18.6.5 Searchlight SL2 IR (with camera) ................. 78 SL2 SEARCHLIGHT WITH THERMAL CAMERA ............79 Thermal camera introduction ................79 SL2IR additional Specifications ................80 SL2IR - VIDEO CONNECTION ..................82 INSTALLATION &...
-
Page 6: Document Revisions And Approvals
Document changes firmware 20-03-27 F1.0 Initial release V 0.6.3.21 20-04-08 F1.1 Added Insulation monitor note (Page V 0.6.3.21 Document approvals Approvals written by: reviewed by: approved by: Anders Holst Jonas Boslander Mattias Svensson Page 6 INSTALLATION & USER'S MANUAL SL2... -
Page 7: Warnings And Information
Removal of ice should be done with caution. Physical violence can damage the LED-lamp modules or the searchlight driving mechanics. Safety reminder Remember to break all electrical power to system before starting any work in the electrical box or the searchlight unit. INSTALLATION & USER'S MANUAL SL2 Page 7... -
Page 8: Warranty Conditions Sl2
Warranty seal on the service hatch is unbroken. Outgoing cable radius from the searchlight is smooth and not stressed. All cables used for the installations are as per Luminell’s specifications or as per separate made agreement. Signal cables are not placed together with high power cables. -
Page 9: Maintenance And Service Plan
5. Deicing. Wintertime the system should be deiced with caution. First turn the lights on to let the heat melt the ice before operating the system horizontally and vertically. INSTALLATION & USER'S MANUAL SL2 Page 9... -
Page 10: Luminell Searchlight System
LUMINELL SEARCHLIGHT SYSTEM Short system info Luminell control system for searchlights is a flexible and future-proof system in which several searchlight assemblies (SL2, CLITE2, CLED, CL20, CL25 and CL35/38) and operator panels can be connected to a dedicated network and communicate via the Ethernet infrastructure. -
Page 11: External Control Interface
Control-computers and navigation equipment can be connected directly to the serial port on the electrical boxes and communicate by RS232/RS485 (half duplex). Contact Luminell for a free ICD protocol documentation, a windows-based debugger tool for integration development is also available. -
Page 12: Luminell Unity Hub
Luminell Unity Hub If several searchlights are connected in a network, then the Luminell Unity Hub can be an appropriate part of the integration. The Hub computer acts like a firewall between external controlling part and the LumiNet searchlight network which ensures the best system performance and stability. -
Page 13: Operator Panel, Overview
8. Joystick (”Hall effect” proportional). 9. Display (TFT 2,4”). LED intensity levels are 20% - 40% - 60% - 80% - 100%. Note: Several sections of the manual refer to the above figures INSTALLATION & USER'S MANUAL SL2 Page 13... -
Page 14: Display Symbols And Messages
If the arrows are replaced by questionmarks then the system needs to be internally calibrated. The easiest way to do the internal calibration is by simply choose the “Park” in the quick start menu, please see 15.6 Off and park. Page 14 INSTALLATION & USER'S MANUAL SL2... -
Page 15: Ebox Alarm Relay
Ethernet communication broken to all Check Ethernet wires and OPWDT panels, see (4.1) OP WDT. connections to panel(s) and (message in Fault auto-resets if contact is restored with switch. box only) at least one panel. INSTALLATION & USER'S MANUAL SL2 Page 15... -
Page 16: Installation
Also in this case the searchlight cables must be secured to the hook to avoid straining and damage on the cable glands. Page 16 INSTALLATION & USER'S MANUAL SL2... -
Page 17: Cli-30001, Anti Vibration Kit
Service instruction no: CLI-30001 Revision date: 2016-02-10 Applicable models: SL2, CLITE2, CL20-11, CL25-**, CL35/38-** Spareparts needed (refer to CL spareparts list) 1 : CLS-25130 Anti vibration-kit × 1 (included in delivery) Tools and supplies required: 1 17mm ratchet wrench × 1 2 17mm wrench ×... - Page 18 Push the dampers tube part thru the mounting holes in the foundation. Mount the dampers rubber part from other side of the foundation. Lower the searchlight on top of dampers and mount bolt washers and nuts as shown in figure 1. Page 18 INSTALLATION & USER'S MANUAL SL2...
- Page 19 The lock nut is tightened with two wrenches size 17mm, tighten nut firmly. The dampers rubber part will be compressed slightly, after assembly the searchlight will be rigidly secured but still resistant to vibrations. INSTALLATION & USER'S MANUAL SL2 Page 19...
-
Page 20: Electrical System
The electrical control box must be mounted on a wall as shown below, do not mount horizontally on the floor or in ceiling as this leads to reduced airflow with increased risk of overheated components. Page 20 INSTALLATION & USER'S MANUAL SL2... -
Page 21: Electrical Box Installation
Cables are connected according to the wiring diagram and double-checked before the power is turned on using the main switch Q01 in the electric box. EMC Gland Shield Connection SL2 Electrical Box (24Vdc) INSTALLATION & USER'S MANUAL SL2 Page 21... -
Page 22: Cabinet Card
Relay NO CPU Card Relay Common Relay NC RS232 RS422 RS485* Buttons for Menu navigation See: Menu navigation Signalcable to searchlight Standard setting. Wire is installed but has no function on SL2. Page 22 INSTALLATION & USER'S MANUAL SL2... -
Page 23: Sl2 Electrical-Box Overview (24Vdc)
(Ext 24V for for LD01 OP3GS etc.) (Left light) Light fuse F02 Fuse F04 F01 F02 for LD02 (Ext 24V for IR (Right light) window heater) Main switch CPU Card Cabinet Card Terminal Group INSTALLATION & USER'S MANUAL SL2 Page 23... -
Page 24: Selecting/Adjusting The Insulation Monitoring Device, 24Vdc Network
Selecting/adjusting the insulation monitoring device, 24VDC network Luminell's LED searchlight module is built for optimal light performance along with an effective EMI-reducing circuit design. Large capacitors between searchlight 0V and ground is an effective way to reduce emissions but can also have a negative impact for some insulation monitors that use a measurement method in the form of a pulsed voltage applied between supply 0V and ground. -
Page 25: Sl2 Electrical-Box Connection (24Vdc)
SL2 electrical-box connection (24VDC) This connection diagram shows our standard connection for SL2 with electrical box supplied with DC voltage. Deviations may occur for customized solutions. CAN H to searchlight electronics CAN L to searchlight electronics Fan control voltage UV *... -
Page 26: Sl2 Electrical-Box Overview (100-240Vac)
Light fuse F02 LD02 (Right light) Fuse F05 (LED-PSU) Left Light Main switch Fuse F06 (Ext 24V for OP3GS etc.) Fuse F07 (Ext 24V for IR window heater) CPU Card Terminal Group Cabinet Card Page 26 INSTALLATION & USER'S MANUAL SL2... -
Page 27: Sl2 Electrical-Box Connection (100-240Vac)
SL2 electrical-box connection (100-240VAC) This connection diagram shows our standard connection for SL2 with electrical box supplied with AC voltage. Deviations may occur for customized solutions. CAN H to searchlight electronics CAN L to searchlight electronics Fan control voltage UV *... -
Page 28: Operator Panel Connections
The panel is protected against wrong polarity and over-current protected by an internal, type: T1A (Slow-Blow glass fuse 5x20mm). Wire#2 Wire#1 24Vdc (+) Earth- 0v (-) wire RJ45 Connector Gore protective membrane vent Power Cable Ethernet Cable Page 28 INSTALLATION & USER'S MANUAL SL2... -
Page 29: External Switch Panel
A or B (deactivated) Park searchlight (and light off) Connecting the switch panel to the ebox The Luminell switch panel (or alternative corresponding to below schematics) is connected to the ebox terminal #10(A), #11(common) and #12(B). Switch requirement: 24Vdc, 100mA Use two maintained switches. -
Page 30: Searchlight Nmea Tracking (Optional)
For more information about Searchlight NMEA Tracking, please contact Luminell Sweden. Page 30... -
Page 31: Ethernet Wiring
Ethernet wiring Luminell searchlight systems should be connected to their own dedicated network; they should never be connected into the vessels existing computer network. An Ethernet cable supplied from Luminell complies with the standard TIA/EIA-568-B and is always tested together with the complete searchlight system to ensure full functionality. -
Page 32: Actions After Installation And Power Failure
Note: always synchronize before setting sweep*, fixed positions* or surveillance* to ensure that the system is not rebooted with deviating positions, please see 11.2 Synchronize the system. Older systems can be updated, please contact us for more information Page 32 INSTALLATION & USER'S MANUAL SL2... -
Page 33: Synchronize The System
If a parking position has been set, the searchlight will end this procedure by parking. If necessary, the origin can be set after the steps above to give an accurate readout of the indicator. To set the origin, please see 16.8.5.1 Store origin. INSTALLATION & USER'S MANUAL SL2 Page 33... -
Page 34: Starting System
Pressing any button on the operator panel will activate the system and the display will now show the position indicator image, buttons and symbols are now brighter. Buttons, symbols and display intensity can be adjusted, please see 16.8.1 Backlight brightness. Page 34 INSTALLATION & USER'S MANUAL SL2... -
Page 35: Joystick Functions
The joystick (8) moves the searchlight horizontally and vertically. There are no limitations to the movement of the searchlight thanks to the slip ring technology developed by Luminell. The more the joystick is moved to its end position the faster the searchlight rotates. -
Page 36: Light Control
Spot beam Flood beam Press button (3) to activate the spot sector on Press button (4) to activate the flood sector both LED modules (above in yellow). on both LED modules (above in yellow). Page 36 INSTALLATION & USER'S MANUAL SL2... -
Page 37: Dim Adjustment
Press button (3) to activate the spot sector on both LED modules (above in yellow). When light intensity above 40% is selected then the spot beam will fill up with low intensity light to avoid a dead area in beam center. INSTALLATION & USER'S MANUAL SL2 Page 37... -
Page 38: Quick Start Menu
The quick start menu will close after 5 seconds. Fixed positions There are up to four different programmable fixed positions in Luminell Searchlight System. Go to fixed position To enter the "Fixed Light Position" submenu, open the quick start menu and press the upper left button "Positions". -
Page 39: Store Fixed Position
Press “Store”. The current position is now stored. Note that you always overwrite a previously stored position. INSTALLATION & USER'S MANUAL SL2 Page 39... -
Page 40: Sweep
The default setting for a sweep is a horizontal sweep of 20°. To stop a sweep, enter the "Sweep" submenu and choose “Stop” or just move the searchlight by using the joystick. To resume the sweep, enter the "Sweep" submenu and choose “resume”. Page 40 INSTALLATION & USER'S MANUAL SL2... -
Page 41: Modify Sweep Parameters
To change the center point of the horizontal sweep, move the joystick to the left or right until the desired center point is reached. To change size of the sweep angle move the joystick up or down. Press “OK” to save and update the searchlight with the new values. INSTALLATION & USER'S MANUAL SL2 Page 41... - Page 42 To change the speed, move the joystick up or down to desired speed, press “OK” to update the searchlight with the new speed. Note: If the rotation speed is updated during runtime this will affect only after the searchlight has reached its next end point. Page 42 INSTALLATION & USER'S MANUAL SL2...
-
Page 43: Surveillance
To set a new surveillance sweep the number of positions must first be set. To enter the “Surveillance” submenu, open the quick start menu and press the bottom left button. Navigate down to “Number of Positions to Use” and press “OK”. INSTALLATION & USER'S MANUAL SL2 Page 43... - Page 44 The selected number of positions is shown in the display. To set a position, enter the desired position, then move the searchlight to the by using the desired position by the joystick. Press “Store” to store each position. Page 44 INSTALLATION & USER'S MANUAL SL2...
-
Page 45: Changing Surveillance Settings
When using “Repeat” the surveillance sweep will go from position one to two and so on until it reaches the last one set in “Number of Positions to Use”. From there it will start the same sequence at position one instead of going to the previous position. INSTALLATION & USER'S MANUAL SL2 Page 45... - Page 46 The speed can be set between 5-100% of the maximum rotation speed. Note: If the rotation speed is updated during runtime this will affect only after the searchlight has reached its next end point. Page 46 INSTALLATION & USER'S MANUAL SL2...
-
Page 47: Switch
Switch If there are more than one Luminell searchlight in the network, then any operating panel can control any of the connected Luminell searchlights. Each searchlight should be given a unique name during installation for this to work properly. To enter the “Switch” submenu open the quick start menu and press the upper right button. -
Page 48: Synchronized Control
Synchronized control This function is available in the “Switch” submenu if there is more than one Luminell Search Light in the network and at least one operator panel has the option "Synchronized control" enabled. The feature gives the user control over multiple searchlights at the same time from a single operator panel and can therefore obtain optimal light on the same area. - Page 49 In this menu all the available searchlights should be listed. To change which searchlight being controlled, navigate to the desired searchlight and press “OK”. The operating panel should now control the newly selected searchlight which light status and position is shown on the indicator screen. INSTALLATION & USER'S MANUAL SL2 Page 49...
-
Page 50: Set The Master Control Searchlight On/Off
15.5.2 Add and remove slaves. To disconnect the master and run the CL35 CENTER searchlight as a single searchlight go into the “Switch” submenu, navigate to the master searchlight and press the “Single” button. Page 50 INSTALLATION & USER'S MANUAL SL2... -
Page 51: Add And Remove Slaves
If the searchlight marked is already listed as slave in the group, the text "Remove” appears next to the top left button, to remove this searchlight from the group, press the "Remove" button. INSTALLATION & USER'S MANUAL SL2 Page 51... -
Page 52: Off And Park
"Parking ..." in the bottom middle of the display. When parked, the operator panel will turn off the display after a few seconds and the LEDs behind the buttons will be dimmed to a lower intensity. Page 52 INSTALLATION & USER'S MANUAL SL2... -
Page 53: Main Menu
Info This menu shows information that is needed to be known during support from Luminell or if any optional functions should be added to the operator panel after purchase (more about this under 16.8.5.7 Options setup). -
Page 54: Status
Ethernet communication broken to all Check Ethernet wires and OPWDT panels, see (4.1) OP WDT. connections to panel(s) and (message in Fault auto-resets if contact is restored with switch. box only) at least one panel. Page 54 INSTALLATION & USER'S MANUAL SL2... -
Page 55: Settings
The language in the display can be changed depending on which language sets that are installed in the operator panel. Currently, the following languages are available (Q2 2016): English, Swedish, Chinese, French, German, Italian, Portuguese, Russian. If you find that your language is missing, please contact Luminell INSTALLATION & USER'S MANUAL SL2 Page 55... -
Page 56: Joystick Direction
(joystick up=lamp housing moving upwards), this is called “Inverted” in the menu. Normally the joystick acts like an airplane joystick: (joystick up=lamp housing moving downwards), this is called “Normal” in the menu. Page 56 INSTALLATION & USER'S MANUAL SL2... -
Page 57: Maximum Rotation Speed
(normal start). Now the position of the lamp housings should be adjusted to be in level with horizontal plane and in direction straight forward of the vessel (normally)! Then “Store origin” is executed and setting is stored. INSTALLATION & USER'S MANUAL SL2 Page 57... -
Page 58: Store Park Position
“Store park position”. Press “OK” to save the new park position and return to the default logo screen or display indicator*-screen Suitable park position for SL2 is pointing straight ahead 0/0 degree; this is also the default parking position Page 58... -
Page 59: Name System
Name system The dedicated Luminell network can contain several searchlights and operator panels. To make the whole network easy to navigate; each electrical box and its corresponding searchlight can be named to a well-known name for the operator. The name is set by moving the joystick up and down to select correct character. To move to next character in the name the joystick is moved to the right. -
Page 60: Start Test Sequence
Single lamp mode Note: This function is not available on SL2, for this model, both LED modules always light up at the same time Page 60... -
Page 61: Op Rotation
By changing this setting, you can compensate for different mounting positions while maintaining accurate indicator function, you can choose from four different positions. 0 degrees (default) 90 degrees 180 degree 270 degree Press “OK” to save and exit back to the “Installation” submenu. INSTALLATION & USER'S MANUAL SL2 Page 61... - Page 62 OP Rotation illustration. 0º 270º 90º 180º Page 62 INSTALLATION & USER'S MANUAL SL2...
-
Page 63: Options Setup
The codes are individual for each operator panel. For obtaining unlock codes please contact Luminell for quotation. Luminell also need the MAC-id of the related control panel to generate the correct code. Please see 16.6 Info. -
Page 64: Cabinet Card Menu System
CABINET CARD MENU SYSTEM This chapter describes the menu system of the Luminell Cabinet Card displayed on the on- board LCD. Down Right Menu navigation The user interacts with the menu system using the three buttons, the “Down” button, the “Right”... -
Page 65: Category 1: About
(‘.’), e.g. “169.254.17.5”. (1.3) Light Model Displays the searchlight model that the Cabinet Card is configured to use, e.g. “Model: CL25- 12”. (1.4) SW Version Displays the firmware version of the Cabinet Card, e.g. “0.1.2.3”. INSTALLATION & USER'S MANUAL SL2 Page 65... -
Page 66: Category 2: Diagnostics (Support Tool)
Press the OK button to run the on-board diagnostic test suite to sense the electrical and mechanical condition of the searchlight. (contact Luminell for help with this feature). T1. Measurement of voltage and current when the searchlight is in “non operating mode”... -
Page 67: Category 3: Usage Stats
A confirmation message, “If sure press OK”, is displayed upon entering the menu. Press the “OK” button at this point to reset the counter and exit the menu. Press the “Down” or “Right” button to exit the menu without resetting the counter. INSTALLATION & USER'S MANUAL SL2 Page 67... -
Page 68: Category 4: Settings
Broken Ethernet cable between electrical box/ Ethernet switch (if any) and operator panel. OP WDT is disabled by default, to enable press “OK” button in menu “4.1 OP WDT” screen and press the “Down” or “Right” button to toggle the function on/off. Page 68 INSTALLATION & USER'S MANUAL SL2... -
Page 69: (4.2) Op Wdt Stats
A confirmation message, “If sure press OK”, is displayed upon entering the menu. Press the “OK” button at this point to reset the counter and exit the menu. Press the “Down” or “Right” button to exit the menu without resetting the counter. INSTALLATION & USER'S MANUAL SL2 Page 69... -
Page 70: Technical Data
Powder coat matt light grey RAL 7035, gloss 20 Glass Tempered glass General Spec Signal cable: 4x2x1 shielded, twisted pair -Power cable: 5G4 shielded Electrical interface -OP3G cable: Ethernet CAT5-FTP. Fiber available for long distance Page 70 INSTALLATION & USER'S MANUAL SL2... -
Page 71: Sl2 Electrical Box
340 x 168 x 388 Weight 6 kg 11 kg Materials & Colors Box casing Coated steel Available Colors Powder coat grey RAL 7035 General Specifications System boot time 15 sec (from power off) INSTALLATION & USER'S MANUAL SL2 Page 71... -
Page 72: Operator Panel
Dimming step by step Configurable park position Up to 4 programmable fixed positions Sweep in horizontal direction Standard menu functions Surveillance in horizontal and vertical direction Switch to another searchlight in the network Synchronize searchlights Page 72 INSTALLATION & USER'S MANUAL SL2... -
Page 73: Optional Hardware
Wet paint (AWL grip or similar) External power supply for panel (s) Optional software functions Optional Software Restricted Zone (unlock code) NMEA tracking see page 30 (unlock code) Contact Luminell Sweden for details. INSTALLATION & USER'S MANUAL SL2 Page 73... -
Page 74: Mechanical Drawings
Mechanical drawings Operator Panel Page 74 INSTALLATION & USER'S MANUAL SL2... -
Page 75: Electrical Box Sl2, 100-240Vac
Electrical box SL2, 100-240VAC INSTALLATION & USER'S MANUAL SL2 Page 75... -
Page 76: Electrical Box Sl2, 24Vdc
Electrical box SL2, 24VDC Page 76 INSTALLATION & USER'S MANUAL SL2... -
Page 77: Searchlight Sl2 (Standard)
Searchlight SL2 (standard) The searchlights cable glands are rated IP68 but for extra protection during heavy weather situations it’s still recommendable to install the searchlight, so the cable exits are facing the stern. INSTALLATION & USER'S MANUAL SL2 Page 77... -
Page 78: Searchlight Sl2 Ir (With Camera)
Searchlight SL2 IR (with camera) The searchlights cable glands are rated IP68 but for extra protection during heavy weather situations it’s still recommendable to install the searchlight, so the cable exits are facing the stern. Page 78 INSTALLATION & USER'S MANUAL SL2... -
Page 79: Sl2 Searchlight With Thermal Camera
SL2 SEARCHLIGHT WITH THERMAL CAMERA Thermal camera introduction SL2IR: Luminell searchlight with integrated Infra-red thermal camera. ® The thermal night vision camera unit from FLIR is placed in a robust, modern designed housing mounted on top of the searchlight middle part; this means that the camera always follows the searchlights horizontal movement from the joystick. -
Page 80: Sl2Ir Additional Specifications
Ironbow 1 Ironbow 2 Sepia Color 1 Color 2 Ice Fire Rain Tau 336 analog video is upsampled & interpolated to 640 × 480 for NTSC, and to 640 × 512 for PAL Page 80 INSTALLATION & USER'S MANUAL SL2... - Page 81 Density (G2/Hz) 0.040 0.100 0.100 0.002 1000 0.002 Meets all requirements of this specification and exhibits no Altitude damage or permanent degradation after exposure to pressure equivalent to 12 km above sea level. INSTALLATION & USER'S MANUAL SL2 Page 81...
-
Page 82: Sl2Ir - Video Connection
SL2IR - VIDEO CONNECTION Page 82 INSTALLATION & USER'S MANUAL SL2... -
Page 83: Set Camera Video Format Standard
1. While in submenus listing items of various types the “Right” button scrolls up in the list. 2. While entering a value of some sort, the “Right” button increments that value. OK Button The “OK” button enters and exits submenus. INSTALLATION & USER'S MANUAL SL2 Page 83... -
Page 84: Factory Setup, How To Change Between Pal And Ntsc
When preferred setting is displayed, Press “OK” to save, submenu "0.9 Set Camera" is shown. Now press the “Down” button once, menu "1. About" appears in the display. Setup complete, recycle power on main switch. Page 84 INSTALLATION & USER'S MANUAL SL2... -
Page 85: Using The Thermal Camera In Cam Mode
● Activated camera is indicated by the letter “C” in the bottom left of the display. To activate the camera, first select "Surveillance” from the quick start menu. In “Surveillance” submenu, select "CAM mode”. INSTALLATION & USER'S MANUAL SL2 Page 85... - Page 86 A second press on the same button turns the camera off. Tilt indicator Tilt camera up See Figure 1 below Zoom options: Tilt camera down X8 (640 only) Activate and Return to indicator deactivate camera screen ® Figure 1 Palette. (Image source FLIR Page 86 INSTALLATION & USER'S MANUAL SL2...
-
Page 87: Camera Tilt
Press the button repeatedly until the preferred tilt angle is found, the setting is saved as default and in the event of power failure, the camera will go directly to this position. INSTALLATION & USER'S MANUAL SL2 Page 87... -
Page 88: Tilt Down
Press the button repeatedly until the preferred tilt angle is found, the setting is saved as default and in the event of power failure, the camera will go directly to this position. Page 88 INSTALLATION & USER'S MANUAL SL2... -
Page 89: Spot Meter
In the center of the screen, an onscreen pixel area acts as a tool for measuring temperatures. Center this area over an object to measure; the temperature is displayed in the lower left corner of the screen. INSTALLATION & USER'S MANUAL SL2 Page 89... -
Page 90: Menu - Camera Settings
If the menu rows are dimmed the camera must first be activated before changes can be made please see 22.1 Activate the thermal camera. Navigate down to “CAM settings” and press “OK”. Basic camera settings. Page 90 INSTALLATION & USER'S MANUAL SL2... -
Page 91: Palette
The following color palettes are available (also see Figure1: Palette): 1. White Hot Ironbow 2 2. Black Hot Sepia 3. Fusion Color 1 4. Rainbow Color 2 5. Glowbow Ice Fire 6. Ironbow 1 Rain INSTALLATION & USER'S MANUAL SL2 Page 91... -
Page 92: Zoom
Press “OK” to save the new setting or “Back” to return to previous selected zoom level. X1 – Normal mode, no magnification. X2 - Digital zoom - x2 magnification. X4 - Digital zoom – x4 magnification. X8 - Digital zoom – x8 magnification (only available for 640 cameras) Page 92 INSTALLATION & USER'S MANUAL SL2... -
Page 93: Support
SUPPORT If you have questions about the searchlight and its features, please contact Luminell technical support worldwide, see www.luminell.com for contact details. Or contact Luminell head office: Luminell Sweden AB Service & Technical Support service.sweden@luminell.com Phone: +46 35 38280 Need technical Support? Follow the link below and fill out the form, we will contact you shortly. - Page 94 Page 94 INSTALLATION & USER'S MANUAL SL2...
- Page 95 INSTALLATION & USER'S MANUAL SL2 Page 95...
- Page 96 Luminell Sweden AB, Seldonsvägen 8, SE-302 62 Halmstad, Sweden Phone: +46 35 38280 www.luminell.com sales.sweden@luminell.com...
Need help?
Do you have a question about the SL2 and is the answer not in the manual?
Questions and answers
La serchligth funciona el movimiento de rotación pero no me prende la luz
The LUMINELL SL2 searchlight may rotate but not turn on due to one or more of the following reasons:
1. The light may not be turned on manually. To turn it on, press button (2) or (5).
2. The panel may not have power if it uses a separate power supply.
3. There may be problems in the network cabling between the electrical box and the operator panel.
4. There may be undervoltage to the searchlight motor driver (below 8.5Vdc).
5. Ethernet communication may be broken to all panels.
These issues can allow movement control (rotation) while preventing the light from turning on.
This answer is automatically generated
