LUMINELL SL1 Installation & User Manual

Searchlight system
Hide thumbs Also See for SL1:
Table of Contents

Advertisement

Quick Links

SEARCHLIGHT SYSTEM
BY LU
BY LUMINELL
INSTALLATION & USER'S MANUAL
Version 1.0
20200316
V1.1_18-09-2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL1 and is the answer not in the manual?

Questions and answers

Related Manuals for LUMINELL SL1

Summary of Contents for LUMINELL SL1

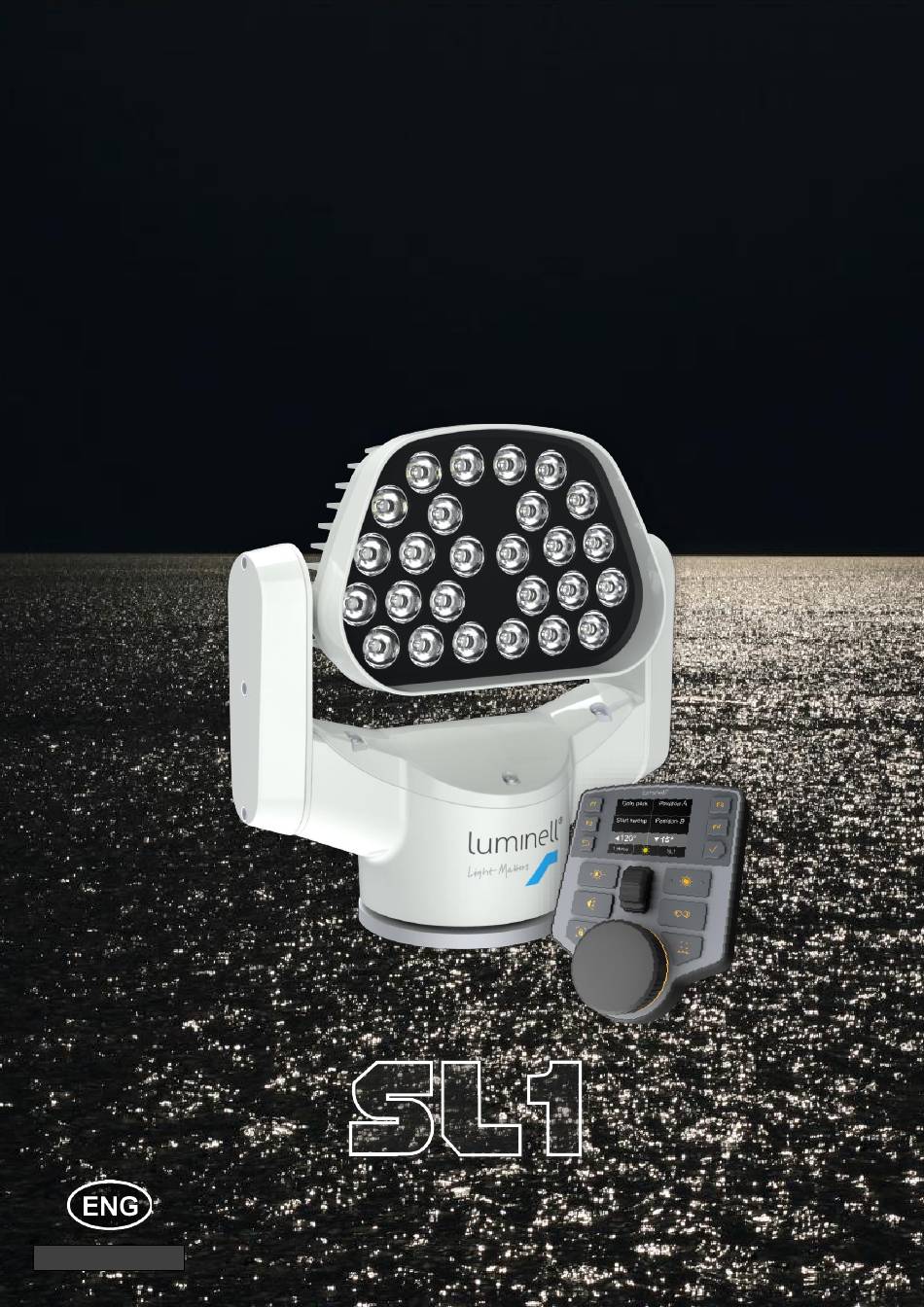

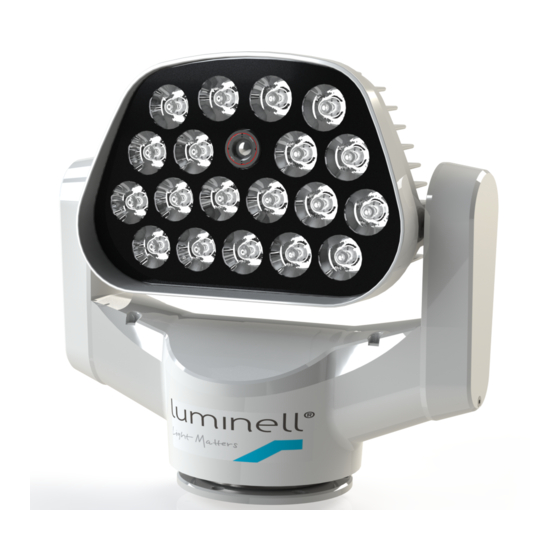

  • Page 1 SEARCHLIGHT SYSTEM BY LU BY LUMINELL INSTALLATION & USER'S MANUAL Version 1.0 20200316 V1.1_18-09-2020...
  • Page 2 If your system lacks any function presented in this manual, there is possibly a software update available to resolve this, please contact Luminell for more information. All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods without the prior permission from Luminell Sweden AB.
  • Page 3 With new firmware updates come new features that are not currently described in this manual, for the latest firmware and manual update information see Luminell's website https://luminell.com/products/searchlights/clite1-searchlight/ LUMINELL SWEDEN AB...
  • Page 4 This document requires following approvals: Name Title Anders Holst Technical manager - Luminell Sweden AB Joel Ekbom Project Manager & Product Developer - Luminell Sweden AB Managing Director – Luminell Sweden AB Mattias Svensson Aprovals Title Written by: Reviewed and approved by:...
  • Page 5 Table of Contents Connection example 1 (default) – 24Vdc LUMINELL SWEDEN AB...

  • Page 6: Table Of Contents

    Connection example AC using an external PSU (optional) 1xSL1 and 2xOperator panels 2xSL1 and 1xOperator panels Light dim level Light beam angel Change the function shortcuts on the homescreen Set fixed position Modify sweep Modify surveillance Switch system Park all LUMINELL SWEDEN AB...
  • Page 7 APPENDIX 1 APPENDIX 2 Orgalime S2012; General conditions for the supply of mechanical, electrical and electronic products. LUMINELL SWEDEN AB...
  • Page 8 - HMI-based lamps: warranty period: 24 months - Spare parts: warranty period: 12 months Warranty period starts from the date the goods is shipped from LUMINELL factory. Product specific conditions A correctly installed searchlight system from Luminell requires no planned regular maintenance or service other than regular cleaning and care during the first 10 years of operation.
  • Page 9 Please locate the model plates on the equipment and write down the serial numbers to the fields on the right for future use. You can locate the plate by the pictures below. Sn SL1: _______________ Date: _______________ HW ver: _______________ SL1 Operator panel Sn SL1-OP: _______________ Date: _______________ HW ver: _______________ LUMINELL SWEDEN AB...
  • Page 10 Luminell sweden AB manufactures professional marine searchlights and has done so since the early 90's. The SL1 is a compact and extremely powerful LED searchlight with wave-compensated movement, hold light direction and digital controlled spot / flood light beam. Developed for and targeting Civil/Naval High Speed and Light Craft as well as Yachts. Built to last with same quality standards as the bigger sisters but in a more compact format.
  • Page 11 Caution indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury. Notice indicates installation, operation, or maintenance information that is NOT HAZARD RELATED. LUMINELL SWEDEN AB...
  • Page 12 Documentation, user instructions and other technical information can be ordered by mailing service.sweden@luminell.com or call +46 35 382 80 Documentation Feedback If you want to give us documentation feedback, please follow the link below and fill in the form. https://www.luminell.com/product-service-request We appreciate your comments. LUMINELL SWEDEN AB...
  • Page 13 4 Technical Data TECHNICAL DATA Technical Data SL1 Input Nominal voltage 24VDC (20...28VDC) Power consumption in operation Max 500W Power consumption in standby mode (light off) Current at 24V Max 20,8A Installation Standing (default factory setting) Mounting position Hanging (see manuals “Installation Menu Settings”)
  • Page 14 Custom home screen – set your 4 most used functions Up to 4 programmable fixed positions Sweep in horizontal direction Standard menu functions Surveillance in horizontal and vertical direction Switch – to another potential SL1 in the network Sync (firmware update, scheduled Q4 2020) LUMINELL SWEDEN AB...
  • Page 15 4 Technical Data PRODUCT COMPLIANCE DATA To be continued, check homepage for new manual version. LUMINELL SWEDEN AB...
  • Page 16 PREPARATION OF THE PRODUCT FOR USE UNPACKING THE PRODUCT AND CHECKING THE CONTENTS The system is delivered in a cardboard box containing 1 x SL1 searchlight with 3m powercable and 0,9m circular LAN cable mounted to the searchlight base. Make sure the box is placed with the correct side up, see the symbols on the box.
  • Page 17 Duis imperdiet in nisl sed luctus. To secure the product against shocks: 1. To be continued, check homepage for new manual version. 2. To be continued, check homepage for new manual version. 3. To be continued, check homepage for new manual version. LUMINELL SWEDEN AB...
  • Page 18 The searchlight is mounted standing or hanging in a foundation using four hex socket threaded rods (M8x60) in its base, the threaded rods comes with the delivery along with washers and lock nuts. Apply Loctite 243 or equivalent on the rods and tighten firmly. LUMINELL SWEDEN AB...
  • Page 19 6 Install the Product Mechanical drawing SL1 LUMINELL SWEDEN AB...
  • Page 20 6 Install the Product Mechanical drawing SL1, base measurements LUMINELL SWEDEN AB...
  • Page 21 6 Install the Product Mechanical drawing Operator panel LUMINELL SWEDEN AB...
  • Page 22 6 Install the Product Mechanical drawing Operator panel base LUMINELL SWEDEN AB...
  • Page 23 6 Install the Product SL1 ELECTRICAL SL1 electrical system overview LUMINELL SWEDEN AB...
  • Page 24 6 Install the Product SL1 Electrical connection diagram Connection example 1 (default) – 24Vdc LUMINELL SWEDEN AB...

  • Page 25: Connection Example 2 - 24Vdc

    6 Install the Product Connection example 2 – 24Vdc LUMINELL SWEDEN AB...

  • Page 26: Connection Example Ac Using An External Psu (Optional)

    6 Install the Product Connection example AC using an external PSU (optional) LUMINELL SWEDEN AB...

  • Page 27: 1Xsl1 And 2Xoperator Panels

    6 Install the Product SL1 network overview 1xSL1 and 2xOperator panels 1xSL1 and 2xOperator panels connected in a network using internal Ethernet switch. LUMINELL SWEDEN AB...

  • Page 28: 2Xsl1 And 1Xoperator Panels

    6 Install the Product 2xSL1 and 1xOperator panels 2xSL1 and 1xOperator panels connected in a network using internal Ethernet switch. LUMINELL SWEDEN AB...
  • Page 29 6 Install the Product Selecting/adjusting the insulation monitoring device, 24VDC network Luminell's LED searchlight module is built for optimal light performance along with an effective EMI-reducing circuit design. Large capacitors between searchlight 0V and ground is an effective way to reduce emissions but can also have a negative impact for some insulation monitors that use a measurement method in the form of a pulsed voltage applied between supply 0V and ground.
  • Page 30 6 Install the Product LUMINELL SWEDEN AB...
  • Page 31 6 Install the Product HOW TO COMMISSION THE PRODUCT] To be continued, check homepage for new manual version. Checks before using the product To be continued, check homepage for new manual version. LUMINELL SWEDEN AB...
  • Page 32 Back + next screen LEFT Undefined symbol button Light dim control Wave compensation (tilt) ON/OFF Light beam angle control Tilt joystick (proportional) Hold light direction ON/OFF Control wheel horizontal OK + next screen RIGHT Control wheel light indicator RGB LUMINELL SWEDEN AB...
  • Page 33 Horizontal indicator Vertical indicator Screen number/name Status icons The field displays symbols that correspond to the status of a function Name (active searchlight) Displays the name of the searchlight that the panel points to / controls. LUMINELL SWEDEN AB...
  • Page 34 Note Normal operation Amber (orange) Matches the button color Boot (lSearching network) Blue slowly pulsating Error slowly pulsating Button Press "OK" White Flashes two times Auto function enabled Green Solid green light indicates: Sweep, surveillance, wavecompensation etc. LUMINELL SWEDEN AB...

  • Page 35: Light Dim Level

    7 OPERATION/USE Controlling the light SL1 LED light is made up of both a wide and narrow beam and latest beam selection + dim level is saved and activated at the re-ignition. To turn the light ON and OFF press , the sun indicator is shown in the display status field upon activated light.

  • Page 36: Light Beam Angel

    Choose between a wide and a narrow light by pressing and holding the light beam button and toggle the joystick up / down for the desired beam. Joystick up for Narrow beam Joystick down for wide beam 8.3.3.2 Illumination presentation LUMINELL SWEDEN AB...
  • Page 37 For two-step functions such as sweep, the button also changes function mode after its activated. "Start sweep" is shown for deactivated function and "Stop sweep" for activated function. LUMINELL SWEDEN AB...

  • Page 38: Change The Function Shortcuts On The Homescreen

    Go to preset position C with stored light settings Position D Go to preset position D with stored light settings Backlight Off Turns off the panel backlight, pressing any button turns the light back on Switch system Select and control other searchlights in the network LUMINELL SWEDEN AB...

  • Page 39: Set Fixed Position

    Confirm new position setting with "OK" or exit the menu with "Back". Note: If the searchlight doesn’t move when commanding a position A-D, then either position is not stored, or the searchlight is already in this position. LUMINELL SWEDEN AB...

  • Page 40: Modify Sweep

    To increase or decrease the value, use the wheel. Note: The last set sector size and speed is stored by the system and used during sweep. If no change is made the default sector size is 45° and speed 50% (of max speed). LUMINELL SWEDEN AB...
  • Page 41 7 OPERATION/USE 3. Surveillance To be added….. LUMINELL SWEDEN AB...

  • Page 42: Modify Surveillance

    To be continued, check homepage for new manual version. 4. Net To be continued, check homepage for new manual version. Switch system To be continued, check homepage for new manual version. Park all To be continued, check homepage for new manual version. LUMINELL SWEDEN AB...
  • Page 43 Speed A setting where a slow rotation of the wheel means a slow rotation of the searchlight and fast wheel control a fast-horizontal rotation, this is the default setting. Confirm ratio with "OK" or exit the menu with "Back". LUMINELL SWEDEN AB...
  • Page 44 Operator panel software version. MB SW ver: Searchlight mainboard software version. TB SW ver: Searchlight tiltboard software version. Support info Luminell contact information. Phone number: +46 353 8270 Service mail for support: service.sweden@luminell.com Temp/humid data Real-time reading of temperature and relative humidity in the LED and the support arm where the mainboard is mounted.
  • Page 45 “zero” point with wheel and joystick. The zero position of the lamp should be adjusted to be in level with horizontal plane and in direction straight forward of the vessel (normally). Confirm new origin with "OK" or exit the menu with "Back". LUMINELL SWEDEN AB...
  • Page 46 Note: Its recommended that the tilt position is pointing slightly down to drain off rain, snow etc. Name system The dedicated Luminell network can contain several searchlights and operator panels. To make the network easy to navigate the corresponding searchlight can be named to a well- known name for the operator.
  • Page 47 Scratches can reduce light performance. Deicing. Wintertime the system should be deiced with caution. First When necessary turn the lights on to let the heat melt the ice before operating the system horizontally and vertically. LUMINELL SWEDEN AB...
  • Page 48 Cause Solution Panel is showing “starting This is the initial system Wait 20 second for the boot system” with Luminell logo boot-up sequence after the sequence to finish before and a blue flashing halo searchlight has been operating the panel.
  • Page 49 9 FIRMWARE UPDATE FIRMWARE UPDATE Luminell have developed a user-friendly update tool that can be downloaded from Luminell homepage: https://luminell.com/downloads/software. The installation file contains both the tool itself and the firmware files, all in one application. Updates include both fixes to increase performance and system stability but may also include new features and language packs.
  • Page 50 9 FIRMWARE UPDATE FIRMWARE TOOL INSTALLATION. 1. Download, unzip to your desktop and execute the Luminell setup.msi file, click Next. 2. Install to preselected location (or select browse and select an alternative location), then click Next. Note: Screen images from Windows 10 OS are used in this document as an example.
  • Page 51 9 FIRMWARE UPDATE 3. Click next to install 4. When UAC (User Account Control) opens, allow the tool to be installed. 5. Upon installation complete, close the window. LUMINELL SWEDEN AB...
  • Page 52 Note: If using a laptop for the update make sure its battery is fully charged or connected to AC supply. Don’t power off the searchlight system or the computer during update process. Once the software is installed, preparation can be made for updating firmware in the SL1 system (operator panel and searchlight).
  • Page 53 9 FIRMWARE UPDATE 3. Run the Firmware tool from the computer, shortcuts will be available on the desktop and in windows start menu. 4. The Luminell firmware tool looks like below and contains the following information and functions: After scanning, available...
  • Page 54 Press scan button again. 8. A list is presented, devices that can be updated is marked with a blue box. The SL1 searchlight contains two updatable boards, in this update shown below, there is only a new version for one of them.
  • Page 55 Press and hold (or right-click) on the app, then select Uninstall. Uninstall from the Settings page • Select the Start button, then select Settings > Apps > Apps & features. • Select the app “Luminell SL Firmware Tool”, and then select Uninstall. LUMINELL SWEDEN AB...
  • Page 56 Update computers 1, Open Inbound Rules. Firewall blocking the 2, Right click on SL1Gui. connection. 3, In advanced tab make sure both private and public boxes are checked Do this for both TCP and UDP inbound rule. LUMINELL SWEDEN AB...
  • Page 57 10 DISPOSAL DISPOSAL To be continued, check homepage for new manual version. LUMINELL SWEDEN AB...
  • Page 58 11 Accessories and Spare Parts ACCESSORIES AND SPARE PARTS SUPPLIED ACCESSORIES Description Part# Picture SPARE/REPLACEMENT PARTS Description Part# Picture Main board SL1 CLN0771 Tilt board SL CLN0798 Tilt adapter board SL CLN0799 Main board SL1OP CLN0800 LUMINELL SWEDEN AB...
  • Page 59 12 INDEX INDEX LUMINELL SWEDEN AB...
  • Page 60 13 GLOSSARY GLOSSARY LUMINELL SWEDEN AB...
  • Page 61 13 GLOSSARY APENDIX 1 Declaration of conformity LUMINELL SWEDEN AB...
  • Page 62 13 GLOSSARY APENDIX 2 Orgalime S2012 General conditions for the supply of mechanical, electrical and electronic products. LUMINELL SWEDEN AB...
