K
F
EY
EATURES
- Compact and low weight
- Powerful light performance
- Flicker-FREE, 100% constant light
- Crafted for demanding marine conditions
- Remarkable EMC/EMI characteristics
- No maintenance
Prepared for GEL filled connection box
-
-Not recognized by UL
C
ONTENTS
Key Features ___________________________________________________________________ 1
Contents _______________________________________________________________________ 1
1
General __________________________________________________________________ 2
2
Safety ___________________________________________________________________ 2
3
Specifications _____________________________________________________________ 3
4
Mechanical installation _____________________________________________________ 3
5
Electrical Installation _______________________________________________________ 5
6
Temperature protective devices ______________________________________________ 6
7
Maintenance ______________________________________________________________ 6
8
Troubleshooting ___________________________________________________________ 6
9
Dimensions _______________________________________________________________ 7
Box Content
Box content:
•
Fully assembled

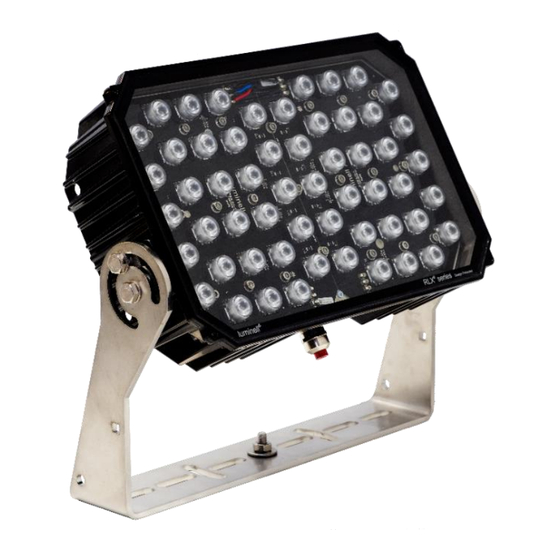

RLX D LED floodlight
•
User Manual
•
Recyclable cardboard
Luminell Norway AS
RLX D - User Manual
Doc. Nr.: L0588 - RLX D User Manual v1.2
Required tools:
•
5mm Umbraco
•
Flat screwdriver (2mm slot)
•
2x 17mm combination spanners
•
24mm combination spanner
•
Wire stripper
•
Additional cable glands (optional)
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LUMINELL RLX D
Summary of Contents for LUMINELL RLX D
- Page 1 Flat screwdriver (2mm slot) • • User Manual 2x 17mm combination spanners • • Recyclable cardboard 24mm combination spanner • Wire stripper • Additional cable glands (optional) Page 1 of 7 Luminell Norway AS Doc. Nr.: L0588 – RLX D User Manual v1.2...
- Page 2 The RLX D is a compact and solid LED floodlight created to last in very harsh and corrosive environments. Read this user guide to get the most out of your RLX D LED floodlight and help it to maximize its potential for your application.
- Page 3 – this for the highest possible cooling performance. For detailed mechanical drawings see appendix. The RLX D may be mounted in any direction, however it is recommended to point the cable glands downwards.
- Page 4 Visit www.luminell.com or scan the QR code to understand how the different light beam angles illuminates. Page 4 of 7 Luminell Norway AS Doc. Nr.: L0588 – RLX D User Manual v1.2...
- Page 5 A startup current is needed to energize the electronics inside the RLX D LED floodlight. When using a MCB16 Type C fuse, approx. 11 RLX D floodlights can be started at once. The inrush current is the equal for all power alternatives.
- Page 6 The product is made to be maintenance free and only occasional cleaning without solvent is recommended to ensure light output and cooling. Do not paint. Material combination and surface treatment has been carefully selected to make the RLX D floodlight withstand corrosive environments even with damage to the surface treatment. The assembled unit complies with ISO9223/12944 and has a rated c5m corrosion class.
- Page 7 IMENSIONS Page 7 of 7 Luminell Norway AS Doc. Nr.: L0588 – RLX D User Manual v1.2...
