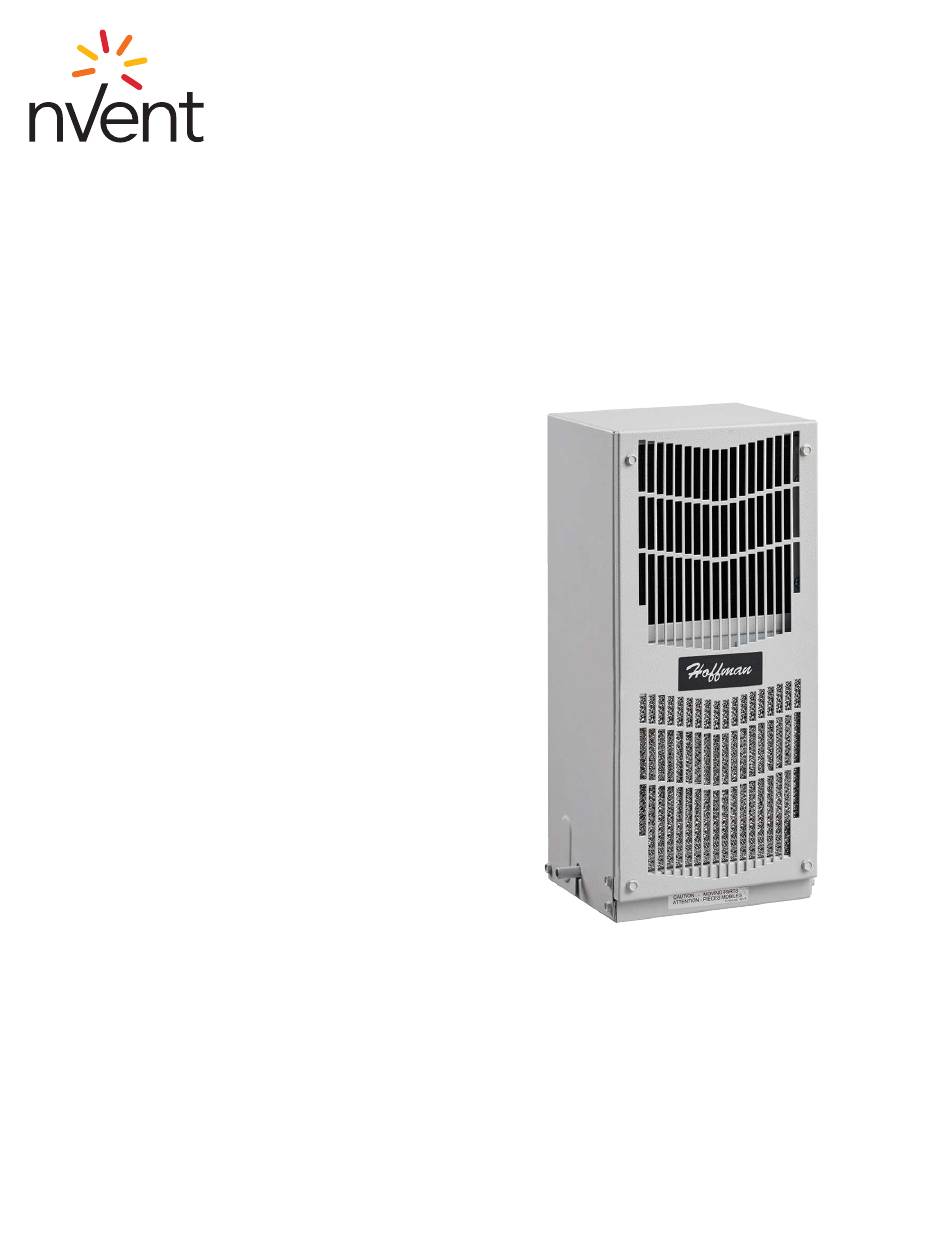

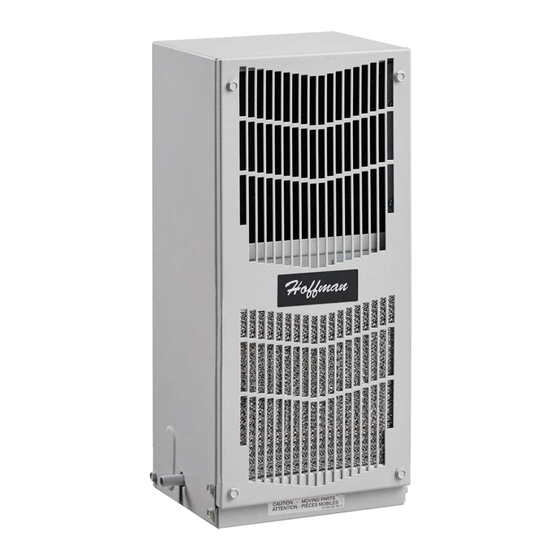

SPECTRACOOL

Air Conditioner

n16 Model

INSTRUCTION MANUAL

Rev. G

89137885

P/N 89137885

Need help?

Do you have a question about the SPECTRACOOL N16 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for nvent SPECTRACOOL N16 Series

Page 2 F-GAS INFORMATION ..................................14 NOTE: Some of the information in this manual may not apply if a special unit was ordered. If additional drawings for a special unit are necessary, they have been inserted. Contact nVent Equipment Protection if further information is required.
Page 3 Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to nVent Equipment Protection -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier.
Page 4 Enclosure Amps Weight @ 131 F/131 F @ 95 F/95 F °F/°C °F/°C Temp °F/°C N160116GXXX 50/60 800/900 800/900 4.0/3.8 131/55 -40/-40 131/55 27/12.3 N160126GXXX 50/60 800/900 800/900 1.5/1.6 131/55 -40/-40 131/55 27/12.3 © 2021 nVent 89137885 - 4 -...
Page 5 CLEANABLE, REUSABLE ALUMINUM HEATER LOCATION. (4X ON BACK FACE, INLET FILTER SLIDES OUT SLOT ON LEFT 4 BEHIND FRONT COVER). OR RIGHT SIDE OF FRONT COVER. 3/8 [9.5] DRAIN STUB OUT LEFT SIDE BOTTOM © 2021 nVent 89137885 - 5 -...
Page 6 Optional Remote Digital Controller 89206050SP 89206050SP Optional Cool Relay(Controller unit only) 10-1005-62SP 10-1005-62SP Optional Heat Relay(Controller unit only) 10-1005-36SP 10-1005-36SP Optional Transformer(Controller unit only) 10-1006-94SP 10-1006-93SP Optional Controller Fuse(Controller unit only) 89085114SP 89085114SP © 2021 nVent 89137885 - 6 -...
Page 7 F-STAT O.L. CONDENSATE RED2 PAN HEATER BLK 115V/WHT 230V COMPR HEATER BLK 115V/WHT 230V EVAPORATOR FAN BLK11 COMPRESSOR RED (COMMON) BLK6 YEL (OPEN) BLU (CLOSED) MALF SWITCH CONDENSER FAN (OPTIONAL) 89126899 REV. C © 2021 nVent 89137885 - 7 -...
Page 11 If the compressor’s operating temperature increases above designed conditions due to a dirty or clogged filter (or plugged condenser coil), the air conditioner’s compressor will stop operating due to actuation of the thermal overload cut-out switch located on the compressor housing. As soon as the compressor temperature © 2021 nVent 89137885 - 11 -...
Page 12 CAUTION Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blowers and motors, etc. Contact nVent Equipment Protection for special recommendations. REFRIGERANT LOSS Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. Shipping damage or microscopic leaks not found with sensitive electronic refrigerant leak detection equipment during manufacture may require repair or recharging of the system.
Page 13 (replace control box cover for safety). This will activate the switch in the thermostat. Turn the power on and if both fans and the compressor come on, the thermostat needs to be replaced. © 2021 nVent 89137885 - 13 -...
Page 14 Drain plugged Drain tube kinked Getting water in enclosure Enclosure not sealed (allowing humidity in) Mounting gasket damaged For additional technical information (i.e., amp draw, pressures, temperatures) , contact nVent Equipment Protection at 800-896-2665. F-GAS INFORMATION N160116GXXX N160126GXXX Refrigerant Kühlmittel...
