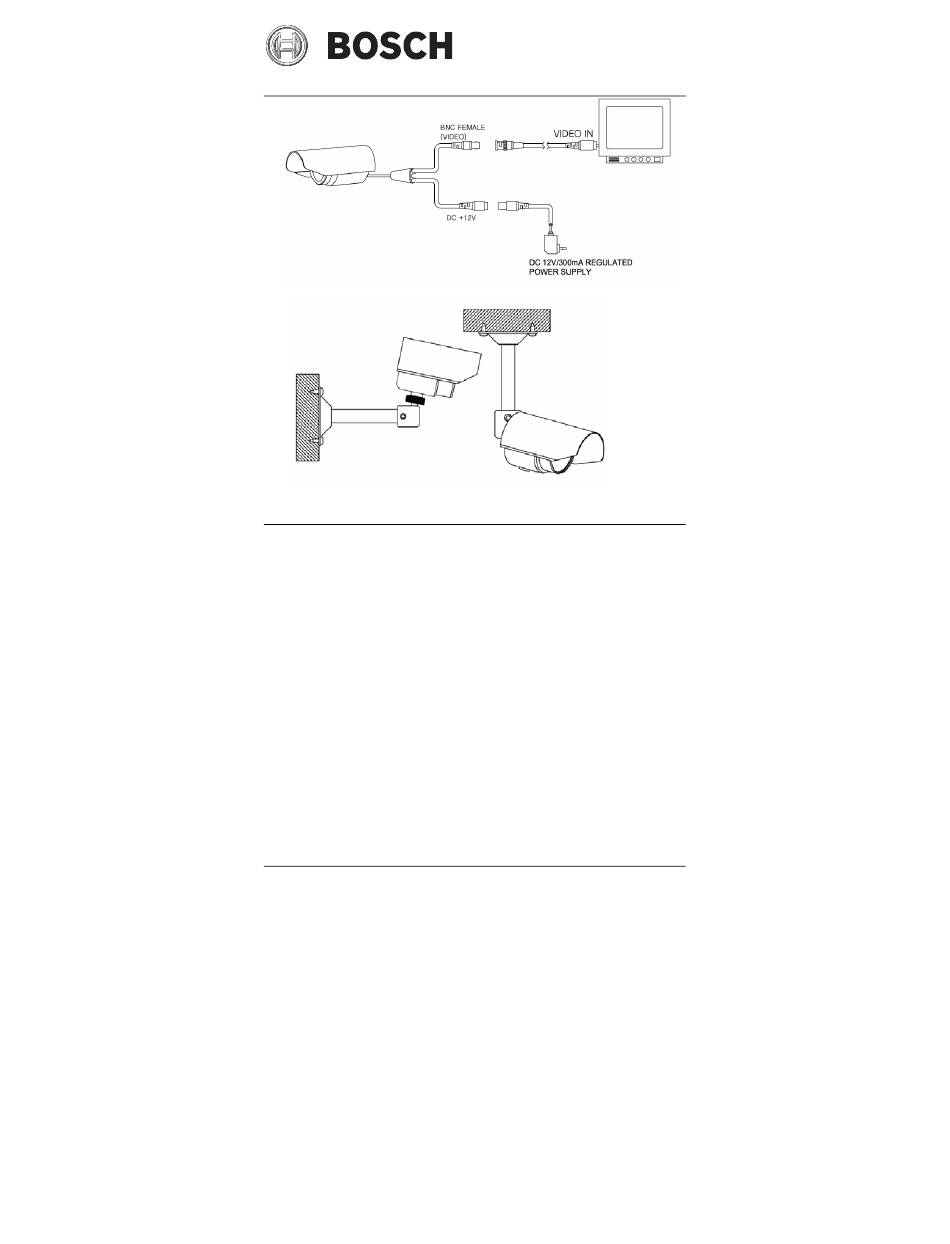

Installation (cont'd)
Camera Specifications
Part Number WZ14N4-0 (NTSC) | WZ14P4-0 (PAL)
CCD Camera 1/3" SuperHAD CCD
Resolution 380 TVL
Color / monochrome Video level switching
Effective Pixels (NTSC) 510 (H) x 492 (V)
Effective Pixels (PAL) 500 (H) x 582 (V)
Night-Time Sensitivity 0 Lux (infrared on)
Electronic Iris (NTSC) 1/60 ~ 1/100,000s
Electronic Iris (PAL) 1/50 ~ 1/100,000s
Output Signal 1V P-P composite video, 75 Ohms
S/N Ratio Greater than 48dB
Gamma 0.45
Lens Fixed 3.7mm lens
LEDs Infrared array, photocell-controlled
Wavelength 850nm
Number of LEDs 12
Voltage 12 VDC
Power Draw 250mA maximum
Construction Aluminum extrusion
Finish Anodized silver
Operational Temp. -30ºC to 55ºC | -22ºF to +131ºF
Sunshield Included as standard
Bracketry Pan-tilt bracket included as standard
Power Supply Not included
Weight 0.39kg (0.86lbs)
Dimensions Φ 58.5mm x 90mm (L) | 2.3" x 3.5" (L)
Subject To Change Without Notice.
