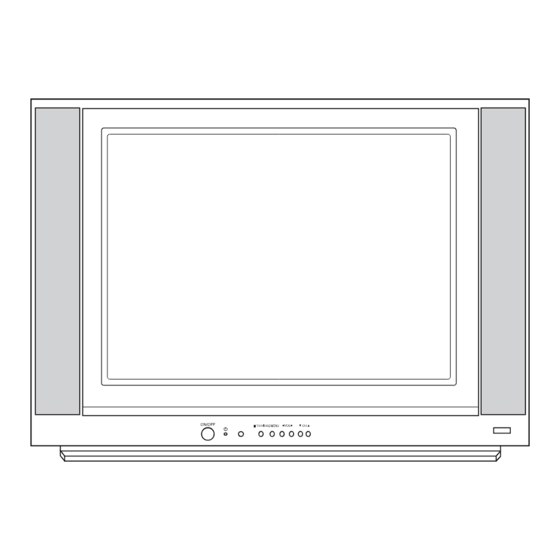

All manuals and user guides at all-guides.com website:http://biz.LGservice.com e-mail:http://www.LGEservice.com/techsup.html COLOR TV SERVICE MANUAL CHASSIS : SC-023A MODEL : RP-21FD10 RN-21FD10T CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
All manuals and user guides at all-guides.com CONTENTS SAFETY PRECAUTIONS ...................................3 ADJUSTMENT INSTRUCTIONS ................................4 EXPLODED VIEW .......................................8 EXPLODED VIEW PARTS LIST .................................9 REPLACEMENT PARTS LIST ..................................10 SCHEMATIC DIAGRAM ....................................COMPONENT LOCATION GUIDE .........................Back of Circuit Diagram PRINTED CIRCUIT BOARD............................Back of Circuit Diagram BLOCK DIAGRAM ..............................Back of Circuit Diagram SPECIFICATIONS POWER INPUT ...............................
All manuals and user guides at all-guides.com SAFETY PRECAUTIONS 1. Before returning an instrument to the customer, always make a safety they are serviced. (X-radiation protection circuits also may be called check of the entire instrument, including, but not limited to, the "horizontal disable"...
All manuals and user guides at all-guides.com ADJUSTMENT INSTRUCTION 1. Application Object 5. Purity and Convergence Adjustment These instructions are applied to SC-023A chassis. 5.1 Purity Adjustment (1) Preliminary steps 1. Receive Red Raster Pattern. 2. Notes 2. Degauss CPT and Cabinet with degaussing coil. (1) Because this is not a hot chassis, it is not necessary to use an isolation transformer.
Page 5
All manuals and user guides at all-guides.com 6. Rotate the 6-Pole magnets keeping the angle between 5. Repeat 1 ~ 4 until the color coordinates in High and two 6-Pole magnets until horizontal Red and Blue lines Low color satisfies the Table. are unified.
Page 6
All manuals and user guides at all-guides.com 10. Deflection Data Adjustment 10.1 Preliminary Steps (2) Vertical Position Adjustment (1) Set the Deflection data with the SVC Remote control. Select SUB 2(V-POS) and adjust until the mechanical (2) Enter into Deflection adjustment mode by “INSTART” center point and the center of screen unite.
Page 7
All manuals and user guides at all-guides.com 11.2 14/20/21¡ ¡ – – Normal Model Menu Adjustment Range Initial setting Remark S - 0 RF AGC AAGC Voltage Adj. 0 ~ 63 Necessary S - 1 H POSIT Horizontal Postilion 0 ~ 31 Necessary Necessary S - 2...
All manuals and user guides at all-guides.com REPLACEMENT PARTS LIST For Capacitor & Resistors, the CC, CX, CK, CN : Ceramic RD : Carbon Film charactors at 2nd and 3rd digit CQ : Polyestor RS : Metal Oxide Film in the P/No. means as follows; CE : Electrolytic RN : Metal Film RUN DATE : 2004.5.12...
Page 11
All manuals and user guides at all-guides.com For Capacitor & Resistors, the CC, CX, CK, CN : Ceramic RD : Carbon Film charactors at 2nd and 3rd digit CQ : Polyestor RS : Metal Oxide Film in the P/No. means as follows; CE : Electrolytic RN : Metal Film RF : Fusible...
Page 12
All manuals and user guides at all-guides.com For Capacitor & Resistors, the CC, CX, CK, CN : Ceramic RD : Carbon Film charactors at 2nd and 3rd digit CQ : Polyestor RS : Metal Oxide Film in the P/No. means as follows; CE : Electrolytic RN : Metal Film RF : Fusible...
Page 13
All manuals and user guides at all-guides.com For Capacitor & Resistors, the CC, CX, CK, CN : Ceramic RD : Carbon Film charactors at 2nd and 3rd digit CQ : Polyestor RS : Metal Oxide Film in the P/No. means as follows; CE : Electrolytic RN : Metal Film RF : Fusible...
Page 14
All manuals and user guides at all-guides.com For Capacitor & Resistors, the CC, CX, CK, CN : Ceramic RD : Carbon Film charactors at 2nd and 3rd digit CQ : Polyestor RS : Metal Oxide Film in the P/No. means as follows; CE : Electrolytic RN : Metal Film RF : Fusible...
