LCD Display

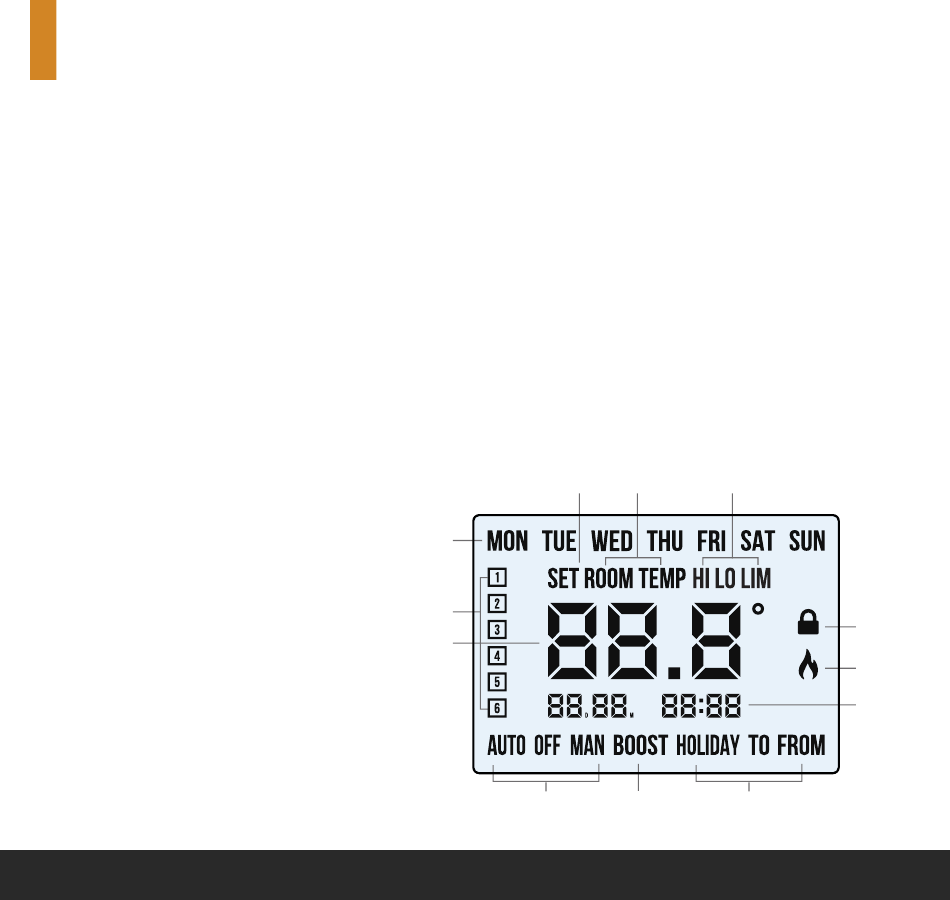

[1] Displays current day of the week.
[2] Displays when setting target temperature.
[3] Displays current room temperature.
[4] Displays when setting HIGH and LOW temperature limit.
[5] Displays when keypad is locked.
[6] Displays when the thermostat is calling for heat.
[7] Displays current time and date.
[8] Displays when setting holiday mode.
[9] Displays when thermostat is in boost mode.
[10]
Displays current
operating mode.
[11]
Displays current /
target temperature.
[12]
Displays current
time program.
[2]
[1]
[12]
[11]
[10]
