GA-Z97M-D3H
GA-H97M-D3H
User's Manual
Rev. 1001
12ME-Z97MD3H-1001R
GA-Z97M-D3H
GA-H97M-D3H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-Z97M-D3H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIGA-BYTE TECHNOLOGY GA-Z97M-D3H

Summary of Contents for GIGA-BYTE TECHNOLOGY GA-Z97M-D3H

  • Page 1 GA-Z97M-D3H GA-H97M-D3H User's Manual Rev. 1001 12ME-Z97MD3H-1001R GA-Z97M-D3H GA-H97M-D3H...
  • Page 2 Apr. 11, 2014 Apr. 11, 2014 Copyright © 2014 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE.

  • Page 3: Table Of Contents

    Table of Contents GA-Z97M-D3H/GA-H97M-D3H Motherboard Layout ............4 GA-Z97M-D3H/GA-H97M-D3H Motherboard Block Diagram .........5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 ..................7 Installing the CPU .................... 9 Installing the Memory ..................10 Installing an Expansion Card ................. 10 Back Panel Connectors .................. 10 Internal Connectors ..................

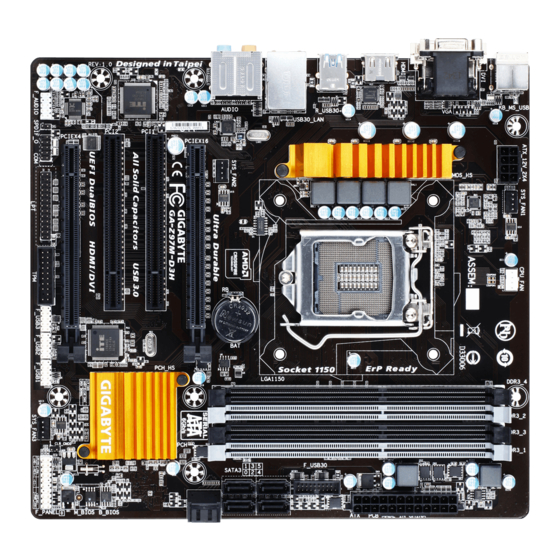

  • Page 4: Ga-Z97M-D3H/Ga-H97M-D3H Motherboard Layout

    F_USB3 F_USB1 SYS_FAN3 F_USB2 Box Contents GA-Z97M-D3H or GA-H97M-D3H motherboard Motherboard driver disk Two SATA cables User's Manual I/O Shield The box contents above are for reference only and the actual items shall depend on the product package you obtain.

  • Page 5: Ga-Z97M-D3H/Ga-H97M-D3H Motherboard Block Diagram

    GA-Z97M-D3H/GA-H97M-D3H Motherboard Block Diagram 1 PCI Express x16 LGA1150 PCIe CLK HDMI Dual Channel Memory DVI-D PCI Express Bus Dual BIOS D-Sub 1 PCI Express x4 6 SATA 6Gb/s RJ45 ® Realtek Intel ® GbE LAN 6 USB 3.0/2.0 ®...

  • Page 6: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become manual and follow these procedures: Prior to installation, make sure the chassis is suitable for the motherboard. warranty sticker provided by your dealer. These stickers are required for warranty validation. Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.
  • Page 7 2 x PCI slots Multi-Graphics ™ Support for 2-Way AMD CrossFire technology Technology Storage Interface Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Chipset: Only for GA-Z97M-D3H. Only for GA-H97M-D3H. - 7 -...
  • Page 8 Internal 1 x 24-pin ATX main power connector Connectors 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 3 x USB 2.0/1.1 headers...

  • Page 9: Installing The Cpu

    Unique Features Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundled Norton ® ® Software Intel Rapid Start Technology ® Intel Smart Connect Technology Intel ® Smart Response Technology Intel ® Small Business Advantage Operating Support for Windows 8.1/8/7 System Form Factor Micro ATX Form Factor;...

  • Page 10: Installing The Memory

    Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
  • Page 11 D-Sub Port D-Sub connection to this port. DVI-D Port (Note) DVI-D connection to this port. HDMI Port The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution monitor being used.

  • Page 12: Internal Connectors

    Mic In Jack (Pink) The Mic in jack. Microphones must be connected to this jack. the default Mic in jack. Internal Connectors ATX_12V_2X4 F_USB30 F_USB1/F_USB2/F_USB3 CPU_FAN SYS_FAN1/2/3 SATA3 0/1/2/3/4/5 F_PANEL Read the following guidelines before connecting external devices: First make sure your devices are compliant with the connectors you wish to connect. Before installing the devices, be sure to turn off the devices and your computer.
  • Page 13 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 14 5) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel ® Chipset supports RAID 0, RAID 1, a RAID array.
  • Page 15 your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it. For HD Front Panel Audio: For AC'97 Front Panel Audio: Pin No.
  • Page 16 10) F_USB1/F_USB2/F_USB3 (USB 2.0/1.1 Headers) optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Pin No. USB DY+ USB DX- USB DY- No Pin USB DX+ Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord from the power outlet to prevent damage to the USB bracket.
  • Page 17 13) TPM (Trusted Platform Module Header) Pin No. Pin No. Pin No. LCLK LAD2 SB3V VCC3 SERIRQ LFRAME LAD1 No Pin LAD0 LRESET SUSCLK LAD3 the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds. Open: Normal Short: Clear CMOS Values Always turn off your computer and unplug the power cord from the power outlet before clearing the CMOS values.

  • Page 18: Chapter 2 Bios Setup

    saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility.
  • Page 19 Processor Base Clock (Gear Ratio) Host/PCIe Clock Frequency by several CPU Base Clock is set to Manual. Spread Spectrum Control (Note) CPU Base Clock is set to Manual. Only for GA-Z97M-D3H. ® Intel CPUs' unique features, please visit Intel's website. - 19 -...
  • Page 20 CPU will automatically reduce the core frequency in order to reduce the current. Auto sets the No. of CPU Cores Enabled (Note) ® Allows you to select the number of CPU cores to enable in an Intel Auto Only for GA-Z97M-D3H. ® Intel CPUs' unique features, please visit Intel's website. - 20 -...
  • Page 21 System Memory Multiplier settings. Advanced Memory Settings (Note 2) The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu. (Note) Only for GA-Z97M-D3H. Intel ® CPUs' unique features, please visit Intel's website. - 21 -...
  • Page 22 Memory Boot Mode Provides memory detection and training methods. boot. Disable Fast Boot Detect and train memory at every single boot. Memory Enhancement Settings Memory Timing Mode Manual and Advanced Manual allows the Channel Interleaving, Rank Interleaving, and memory timing When using a non-XMP memory module or is set to Disabled, the , the value is displayed according to the SPD data on the XMP memory.
  • Page 23 CPU/System Fan Speed Displays current CPU/system fan speeds. CPU/System Temperature Warning Sets the warning threshold for CPU/system temperature. When temperature exceeds the threshold, BIOS C/140 F, 70 C/158 F, 80 C/176 F, 90 C/194 CPU/System Fan Fail Warning Allows the system to emit warning sound if the fan is not connected or fails. Check the fan condition or fan CPU Fan Speed Control (CPU_FAN Connector) Allows you to determine whether to enable the fan speed control function and adjust the fan speed.

  • Page 24: System Information

    Miscellaneous Settings Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation Auto DMI Gen2 Speed Disabled Sets the DMI link speed to Gen 1. 3DMark01 Boost System Information This section provides information on your motherboard model and BIOS version.

  • Page 25: Bios Features

    string. Or if you want to install an operating system that supports GPT partitioning such as Windows 7 64-bit, select Bootup NumLock State Administrator Password/User Password item. Setup A password is only required for entering the BIOS Setup program. System A password is required for booting the system and for entering the BIOS Setup program.
  • Page 26 USB Support Disabled All USB devices are disabled before the OS boot process completes. Full Initial All USB devices are functional in the operating system and during the POST. Fast Boot is set to Enabled. This item is disabled when Fast Boot is set to Ultra Fast.
  • Page 27 Boot Mode Selection Allows you to select which type of operating system to boot. UEFI and Legacy Allows booting from operating systems that support legacy option ROM or UEFI Legacy Only Allows booting from operating systems that only support legacy Option ROM. UEFI Only Allows booting from operating systems that only support UEFI Option ROM.

  • Page 28: Peripherals

    Peripherals card or the onboard graphics. XHCI Mode Allows you to determine the operating mode for the xHCI controller in OS. Smart Auto This mode is available only when the BIOS supports the xHCI controller in the pre-boot environment. This mode is similar to Auto, but it adds the capability to route the ports pre-boot environment.
  • Page 29 Intel Processor Graphics Intel Processor Graphics Memory Allocation Intel(R) Rapid Start Technology Enables or disables Intel ® Legacy USB Support XHCI Hand-off Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off EHCI Hand-off Determines whether to enable EHCI Hand-off feature for an operating system without EHCI Hand-off USB Storage Devices Displays a list of connected USB mass storage devices.

  • Page 30: Power Management

    parallel port. Serial Port A Parallel Port Device Mode Parallel Port is set to Enabled. Selects an operating mode for the Intel(R) Smart Connect Technology ISCT Support Enables or disables Intel ® Realtek PCIe GBE Family Controller Power Management Power Loading Enables or disables dummy load.
  • Page 31 Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power button is pressed for less than 4 seconds, the system will enter suspend mode. RC6(Render Standby) Allows you to determine whether to let the onboard graphics enter standby mode to decrease power AC BACK Determines the state of the system after the return of power from an AC power loss.

  • Page 32: Save & Exit

    PCH DMI Link ASPM Control Auto lets the Platform Power Management is set to Enabled Save & Exit Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program.

  • Page 33: Chapter 3 Appendix

    Chapter 3 Appendix Before you begin Windows setup disk. Motherboard driver disk. A. Installing SATA hard drive(s) in your computer Attach one end of the SATA signal cable to the rear of the SATA hard drive and the other end to available SATA port on the motherboard.
  • Page 34 Enter the Intel ® Steps: 1. After the POST memory test begins and before the operating system boot begins, look for a message which 2. After you press <Ctrl> + <I>, the MAIN MENU screen will appear. If you want to create a RAID array, select Create RAID Volume in MAIN MENU and press <Enter>.

  • Page 35: Drivers Installation

    Drivers Installation After installing the operating system, insert the motherboard driver disk into your optical drive. Click on the message "Tap to choose what happens with this disc" on the top-right corner of the screen and select "Run Run "Xpress Install" will automatically scan your system and then list all of the drivers that are recommended to install.

  • Page 36: Regulatory Statements

    Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 37 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 38 - 38 -...
  • Page 39 - 39 -...

  • Page 40: Contact Us

    Contact Us Address: No.6, Bao Chiang Road, Hsin-Tien Dist., New Taipei City 231,Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. GIGABYTE Global Service System question, please link to: http://ggts.gigabyte.com.tw Then select your language to enter the system.
