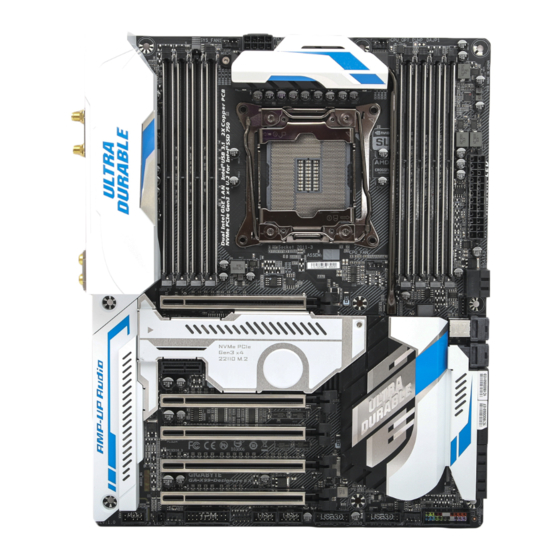

GA-X99-Designare EX
User's Manual
Rev. 1001
12ME-X99DSEX-1001R
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-X99-Designare EX and is the answer not in the manual?

Questions and answers

Related Manuals for GIGA-BYTE TECHNOLOGY GA-X99-Designare EX

Summary of Contents for GIGA-BYTE TECHNOLOGY GA-X99-Designare EX

  • Page 1 GA-X99-Designare EX User's Manual Rev. 1001 12ME-X99DSEX-1001R For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 Motherboard GA-X99-Designare EX Motherboard GA-X99-Designare EX May 27, 2016 May 27, 2016 無線裝置國家/地區認證 ： See the latest safety and regulatory documents at GIGABYTE's website.
  • Page 3 Copyright © 2016 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.

  • Page 4: Table Of Contents

    Table of Contents Box Contents ........................6 Optional Items .........................6 GA-X99-Designare EX Motherboard Layout ..............7 Chapter 1 Hardware Installation ..................9 Installation Precautions ..................9 1-2 Product Specifications ..................10 Installing the CPU and CPU Cooler ............... 13 1-3-1 Installing the CPU ....................13 1-3-2 Installing the CPU Cooler ..................15...
  • Page 5 Chapter 5 Unique Features ...................83 BIOS Update Utilities ..................83 5-1-1 Updating the BIOS with the Q-Flash Utility .............83 5-1-2 Updating the BIOS with the @BIOS Utility .............86 5-1-3 Using Q-Flash Plus ....................87 APP Center ....................88 5-2-1 3D OSD ........................89 5-2-2 Ambient LED ......................90 5-2-3...

  • Page 6: Box Contents

    Box Contents 5 GA-X99-Designare EX motherboard 5 Motherboard driver disk 5 Wireless module driver disk 5 User's Manual 5 Quick Installation Guide 5 Six SATA cables 5 One DisplayPort cable 5 I/O Shield 5 One 2-Way SLI bridge connector 5 One 3-Way SLI bridge connector (GC-3SLI-X99-1)

  • Page 7: Ga-X99-Designare Ex Motherboard Layout

    GA-X99-Designare EX Motherboard Layout ATX_12V_2X4 CPU_OPT_PUMP KB_MS_USB3 DP_IN LGA2011-3 Intel ® USB3.1 TYPEC Controller WIFI_BRACKET FBIOS_LED USB30_LAN2 USB30_LAN1 SATA 3 CPU_FAN AUDIO PCIEX16_1 THB_C U2_32G_2 Intel ® U2_32G_1 PCIEX1 Wi-Fi Module PEX8747 PCIEX16_2 Intel ® Intel ® PCIEX4 ® PCIEX16_3...
  • Page 8 - 8 -...

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 10: Product Specifications

    1-2 Product Specifications Support for Intel Core i7 processors in the LGA2011-3 package Š ® ™ (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Š Chipset Intel X99 Express Chipset ® Š Memory 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory Š * S upport for up to 256 GB of system memory when using Registered DIMMs. * D ue to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  • Page 11 Storage Interface Š Chipset: 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only (An operating system installed on the SATA3 0~5 ports cannot be used on the sSATA 0~3 ports.) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/ x2 SSD support) 2 x U.2 connectors * W hen an i7-5820K or i7-6800K CPU is installed, the U2_32G_1 connector becomes unavailable.
  • Page 12 Hardware System voltage detection Š Monitor CPU/System/Chipset temperature detection Š CPU/CPU OPT/System fan (pump) speed detection Š CPU/System/Chipset overheating warning Š CPU/CPU OPT/System fan (pump) fail warning Š CPU/CPU OPT/System fan (pump) speed control Š * W hether the fan speed control function is supported will depend on the fan (pump) you install. BIOS 2 x 128 Mbit flash Š Use of licensed AMI UEFI BIOS Š Support for DualBIOS Š ™...

  • Page 13: Installing The Cpu And Cpu Cooler

    Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage. •...
  • Page 14 B. Follow the steps below to correctly install the CPU into the motherboard CPU socket. • Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU. •...

  • Page 15: Installing The Cpu Cooler

    1-3-2 Installing the CPU Cooler Refer to the steps below to correctly install the CPU cooler on the motherboard. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Step 1: Step 2: Apply an even and thin layer of thermal grease on Place the cooler atop the CPU, aligning the four the surface of the installed CPU. mounting screws with the mounting holes on the ILM.

  • Page 16: Installing The Memory

    Installing the Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 17: Installing A Memory

    1-4-2 Installing a Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. DDR4 and DDR3 DIMMs are not compatible to each other or DDR2 DIMMs. Be sure to install DDR4 DIMMs on this motherboard.

  • Page 18: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

  • Page 19: Setting Up Amd Crossfire ™ /Nvidia ® Sli ™ Configuration

    Setting up AMD CrossFire /NVIDIA Configuration ™ ® ™ A. System Requirements - Windows 10/8.1/7 operating system - A CrossFire/SLI-supported motherboard with two or more PCI Express x16 slots and correct driver - CrossFire/SLI-ready graphics cards of identical brand and chip and correct driver (Current GPUs that support 3-Way CrossFire technology include the AMD Radeon HD 6800, HD 6900, ™...
  • Page 20 C. Configuring the Graphics Card Driver C-1. To Enable CrossFire Function After installing the graphics card driver in the operating system, go to the AMD Catalyst Control Center. Browse to Performance\ AMD CrossFireX and ensure the Enable AMD CrossFireX ™ check box is selected. If your system has more than two CrossFire cards, select the GPU combination you want to use and click Apply.

  • Page 21: Back Panel Connectors

    Back Panel Connectors PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard. USB 3.0/2.0 Port The USB 3.0 port supports the USB 3.0 specification and is compatible to the USB 2.0/1.1 specification. Use this port for USB devices. DisplayPort In port DisplayPort feature is currently limited. Visit GIGABYTE website for future updates. SMA Antenna Connectors (2T2R) Use this connector to connect an antenna.
  • Page 22 Center/Subwoofer Speaker Out Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio configuration. Rear Speaker Out This jack can be used to connect rear speakers in a 4/5.1/7.1-channel audio configuration. Optical S/PDIF Out Connector This connector provides digital audio out to an external audio system that supports digital optical audio. Before using this feature, ensure that your audio system provides an optical digital audio in connector. Line In The line in jack.

  • Page 23: Internal Connectors

    Internal Connectors ATX_12V_2X4 M2_32G CPU_FAN F_PANEL SYS_FAN1/SYS_FAN2 F_AUDIO CPU_OPT_PUMP/SYS_FAN3_PUMP SPDIF_O LED_C F_USB30_1/F_USB30_2 SATA_EXPRESS F_USB1/F_USB2 SATA3 0/1/2/3/4/5 sSATA3 0/1/2/3 THB_C U2_32G_1/U2_32G_2 CLR_CMOS Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 24 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 25 3/4) CPU_FAN/SYS_FAN1/SYS_FAN2 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
  • Page 26 B S S 6) LED_C (RGB LED Strip Extension Cable Header) The header can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power rating of 2A (12V) and maximum length of 2m. Pin No. Definition 1 2 3 B S S Black wire Connect one end of the included RGB LED strip extension cable to the header and the other end to your RGB LED strip. The black wire (marked with a triangle on the plug) of the extension cable must be connected to Pin 1 (12V) of this header. The 12V pin (marked with an arrow) on the other end of the extension cable must be lined up with the 12V of the LED 12V of the strip.
  • Page 27 B S S 8) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel Chipset supports RAID 0, ® RAID 1, RAID 5, and RAID 10. Refer to Chapter 3, "Configuring a RAID Set," for instructions on configuring a RAID array.
  • Page 28 10) U2_32G_1/U2_32G_2 (U.2 Connectors) The U.2 connector supports a single U.2 device. Note: When an i7-5820K or i7-6800K CPU is installed, the U2_32G_1 connector becomes unavailable. U2_32G_1 U2_32G_2 11) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1.
  • Page 29 12) M2_32G (M.2 Socket 3 Connector) You can insert an M.2 SSD into this connector. Follow the steps below to correctly install an M.2 SSD in the M.2 connector. Step 1: Step 2: Loosen the top right screw from the plate covering Use a screw driver to unfasten the screw and nut the M.2 socket.
  • Page 30 Step 5: Step 6: After the M.2 SSD is installed, line up the tabs on Make sure the plate is replaced correctly as shown the left side of the plate with the matching grooves above. Finally, fasten the screw on the plate to on the thermal armor and insert them into the secure the plate in place.
  • Page 31 13) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Power LED Power Switch Speaker...
  • Page 32 14) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it. For HD Front Panel Audio: For AC'97 Front Panel Audio: Pin No.
  • Page 33 16) F_USB30_1/F_USB30_2 (USB 3.0/2.0 Headers) The headers conform to USB 3.0/2.0 specification and each header can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer. Pin No. Definition Pin No.
  • Page 34 B S S 18) TPM (Trusted Platform Module Header) You may connect a TPM (Trusted Platform Module) to this header. Pin No. Definition Pin No. Definition 1 2 3 LCLK LAD0 LFRAME No Pin LRESET SB3V SERIRQ LAD3 LAD2 VCC3 LAD1 SUSCLK B S S 19) THB_C (Thunderbolt Add-in Card Connector) ™...
  • Page 35 20) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds. Open: Normal Short: Clear CMOS Values • Always turn off your computer and unplug the power cord from the power outlet before clearing the CMOS values.
  • Page 36 Hardware Installation - 36 -...

  • Page 37: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the configuration values in the CMOS.

  • Page 38: Startup Screen

    Startup Screen The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F9>: SYSTEM INFORMATION Press the <F9>...

  • Page 39: The Main Menu

    The Main Menu On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. Or you can use your mouse to select the item you want. (Sample BIOS Version: F2d) Setup Menus Enter Q-Flash...
  • Page 40 M.I.T. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results.
  • Page 41 ` M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. ` Advanced Frequency Settings & CPU Base Clock Allows you to manually set the CPU base clock in 0.01 MHz increments. (Default: Auto) Important: It is highly recommended that the CPU frequency be set in accordance with the CPU specifications. & Host/PCIe Clock Frequency (Note) Allows you to manually set the host clock frequency (which controls CPU, PCIe, and memory frequencies) in 0.01 MHz increments.
  • Page 42 ` Advanced CPU Core Settings & CPU Clock Ratio, CPU Frequency The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu. & K OC (Note) Allows for increased performance by using certain CPUs. (Default: Auto) & CPU PLL Selection Allows you to set the CPU PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
  • Page 43 & Turbo Power Limit (Watts) Allows you to set a power limit for CPU Turbo mode. When the CPU power consumption exceeds the specified power limit, the CPU will automatically reduce the core frequency in order to reduce the power. Auto sets the power limit according to the CPU specifications. (Default: Auto) & Core Current Limit (Amps) Allows you to set a current limit for CPU Turbo mode. When the CPU current exceeds the specified current limit, the CPU will automatically reduce the core frequency in order to reduce the current. Auto sets the power limit according to the CPU specifications. (Default: Auto) &...
  • Page 44 & Extreme Memory Profile (X.M.P.) (Note) Allows the BIOS to read the SPD data on XMP memory module(s) to enhance memory performance when enabled. Disabled Disables this function. (Default) Uses Profile 1 settings. Profile1 Uses Profile 2 settings. (Note) Profile2 & System Memory Multiplier Allows you to set the system memory multiplier. Auto sets memory multiplier according to memory SPD data. (Default: Auto) & Memory Frequency (MHz) The first memory frequency value is the normal operating frequency of the memory being used; the second is the memory frequency that is automatically adjusted according to the System Memory Multiplier settings. ` Advanced Memory Settings &...
  • Page 45 & Memory Timing Mode Manual and Advanced Manual allows the Channel Interleaving, Rank Interleaving, and memory timing settings below to be configurable. Options are: Auto (default), Manual, Advanced Manual. & Profile DDR Voltage When using a non-XMP memory module or Extreme Memory Profile (X.M.P.) is set to Disabled, the value is displayed according to your memory specification. When Extreme Memory Profile (X.M.P.) is set to Profile1 or Profile2, the value is displayed according to the SPD data on the XMP memory. &...
  • Page 46 ` Advanced Voltage Settings ` Advanced Power Settings & CPU VRIN Loadline Calibration Allows you to set the Load-Line Calibration level for the CPU VRIN. The levels are (from highest to lowest): Extreme, Turbo, High, Medium, Low, and Standard. Selecting a higher level keeps the Vcore more consistent with what is set in BIOS under heavy load. Auto lets the BIOS automatically configure this setting and sets the voltage following Intel's specifications. (Default: Auto) &...
  • Page 47 & DDR CH(A/B) Voltage Protection Allows you to set the voltage limit on Channel A and Channel B memory voltage for over-voltage protection. The adjustable range is from 150.0mV to 325.0mV. Auto lets the BIOS automatically configure this setting. (Default: Auto) & DDR CH(C/D) Voltage Protection Allows you to set the voltage limit on Channel C and Channel D memory voltage for over-voltage protection. The adjustable range is from 150.0mV to 325.0mV.
  • Page 48 ` Chipset Voltage Control This section provides Chipset voltage control options. ` DRAM Voltage Control This section provides memory voltage control options. ` PC Health Status & Reset Case Open Status Disabled Keeps or clears the record of previous chassis intrusion status. (Default) Clears the record of previous chassis intrusion status and the Case Open field will show Enabled "No"...
  • Page 49 & Case Open Displays the detection status of the chassis intrusion detection device attached to the motherboard CI header. If the system chassis cover is removed, this field will show "Yes", otherwise it will show "No". To clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to the CMOS, and then restart your system. &...
  • Page 50 Allows the fan/pump to run at slow speeds. Silent Allows you to control the fan/pump speed under the Fan Speed Percentage item. Manual Full Speed Allows the fan/pump to run at full speeds. & Fan Speed Percentage Allows you to control the fan speed. This item is configurable only when CPU OPT/Pump Fan Speed Control is set to Manual.
  • Page 51 ` Miscellaneous Settings & PCIe Slot Configuration Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation mode is subject to the hardware specification of each slot. Auto lets the BIOS automatically configure this setting. (Default: Auto) & 3DMark01 Enhancement Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled) - 51 - BIOS Setup...

  • Page 52: System Information

    System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...

  • Page 53: Bios Features

    BIOS Features & Boot Option Priorities Specifies the overall boot order from the available devices. Removable storage devices that support GPT format will be prefixed with "UEFI:" string on the boot device list. To boot from an operating system that supports GPT partitioning, select the device prefixed with "UEFI:" string. Or if you want to install an operating system that supports GPT partitioning such as Windows 7 64-bit, select the optical drive that contains the Windows 7 64-bit installation disk and is prefixed with "UEFI:" string. & Hard Drive/CD/DVD ROM Drive/Floppy Drive/Network Device BBS Priorities Specifies the boot order for a specific device type, such as hard drives, optical drives, floppy disk drives, and devices that support Boot from LAN function, etc. Press <Enter> on this item to enter the submenu that presents the devices of the same type that are connected.
  • Page 54 & SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast.
  • Page 55 & Storage Boot Option Control Allows you to select whether to enable the UEFI or legacy option ROM for the storage device controller. Disabled Disables option ROM. Enables legacy option ROM only. (Default) Legacy Only UEFI Only Enables UEFI option ROM only. This item is configurable only when CSM Support is set to Enabled. & Other PCI Device ROM Priority Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Disabled Disables option ROM. Enables legacy option ROM only. Legacy Only UEFI Only Enables UEFI option ROM only. (Default) This item is configurable only when CSM Support is set to Enabled. &...

  • Page 56: Peripherals

    Peripherals & Initial Display Output Specifies the first initiation of the monitor display from the PCI Express graphics cards. PCIEX16_1 Slot S ets the PCI Express graphics card on the PCIEX16_1 slot as the first display. (Default) PCIEX16_2 Slot Sets the PCI Express graphics card on the PCIEX16_2 slot as the first display. PCIEX16_3 Slot Sets the PCI Express graphics card on the PCIEX16_3 slot as the first display. Sets the graphics card on the PCIEX8 slot as the first display. PCIEX8 Slot Sets the graphics card on the PCIEX4 slot as the first display. PCIEX4 Slot & OnBoard LAN Controller (Intel GbE LAN Chip, LAN2) ® Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled.
  • Page 57 & USB Mass Storage Driver Support Enables or disables support for USB storage devices. (Default: Enabled) & USB Storage Devices Displays a list of connected USB mass storage devices. This item appears only when a USB storage device is installed. & Two Layer KVM Switch Set to Enabled to ensure proper device functionality when chaining two KVM switches. (Default: Disabled) ` SSD Security Erase This sub-menu allows you to erase your SSD's data.

  • Page 58: Chipset

    Chipset ` PCH sSATA Configuration (sSATA3 0~3 Connectors) & sSATA Controller Enables or disables the integrated SATA controllers that control the sSATA3 0~3 connectors. (Default: Enabled) & Configure sSATA as Allows you to decide whether to configure the SATA controllers to AHCI mode. IDE Configures the SATA controllers to IDE mode. AHCI C onfigures the SATA controllers to AHCI mode. Advanced Host Controller Interface (AHCI) is an interface specification that allows the storage driver to enable advanced Serial ATA features such as Native Command Queuing and hot plug. (Default) BIOS Setup - 58 -...
  • Page 59 & sSATA Port0/1/2/3 Enables or disables each SATA port. (Default: Enabled) & Hot plug Enables or disable the hot plug capability for each SATA port. (Default: Disabled) & Configure as eSATA Enables or disables support for external SATA devices. (Default: Disabled) ` PCH SATA Configuration (SATA3 0~5 Connectors) & SATA Controller Enables or disables the integrated SATA controllers that control the SATA3 0~5 connectors. (Default: Enabled) & Configure SATA as Enables or disables RAID for the SATA controllers or configures the SATA controllers to AHCI mode. IDE Configures the SATA controller to IDE mode. RAID Enables RAID for the SATA controller. AHCI C onfigures the SATA controllers to AHCI mode. Advanced Host Controller Interface (AHCI) is an interface specification that allows the storage driver to enable advanced Serial ATA features such as Native Command Queuing and hot plug. (Default) ` SATA Mode options...
  • Page 60 & XHCI Mode Allows you to determine the operating mode for the xHCI controller in OS. Smart Auto This mode is available only when the BIOS supports the xHCI controller in the pre-boot environment. This mode is similar to Auto, but it adds the capability to route the ports to xHCI or EHCI according to setting used in previous boots (for non-G3 boot) in the pre-boot environment.

  • Page 61: Power Management

    Power Management & Platform Power Management Enables or disables the Active State Power Management function (ASPM). (Default: Disabled) & PEG ASPM Allows you to configure the ASPM mode for the device connected to the CPU PEG bus. This item is configurable only when Platform Power Management is set to Enabled. (Default: Enabled) & PCH ASPM Allows you to configure the ASPM mode for the device connected to Chipset's PCI Express bus. This item is configurable only when Platform Power Management is set to Enabled. (Default: Enabled) &...
  • Page 62 & Power On By Mouse Allows the system to be turned on by a PS/2 mouse wake-up event. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. Disabled Disables this function. (Default) Move the mouse to turn on the system. Move Double Click Double click on left button on the mouse to turn on the system.

  • Page 63: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...
  • Page 64 BIOS Setup - 64 -...

  • Page 65: Chapter 3 Configuring A Raid Set

    Chapter 3 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 ≥4 Drives Array Capacity Number of hard Size of the smallest (Number of hard (Number of hard drives * Size of the drive drives -1) * Size of drives/2) * Size of the smallest drive the smallest drive smallest drive Fault Tolerance...
  • Page 66 B. Configuring SATA controller mode in BIOS Setup Make sure to configure the SATA controller mode correctly in system BIOS Setup. Step 1: Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). Go to Chipset\PCH SATA Configuration, make sure SATA Controller is enabled. To create RAID, set Configure SATA as to RAID (Figure 1). If you do not want to create RAID, set this item to IDE or AHCI. Figure 1 Step 2: If you want to configure UEFI RAID, follow the steps in "C-1." To enter the legacy RAID ROM, save the settings and exit BIOS Setup. Refer to "C-2" for more information. The BIOS Setup menus described in this section may differ from the exact settings for your motherboard. The actual BIOS Setup menu options you will see shall depend on the motherboard you have and the BIOS version.
  • Page 67 C-1. UEFI RAID Configuration Only Windows 10/8.1 64-bit supports UEFI RAID configuration. Step 1: In BIOS Setup, go to BIOS Features and set Windows 8/10 Features to Windows 8/10 and CSM Support to Disabled (Figure 2). Save the changes and exit BIOS Setup. Figure 2 Step 2: After the system reboot, enter BIOS Setup again. Then enter the Peripherals\Intel(R) Rapid Storage Technology sub-menu (Figure 3).
  • Page 68 Step 3: On the Intel(R) Rapid Storage Technology menu, press <Enter> on Create RAID Volume to enter the Create RAID Volume screen. Enter a volume name with 1~16 letters (letters cannot be special characters) under the Name item and press <Enter>. Then, select a RAID level (Figure 4). RAID levels supported include RAID 0, RAID 1, Recovery, RAID 10, and RAID 5 (the selections available depend on the number of the hard drives being installed). Next, use the down arrow key to move to Select Disks. Figure 4 Step 4: Under Select Disks item, select the hard drives to be included in the RAID array. Press the <Space> key on the hard drives to be selected (selected hard drives are marked with "X"). Then set the stripe block size (Figure 5). The stripe block size can be set from 4 KB to 128 KB. Once you have selected the stripe block size, set the volume capacity.
  • Page 69 Step 5: After setting the capacity, move to Create Volume and press <Enter> to begin (Figure 6) Figure 6 After completing, you'll be brought back to the Intel(R) Rapid Storage Technology screen. Under RAID Volumes you can see the new RAID volume. To see more detailed information, press <Enter> on the volume to check for information on RAID level, stripe block size, array name, and array capacity, etc. (Figure 7). Figure 7 - 69 - Configuring a RAID Set...
  • Page 70 Delete RAID Volume To delete a RAID array, press <Enter> on the volume to be deleted on the Intel(R) Rapid Storage Technology screen. After entering the RAID VOLUME INFO screen, press <Enter> on Delete to enter the Delete screen. Press <Enter> on Yes (Figure 8). Figure 8 Configuring a RAID Set - 70 -...
  • Page 71 C-2. Configuring Legacy RAID ROM Enter the Intel legacy RAID BIOS setup utility to configure a RAID array. Skip this step and proceed with the ® installation of Windows operating system for a non-RAID configuration. Step 1: In BIOS Setup, go to BIOS Features and set CSM Support to Enabled and Storage Boot Option Control to Legacy Only. Save the changes and exit BIOS Setup. After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-I> to enter Configuration Utility"...
  • Page 72 Step 3: After entering the CREATE VOLUME MENU screen, enter a volume name with 1~16 letters (letters cannot be special characters) under the Name item and press <Enter>. Then, select a RAID level (Figure 11). RAID levels supported include RAID 0, RAID 1, RAID 10, and RAID 5 (the selections available depend on the number of the hard drives being installed). Press <Enter> to proceed. Intel(R) Rapid Storage Technology - Option ROM - 14.8.0.2377 Copyright (C) Intel Corporation. All Rights Reserved. [ CREATE VOLUME MENU ] Name : Volume0 RAID Level : RAID0(Stripe)
  • Page 73 Step 5: Enter the array capacity and press <Enter>. Finally press <Enter> on the Create Volume item to begin creating the RAID array. When prompted to confirm whether to create this volume, press <Y> to confirm or <N> to cancel (Figure 13). Intel(R) Rapid Storage Technology - Option ROM - 14.8.0.2377 Copyright (C) Intel Corporation. All Rights Reserved. [ CREATE VOLUME MENU ] Name : Volume0 RAID Level : RAID0(Stripe) Disks :...
  • Page 74 Recovery Volume Options Intel Rapid Recover Technology provides data protection by allowing users to easily restore data and system ® operation using a designated recovery drive. With the Rapid Recovery Technology, which employs RAID 1 functionality, users can copy the data from the master drive to the recovery drive; if needed, the data on the recovery drive can be restored back to the master drive. Before you begin: •...
  • Page 75 Step 3: Press <Enter> under the Select Disks item. In the SELECT DISKS box, press <Tab> on the hard drive you want to use for the master drive and press <Space> on the hard drive you want to use for the recovery drive. (Make sure the recovery drive has equal or larger capacity than the master drive.) Then press <Enter> to confirm (Figure 17).
  • Page 76 Delete RAID Volume To delete a RAID array, select Delete RAID Volume in MAIN MENU and press <Enter>. In the DELETE VOLUME MENU section, use the up or down arrow key to select the array to be deleted and press <Delete>. When prompted to confirm your selection (Figure 19), press <Y> to confirm or <N> to abort.

  • Page 77: Installing The Sata Raid/Ahci Driver And Operating System

    Installing the SATA RAID/AHCI Driver and Operating System With the correct BIOS settings, you are ready to install the operating system. A. Installing Windows As some operating systems already include Intel SATA RAID/AHCI driver, you do not need to install separate ® RAID/AHCI driver during the Windows installation process. After the operating system is installed, we recommend that you install all required drivers from the motherboard driver disk using "Xpress Install" to ensure system performance and compatibility.
  • Page 78 B. Rebuilding an Array Rebuilding is the process of restoring data to a hard drive from other drives in the array. Rebuilding applies only to fault-tolerant arrays such as RAID 1, RAID 5 or RAID 10 arrays. The procedures below assume a new drive is added to replace a failed drive to rebuild a RAID 1 array. (Note: The new drive must have equal or greater capacity than the old one.) Turn off your computer and replace the failed hard drive with a new one. Restart your computer. • Enabling Automatic Rebuild Step 1: When the message "Press <Ctrl-I> to enter Configuration Utility" appears, press <Ctrl> + <I> to enter the RAID Configuration Utility. The following screen appears after you enter the RAID Configuration Utility. Intel(R) Rapid Storage Technology - Option ROM - 14.8.0.2377 Copyright (C) Intel Corporation. All Rights Reserved. [ MAIN MENU ] DEGRADED VOLUME DETECTED 1.
  • Page 79 • Performing the Rebuild in the Operating System While in the operating system, make sure the chipset driver has been installed from the motherboard driver disk. Then launch the Intel Rapid Storage Technology utility from the desktop. ® Step 2: Select a new drive to rebuild the RAID and click Rebuild. Step 1: Go to the Manage menu and click Rebuild to another disk in Manage Volume.
  • Page 80 • Restoring the Master Drive to a Previous State (for Recovery Volume only) When two hard drives are set to Recovery Volume in Update on Request mode, you can restore the master drive data to the last backup state when needed. For example, in case the master drive detects a virus, you can restore the recovery drive data to the master drive. Step 1: Select 4.

  • Page 81: Chapter 4 Drivers Installation

    Chapter 4 Drivers Installation • Before installing the drivers, first install the operating system. (The following instructions use Windows 8.1 as the example operating system.) • After installing the operating system, insert the motherboard driver disk into your optical drive. Click on the message "Tap to choose what happens with this disc" on the top-right corner of the screen and select "Run Run.exe."...

  • Page 82: Application Software

    Application Software This page displays the apps that GIGABYTE develops and some free software. You can select the apps you want and click the Install icon to begin the installation. Information This page provides detailed information on the drivers on the driver disk. The Contact page provides contact information of the GIGABYTE Taiwan headquarter. You can click the URL on this page to link to the GIGA- BYTE website to check more information on the GIGABYTE headquarter or worldwide branch offices.

  • Page 83: Chapter 5 Unique Features

    Chapter 5 Unique Features BIOS Update Utilities GIGABYTE motherboards provide two unique BIOS update tools, Q-Flash and @BIOS . GIGABYTE Q-Flash ™ ™ and @BIOS are easy-to-use and allow you to update the BIOS without the need to enter MS-DOS mode. Additionally, this motherboard features the DualBIOS design and supports Q-Flash Plus, providing multiple ™...
  • Page 84 B. Updating the BIOS In the main menu of Q-Flash, use the keyboard or mouse to select an item to execute. When updating the BIOS, choose the location where the BIOS file is saved. The following procedure assumes that you save the BIOS file to a USB flash drive. Step 1: 1. Insert the USB flash drive containing the BIOS file into the computer. In the main menu of Q-Flash, select Update BIOS From Drive. • The Save BIOS to Drive option allows you to save the current BIOS file. •...
  • Page 85 Step 4: During the POST, press <Delete> to enter BIOS Setup. Select Load Optimized Defaults on the Save & Exit screen and press <Enter> to load BIOS defaults. System will re-detect all peripheral devices after a BIOS update, so we recommend that you reload BIOS defaults. Select Yes to load BIOS defaults Step 5: Select Save &...

  • Page 86: Updating The Bios With The @Bios Utility

    5-1-2 Updating the BIOS with the @BIOS Utility A. Before You Begin 1. In Windows, close all applications and TSR (Terminate and Stay Resident) programs. This helps prevent unexpected failures when performing a BIOS update. 2. If the BIOS is being updated via the Internet, ensure the Internet connection is stable and do NOT interrupt the Internet connection (for example, avoid a power loss or switching off the Internet). Failure to...

  • Page 87: Using Q-Flash Plus

    5-1-3 Using Q-Flash Plus A. Before You Begin 1. From GIGABYTE's website, download the latest compressed BIOS update file that matches your motherboard model. 2. Uncompress the downloaded BIOS file, save it to your USB flash drive, and rename it to GIGABYTE.bin. Note: The USB flash drive must use the FAT32/16 file system and it must be a USB 2.0 flash drive. 3. Insert the USB flash drive into the white USB port on the back panel. B. Using Q-Flash Plus If both the main and backup BIOS fail during system boot, wait for 15-20 seconds, the system will automatically search and match the BIOS file in the USB flash drive on the white USB port. The FBIOS_LED will flash when the BIOS matching and flashing activities start.

  • Page 88: App Center

    APP Center GIGABYTE App Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard . Using a simple, unified user interface, GIGABYTE App Center allows you (Note) to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the apps, drivers, and BIOS.

  • Page 89: Osd

    5-2-1 3D OSD 3D OSD automatically detects and displays your system information during games, allowing you to easily (Note) get hold of your system information without switching between screens. The 3D OSD Interface Using 3D OSD Main Menu: Allows you to enable or disable the 3D OSD feature and to select the type of real-time system information you wish to display.

  • Page 90: Ambient Led

    5-2-2 Ambient LED GIGABYTE Ambient LED allows you to enable or change the display mode for the onboard audio LEDs and rear panel I/O shield LEDs while in the Windows environment. (Note) The Ambient LED Interface Using Ambient LED • Ambient LED: Allows you to enable or disable the onboard audio LEDs.

  • Page 91: Autogreen

    5-2-3 AutoGreen AutoGreen is an easy-to-use tool that provides users with simple options to enable system power savings (Note) via a Bluetooth-enabled smart phone/tablet device. When the device is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode. Before using this app, you need to turn on Bluetooth on both your computer and smart phone/tablet device. The AutoGreen Interface Control Tab: The Control tab allows you to select a system power saving mode.

  • Page 92: Bios Setup

    5-2-4 BIOS Setup This app provides information on your motherboard model and BIOS version. You can also use it to select the default language used by the BIOS and set the system time/power management settings. The BIOS Setup Interface Using BIOS Setup: •...

  • Page 93: Color Temperature

    5-2-5 Color Temperature GIGABYTE Color Temperature is a simple interface which allows you to directly adjust the monitor color temperature and reduce the blue light to protect your eyes. The Color Temperature Interface Using Color Temperature You can use the slider for adjustment. To close the app, click the icon on the top right corner.

  • Page 94: Cloud Station

    5-2-6 Cloud Station GIGABYTE Cloud Station (Server) is composed of HomeCloud, GIGABYTE Remote, Remote OC, and HotSpot, which allow your smart phone, tablet device, and remote computer to communicate, share resources, and control the host computer via wireless connection. Cloud Station allows your computer to share files with another computer that has Cloud Station (Server) installed. Before You Begin: •...
  • Page 95 Cloud Station: Using HomeCloud Step 1: Launch HomeCloud on the host computer (installed with Cloud Station (Server)), sign in with your Google/ Facebook/Windows Live account or select the account on the Account List. Then enable HomeCloud Function. To automatically enable this function after system reboot, enable Always run on next reboot. Step 2: Run Cloud Station on your smart phone/tablet device/remote computer, sign in with the same account you use for HomeCloud on your host computer. Tap on HomeCloud to perform the following functions: On the Host Computer: Option Function...
  • Page 96 GIGABYTE Remote GIGABYTE Remote allows you to use your smart phone/tablet device to remotely control the mouse/keyboard/ Windows Media Player on your computer. The GIGABYTE Remote Interface Using GIGABYTE Remote Step 1: On the host computer, launch GIGABYTE Remote and enable GIGABYTE Remote Function. To automatically enable this function after system reboot, enable Always run on next reboot. Step 2: Run GIGABYTE Cloud Station on your smart phone/tablet device, sign in with the same account you use for HomeCloud on your computer. Tap on Remote Control to perform the following remote controls: On the Smart Phone/Tablet Device: Option Function...
  • Page 97 Remote OC Remote OC provides you with remote control options including overclocking and system tweaking, system monitoring plus the ability to also remotely power down/reset the PC when needed. The Remote OC Interface Using Remote OC Step 1: On the host computer, launch Remote OC and enable Remote OC Function. To automatically enable this function after system reboot, enable Always run on next reboot. Step 2: Run GIGABYTE Cloud Station on your smart phone/tablet device, sign in with the same account you use for HomeCloud on your computer.
  • Page 98 HotSpot HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices. Make sure your computer has been connected to a network and Wi-Fi is enabled. The HotSpot Interface Using HotSpot: Configuring your host computer: The options are as follows.

  • Page 99: Easytune

    5-2-7 EasyTune GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or do overclock/overvoltage in Windows environment. The EasyTune Interface Tabs Information Description The Smart Boost tab provides you with different levels of CPU frequency to choose to achieve desired system performance. After making changes, be sure to restart your system for these changes to take effect.

  • Page 100: Easy Raid

    5-2-8 Easy RAID The GIGABYTE Easy RAID utility includes the following 'EZ' setups applications that will offer greatly simplified install and configuration procedures: Disk Mode Switch, EZ Smart Response, and XHD. Disk Mode Switch Disk Mode Switch allows you to change the SATA controller disk mode from AHCI to RAID mode even after the hard drive has been installed with an operating system. After switching the operating mode, please restart your computer and make sure the Intel Rapid Storage Technology utility can work properly. ® Unique Features - 100 -...
  • Page 101 EZ Smart Response A. System Requirements 1. An Intel Chipset-based motherboard supporting this feature ® 2. Intel Core series processor ® 3. Intel SATA controllers set to RAID mode ® 4. Intel Rapid Storage Technology utility installed ® (Note 1) 5. A conventional SATA disk and an SSD (Note 2) 6. Windows 7 with SP1/Windows 8.1/Windows 10 (Note 3) If you have installed the operating system before configuring the Smart Response Technology, all original data on the SSD will be lost once you enable RAID mode...
  • Page 102 With GIGABYTE XHD , users can quickly configure a RAID-ready system for RAID 0 when a new SATA (Note 1) drive is added. All with a simple click of a button, XHD helps to enhance your hard drive read/write performance without the need for complex and time-consuming configurations. A. System Requirements 1. An Intel Chipset motherboard supporting RAID ® 2. Intel SATA controllers set to RAID mode ® 3. Intel Rapid Storage Technology utility installed ®...

  • Page 103: Fast Boot

    5-2-9 Fast Boot Through the simple GIGABYTE Fast Boot interface, you can enable or change the Fast Boot or Next Boot (Note 1) After AC Power Loss setting right in the operating system. The Fast Boot Interface Using Fast Boot • BIOS Fast Boot: This option is the same as the Fast Boot option in BIOS Setup.

  • Page 104: Platform Power Management

    5-2-10 Platform Power Management This application allows you to change the Platform Power Management settings in Windows and sync the settings to the BIOS. The Platform Power Management Interface Using Platform Power Management: • Platform Power Management: Enables or disables the Active State Power Management function (ASPM). • PEG ASPM: Allows you to configure the ASPM mode for the device connected to the CPU PEG bus.

  • Page 105: Smart Timelock

    5-2-11 Smart TimeLock GIGABYTE Smart TimeLock allows you to effectively manage computer or Internet usage time with simple rules and options. The Smart TimeLock Interface Using Smart TimeLock Click the lock icon on the bottom left corner and enter the password .

  • Page 106: Smart Keyboard

    5-2-12 Smart Keyboard GIGABYTE Smart Keyboard allows you to set your own hotkeys using the F1 through F12 keys. You can use the customized hotkeys to change the mouse sensitivity, replace a word or password, open a file or an application, all of which helps to make the most out of your keyboard and mouse. The Smart Keyboard Interface Using Smart Keyboard: Select one of the F1 through F12 keys and configure the following functions: •...

  • Page 107: Smart Backup

    5-2-13 Smart Backup Smart Backup allows you to back up a partition as an image file every hour. You can use these images to restore your system or files when needed. The Smart Backup main menu: Button Description Allows you to select the source and destination Settings partition Start Allows you to create a rescue drive Backup Now Allows you to perform the backup immediately File Allows you to recover your files from the backup Recovery...
  • Page 108 Recovering your system with Smart Backup: Steps: 1. Click the System Recovery button on the main menu. 2. Select the location where your backup is saved. 3. Use the time slider to select a time point. 4. Select a partition backup created on the selected time point and click Restore.

  • Page 109: System Information Viewer

    5-2-14 System Information Viewer GIGABYTE System Information Viewer allows you to monitor and adjust the fan speed in the operating system. You can also display the hardware monitor information on the desktop to view the system status at any time. The System Information Viewer Interface Tabs Information Description...

  • Page 110: Usb Blocker

    5-2-15 USB Blocker GIGABYTE USB Blocker provides you with an easy-to-use interface that allows you to block certain USB device types on your PC. Devices classes that are blocked will be ignored by the operating system. The USB Blocker Interface Using USB Blocker Select the class of USB device that you would like to block or unblock.

  • Page 111: V-Tuner

    5-2-16 V-Tuner GIGABYTE V-Tuner allows you to easily fine-tune your graphics card in the Windows environment. You (Note 1) can manually overclock the GPU and memory or adjust the fan speed and power settings. It also allows (Note 2) you to monitor your graphics card status at any time. The V-Tuner Interface Using V-Tuner You can manually select the values of each item or use the sliders for adjustment and then click Apply.

  • Page 112: Smart Switch

    Smart Switch GIGABYTE Smart Switch provides you with the conventional Windows start menu, allowing you to easily access to the apps that you frequently use. You can also select the default screen displayed after you enter Windows. The Smart Switch Interface Using Smart Switch The Smart Switch icon will appear on the bottom left corner of the traditional Windows desktop screen after...

  • Page 113: Chapter 6 Appendix

    Chapter 6 Appendix 6-1 Configuring Audio Input and Output 6-1-1 Configuring 2/4/5.1/7.1-Channel Audio The motherboard provides five audio jacks on the back panel which support 2/4/5.1/7.1-channel audio. (Note) Center/Subwoofer Line In The picture to the right shows the default audio jack Speaker Out assignments. Rear Speaker Out Front Speaker Out Mic In •...
  • Page 114 Step 2: Connect an audio device to an audio jack. The The current connected device is dialog box appears. Select the device according to the type of device you connect. Then click OK. Step 3: On the Speakers screen, click the Speaker Configuration tab.

  • Page 115: Configuring S/Pdif Out

    6-1-2 Configuring S/PDIF Out The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio quality. 1. Connecting a S/PDIF Out Cable: Connect a S/PDIF optical cable to an external decoder for transmitting the S/PDIF digital audio signals. Connects to a S/PDIF optical cable 2.

  • Page 116: Configuring Microphone Recording

    6-1-3 Configuring Microphone Recording Step 1: Switch to Windows desktop mode. The HD Audio Manager icon will appear in the notification area. Double-click the icon to access the HD Audio Manager. Step 2: Connect your microphone to the Mic in jack (pink) on the back panel or the Mic in jack (pink) on the front panel. Then configure the jack for microphone functionality. Note: The microphone functions on the front panel and back panel cannot be used at the same time.
  • Page 117 Step 5: To open the Sounder Recorder, move the mouse cursor to the bottom left corner of the screen, click the Start icon to switch to the Start screen (or press the Windows button on the keyboard). Click the icon on the bottom left corner of the screen to access the Apps screen.

  • Page 118: Using The Sound Recorder

    Step 2: On the Recording tab, right-click on an empty space and select Show Disabled Devices. Step 3: When the Stereo Mix item appears, right-click on this item and select Enable. Then set it as the default device. Step 4: Now you can access the HD Audio Manager to configure Stereo Mix and use Sound Recorder to record the sound.

  • Page 119: Troubleshooting

    Troubleshooting 6-2-1 Frequently Asked Questions To read more FAQs for your motherboard, please go to the Support & Downloads\FAQ page on GIGABYTE's website. Q: Why is the light of my keyboard/optical mouse still on after the computer shuts down? A: Some motherboards provide a small amount of standby power after the computer shuts down and that's why the light is still Q: How do I clear the CMOS values? A: For motherboards that have a Clear CMOS button, press this button to clear the CMOS values (before doing this, please turn off the computer and unplug the power cord). For motherboards that have a Clear CMOS jumper, refer to the instruc-...

  • Page 120: Troubleshooting Procedure

    6-2-2 Troubleshooting Procedure If you encounter any troubles during system startup, follow the troubleshooting procedure below to solve the problem. START Turn off the power. Remove all peripherals, connecting cables, and power cord etc. Make sure the motherboard does not short-circuit with the chassis or Isolate the short circuit. other metal objects.
  • Page 121 The power supply, CPU or When the computer is turned on, is the CPU cooler running? CPU socket might fail. The problem is verified and solved. The graphics card, expansion slot, or monitor Check if there is display on your monitor. might fail. The problem is verified and solved. Turn off the computer. Plug in the keyboard and mouse and restart the computer.

  • Page 122: Regulatory Statements

    Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthorized purpose. Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing.
  • Page 123 FCC Notice (U.S.A. Only) Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 124 Canada-Industry Canada (IC): This device complies with Canadian RSS-210. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) t his device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) c e dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
  • Page 125 European Community Directive R&TTE Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Directive 1999/5/EC of the European Parliament and the Council of March 9, 1999 on Radio Equipment and Telecommunication Terminal Equipment (R&TTE). This equipment is suitable for home and office use in all the European Community Member States and EFTA Member States.
  • Page 126 Appendix - 126 -...

  • Page 127: Contact Us

    Contact Us • GIGA-BYTE TECHNOLOGY CO., LTD. • NINGBO G.B.T. TECH. TRADING CO., LTD. - China Address: No.6, Baoqiang Rd., Xindian Dist., WEB address : http://www.gigabyte.cn Shanghai New Taipei City 231, Taiwan TEL: +886-2-8912-4000 TEL: +86-21-63400912 FAX: +886-2-8912-4005 FAX: +86-21-63400682 Tech. and Non-Tech. Support (Sales/Marketing) : Beijing http://esupport.gigabyte.com TEL: +86-10-62102838 WEB address (English): http://www.gigabyte.com...
  • Page 128 • G.B.T. TECH. CO., LTD. - U.K. • Turkey WEB address : http://www.giga-byte.co.uk WEB address : http://www.gigabyte.com.tr • Giga-Byte Technology B.V. - The Netherlands • Russia WEB address : http://www.giga-byte.nl WEB address : http://www.gigabyte.ru • GIGABYTE TECHNOLOGY FRANCE - France •...

Table of Contents
