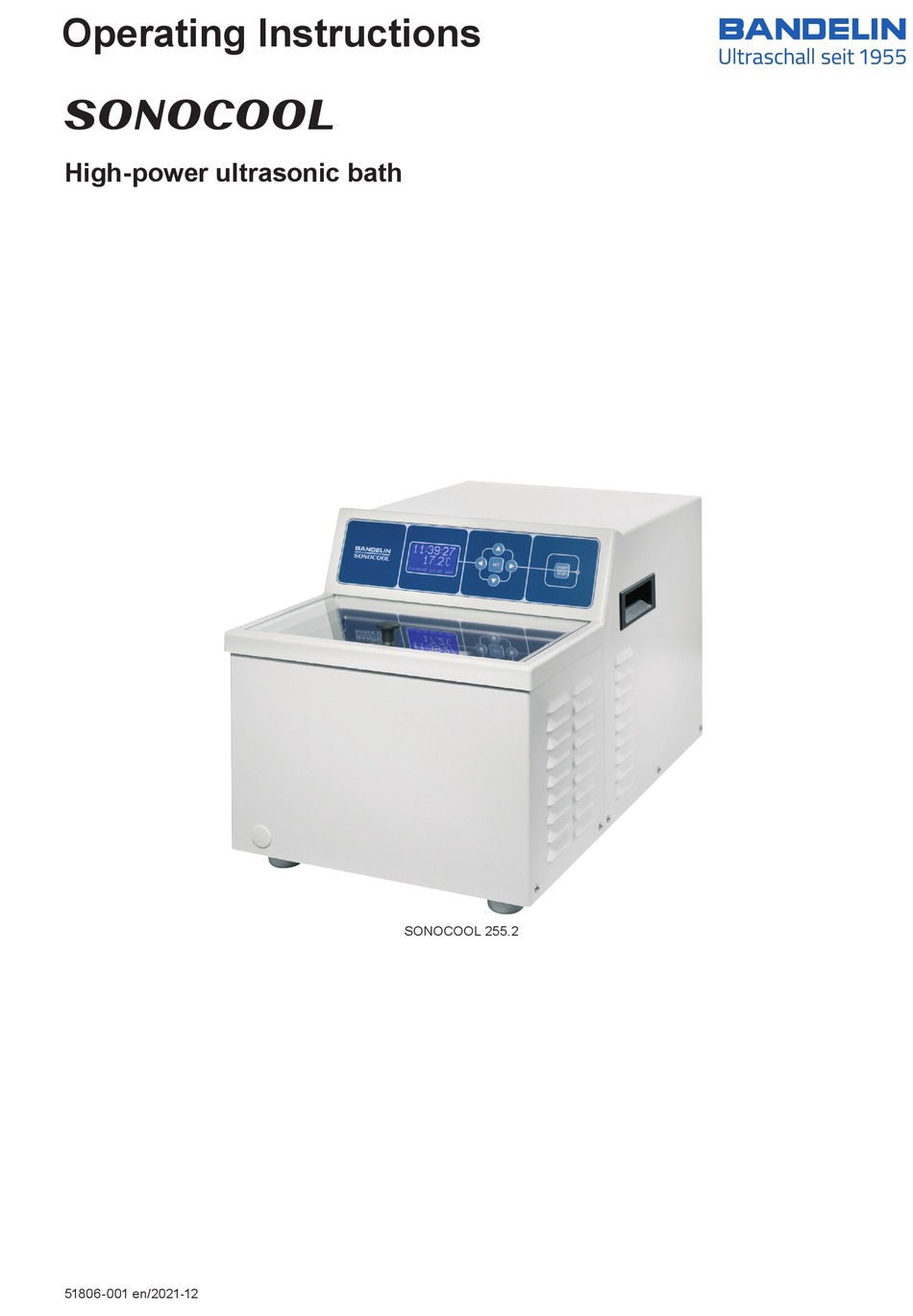

- Page 1 Operating Instructions High-power ultrasonic bath SONOCOOL 255.2 51806-001 en/2021-12...
- Page 2 Copyright & limitation of liability This document may not be reproduced, whether in full or in part, without the prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter "BANDELIN". The German language original is the binding version of this document. Any diff erences in the translation are not binding and have no legal eff...
- Page 3 Identifi es instructions that must be carried out in Instructions the described sequence. 51806-001 en/2021-12 3 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 4: Table Of Contents
Refresh / replace the contact liquid ................23 Further information .....................24 4.5.1 Contact liquid ......................24 4.5.2 Degassing ........................25 4.5.3 Disposal of sonication liquids ..................25 4 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 5 Consumable materials - not applicable - ..............42 Taking the unit out of service ..................42 Keyword index - not applicable - .................43 51806-001 en/2021-12 5 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 6: Product Description
• Shut-off valve for emptying (8), protective cap (8a) in front of emptying nozzle • Mains switch (9), mains connector (10) and • Exhaust air opening (11) 6 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 7 51806-001 en/2021-12 7 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 8: Intended Use
- Electromagnetic Compatibility Directive - RoHS Directive in their currently valid versions. The declaration of conformity can be requested from the manufacturer. 8 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 9: Technical Data
230 V~ (± 10 %), 50 Hz Cable length: Protection class: Class I Weight (net): 29 kg Protection class: IP 2X pursuant to EN 60529 51806-001 en/2021-12 9 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 10: Warnings And Safety Instructions
In case of doubt, information regarding the allowable electromagnetic exposure level should be obtained from the implant manufacturer. 10 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 11 • While maintenance work is being carried out on the pump, there is a risk of crushing fi ngers due to high magnetic forces. 51806-001 en/2021-12 11 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 12: Preparation
1 × TICKOPUR TR 3 250 ml Operating instructions Additional accessories according to order – see delivery note 12 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 13: Setup / Assembly
Next, empty out and switch off the ultrasonic bath in accordance with chapter 4.4. Hang the sample holder in the oscillating tank and place the lid on top. 51806-001 en/2021-12 13 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 14: Operation
The last-selected parameters ( runtime, target temperature, target power) will be saved and accessed the next time the device is turned on. 14 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 15: Explanation Of The Display Fi Elds
Error (see error number). The ultrasonic bath or ultrasound cannot be started. Newly-occurring errors are notifi ed using a short audible signal and sometimes with a blinking warning sign 51806-001 en/2021-12 15 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 16: Operating Modes
===== p-a-u-s-e ===== for Stand-by mode; however 12:00:00 17.0°C the message "p-a-u-s-e" appears on the next to last row. 16 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 17: Setting The Operating Parameters
• With a target temperature below 15 °C, the ultrasound may be occasionally switched off under normal ambient conditions (approx. 20 °C). This can be prevented by reducing the ultrasound power setting. 51806-001 en/2021-12 17 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 18: Time Setting
Editing mode ( temperature) Temperature: Power: 17.2°C 50 % 12:00:00 17.0°C 12:00:00 17.0°C Editing mode ( temperature) Editing mode (power) 18 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 19: Activating / Deactivating The Ultrasound
"00:00:00" and a short audible signal will be emitted. The ultrasonic bath will be in stand-by mode once again. 51806-001 en/2021-12 19 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 20: Use
• When using preparations, the safety instructions included in the product leafl ets are to be fundamentally adhered to. 20 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 21: Degassing The Liquid
The contact liquid must visibly and tangibly flow into the tank at the feed (in the tank) . Set the degassing time (10 min) and activate the ultrasound, see chapter 3.5. 51806-001 en/2021-12 21 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 22: Ultrasonic Operation
The last-selected parameters ( runtime, target temperature, target power) will be saved and accessed the next time the ultrasonic bath is started. 22 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 23: Refresh / Replace The Contact Liquid
Caution! Pressurised air may NOT be blown through the hose conduits. 51806-001 en/2021-12 23 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 24: Further Information
In order to prevent clouding or precipitation of the contact liquid when using very hard water, the contact liquid can be mixed with deionised water. 24 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 25: Degassing
In every case, the statutory provisions and regulations of municipal wastewater plants must be adhered to. Information is provided by municipal wastewater plants as well as by environmental agencies. 51806-001 en/2021-12 25 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 26: Cleaning And Maintenance Of The Ultrasonic Bath
This extraneous rust produces localised corrosion of the stainless steel. For this reason, remove rust stains immediately using a soft cloth and a commercial stainless steel cleaning product without abrasive additives. 26 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 27: Disinfection
The lid should be placed on top in order to protect the oscillating tank from outside contamination. 1 VAH: Verbund für angewandte Hygiene (Alliance for Applied Hygiene) / Germany 51806-001 en/2021-12 27 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 28: Service And Repair
Bucket content after 1 minute at approx. 3. l -> no rinsing necessary Bucket contents well below 3 l after 1 minute -> urgently fl ush 28 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 29: Monitoring The Ultrasound
• Switch on cooling (target temperature setting must be at least 1 degree below actual temperature) • Switch off the ultrasonic bath 51806-001 en/2021-12 29 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 30: Check The Cooling
In order to obtain a suffi ciently strong cavitation eff ect, the foil test also requires the surface tension of the water used to be reduced using surfactant preparations (in the ultrasound 30 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 31 Perforation of the foil must be visible (see illustration), otherwise contact the manufacturer Aluminium foil, Sample slide from must be immersed an inset beaker 51806-001 en/2021-12 31 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 32: Maintenance By Manufacturer Or Qualifi Ed Personnel
• cross-recessed screwdriver • disposable gloves • hose cutting pliers, or a knife • side cutting nipper 32 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 33: Visual Inspection
• Check the ultrasonic bath for dents, cavitation damage and condition of the fi ll level mark • Check the outlet for any noticeable traces of liquid 51806-001 en/2021-12 33 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 34: Functional Check
• Functional pump must be disassembled according to manufacturer’s specifi cations and thoroughly cleaned; if the pump is defective, a new pump must be installed 34 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 35 51806-001 en/2021-12 35 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 36: Malfunction/Error Analysis
Switch the ultrasonic bath off and back on. If the error appears = US module (FH1) = again, contact the manufacturer. 36 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 37 Room temperature too high? Observe the ambient conditions for the ultrasonic bath, see chapter 1.4. Cooling unit defective? Contact the manufacturer . 51806-001 en/2021-12 37 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 38: Repair
With repeated, simple pressing of the key, a third sub-menu [] will open with the setting data for the HF generator (FH1) 38 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 39: Service
The "Certifi cate of Decontamination" can be downloaded from our website as a PDF fi le: https://bandelin.com/fragebogen/Dekontamination_GB_BANDELIN.pdf 51806-001 en/2021-12 39 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 40: Accessories
No-obligation telephone consultation: Website: +49-(0)-30 – 768 80 – 0 www.bandelin.com Required accessories See scope of delivery, chapter 2.1. 40 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 41: Optional Accessories
Sample holder SD 01.2 PH 255-11 Inset beaker SD 06 Implant box IB 18 Insert basket K 5 SC 51806-001 en/2021-12 41 / 43 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 42: Chemical Agents
• Plastic accessories such as insert baskets, silicone knob mats or lids must be decontaminated and disposed of. • The packaging is recyclable. 42 / 43 51806-001 en/2021-12 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 43: Keyword Index - Not Applicable
Keyword index - not applicable - BANDELIN electronic GmbH & Co. KG www.bandelin.com Zertifi ziert nach Heinrichstraße 3 – 4 info@bandelin.com ISO 9001 12207 Berlin +49 30 768 80-0 ISO 13485 Deutschland +49 30 773 46 99...
