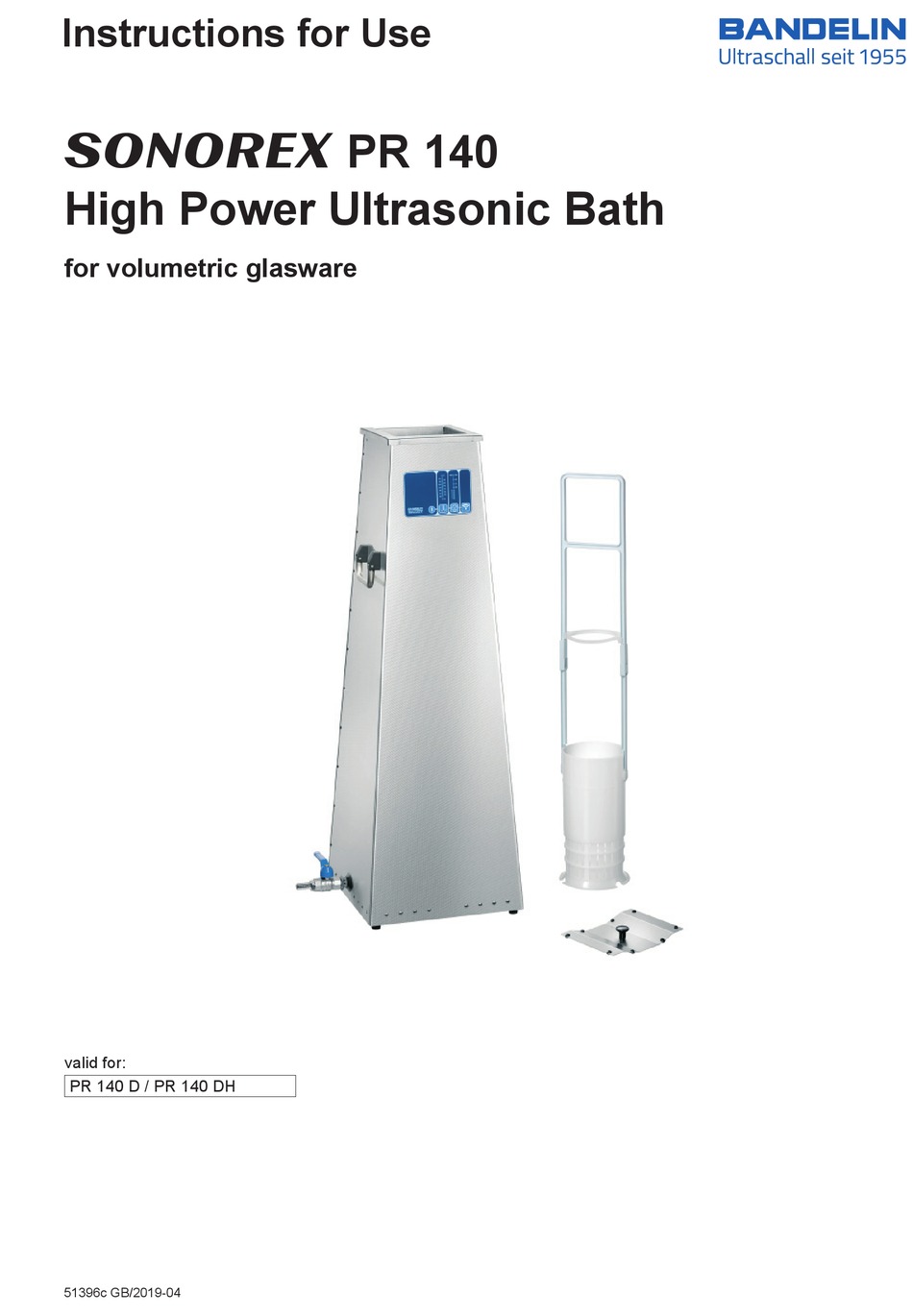

- Page 1 Instructions for Use 3 PR 140 High Power Ultrasonic Bath for volumetric glasware valid for: PR 140 D / PR 140 DH 51396c GB/2019-04...
- Page 2 Copyright & limitation of liability This document may not be reproduced, either in full or in extracts, without prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter referred to as BANDELIN. The German original is the binding version of this document. Any differences in the translation are not binding and have no legal effect.
- Page 3 Identifi es instructions that are to be followed in the described Handling instructions sequence. 51396c GB/2019-04 3 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 4: Table Of Contents
Instructions for use .....................15 General use ........................16 Further information .....................19 4.3.1 Degassing ........................19 4.3.2 Disposal of bath fl uids ....................19 4 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 5 Error analysis ......................22 Repairs and service ....................23 Accessories ........................24 Required accessories ....................24 Preparations .......................25 Taking the unit out of service ..................26 51396c GB/2019-04 5 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 6: Product Description

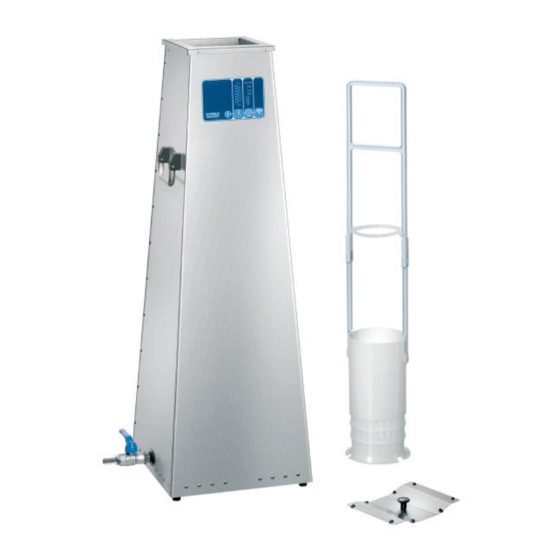

• Outlet with ball valve (6) for simple draining of bath fl uid • Hinged handles (7) • Depending on the model, with heating (type "H"). SONOREX PR 140 DH 6 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 7: Mode Of Operation
Only in this manner is the optimum diffusion of the ultrasound guaranteed. The ultrasonic bath is a standing unit and is operated on the front. 51396c GB/2019-04 7 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 8: Ce Conformity
* In order to improve the effect, the ultrasound is modulated, thanks to which a 4-fold HF power value is obtained as ultrasonic peak power. 8 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 9: Electromagnetic Ambient Conditions (Emc)
It is suitable for use in facilities and areas which are directly connected to a public low- voltage supply network, e.g. medical laboratory facilities. 51396c GB/2019-04 9 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 10: Warnings And Safety Precautions
• Repairs are only to be conducted by authorised skilled personnel or by the manufacturer. • Defective parts may only be replaced with original parts. 10 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 11: Preparation
(maximum of 1 to 2 seconds), a hissing noise should be heard. Then, switch the device off again. Place accessories in the ultrasonic bath and place lid on top. 51396c GB/2019-04 11 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 12: Operation
While turned off, the ultrasonic bath may remain connected to the mains. It can be disconnected from the mains by pulling the mains plug. 12 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 13: Heating (Only At Pr 140 Dh)
Activating the function: By pressing the temperature setting button when you switch the unit on (Button ON/OFF). 51396c GB/2019-04 13 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 14: Special Functions
The function can be released again in the same way. The green continuous operation LED ( ) lights up in confi rmation. 14 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 15: Use
• Replace used bath fl uids, do not refresh by adding fl uids. 51396c GB/2019-04 15 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 16: General Use
Carefully fi ll it up with 7 or 16 litres of water, taking care to avoid foaming as much as possible. 1 MILLNER, R.: Wissenspeicher Ultraschalltechnik, Fachbuchverlag publishing house, Leipzig 1987 16 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... - Page 17 In the case of stubborn residue, conduct sonication for a longer time if necessary. Set the required sonication time and start the ultrasound, see chapter 3.1. 51396c GB/2019-04 17 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
- Page 18 After emptying the oscillating tank, rinse it thoroughly. For additional care instructions, see chapter 5. 18 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
-
Page 19: Further Information
In every case, the statutory provisions and regulations of municipal wastewater plants must be adhered to. Information is provided by municipal wastewater plants as well as by environmental agencies. 51396c GB/2019-04 19 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 20: Cleaning And Maintenance Of The Ultrasonic Bath
During long periods of non-use, the ultrasonic bath should be stored in a cool, dry location. The lid should be placed on top in order to protect the oscillating tank from outside contamination. 20 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 21: Maintenance And Repair
Then, the value displayed should be compared with the corresponding value in the technical data (chapter 1.4) (tolerances ± 20%). 51396c GB/2019-04 21 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 22: Error Analysis
Slight erosion visible on the tank bottom? Natural wear. Ultrasonic bath OK. Any malfunctions are to be communicated in writing to the manufacturer. 22 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 23: Repairs And Service
The form can be downloaded from the Internet as a PDF fi le: www.bandelin.com - Download ... 51396c GB/2019-04 23 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 24: Accessories
Lid D 140 D Dimensions (L × W × H) 220 × 147 × 26 mm Order No. 3967 24 / 27 51396c GB/2019-04 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 25: Preparations
• Do not ingest or inhale the preparations, and do not allow them to come into contact with the eyes or skin. • Specimens in powder form may only be used fully dissolved. 51396c GB/2019-04 25 / 27 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com... -
Page 26: Taking The Unit Out Of Service
Taking the unit out of service If the ultrasonic bath no longer works, it must be disposed of appropriately. If Service is required, please contact the specialist dealer or the address specifi ed. BANDELIN electronic GmbH & Co. KG www.bandelin.com Zertifi ziert nach Heinrichstraße 3 –... - Page 27 Important: The instructions for user in this and other languages, as well as further information, can be found in the enclosed CD.
