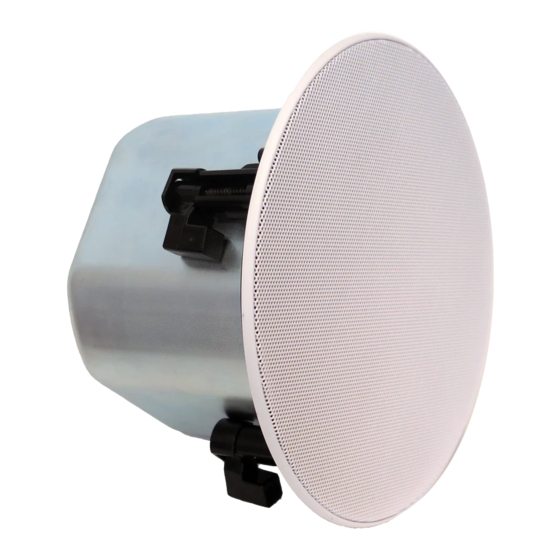

- Page 1 INSTALLATION AND OPERATION MANUAL QUICK FIT PREMIUM COAXIAL SERIES QF20CS / QF60CS / QF80CS...
- Page 2 SPEAKER DIAGRAM TOP PANEL REAR PANEL Attachment Screws Euroblock Loudspeaker Driver Safety Hook Tap Selector Rotating Mounting Tabs Steel Backcan Rotating Mounting Tab QUICKFIT PREMIUM COAXIAL SPEAKERS INSTALLATION AND OPERATION MANUAL...
- Page 3 INSTALLATION To ensure a reliable installation, please follow these steps carefully: 1. Assemble the speaker mounting bracket (see 6. Insert the pre-wired Euroblock connector, ensuring graphic below) by taking one of the alignment beams the correct polarity is being used. and sticking it under the groove in the “C”...
- Page 4 16 ohm position. It may be best to leave the grille off until setting the power is complete in case adjustments are needed. 9. Attach the magnetic grille on the speaker. ENGINEERED BY AUSTRALIAN MONITOR Address: Unit 1, 2 Daydream Street, Warriewood NSW 2102 Australia Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au...
