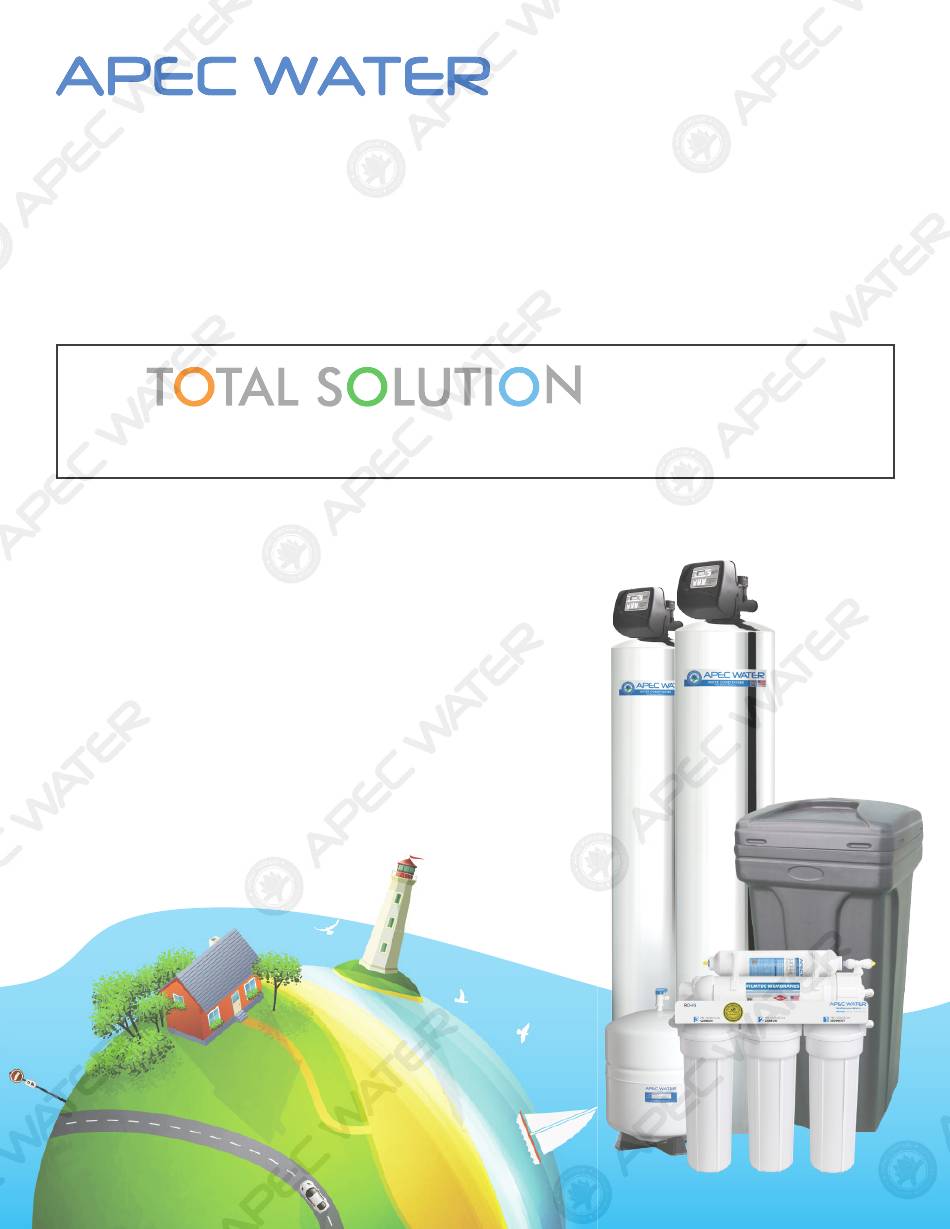

- Page 1 www.Free Drinking Water.com S-Series QUICK SETUP GUIDE Ver 2.1...
- Page 3 Thank you for choosing the APEC Total Solution system. You now own one of the finest and most complete whole house water purification systems in the world. Copyright: This manual is copyrighted by APEC Inc. Under the copyright laws, this manual may not be reproduced in any form, in whole or part, without the prior written consent of APEC Inc.
-
Page 4: Get To Know Your System
GET TO KNOW YOUR SYSTEM: The Total Solution is a multi-stage system made up of three specialized water purification units which include a Whole House Max Water System, a Salt-Based Water Softener and a reverse osmosis drinking system. Please read the guide below to get a basic understanding of the different individual systems in your Total Solution package. -
Page 5: Before Installation
BEFORE INSTALLATION: Please take the system and all the components out of the box. Inspect the system and all the connection fittings care- fully, make sure nothing is damaged during shipping. If any part is cracked or broken, please do not proceed with the installation and contact APEC or your distributor for an exchange or diagnosis. - Page 6 QUICK INSTALLATION DIAGRAM for Whole House Max & Salt-Based Softener Pre Installation Preparation: Whole House Max Water Filter & Salt-Based Water Softner The media in both the Whole house Max water filter & Salt-Based Water Softener does not have to be pre soaked, however after both system is installed, please manually backflush both units once before use.
-
Page 7: Normal Operation
This is an overview for system installation. OUT GOING WATER TO HOUSE INCOMING WATER SUPPLY Shut o Valve (Optional) INPUT INPUT OUTPUT OUTPUT TO BRINE TANK CONNECT DRAIN LINE CONNECT DRAIN LINE Salt-Based Water Softener Whole House Max Water Filter (2nd Stage) (1st Stage) Please Set Time of Day on both the Whole House Max &... -
Page 8: General Operation
SETTING UP TIMER CONTROL VALVE GENERAL OPERATION When the system is operating one Arrow will point to Regen of two displays will be shown: time if a regeneration is of day or days until next regenera- expected “Tonight.” tion. Pressing button will toggle between the two choices. -
Page 9: Manual Regeneration
MANUAL REGENERATION For Immediate Regeneration: Arrow will point to Regen if a NOTE: If you need to initiate Press and hold simul- regeneration is expected “Tonight.” a manual regeneration, either taneously until valve motor starts immediately, or tonight at the (typically 3 seconds). - Page 10 SYSTEM INSTALLATION: RO (Reverse Osmosis) Drinking Water System There are 4 main connections: Point A to X: Using the provided Male and Female feed water adapter provided. Connect RO feed water line to COLD water supply — Red tubing. Point G to Y: Connect product water from 5th-stage filter to tank — Yellow tubing. This tubing is a 2-way line, Product water enters and leaves the tank via this line.
-
Page 11: Warranty Policy
WARRANTY POLICY Please refer to individual system manual for warranty coverage and details. - Page 12 Advanced Purification Engineering Corp. 301 Brea Canyon Road, City of Industry, CA 91789 For questions or comments please visit our website at: www.FreeDrinkingWater.com For technical support contact us at: Techsupport@freedrinkingwater.com 1-800-880-4808...
