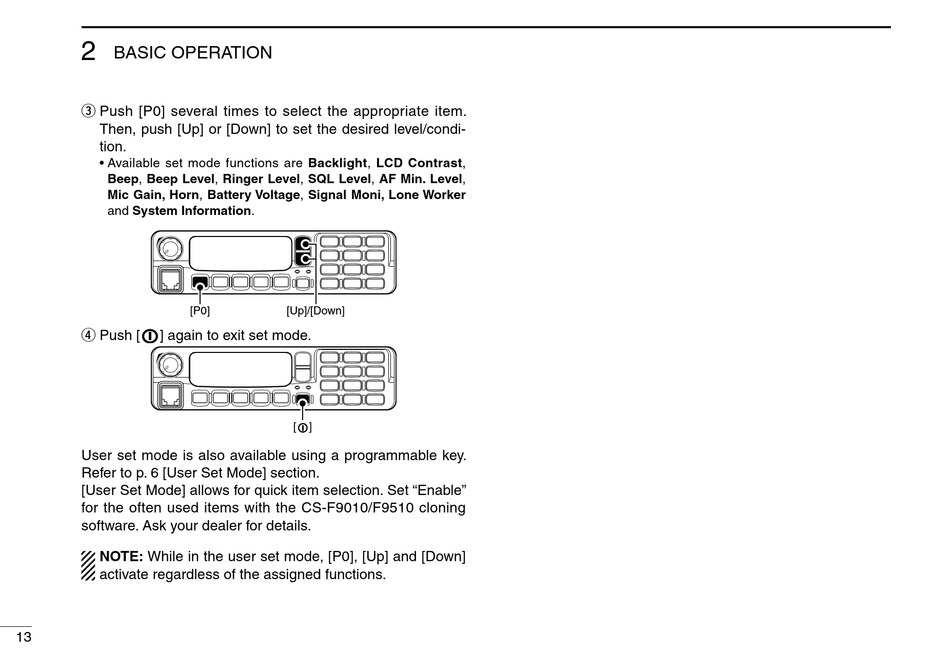

Icom IC-F9511HT Instruction Manual page 18

2
BASIC OPERATION
e Push [P0] several times to select the appropriate item.
Then, push [Up] or [Down] to set the desired level/condi-
tion.
• Available set mode functions are Backlight, LCD Contrast,
Beep, Beep Level, Ringer Level, SQL Level, AF Min. Level,
Mic Gain, Horn, Battery Voltage, Signal Moni, Lone Worker
and System Information.
[P0]
r Push [ ] again to exit set mode.
User set mode is also available using a programmable key.
Refer to p. 6 [User Set Mode] section.
[User Set Mode] allows for quick item selection. Set "Enable"
for the often used items with the CS-F9010/F9510 cloning
software. Ask your dealer for details.
NOTE: While in the user set mode, [P0], [Up] and [Down]
activate regardless of the assigned functions.
13
[Up]/[Down]
[ ]
