Linak TECHLINE LA36 Connection Diagram page 2

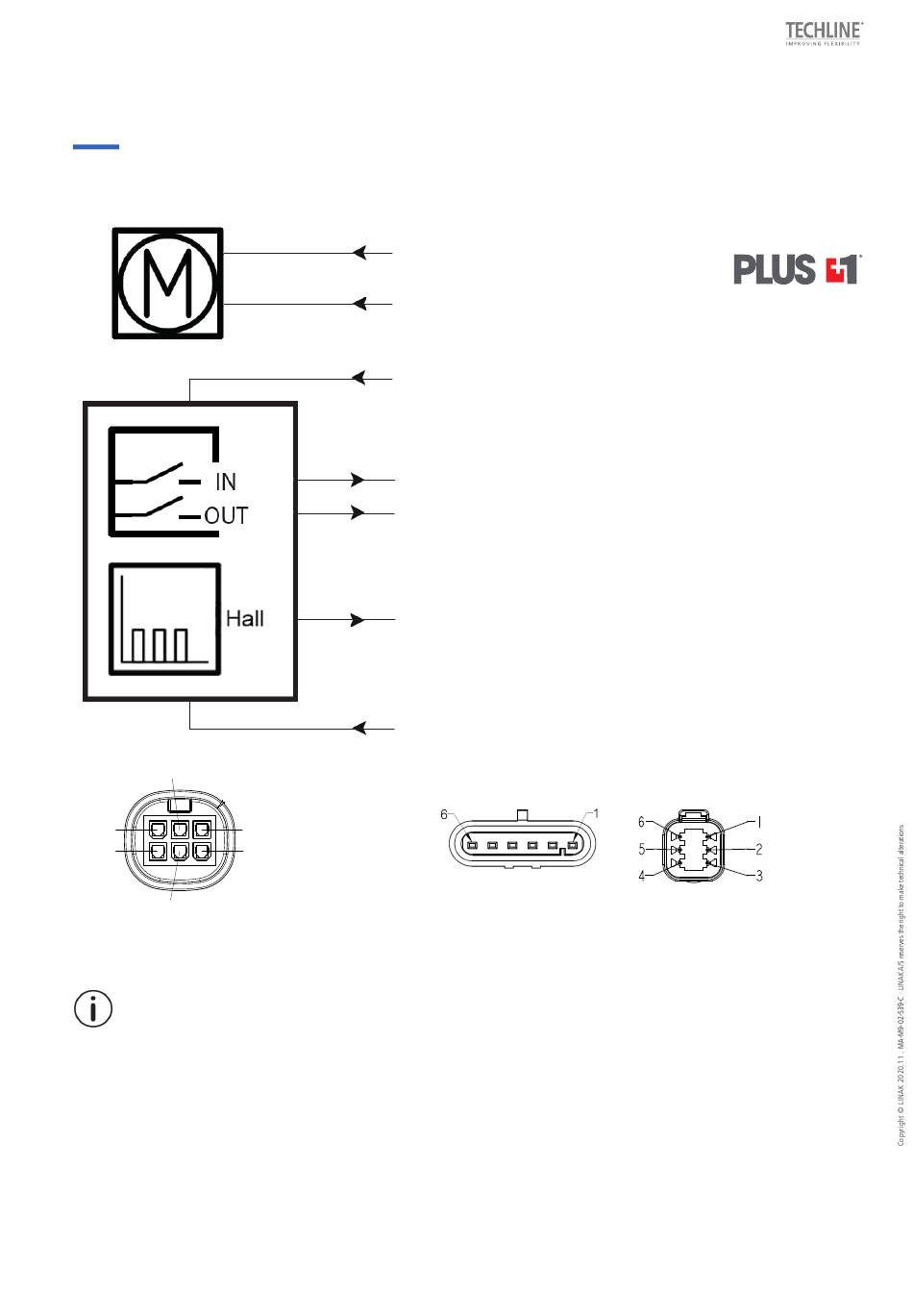

Connection diagram
Endstop signals and relative positioning - Single hall
36XXXX+2KXXXXXX
37XXXX+2KXXXXXX
6P
2
3
4
5
*YELLOW/GREEN: Endstop signals out are NOT potential free (see specifications on next page)
Tip: If you wish to use the endstop signals, you will have to keep power on the brown, blue,
red and black wires, otherwise the signal will be lost.
F O R M O U N T I N G I N S T R U C T I O N S A N D G U I D A N C E I N U S A G E , P L E A S E S E E T H E R E L E V A N T U S E R ' S M A N U A L S
BROWN
BLUE
+
RED
YELLOW*
GREEN*
VIOLET
BLACK
-
1
6
1-3
4-6
2
5
6
4
1
6P
AMP DEUTSCH
9
Compliant with:
Powered by Danfoss
2
5
6
4
1
6P
