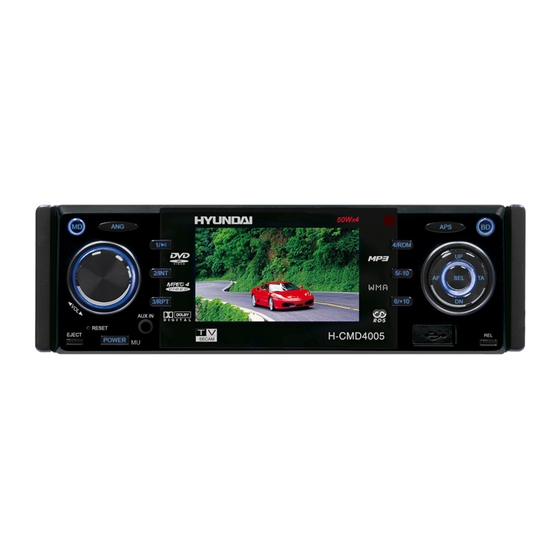

H-CMD4005
MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 3" TFT
DISPLAY AND TV TUNER
Instruction manual
DVD/CD/MP3-
3"
TFT-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CMD4005 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai H-CMD4005

Summary of Contents for Hyundai H-CMD4005

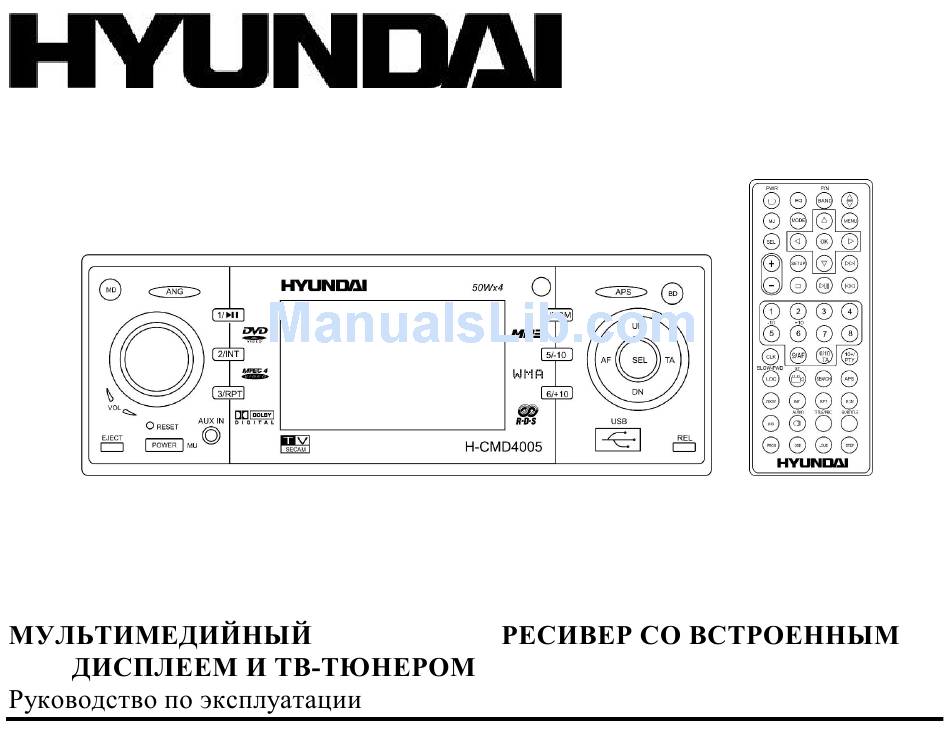

  • Page 1 H-CMD4005 MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 3” TFT DISPLAY AND TV TUNER Instruction manual DVD/CD/MP3- 3” TFT-...

  • Page 2: Table Of Contents

    Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents...2 Important safeguards...3 Installation/ connection ...4 Panel controls ...9 Front panel...9...

  • Page 3: Important Safeguards

    Important safeguards Using the device at temperature below -10º may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 4: Installation/ Connection

    Installation/ connection Din front-mount (method 1) After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place. Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides.
  • Page 5 Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each side. Use either truss screws (5 x 5 mm), depending on the shape of the screw holes in the bracket.

  • Page 6: Detachable Control Panel

    Detachable control panel Detaching the front panel 1. Press the REL button to remove the panel. Attaching the control panel 1. Insert the left side of the control panel into the main unit. 2. Press the control panel on to the right side of middle of it until a “click”...

  • Page 7: Electrical Connection

    Electrical connection Note: For your driving safety, please link your parking wire with low power level, and keep it controlled by manual brake switch. Wire should be high power level and the unit cannot play video disc.
  • Page 8 Caution: Do not interchange the connection of the wiring!!! For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit. Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

  • Page 9: Panel Controls

    Panel controls Front panel 1. MD button Press it to select the mode: =>TUNER (radio) => DISC (the type of disc in the unit) => USB => SD/MMC => AUX => TV=>. 2. VOL knob+/- Rotate VOL knob clockwise to increase the volume level; rotate anticlockwise to decrease the volume level.
  • Page 10 In Disc mode press it to start Intro playing. 5. 1/PLAY/PAUSE button In Tuner mode use it as tuner preset button. In Disc mode press it to start playback. Press during playback to pause it. Press again to resume. 6. TFT display 7.
  • Page 11 16. 3/RPT button In Tuner mode use it as tuner preset button. In Disc mode press it to start repeat playing. 17. 6/+10 button In Tuner mode use it as tuner preset button. In MP3/WMA mode, long press it to go to the next 10 track. 18.
  • Page 12 Remote control 1. EQ button – press to select the corresponding equalizer preset modes to adjust the sound quality. PWR button - press it to turn the power on, press again to turn the power off. 3. MODE button - press it to select the mode: => TUNER => DISC (the type of disc in the unit) =>...
  • Page 13 15. AUDIO button – In DVD mode press it to select audio language. In VCD mode press it to select the channel. 16. A-B button - press it to start repeating of the A-B fragment. 17. OSD button - Press it to show the information on display. 18.
  • Page 14 During video CD playback press it to open the disc menu. 31. SUBTITLE button - Press it to select the subtitle language. 32. LOUD button - Press it to turn the LOUD function on or off. 33. STEP button - Press it consecutively to display the still frame forward with step by step. Changing the battery 1.

  • Page 15: General Operation

    General operation Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press the RESET button on the panel to restore the unit to the original factory settings. Power on/off Press POWER button on the panel or PWR button on the RC to turn the unit on.

  • Page 16: Clock Setting

    Mode control Press the MD button on the panel or MODE button on the RC to select the different playing modes: => TUNER => DISC (the type of disc in the unit if there is any) => USB (if the USB device is inserted) => CARD (if the SD/ MMC card is inserted) =>...

  • Page 17: Digital Tuner

    Digital tuner Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band selection Press the MD button on the panel or MODE button on the RC to select the TUNER mode. Press P/N / BAND button on the RC or BD button on the panel once or more to select: FM1, FM2, FM3, AM1, AM2.

  • Page 18: Rds Function

    Preset scan function Press the APS button to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. To stop preset scan, press this button again. Auto memory store function Press the APS button on the panel and hold for 2 seconds to enter auto store mode.
  • Page 19 AF (Alternative Frequencies) function Press the AF button briefly to switch on/ off mode. Symbol “AF” will appear on the display. Note: The tuner will return to Alternative Frequencies whenever the reception signals getting worse. “Alarm” will be displayed when an emergency broadcasting is received. Meanwhile sound output level will be adjusted to the preset output level automatically when the volume control is set at minimum.

  • Page 20: Disc Operations

    Disc operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.
  • Page 21 Picture file: JPEG (*.jpg) ISO 9660 or ISO 9660 +Joliet format - Max. 30 characters Max. Track number is 448 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz –...
  • Page 22 Note: USB format supports 2.0. Capacity: 8 MB ~ 1 GB. SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: 8 MB ~ 1 GB. MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc. Capacity: 16 MB ~ 1 GB.
  • Page 23 Stop playback During disc playing, press the STOP button on the RC. Playback will be stopped. If the PLAY/PAUSE button is pressed, playback will start from the position at which it was stopped. If the disc is removed, the resume function is cancelled.
  • Page 24 Slow playback (for DVD/VCD) During DVD / VCD playback press the SLOW_FDW button on the RC to execute the SLOW FORWARD function. With each consecutive pressing of the SLOW_FDW button, the playback speed decreases: X1/2 => X1/3 => X1/4 => X1/5 => X1/6 => X1/7 => Normal. During slow forward, press the PLAY/PAUSE button to resume normal playback.
  • Page 25 Intro playback (for CD/VCD) You can play the beginning of every track for 10 seconds in sequence. Press the INT button to start intro play of whole disc. Press again to cancel. Random playback During disc playback press the RDM button to select RANDOM ON => RANDOM OFF mode. Menu navigation (for DVD only) 1.
  • Page 26 Search function For DVD disc: 1. During playback press the SEARCH button on the RC to enter the search window and highlight the title number. Press the number buttons to enter the number of desired title (the total amount of titles is to the right).
  • Page 27 4. If you want to delete the list, move the cursor to CLEAR, press OK to delete all the list set before. 5. Press PROG again to exit program play. On-screen display (OSD) During playback press the OSD button on the RC repeatedly to turn on/ off the playback status. In DVD mode the display will show the following: The number of the playing title =>...
  • Page 28 Changing size (for DVD/VCD) During playback press ZOOM button on the RC continuously to enlarge a certain area of the images on the screen: ZOOM X2, ZOOM X3, ZOOM X4, ZOOM X½, ZOMM X1/3, ZOOM X¼, ZOOM OFF. Using the buttons select the area desired.
  • Page 29 2. Press OK to confirm. File select 1. Use to enter file list and use 2. Press OK to playback. For PICTURE, press PLAY/PAUSE to slide show the pictures. Press PROG to select picture refreshing style. For VIDEO and PICTURE, press STOP button to enter Category/Folder/File list. ID3 function During playback the information of the file name, folder name, song title, artist and album will be scrolling on the LCD display.

  • Page 30: Mp3 Overview

    MP3 overview Notes on MP3: MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 31 Notes on creating your own CD-R or CD-RW containing MP3 files: To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 448 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 32: System Setup Menu

    System setup menu 1. Press the SETUP button on the RC to display the system setup menu. 2. Use the cursor buttons on RC to select the desired menu: System setup, Language setup, Audio setup, Video setup, Speaker setup, Digital setup. 3.

  • Page 33: Language Setup

    Password Here you can change the password. Insert your old password or 0000 (the general one). Insert the new password. Insert it again. Press OK button to save the new password. Rating The rating level is for parents to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level cannot be played.

  • Page 34: Audio Setup

    Audio setup Audio out SPDIF/Off: no digital signal out (optical or coaxial output off), only analog audio output. Setup basic music tone. Video setup Brightness, Contrast, Hue, Saturation, Sharpness You can set the Brightness, Contrast, Hue, Saturation, Sharpness according to your preference.

  • Page 35: Speaker Setup

    Speaker setup LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1CH format. Stereo: The audio out format is stereo even if the original sound is 5.1CH format. VSS: The audio format Advanced Virtual Surround Sound...

  • Page 36: Digital Setup

    Digital setup OP MODE Select the output mode: Line out, RF remod. DYNAMIC RANGE If watching large dynamic scope movie program at night, to select this mode you can reduce the volume to a very low level, at the same time, to keep the fine details sounds. In this case, this doesn't disturb the family and keep the quality sounds.

  • Page 37: Tv Operation

    TV Operation 1. To switch on a suited video color system and a suited TV accompanying sound system in TV mode, short press the BAND button repeatedly to switch on a suited video color system of the 5 ones of the unit: PAL, SECAM, PAL M, PAL N, NTSC. If your monitor has only NTSC or PAL system, the monitor screen will blink or become colorless when a not suited video color system of the unit is switched on.
  • Page 38 In TV mode, to directly select a channel more than 10, firstly press the 10+ button to display__, then input the digit in tens place and then input the digit in units place with the 10 buttons (1-10). 5. To fine the TV signal In TV mode, press and hold the UP/DN button on the front panel or the button on the remote controller to fine the TV signal of the current TV station.

  • Page 39: Anti-Theft System

    Anti-theft system Remove the panel 1. Press the POWER/MU button to turn the power off. 2. Press REL button to detach the panel. 3. Place the panel into the case and take it with you when you leave the car. Remove the unit 1.

  • Page 40: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 41: Troubleshooting Guide

    Troubleshooting guide Cause Symptom The car ignition is not on. General The fuse is blown. No power Presence of disc inside the player. Disc Disc cannot be loaded. Disc cannot be read. Inserting the disc in upside down. Compact disc is extremely dirty or defective.

  • Page 42: Specification

    Specification General Power supply: Current consumption: Maximum power output: Compatible formats: Dimensions (L x W x H): Working temperature range: ESP function: TFT display Screen size: Resolution: Aspect ratio: Contrast ratio: Brightness: View angle: FM Stereo Radio Frequency range: Usable sensitivity: Preset memory stations: AM section Frequency range:...
  • Page 43 Audio specification Maximum output: Frequency response: S/N ratio(A-vtd): Separation Line out Output: Color system Resolution Sensitivity Specifications are subject to change without notice. Mass and dimension are approximate. 2 Vrms (+/- 3 dB) 20 Hz - 20 KHz 90 dB 50 dB CD max 2000 mV PAL/AUTO/NTSC...
  • Page 44 ...44 ...45 ...46 ...51 ...58 ...61 ...65 3 ...76 ...78 ...83 ...85 ...86 ...86 ...88 ...87...
  • Page 45 -10º...
  • Page 46 (5 x 25...
  • Page 47 (5 5...
  • Page 50 12 (+)/ ACC+/ ISO, ISO!!! (+)--- (-)--- (+)--- (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 51 ) => USB => SD/MMC => AUX => TV=>. VOL+/- ANG (TILT) 2/ INT TUNER DISC : =>TUNER ( ) => DISC (...
  • Page 52 1/ PLAY/ PAUSE TUNER DISC ( 4/ RDM TUNER DISC APS. TUNER SEL - FAD=>. TUNER =>NTSC => AUTO=>. EJECT RESET POWER/MU RESET : =>VOL => BAS => TRE => BAL => : => PAL => PAL -M => PAL –N...
  • Page 53 3/ PRT TUNER DISC 6/ +10 TUNER MP3/WMA, 5/ -10 TUNER MP3/WMA, UP/DN/AF/TA DISC TUNER UP/DN 2 TUNER TUNER REL. UP/DN UP/DN MUTE). TA (...
  • Page 54 EQ – PWR - MODE - : => TUNER ( ) => USB => SD/MMC => AUX => TV =>. MUTE - SEL - : =>VOL => BAS => TRE => BAL => FAD =>. +/-, SETUP – +/- - STOP - CLK –...
  • Page 55 ANGLE/ST – LOC/SLOW_FWD – Local Distant. INT – Zoom – AUDIO - A-B– OSD - PROG – P/N / BAND – PAL => PAL -M => PAL -N => NTSC => AUTO =>. TILT - SEL - R => FADER R-F => BRIGHT => CONTRAST => COLOR => SHARP. TURNER TURNER DISC...
  • Page 56 TUNER AF - RADIO PLAY/PAUSE – 10+/PTY – SEARCH – APS. TUNER RPT – RDM – RADIO TITLE/PBC – SUBTITLE – LOUD - STEP - DISC DISC DISC LOUD, TURNER Loud.
  • Page 57 (CR 2025 3V), – 6...
  • Page 58 RESET, POWER POWER/ MU, MU, EJECT, VOL, SEL, POWER, MODE +/-,...
  • Page 59 : => TUNER => DISC ( ) => CARD ( SEL, Loud LOUD : => VOL => BAS => TRE => BAL => FAD =>. MODE ) => USB ( SD/ MMC ) => AUX => TV =>. VOL, VOL+/- VOL+/- Loud.
  • Page 60 : => POP => ROCK => CLAS => FLAT =>. Angle TILT, : => ANGLE0 => ANGLE1 => ANGLE2 => ANGLE3 => ANGLE4 =>.
  • Page 61 RDS ( P/N / BAND FM1, FM2, FM3, AM1, AM2. MODE UP/DN 1-6. UP/ DN (18 FM, 12 AM). 1-6, UP/DN TUNER.
  • Page 62 APS. Mono/ Stereo ANGLE/ST LOCAL LOCAL (1-6). APS. : MONO, STEREO. 1~6. LOCAL.
  • Page 63 : PI, PS, TP, PTY, TA, AF, DATA. AF ( – – – –...
  • Page 64 PTY. : NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT, PTY NONE, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, JAZZ, COUNTRY, NATION M, OLDIES, FOLK M. TA (...
  • Page 65 PBC ( – PBC, – DVD- –...
  • Page 66 : DVD/SVCD/VCD/HDCD/MP3/WMA/Picture-CD/JPEG playback/MPEG4. : MP3 (*.mp3) WMA (*.wma) : MP4 MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + DRM. Joliet - – 448. – 99. - 99 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, : CD-R/-RW/DVD±R/±RW. : 32 - 320 44,1...
  • Page 67 USB/ SD/ MMC FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( FAT 32 ( : 32 (id3tag ver 1.0) USB 2.0. USB: USB 2.0. Sharp, Samsung, MMC: : 16 M ~ 1 EJECT SD/ MMC, 2 1 (SD/MMC). , 500 , 500 : 32...
  • Page 68 SD/ MMC/ USB SD/MMC SD/ MMC PLAY/PAUSE, PLAY/PAUSE Stop DVD/ VCD/ CD/ MP3/ WMA STOP PLAY/PAUSE, STOP PLAY/PAUSE, UP/DN...
  • Page 69 UP/DN or : MP3/WMA => X16 => X20 => DVD / VCD 0/10) 0/10) DVD/VCD) : X1/2 => X1/3 => X1/4 => X1/5 => X1/6 => X1/7 => PLAY/PAUSE 0/10, 10+, –10 UP/DN PLAY/PAUSE SLOW_FDW : X2 => X4 => X8 SLOW_FDW,...
  • Page 70 STEP PLAY/PAUSE VCD/CD RPT ALL. ALL ( Intro ( DVD/VCD) RPT 1 ( RPT CHAPTER ( RPT 1 ( RPT. CD/VCD) ) => RPT ALL ( ) => RPT TITLE ( ) => RPT DIR ( ) => ) => RPT...
  • Page 71 RANDOM ON => RANDOM OFF. TITLE/PBC PLAY/PAUSE, PBC ( TITLE/PBC DVD) PLAY/PAUSE, PBC, MENU...
  • Page 72 VCD/CD/MP3/WMA PROG SEARCH PLAY/PAUSE SEARCH PLAY/PAUSE WMA, MP3, VCD, CD...
  • Page 73 VCD, CD, MP3, WMA => VCD/CD MP3/WMA SUBTITLE «PLAY» «CLEAR» PROG, => => => => => => DVD) => => => =>...
  • Page 74 Mono L ( ) => Mono R ( ZOOM ZOOM X2, ZOOM X3, ZOOM X4, ZOOM X½, ZOMM X1/3, ZOOM X¼, ZOOM OFF DVD- ANGLE/ST P/N/BAND NTSC => AUTO =>. AUDIO/ PICTURE/ VIDEO AUDIO VCD) AUDIO ) => Stereo. DVD/VCD) DVD/VCD) : =>...
  • Page 75 AUDIO PICTURE VIDEO. PICTURE ( PROG, VIDEO PICTURE, PLAY/PAUSE, STOP, 1.0/ 2.0, Category/Folder/File. ID3 tag...
  • Page 76 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 448. VBR, . VBR:...
  • Page 77 CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 78 SETUP NTSC: PAL: 4:3 PS: 4:3 LB: 16:9:...
  • Page 79 – 0000.
  • Page 81 : / , PRO LOGIC Dolby, 5.1, 5.1,...
  • Page 82 : Line out, RF remod.
  • Page 83 BAND, PAL-I); SECAM (SECAM-BG, SECAM-DK); PAL M (PAL M); PAL N (PAL N); NTSC (NTSC MN). BAND, NTSC APS, APS, UP/DN UP/DN : PAL, SECAM, PAL M, PAL N, NTSC. PAL, : PAL (PAL-DK, PAL-BG,...
  • Page 84 UP/DN (1-10), UP/DN 1-6. (1-10) 10+,...
  • Page 85 POWER/MU.
  • Page 87 “ ”. RESET.
  • Page 88 : 50 DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture-CD/JPEG/ CD-R/ -RW/DVD±R/±RW/MPEG4 165 x 178 x 50 / 2,2 -10º - +60º CD, 120 3” 320x240 dpi 16:9, 4:3 300:1 150° , 150° 65.0 – 74.0 / 87.5 – 108.0 MHz 522-1620...
  • Page 89 RMS (+/-3 – 20 (A-vtd): 90 dB 50 dB . 2000 PAL/AUTO/NTSC 320 x 240...
